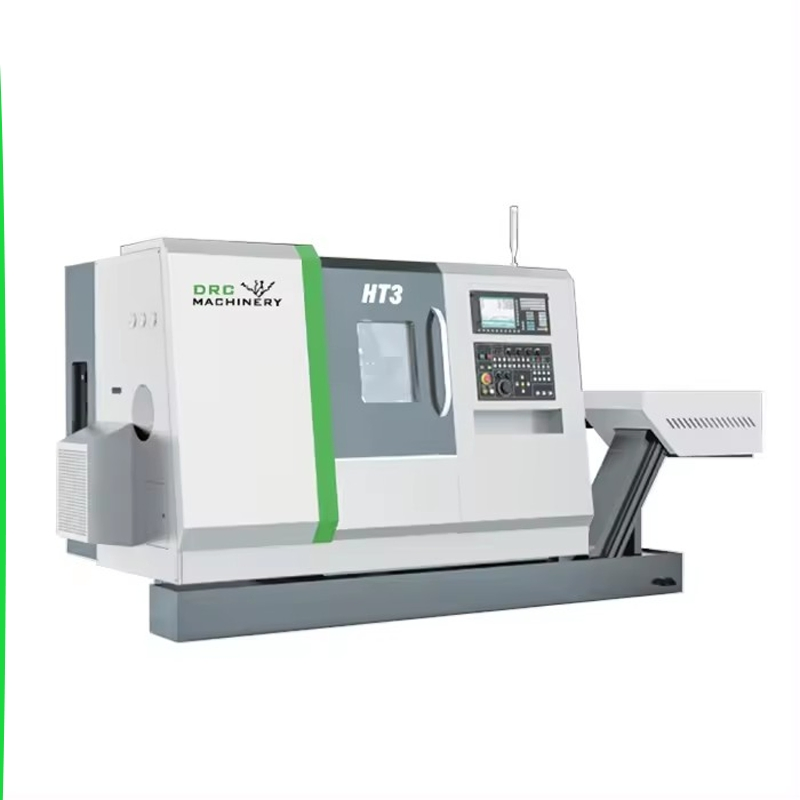

Automatic Slant Bed CNC Lathe with Gantry Loader and Turret
CNC lathe is a four-axis linkage, fully closed-loop CNC machine tool. The machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table is located on the right end of the fixed protective cover, and the ergonomic swing design makes the operation more convenient.
Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, no need to find a reference point. The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.
| Parameter | Unit | Specification |
|---|---|---|
| Spindle maximum speed | rpm | 5000 |
| Max. Torque | N/m | 112 |
| FANUC Spindle power | kW | 11/15 |
| Chuck diameter | mm | 210 |
| Spindle bore | mm | 74 |
| Center distance | mm | 608 |
| Maximum cutting diameter | mm | 340 |
| Rapid traverse Z/X | m/min | 30/30 |
| Positioning Accuracy (X/Z) | mm | 0.008/0.008 |
| Net weight | kg | 3200 |
| Slant angle | - | 45° |
