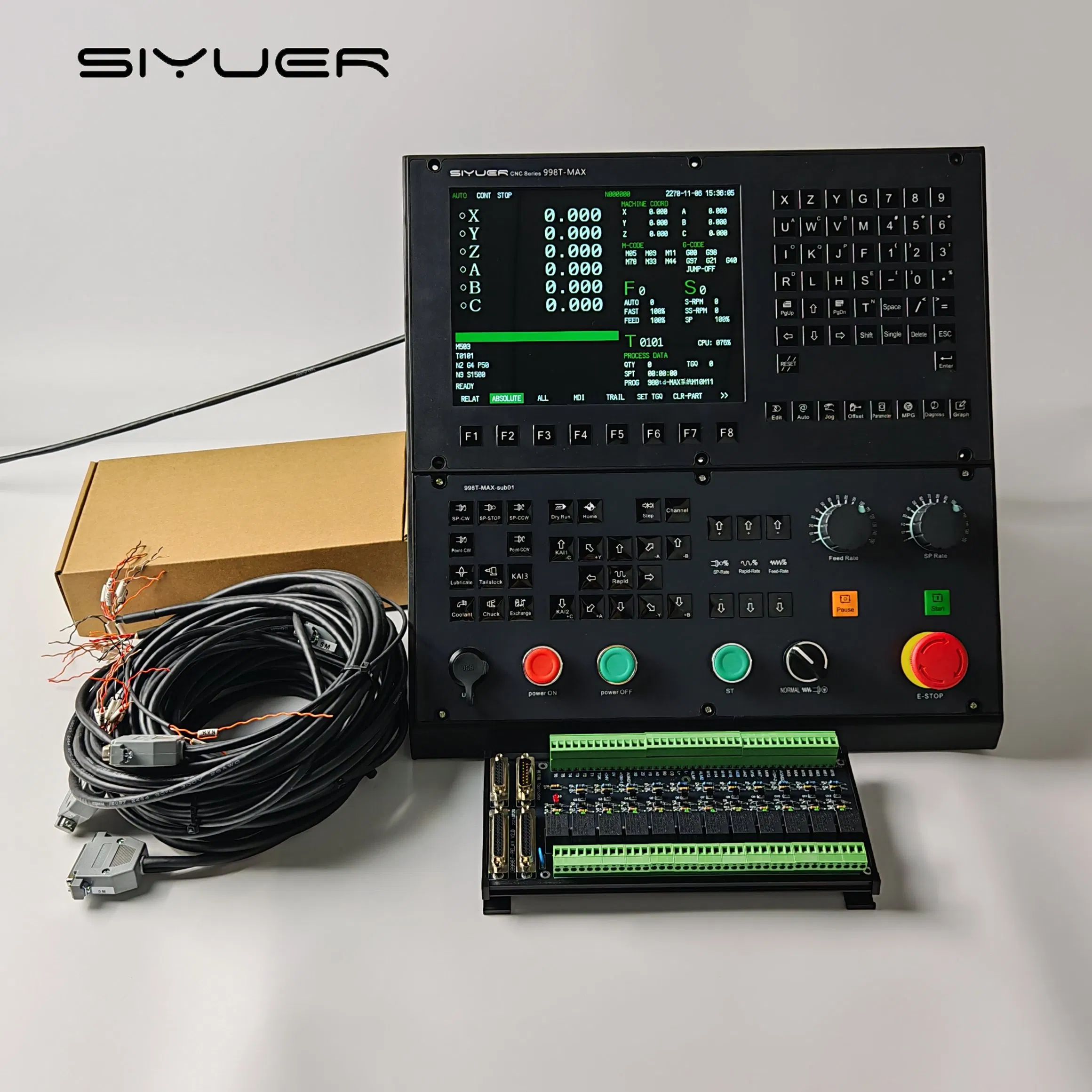

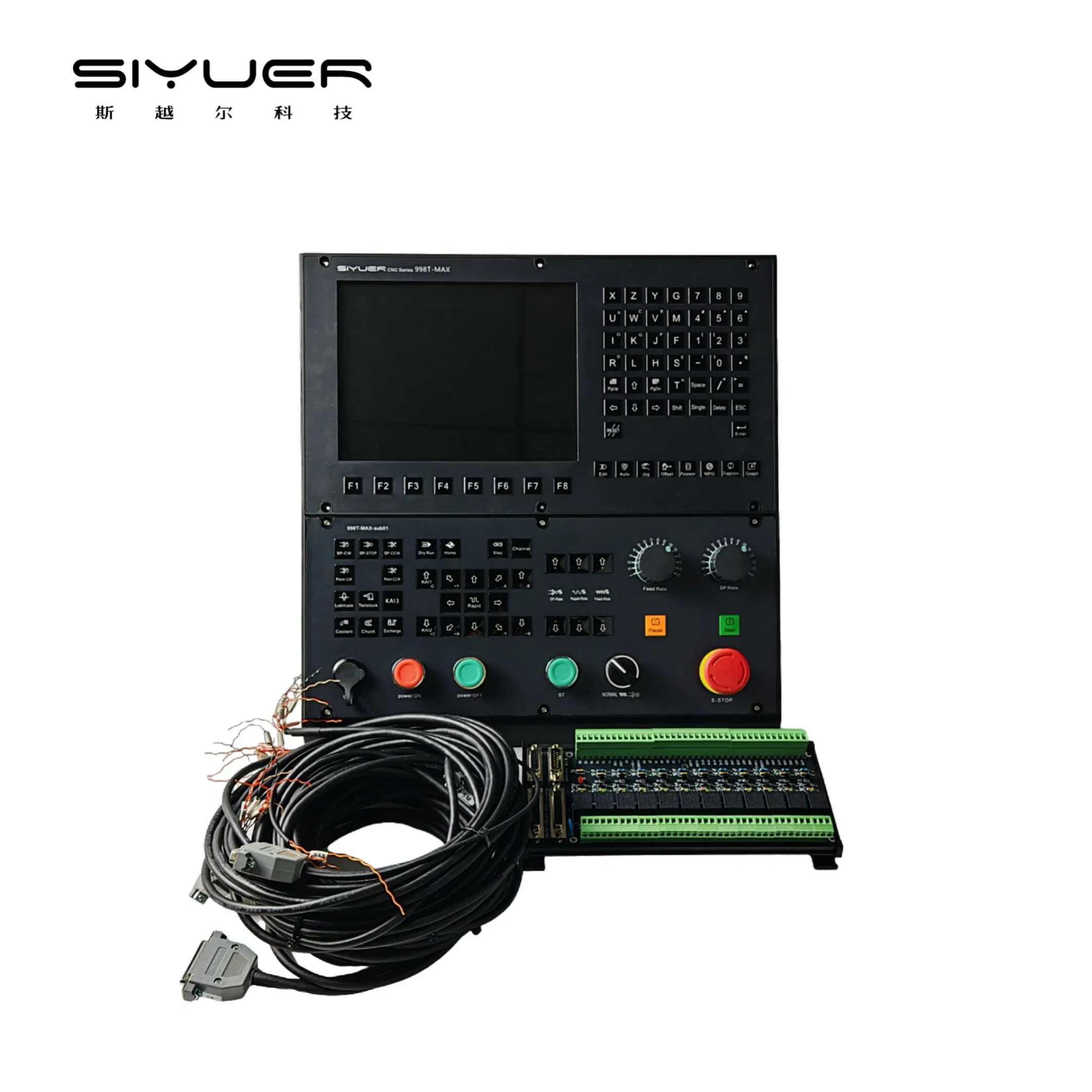

Economical 3 Axis Lathe Turning Machine New CNC System Controller with Multi-Langua Support Core PLC Components

1 / 5

Economical 3 Axis Lathe Turning Machine New CNC System Controller with Multi-Langua Support Core PLC Components

Customization:	Available
Warranty:	3 Years
Logo Printing:	with Logo Printing

Send Inquiry

Product Description

🟦 Basic Information

Model NO.

998T-MAX

Size

Large

Type

CNC Controller

Material

Stainless Steel

Certification

GS, CE

Axis Num

2-6 Axis

CPU

32bits+Fpga

Displayer Screen

10.4 Inch

Accuracy

0.1um

Power

220V

📦 Packaging & Delivery

Package Size

55.00cm * 33.00cm * 42.00cm

Gross Weight

12.000kg

Lead Time

7 days (1-10 Pcs)

🔍 Product Description

⚙️ Technical Specification

Movement Control	Control axes: X, Z, Y, A, B, C; interlinked axis, servo spindle C axis. Output signal: pulse + direction. Minimum command unit: 0.001mm. Max speed: 30000mm/min.
G Functions	29 kinds of G codes including G00-G04, G28, G32-G34, G40-G42, G70-G76, G90-G99, and G65 macro instructions.
Thread Machining	Metric straight, tapered, end face, and variable pitch threads. Pitch range: 0.0001mm to 500mm.
Accuracy Compensation	Reverse gap compensation: 0-2.000mm. Pitch error compensation: 512 points. 32 sets of tool compensation.

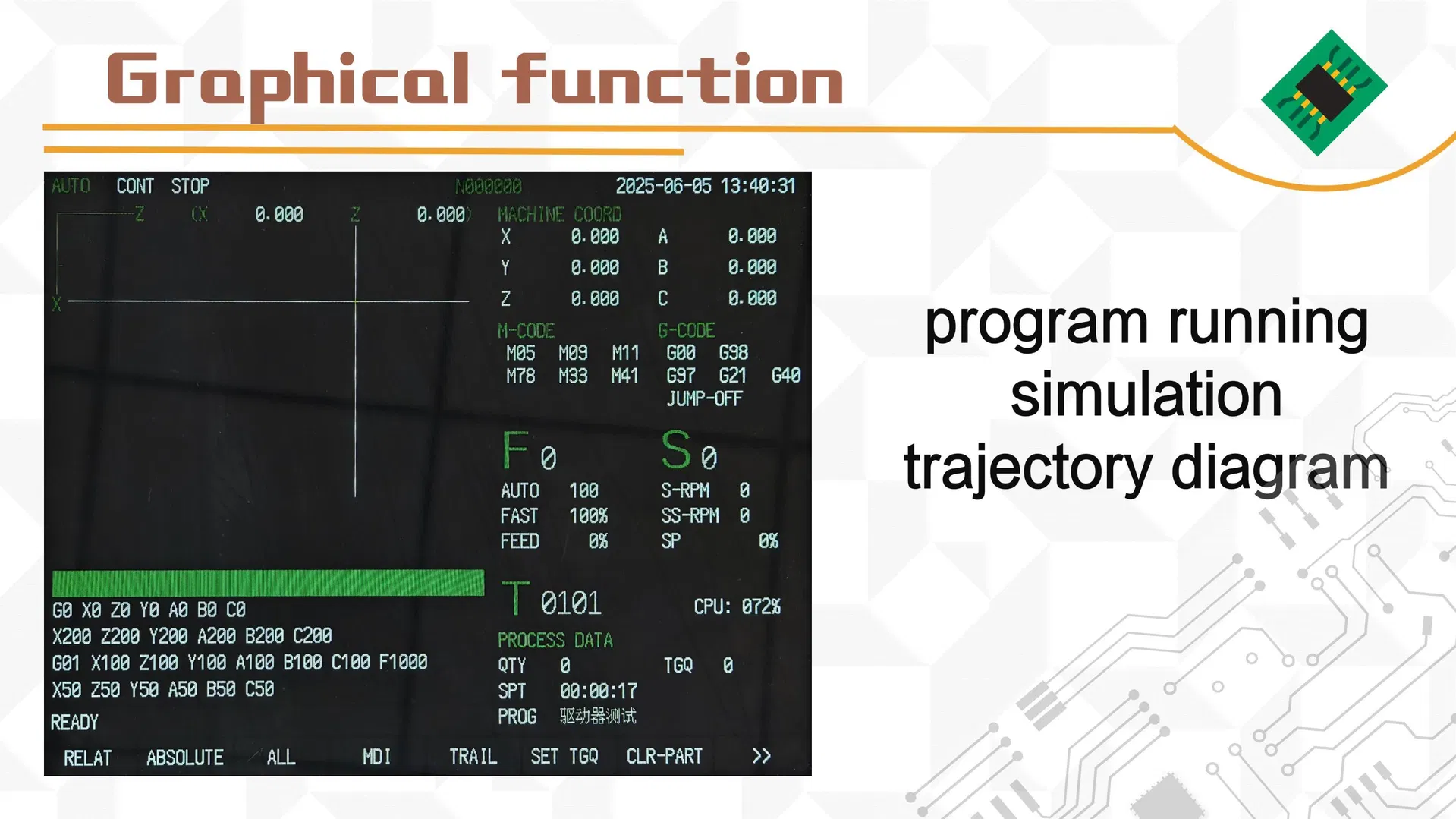

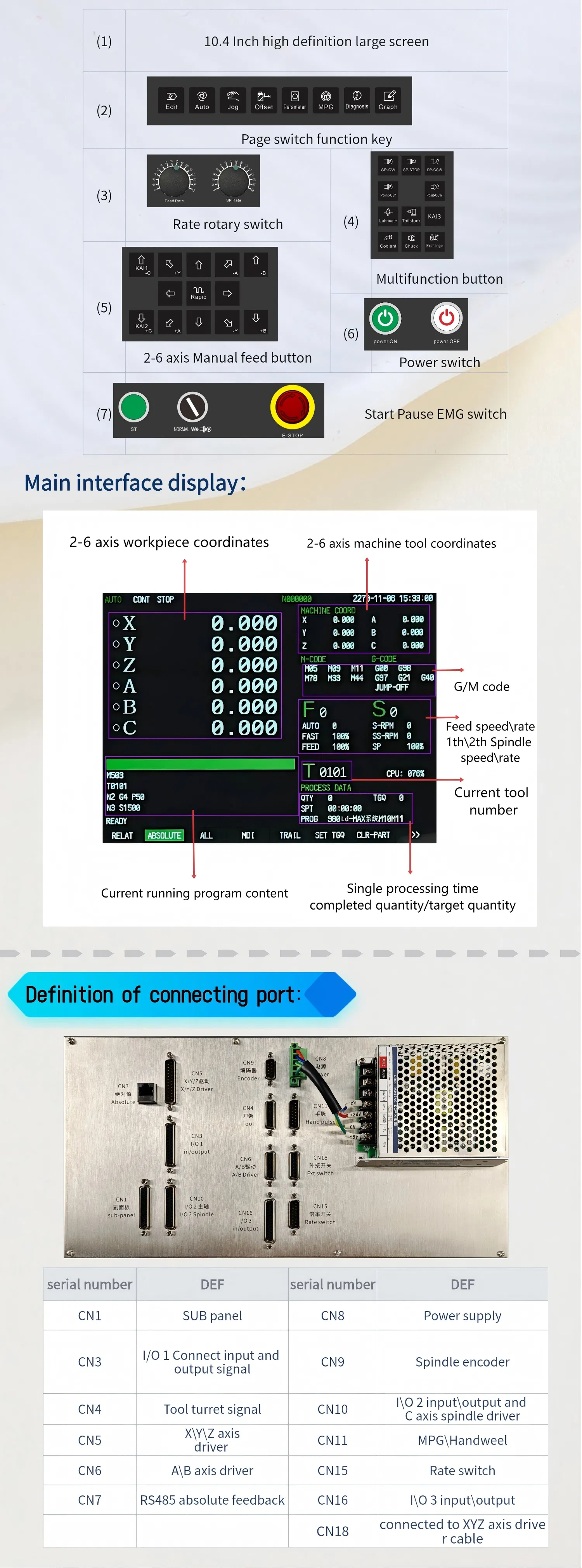

Display Interface	10.4-inch LCD display (800x600). Supports Chinese/English interface and processing trajectory graphics.

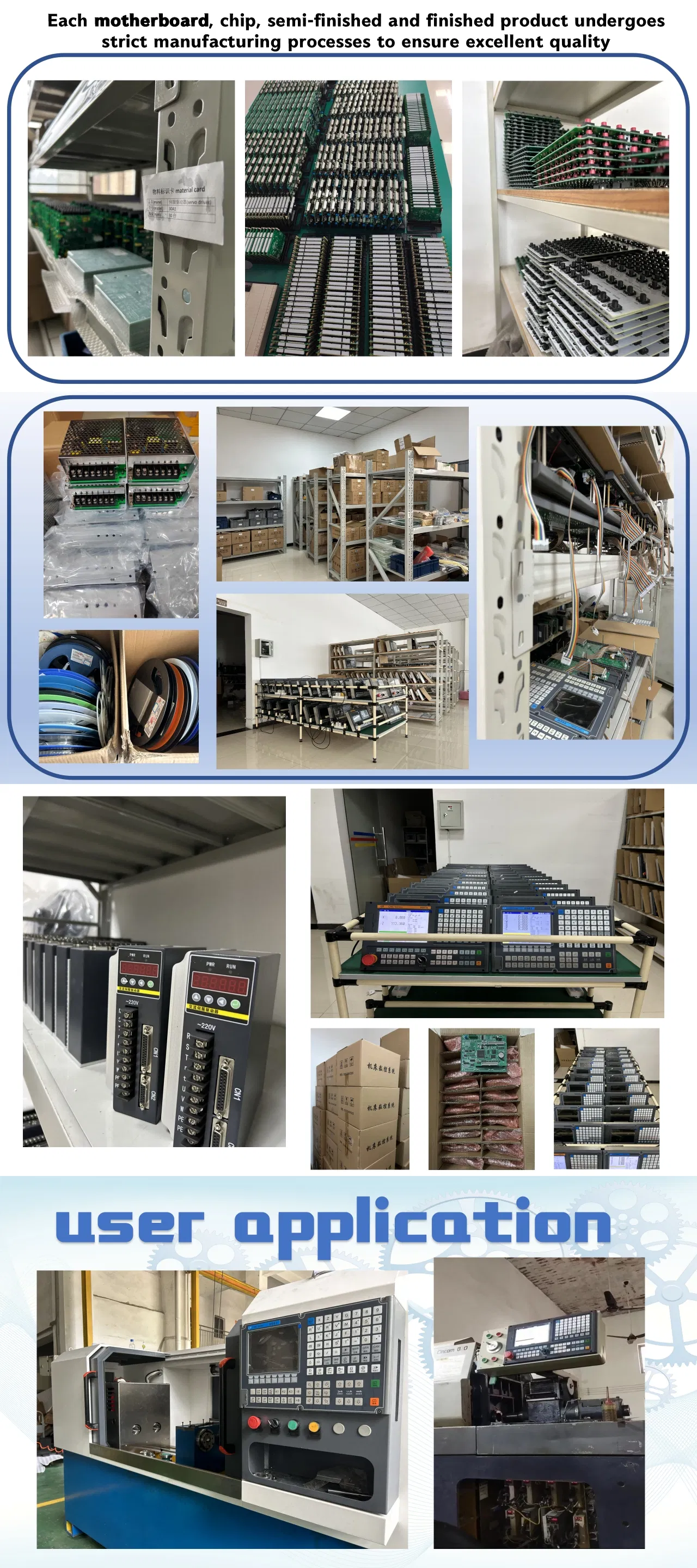

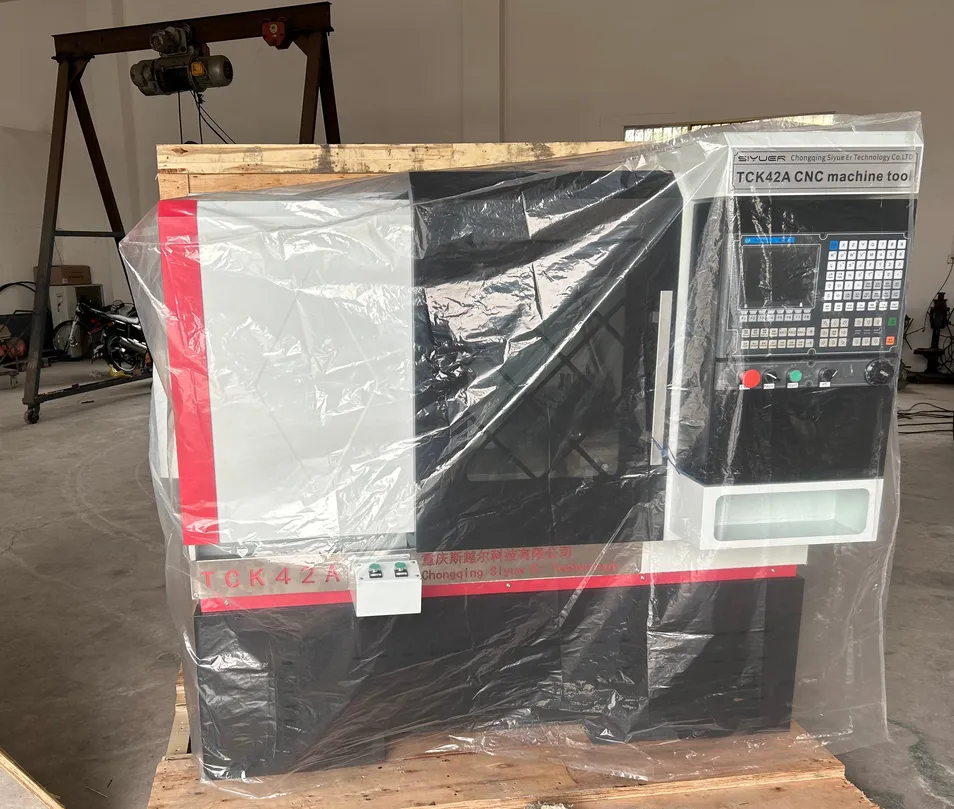

🏭 Production & Packaging

❓ Frequently Asked Questions

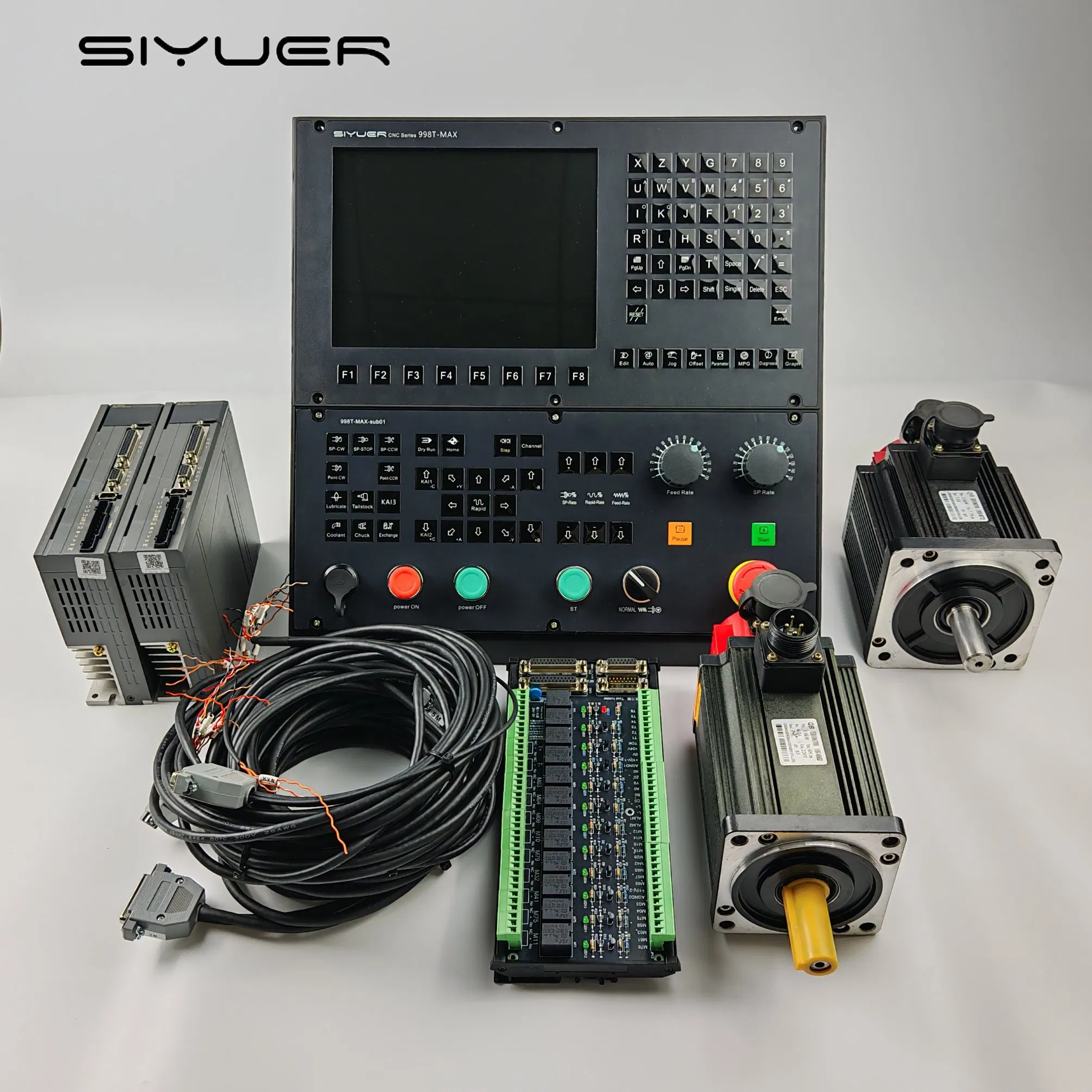

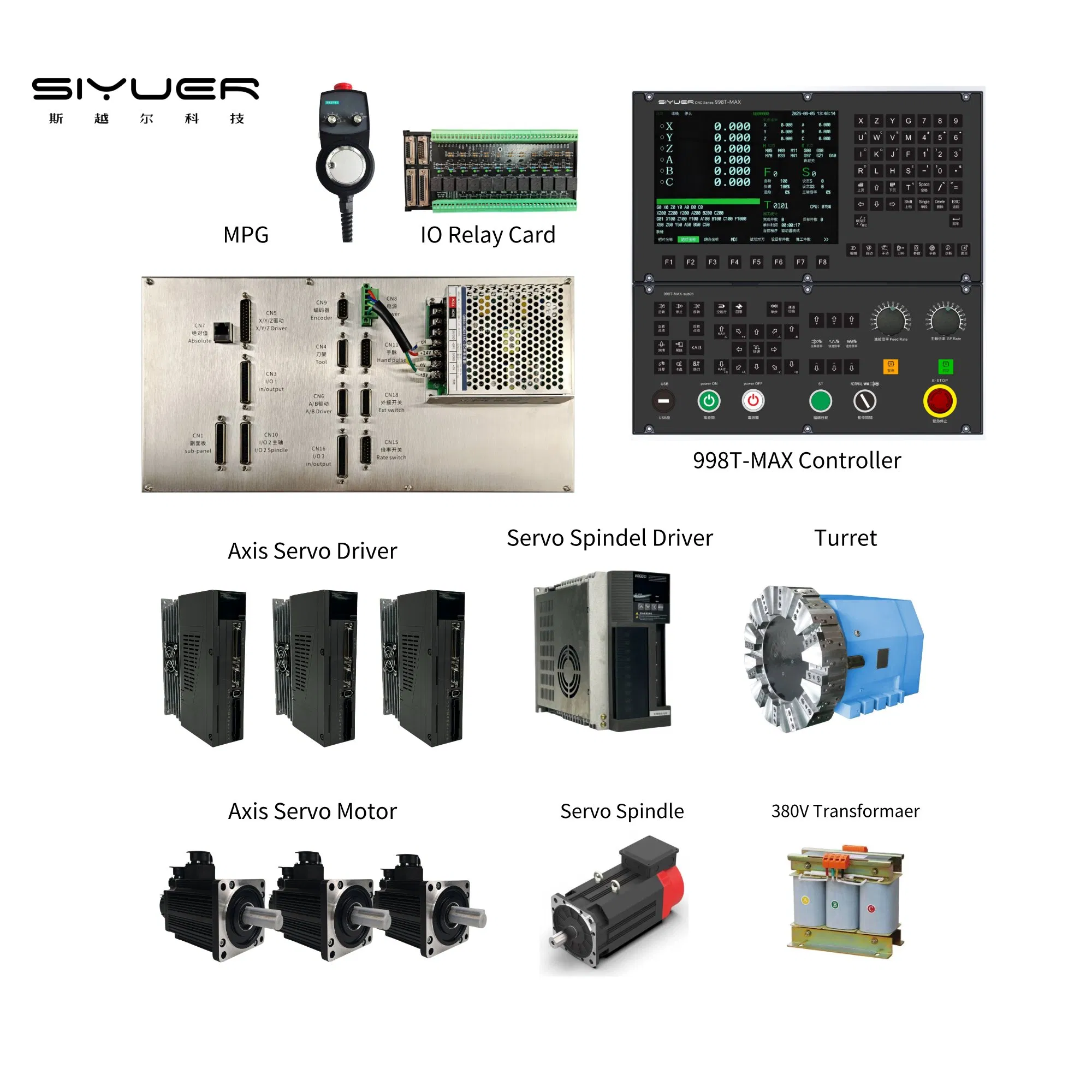

Q1: What is included in the total CNC system?

We provide a complete plug-and-play solution including CNC controllers, spindle & axes drivers/motors, and all necessary cables and accessory kits.

Q2: What is the typical lead time for orders?

Standard orders are typically processed within 5–7 workdays. For customized solutions, the timeline is negotiable based on requirements.

Q3: Does the system support Automatic Tool Changers (ATC)?

Yes. For lathes, we support electric, servo, and counting turrets. For milling, it supports linear, umbrella, arm, and turret-type tool magazines.

Q4: What spindle control modes are available?

The system utilizes analog voltage (0–10V) for precise speed control and supports various frequency converters.

Q5: Can I customize the boot logo for my brand?

Yes, we provide custom branding services, allowing you to upload your own boot logo to suit your business needs.

Q6: What quality assurance measures are in place?

Every unit undergoes pre-production testing by professional engineers and a 100% final inspection before shipment to ensure reliability.
