| Model NO. | CK-1530-7T-5AXIS |
| Voltage | 380V |
| Automatic Grade | Automatic |

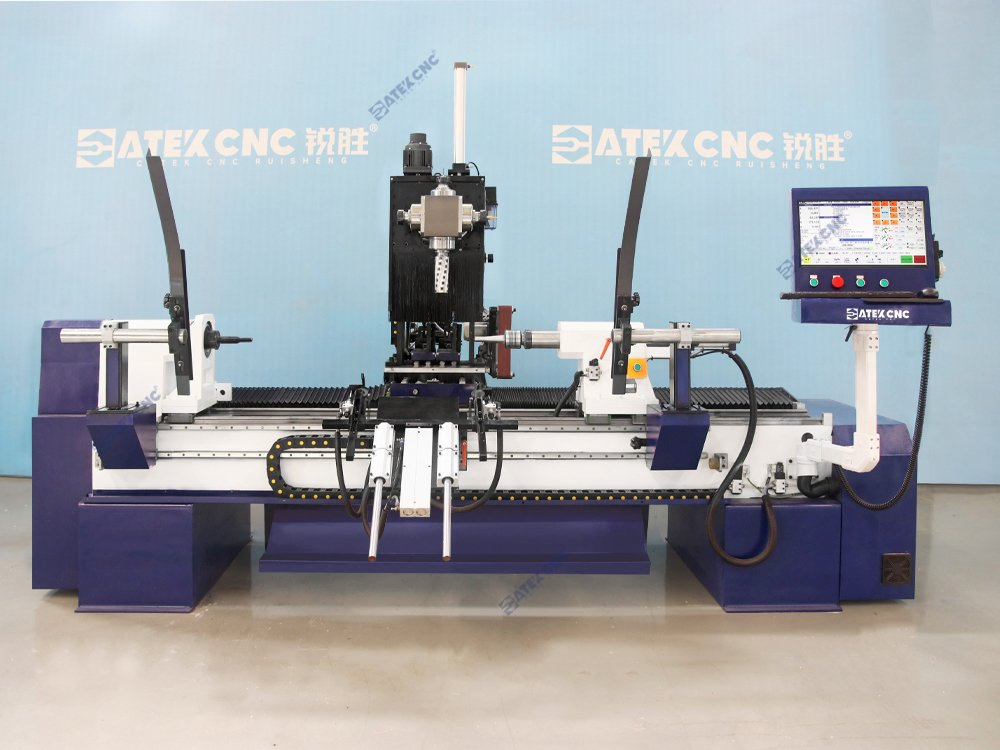

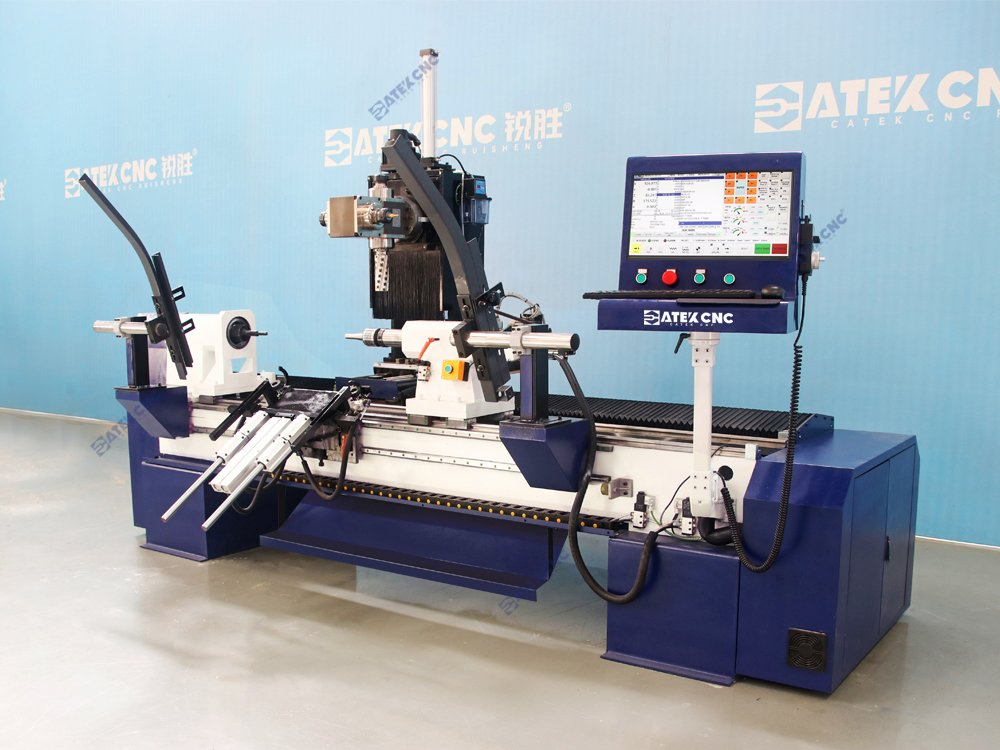

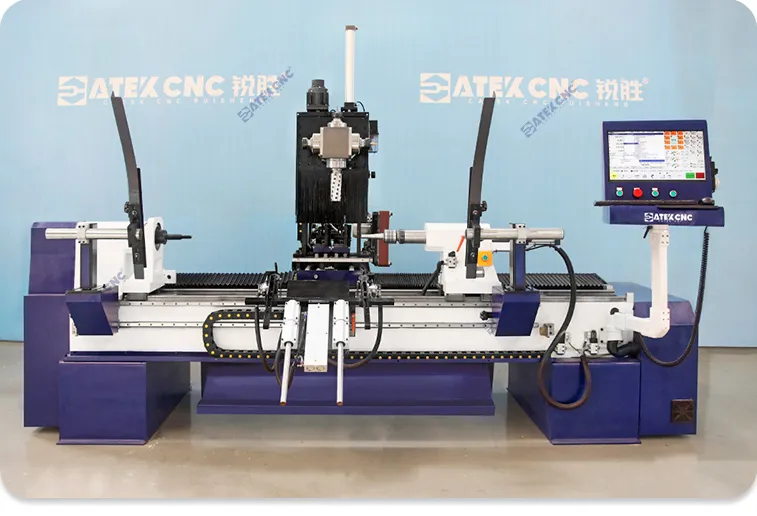

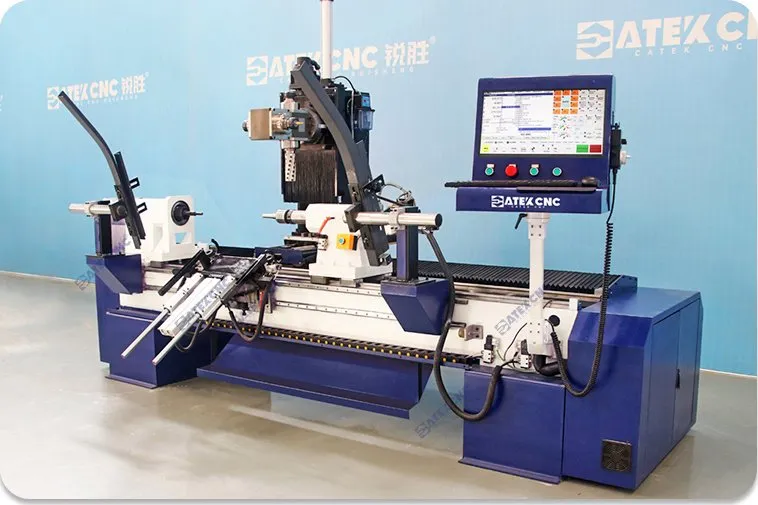

| Product Name | 5 Axis CNC Wood Lathe Machine |
| Control System | Taiwan Lnc Control System |
| Certification | CE, ISO, FDA |
| Drive Motor | Bus-Type Absolute 1500W Servo Motor |
| After-sales Service | 3-Year Warranty, Lifetime Free After-Sales Service |
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds |
| Fifth Rotary Axis Motor | Bus-type absolute 750W servo motor |
| Drive-Spindle Speed | 0-6000r/min |
| Multi-functional Spindle | 7.5KW high-speed air-cooled four-head spindle |
| Compatible Software | Artcam, Type3, AutoCAD, Powermill, UG, Mastercam, etc. |
| Dimensions | 3750*2150*2150mm |

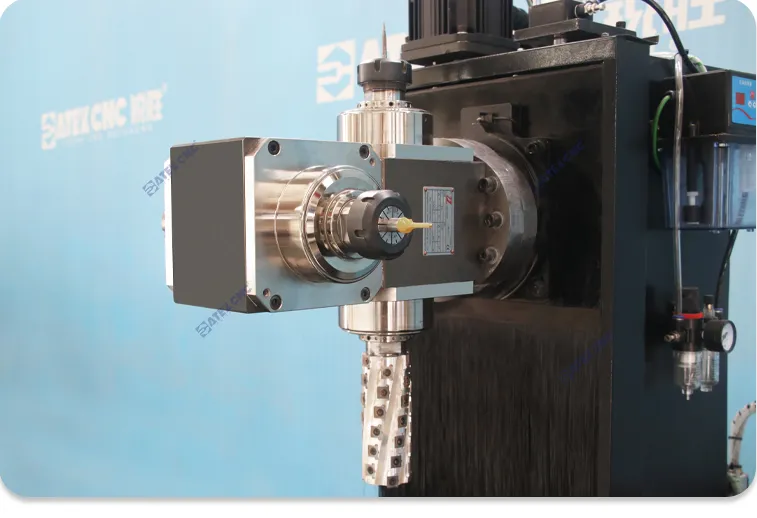

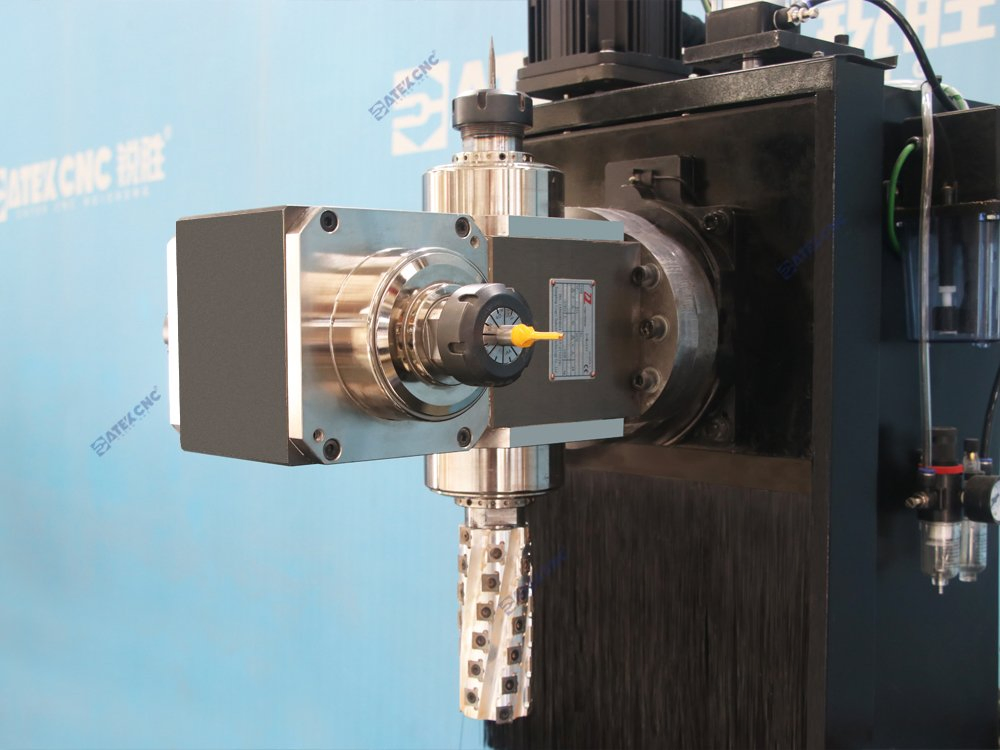

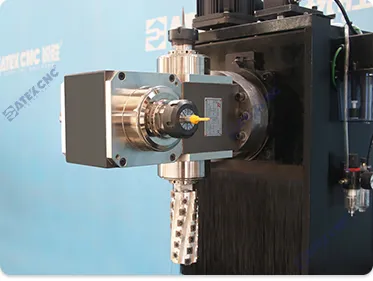

Designed for five-axis centers, max speed 18,000 rpm. Features ER40 toolholder and ±90-degree tilt adjustment for complex drilling and engraving.

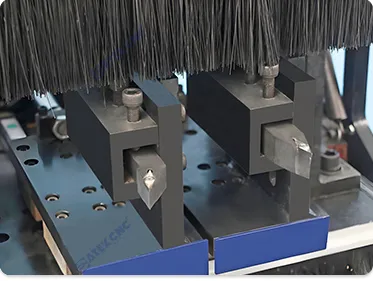

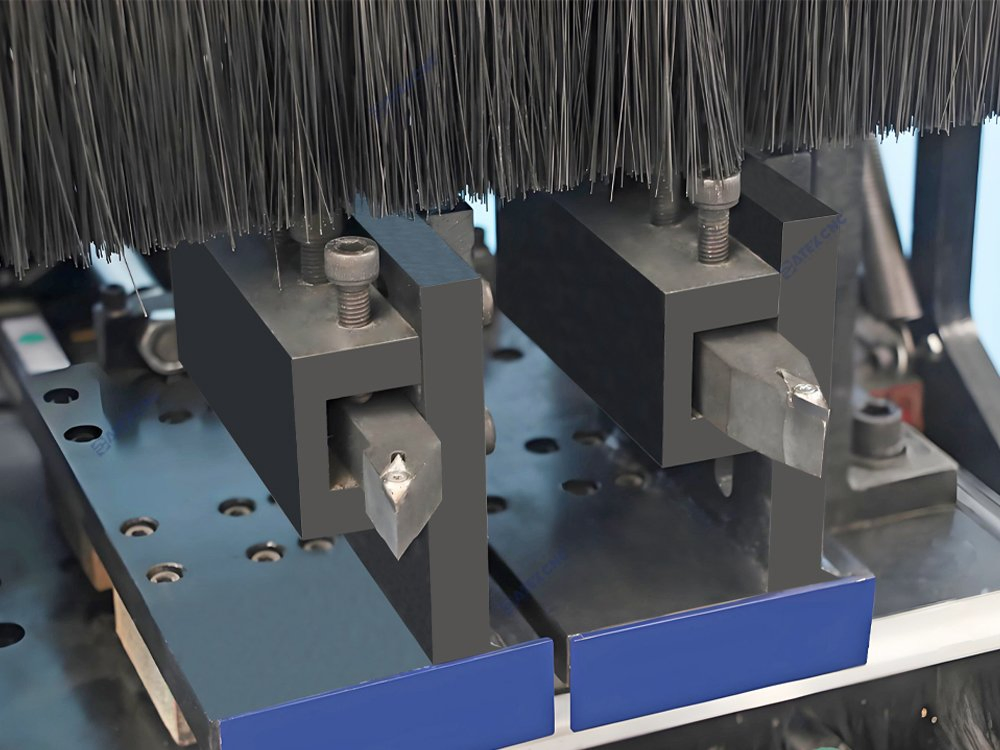

Pneumatic switching between V-type, U-type, and O-type tools to meet diverse woodworking turning requirements automatically.

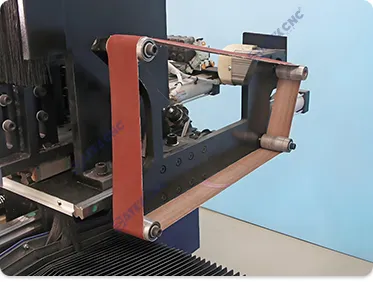

Driven by an 1100W brushless servo motor (up to 6000 rpm). Ideal for high-quality surface finishing.

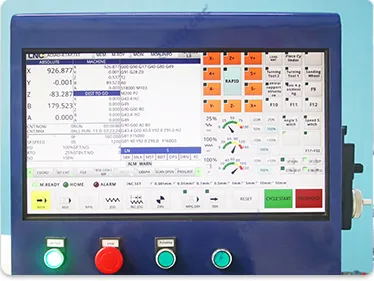

Supports five-axis RTCP linkage and handwheel simulation. Intuitive interface compatible with NC, TAP, and TXT formats.

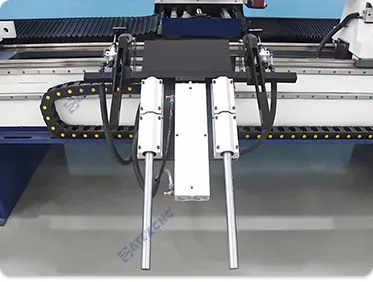

Four-link structure for high stability. Eliminates manual loading, significantly improving production efficiency and safety.

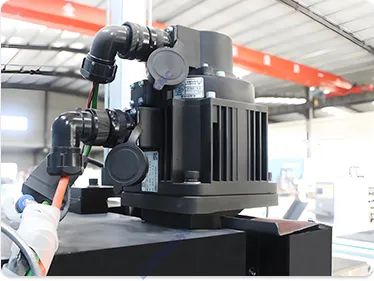

1500W bus-based absolute servo motor and Japan Shinpo reducer. Traverse speed exceeds 60 m/min with ±0.02mm accuracy.
The CK-1530-7T-5AXIS five-axis multi-function CNC woodworking lathe is perfect for:
