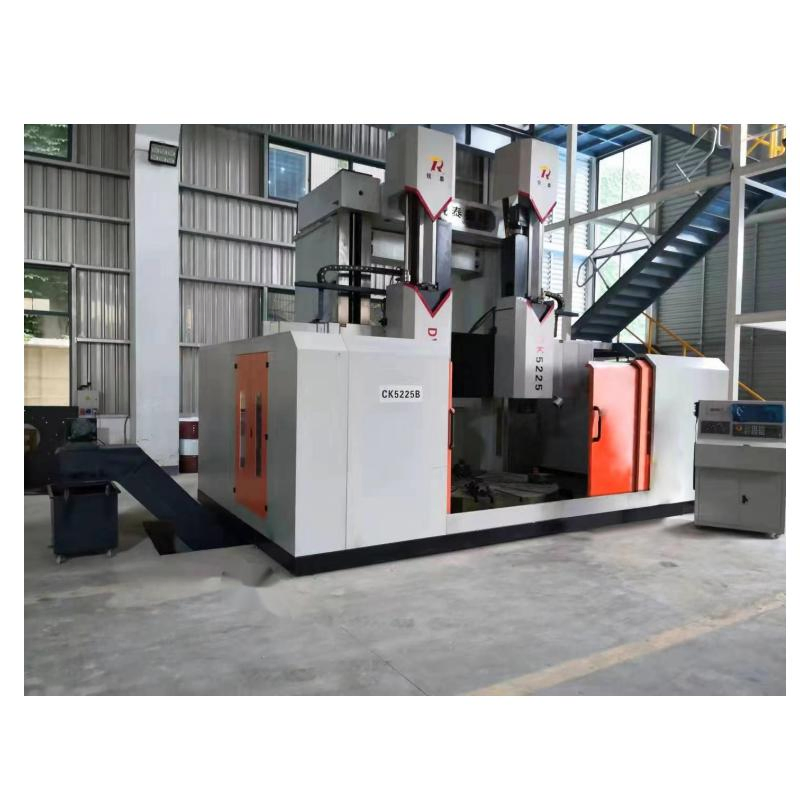

Double Column Gantry Torno CNC Vertical Turrt Lathe 5m Dia for Heavy Duty Metalworking Turning Machine Tools

1 / 5

Double Column Gantry Torno CNC Vertical Turrt Lathe 5m Dia for Heavy Duty Metalworking Turning Machine Tools

Customization:	Available
After-sales Service:	Online Technical Support as Priority
Warranty:	12months

Send Inquiry

Product Description

🟦 Basic Specifications

Model NO.:CK5250

Application:Metal

Control Method:CNC

Precision:0.02~0.03(mm)

CNC System:GSK, Fanuc, Siemens

Certification:ISO 9001

Gross Weight:10000.00kg

HS Code:8458911090

🟦 DOUBLE COLUMN VERTICAL TURNING LATHE

PRODUCT FEATURES

Suitable for machining various industries with high-quality raw materials.

Processes internal/external cylindrical, conical, end face, groove, and threads.

Adopting 16/4 main spindle speed (0.42-42r/min table speed range).

Constant current hydrostatic guide rail for high rotation precision.

Servo motor with ball screw drive and safety sealing cover.

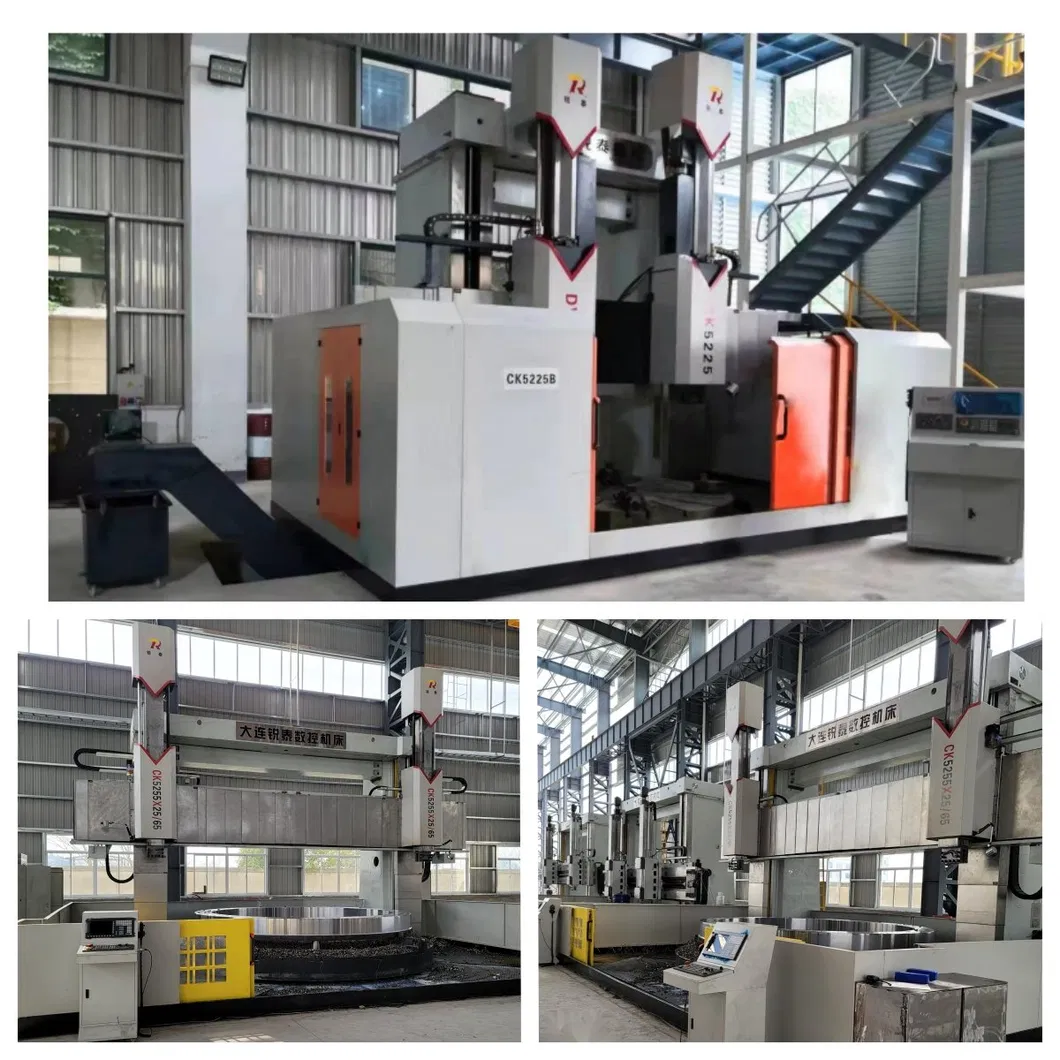

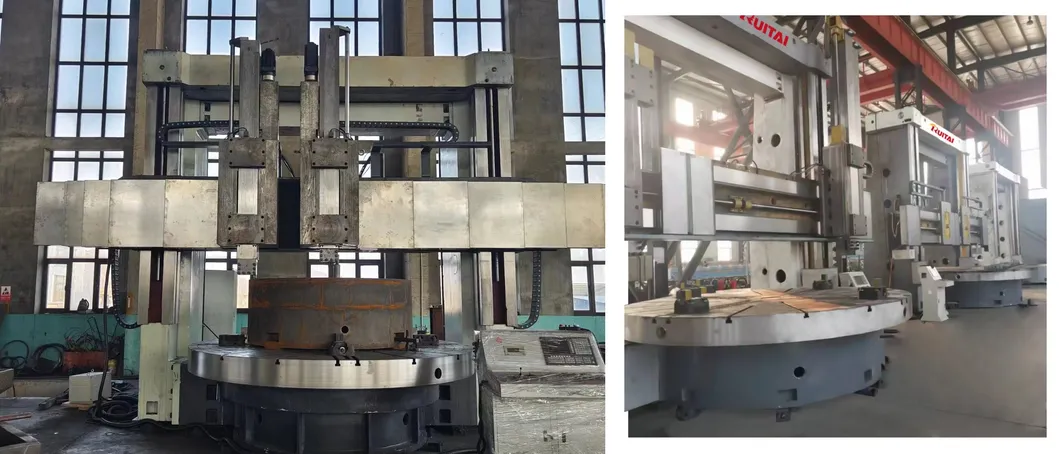

Back Side View

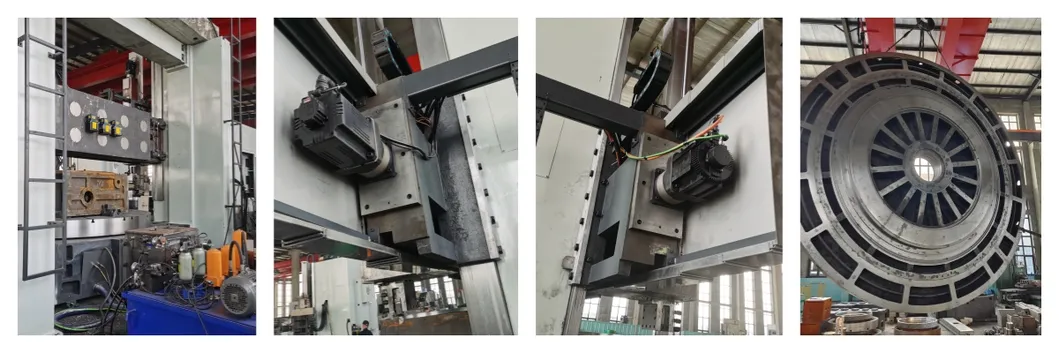

Left and Right Motor

Large Diameter Worktable

🟦 Technical Parameters

Items	Unit	CK5225	CK5231	CK5240	CK5250	CK5255
Worktable diameter	mm	2250	2830	3200	4600	5000
Max. turning diameter	mm	2500	3150	4000	5000	5500
Max. turning height	mm	1600	1600	2000	2000	2500
Max. Weight of workpiece	t	15	15	20	40	40
Main motor power	KW	55	55	55	75	90
Machine weight (approx)	t	37	42	47	76	79

🟦 Customization Service

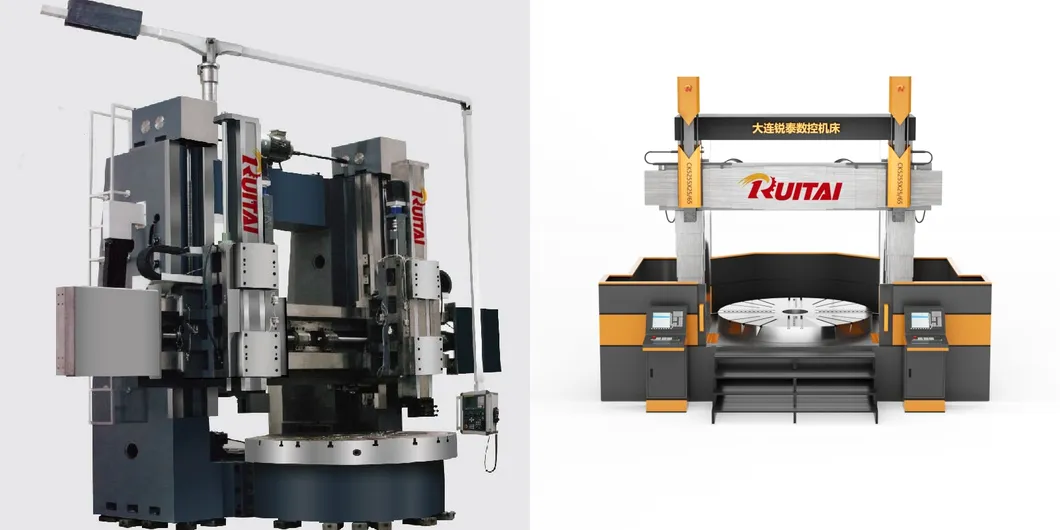

Professional machine design to meet various demands: Turret, Working Height, CNC/Manual options.

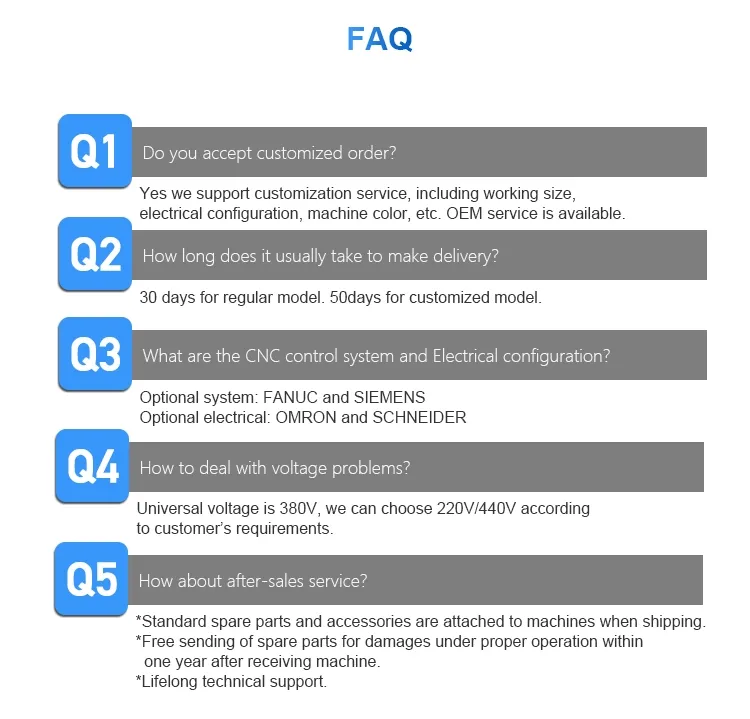

🟦 Frequently Asked Questions

Q1: What materials can the CK52 series vertical lathe process? A: It is designed for heavy-duty metalworking, suitable for various metals including steel, iron, and alloys.

Q2: Which CNC systems are compatible with this machine? A: The machine supports GSK, Fanuc, and Siemens CNC control systems.

Q3: What is the maximum turning diameter for the CK5250 model? A: The CK5250 model features a maximum turning diameter of 5000mm.

Q4: Does the machine support customization for height? A: Yes, we provide customization services for vertical tool rest, working height, and worktable configurations.

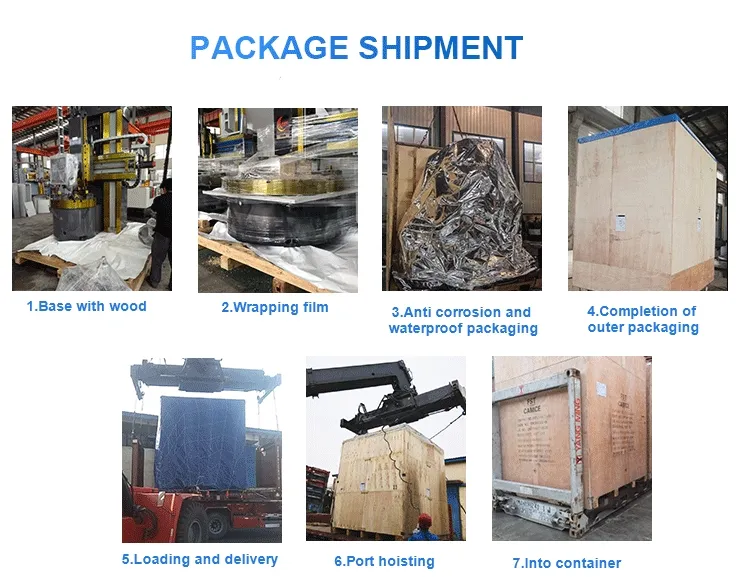

Q5: How is the machine protected during shipping? A: All machines are packed in professional wooden cases designed for export shipping to ensure safety.

Q6: What type of guide rail is used? A: It is equipped with a constant current hydrostatic guide rail to achieve high rotation precision and bearing capacity.
