| MAIN PARAMETER | Max swing diameter over bed | mm | φ1000 |
| Max swing diameter over cross slide | mm | φ630 | |
| Max workpiece length | mm | 1500/2000/3000/4000/5000/6000 | |
| Max cutting length | mm | 1400/1900/2900/3900/4900/5900 | |
| Max turning diameter | mm | φ1000 | |
| Spindle center height | mm | 500 | |
| Bed guideway width | mm | 755 | |
| SPINDLE | Spindle motor power | kW | 22/26 |
| Spindle bore | mm | φ130 | |

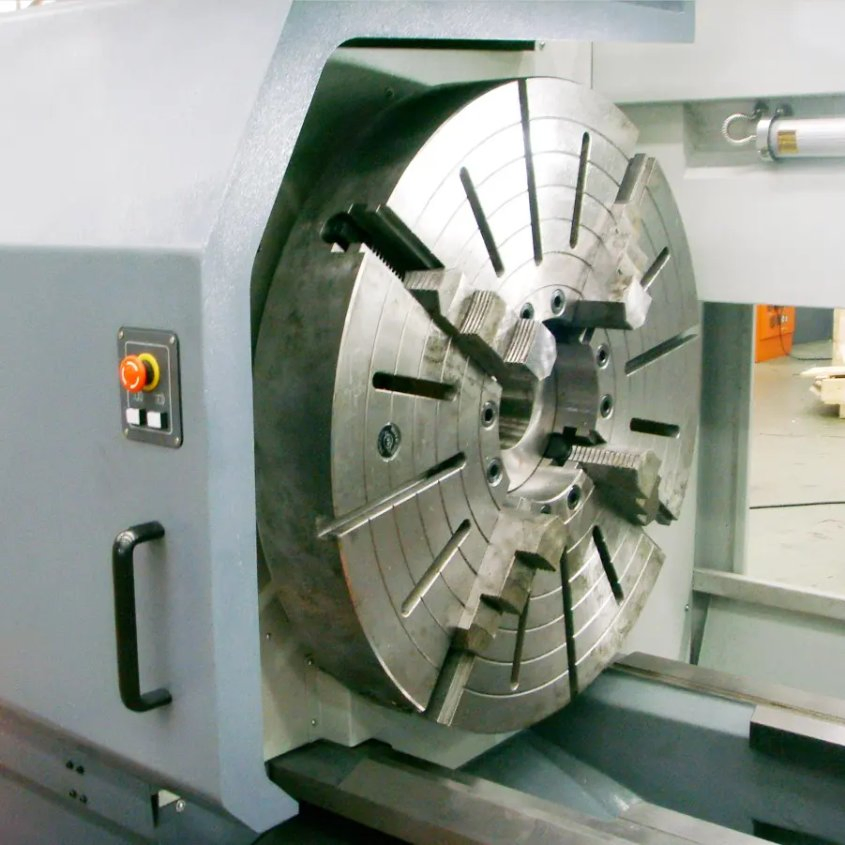

| Chuck size | mm | φ1000 | |
| Taper of spindle bore | - | Front end φ140 1:20 | |
| Type of spindle nose | - | A2-15 | |
| Spindle speed ranges | r/min | 2-500 | |
| TAILSTOCK | Diameter of tailstock quill | mm | φ200 |
| Travel of tailstock quill | mm | 300 | |
| Taper of tailstock quill | - | No.6 MT | |
| TOOLPOST | Tool shank size (Vertical 4-position) | mm | 40X40 |
A1: The maximum swing diameter over the bed is φ1000mm, and over the cross slide is φ630mm.
A2: This model supports multiple length options including 1500mm, 2000mm, 3000mm, 4000mm, 5000mm, and 6000mm.
A3: The machine is equipped with a spindle motor power range of 22/26 kW.
A4: Yes, the DMTG CKA61100M series is CE certified, ensuring it meets international safety and quality standards.
A5: The X/Z axis positioning accuracy is 0.021/0.026 mm, providing high precision for metal-forming tasks.
A6: To ensure safety during transit, the machine is packed in a professional wooden case.
