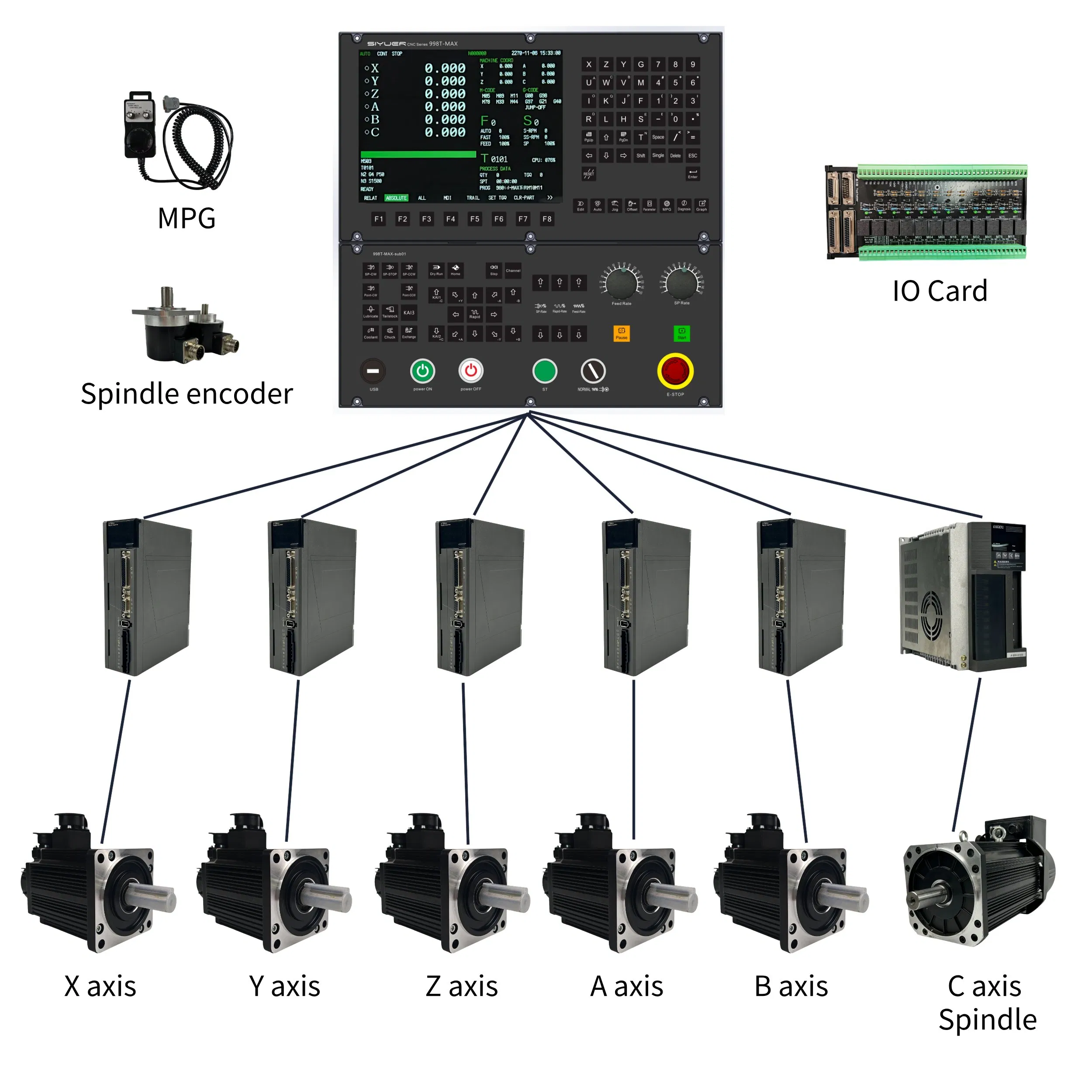

| Movement Control | Control axes: X, Z, Y, A, B, C; interlinked axis, servo spindle C axis. Position range: -9999.999mm~9999.999mm. Minimum unit: 0.001mm. Max speed: 30000mm/min. |
| G Function | 29 kinds of G codes including G00-G04, G32-G34, G70-G76, G90-G99. Supports macro instruction G65 for arithmetic and logic operations. |
| Thread Machining | Thread cutting for metric straight, tapered, end face, and variable pitch threads. Pitch range: 0.0001mm to 500mm. |
| Accuracy Comp. | Reverse gap compensation: 0mm~2.000mm. Pitch error compensation: 512 points. Tool compensation: 32 sets. |

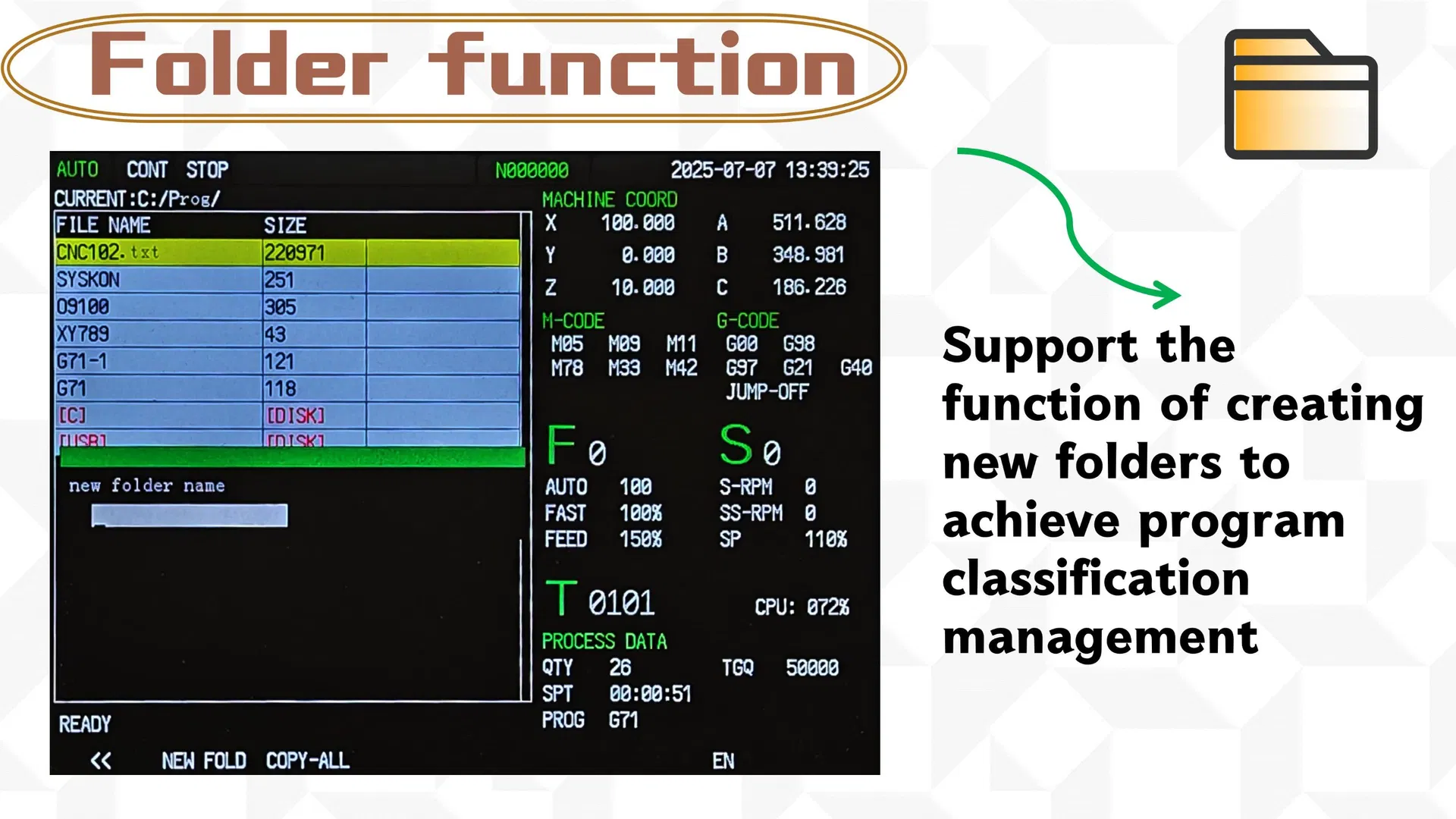

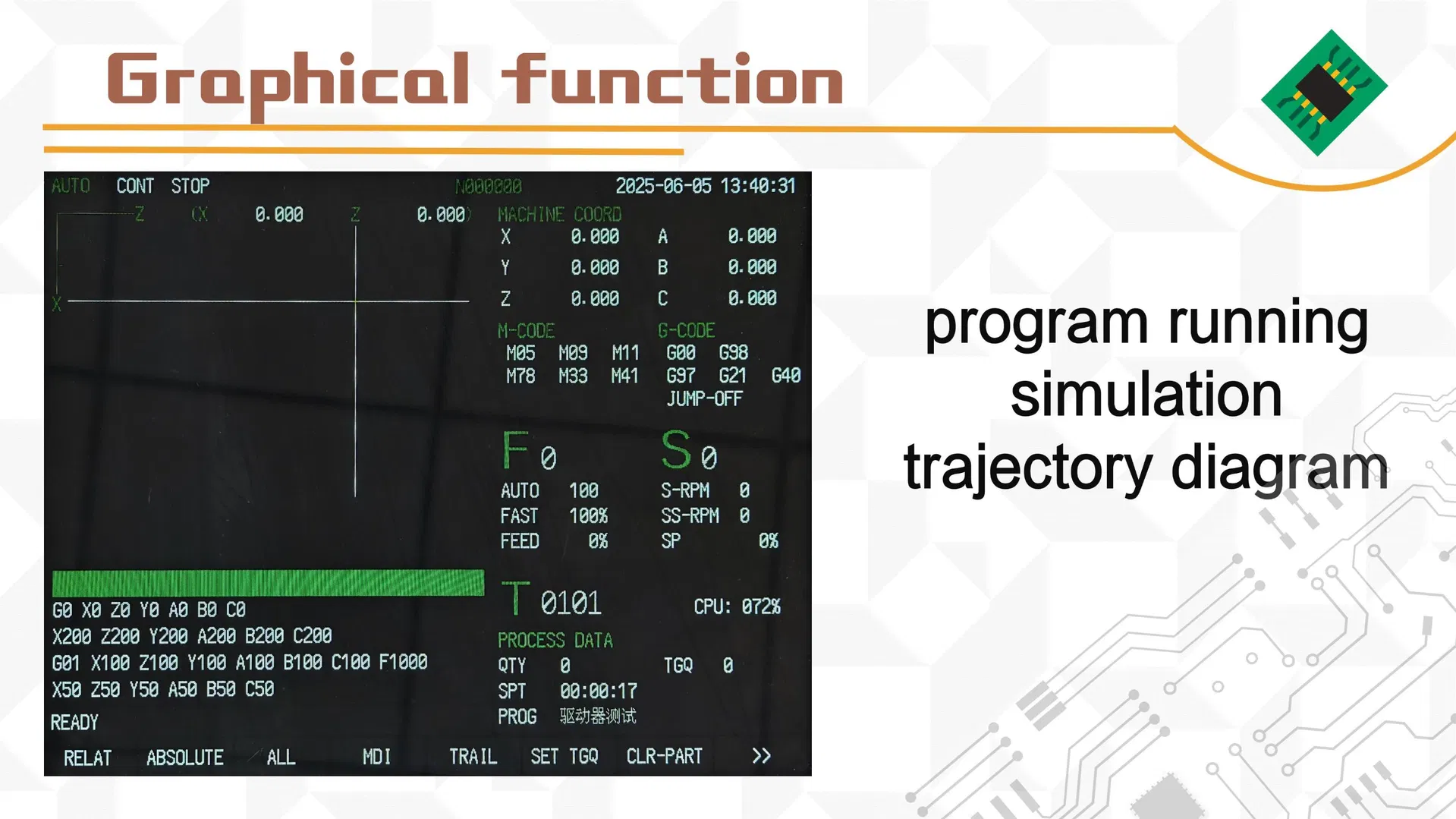

| Display Interface | 10.4-inch LCD (800 x 600). Supports Chinese/English interfaces, processing trajectory graphics, and alarm logs. |
CNC Controller Package

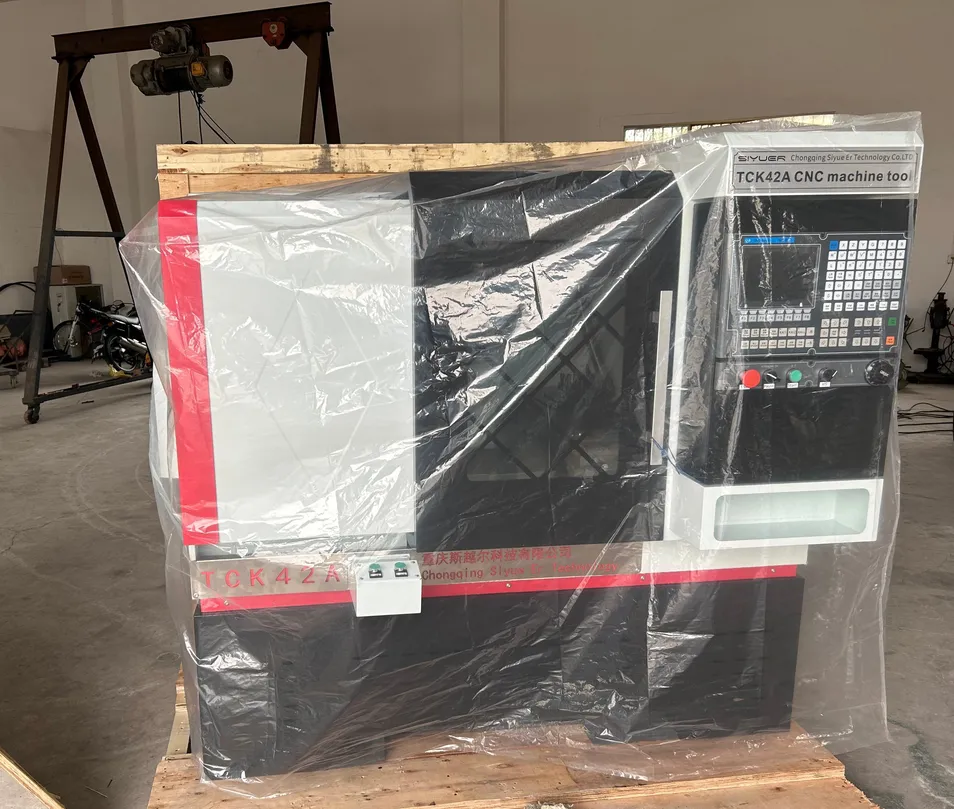

CNC Lathe Package
Professional, environmentally friendly, and efficient packaging services are provided to ensure the safety of your goods during export.
