Cost-Effective Multifunctional 5 Axis CNC Woodworking Lathe with Automatic Feeding for Sofa Armrests CNC Wood Lathe

Send Inquiry

Product Description

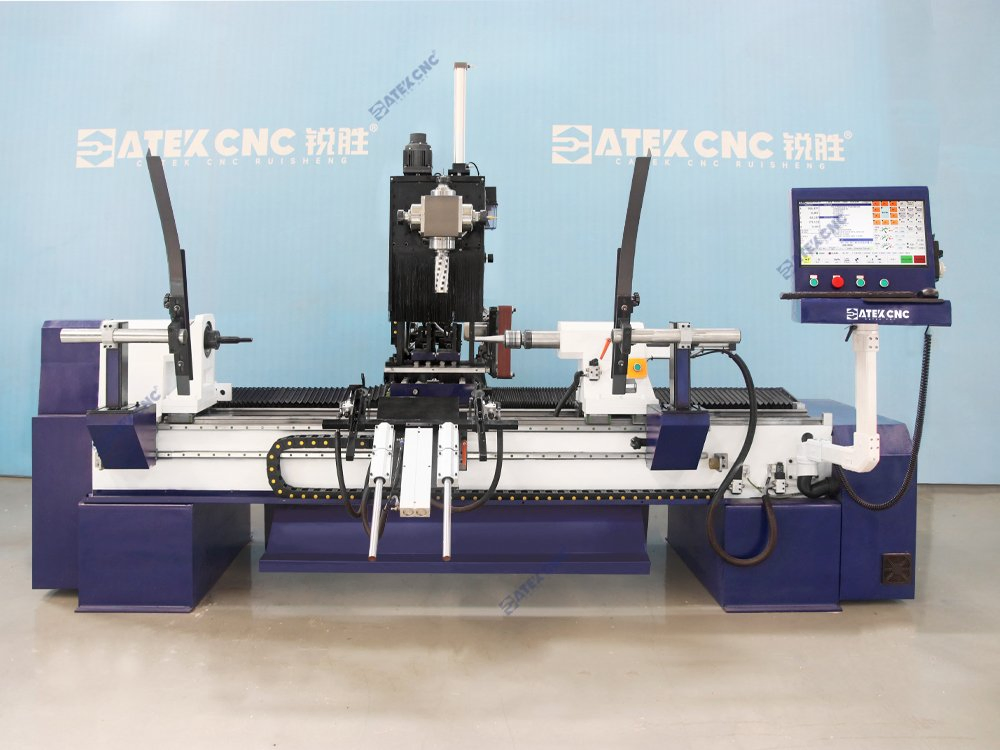

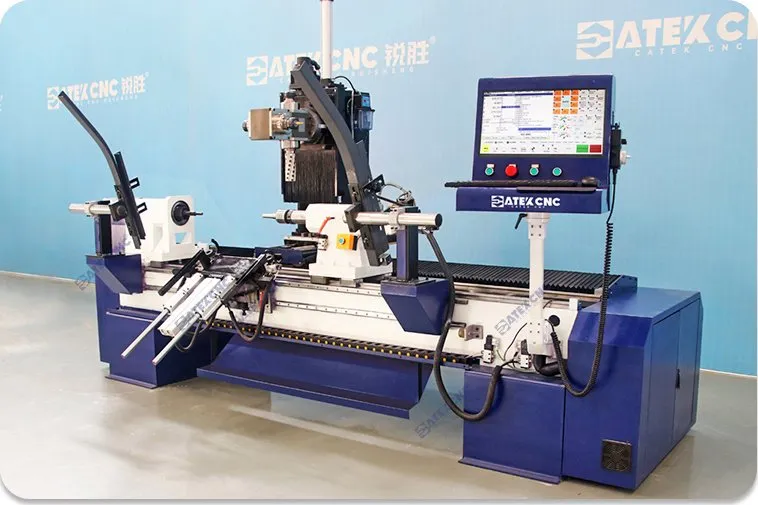

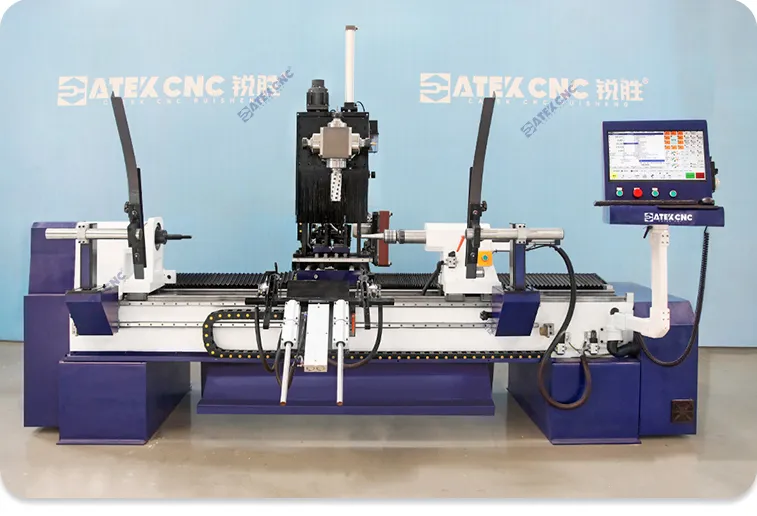

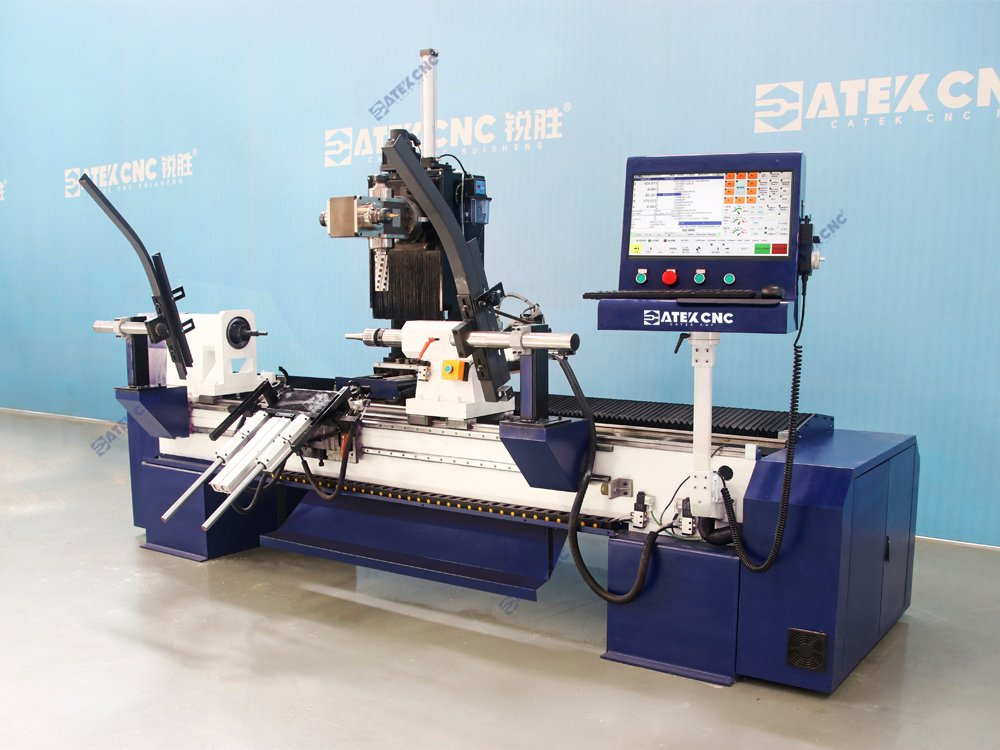

MACHINE PHOTOS

PRODUCT PARAMETERS

Model	CK-1530-7T-5AXIS
Processing Dimensions	1500 * 300mm (customizable)
Lathe Bed	Heavy-duty integrally cast parallel twin beds
Linear Axis Drive Motor	Bus-type absolute 1500W servo motor
Drive-Spindle Motor	4KW pure servo high-torque motor
Multi-functional Spindle	7.5KW high-speed air-cooled four-head spindle
Control System	Taiwan LNC control system
Repeat Positioning Accuracy	±0.02mm
Weight	2300kg
Dimensions	375021502150mm

DETAILS IMAGES

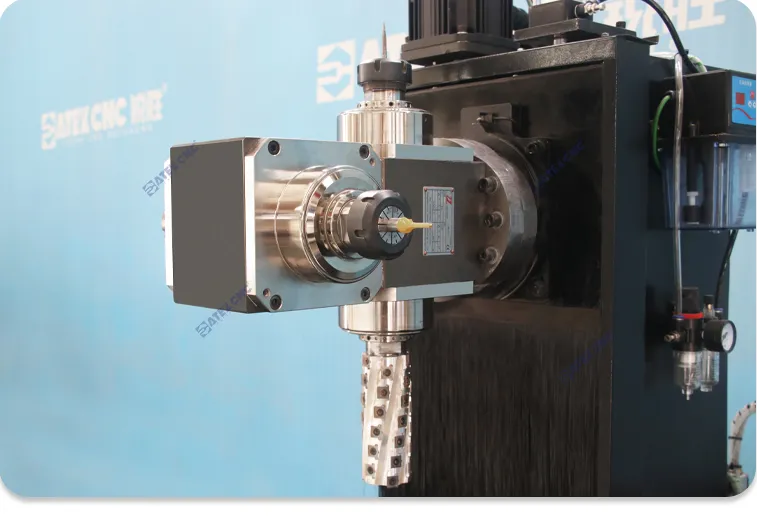

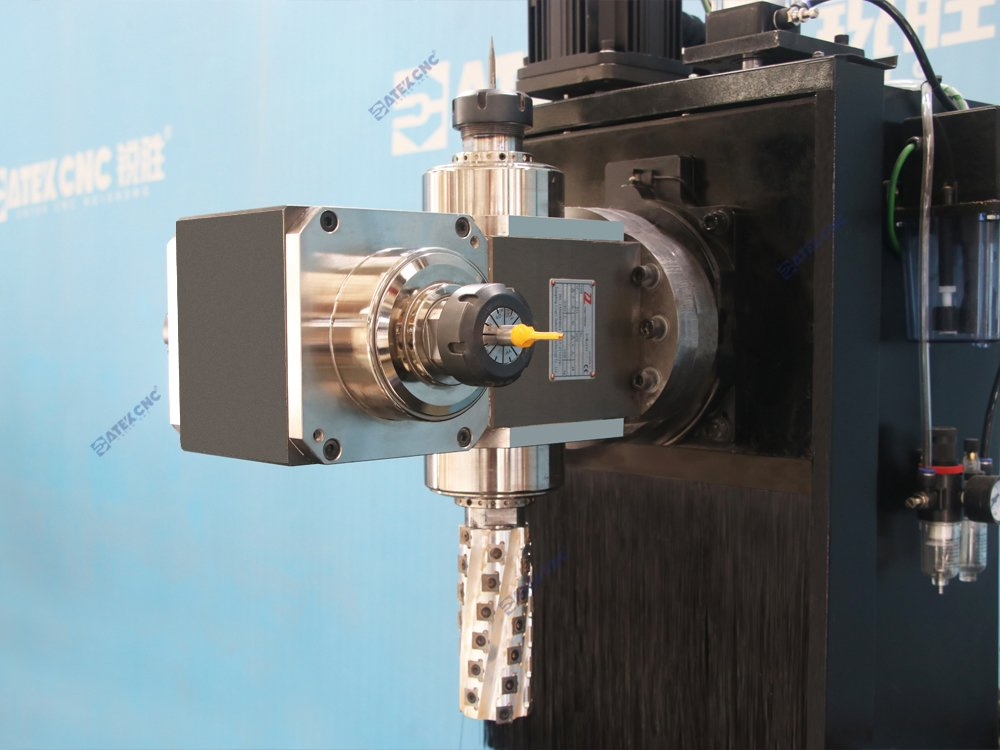

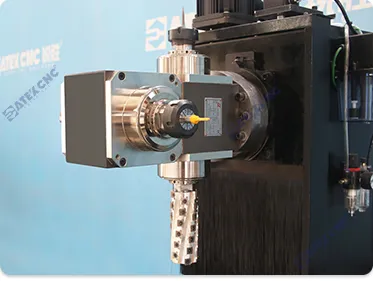

The four-head electric spindle features integrated design, max speed 18,000 rpm, and ER40 toolholder for complex drilling and engraving.

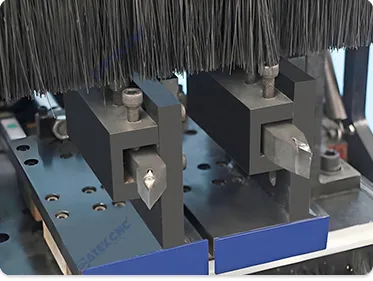

Equipped with two turning tool mounting positions switched via pneumatic cylinder to meet diverse turning needs.

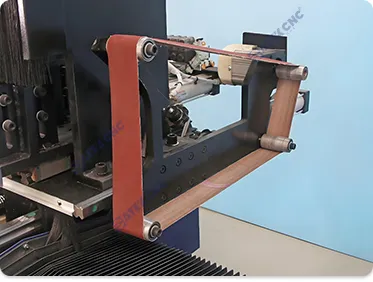

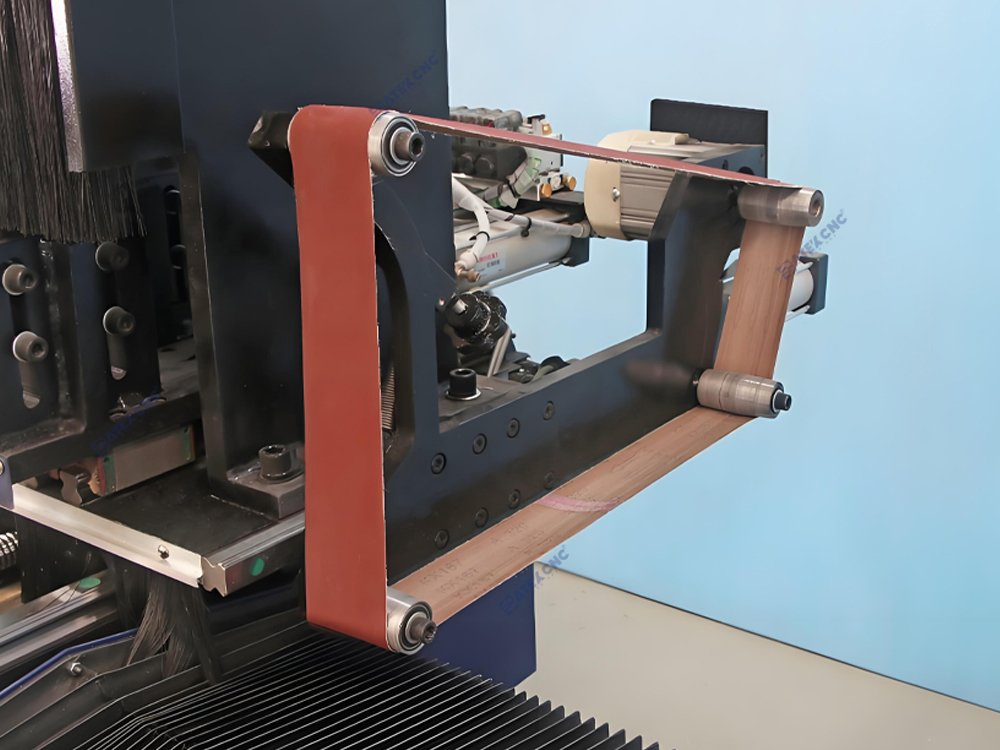

1100W brushless servo motor sanding unit, adjustable up to 6000 rpm for precise grinding.

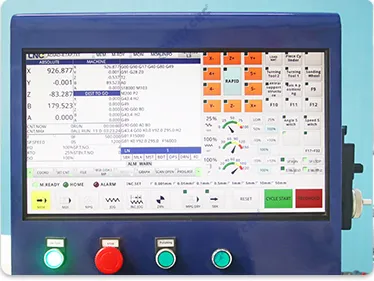

Taiwan LNC five-axis CNC system supports RTCP and handwheel simulation for intuitive control.

SAMPLE DISPLAY

Furniture Manufacturing: Specialized for curved table legs, chair legs, sofa armrests, and European-style relief patterns.

Musical Instruments: Ideal for guitar necks, violin fretboards, and various string instrument parts.

PRODUCTION & QUALITY

Frequently Asked Questions

1. Are you a factory or trading company?

We are a certified factory with export licenses and extensive manufacturing experience.

2. Do you offer OEM services?

Yes, we have 19 years of OEM experience collaborating with global partners.

3. What is included in your after-sales service?

We provide a 3-year full machine warranty, 12-hour response guarantee, and 24/7 technical support.

4. How do I choose the right machine for my needs?

Provide your material specifications and product dimensions, and we will recommend the optimal configuration based on our 19+ years of expertise.

5. Do you provide installation and training?

Machines are pre-tested and ready-to-use. We include free operation manuals and video guides; onsite commissioning is available globally.

6. Can the machines be customized?

Yes, full customization is supported by our engineering team to meet your specific production requirements.
