Compact CNC Turning Lathe Machine for Precision Engineering

1 / 5

Compact CNC Turning Lathe Machine for Precision Engineering

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	TCK56	Type	Horizontal Lathe
Guide Rail	Inclined Guide Rail	Tool Holder	8 hydraulic tool tower
Controlling Mode	CNC	Automatic Grade	Automatic
Precision	High Precision	Swing Over Bed	560mm
Spindle Bore	65mm	Motor	GSK11KW servo main motor

Product Description

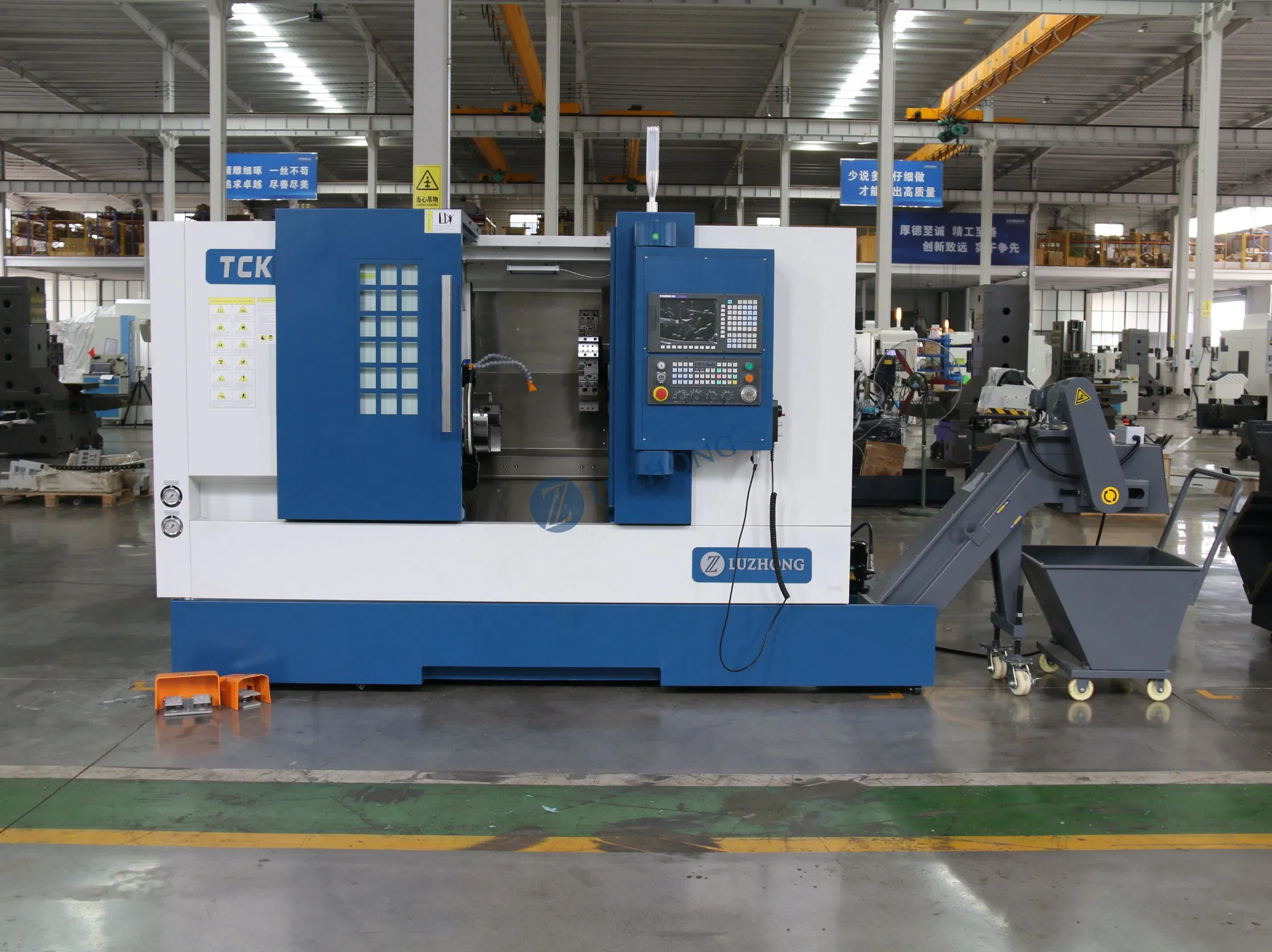

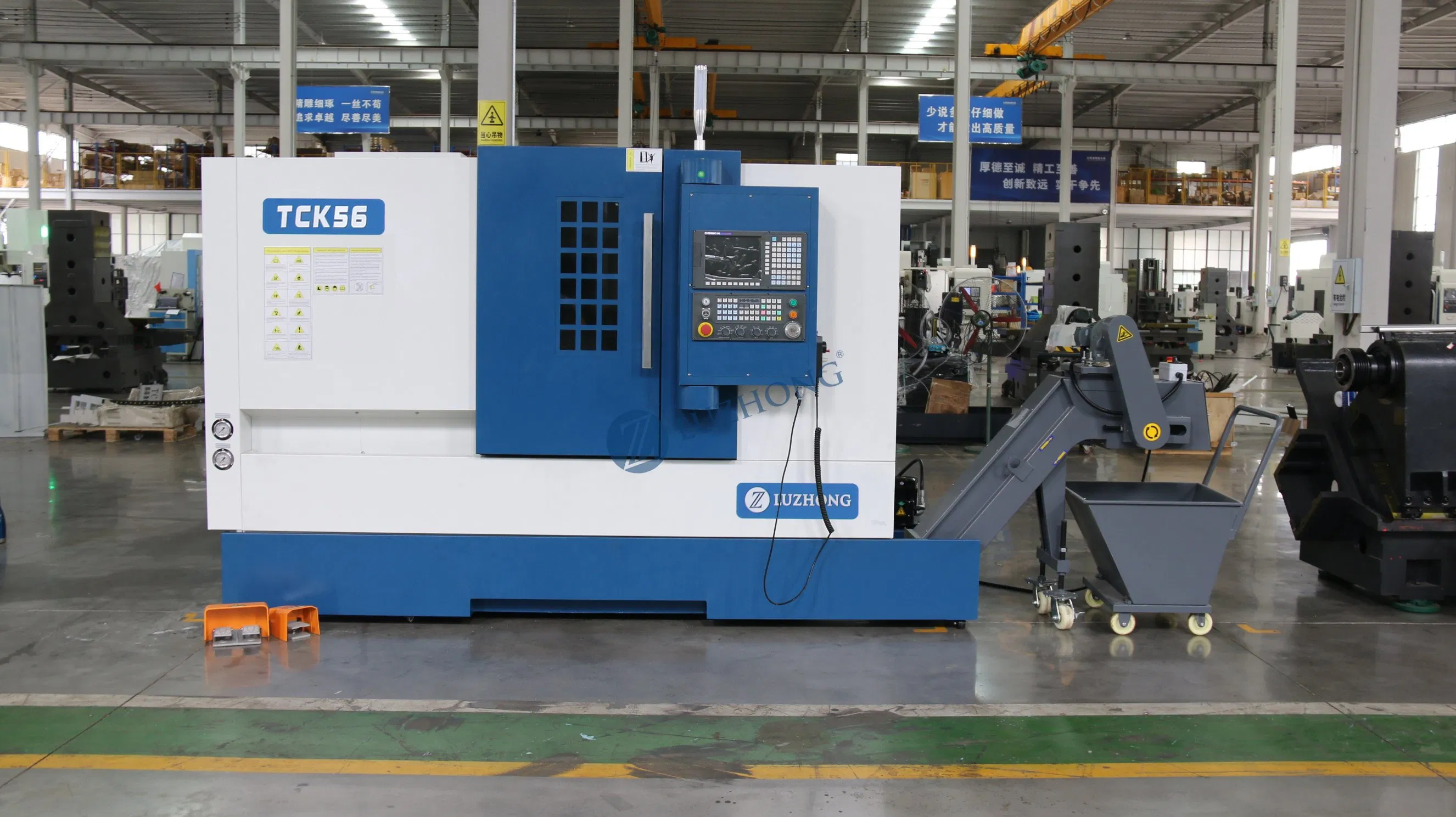

Inclined bed metal conventional horizontal TCK56 CNC lathe featuring high-speed spindle units and robust casting for heavy loading capacity. Designed for precision engineering with efficient chip removal.

Product Parameters

SPECIFICATIONS	Units	TCK56
Swing over bed	mm	560
Max. workpiece length	mm	500 / 1000
Max. cutting diameter	mm	350
Spindle speed range	rpm	50-4500

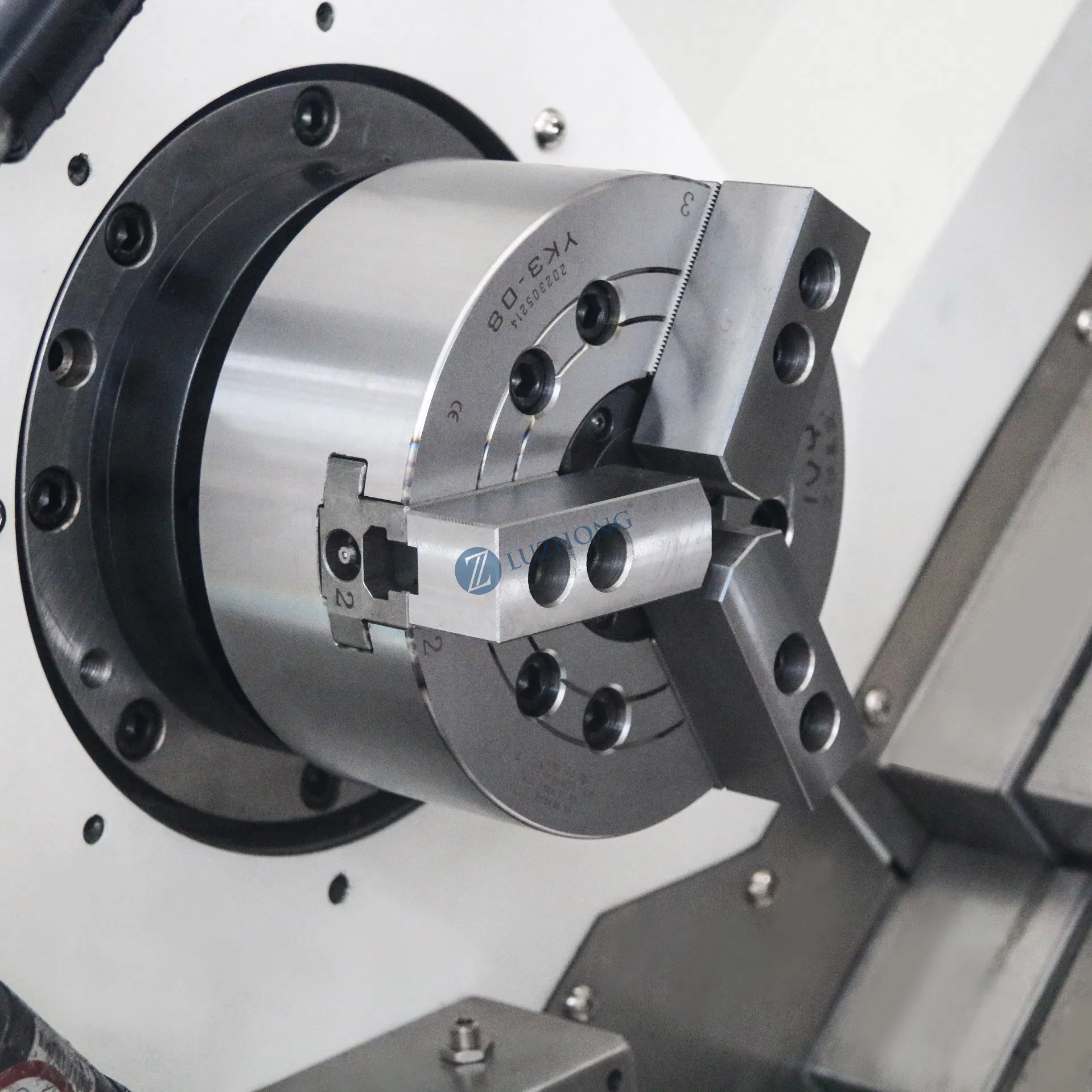

Chuck size	inch	8'' Hollow hydraulic chuck
Turret positions	-	8 Position Servo Turret
X/Z Axis Rapid Traverse	mm/min	30
Guide Rail Type	-	45° Slant bed linear rail

Detailed Photos & Components

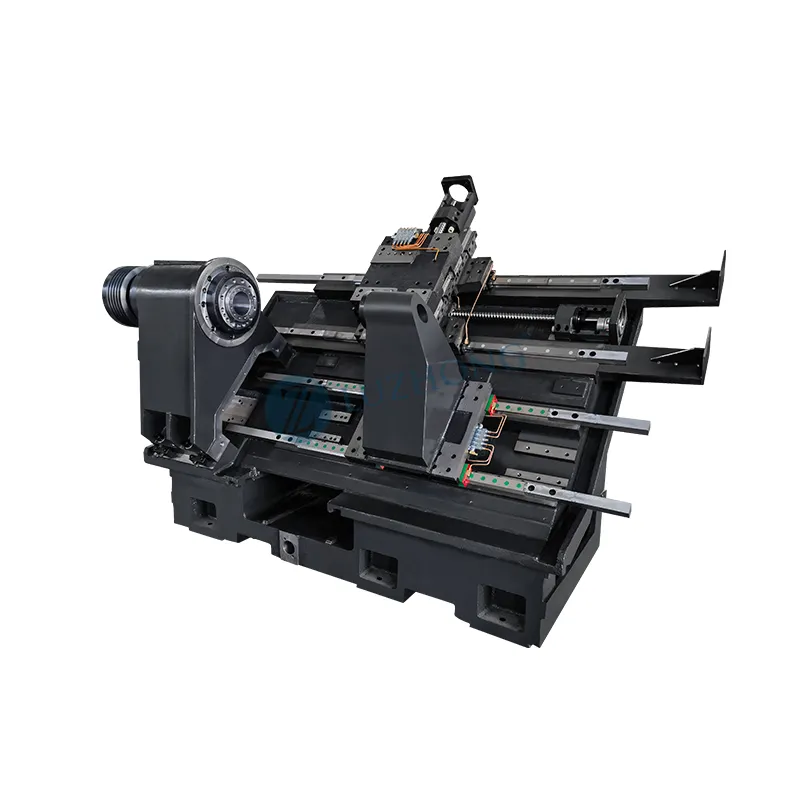

45 Degree Machine Structure: One piece casting with heavy loading capacity.

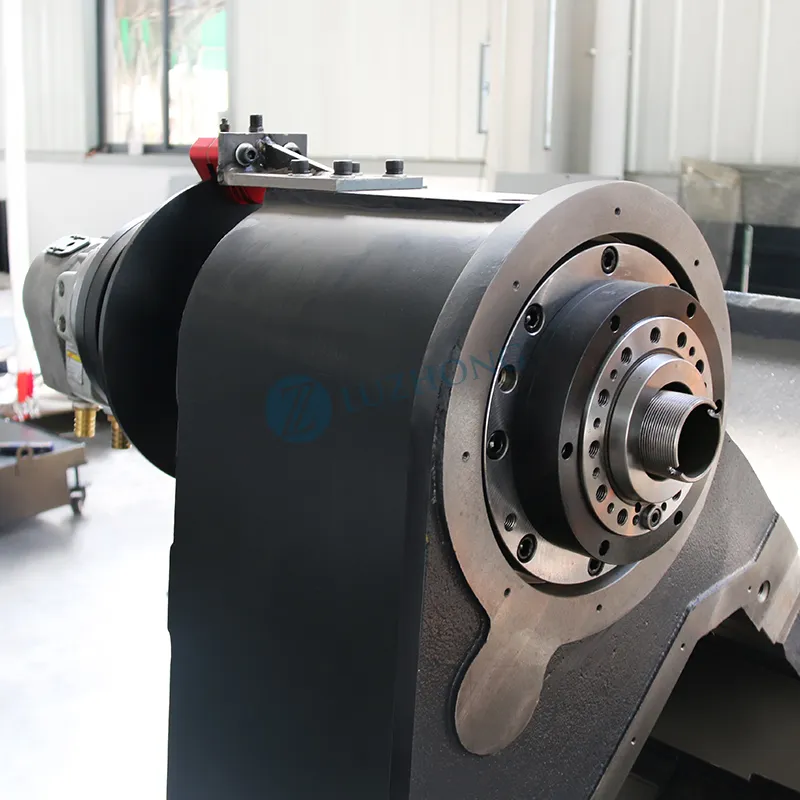

Spindle Unit: A2-6 unit, high spindle speed with hydraulic chuck.

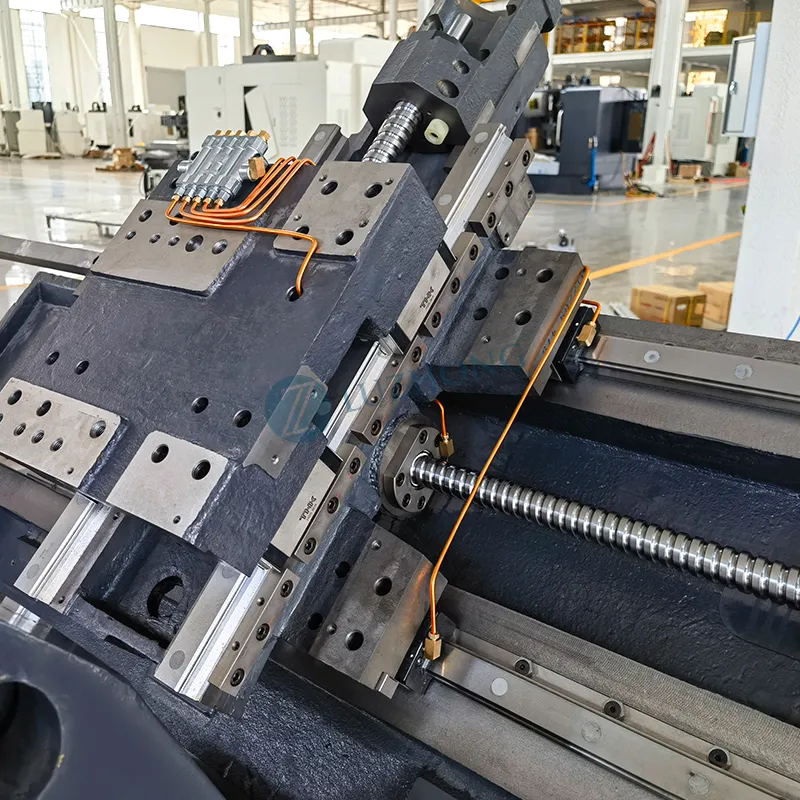

Precision Screw: High-quality ball screws for accurate positioning.

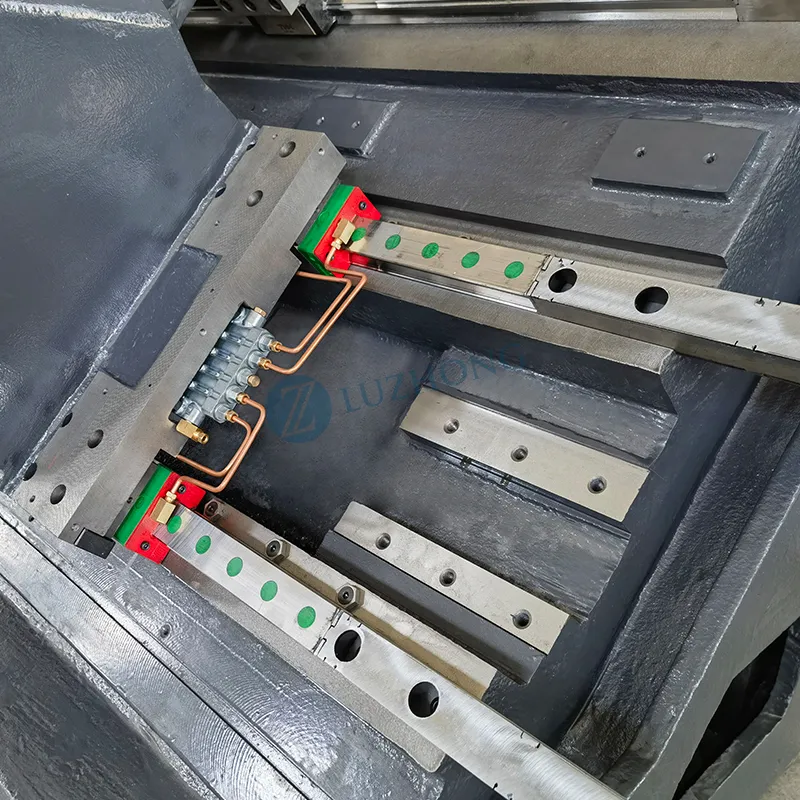

Linear Rails: High accuracy linear rails for X and Z axis.

Features & Manufacturing Strength

🔹 Factory Scale: More than 100,000m² facility with 200+ skilled workers.
🔹 Quality Control: Strict 24-step testing process for every machine.
🔹 Experience: 30+ years of CNC machine manufacturing expertise.

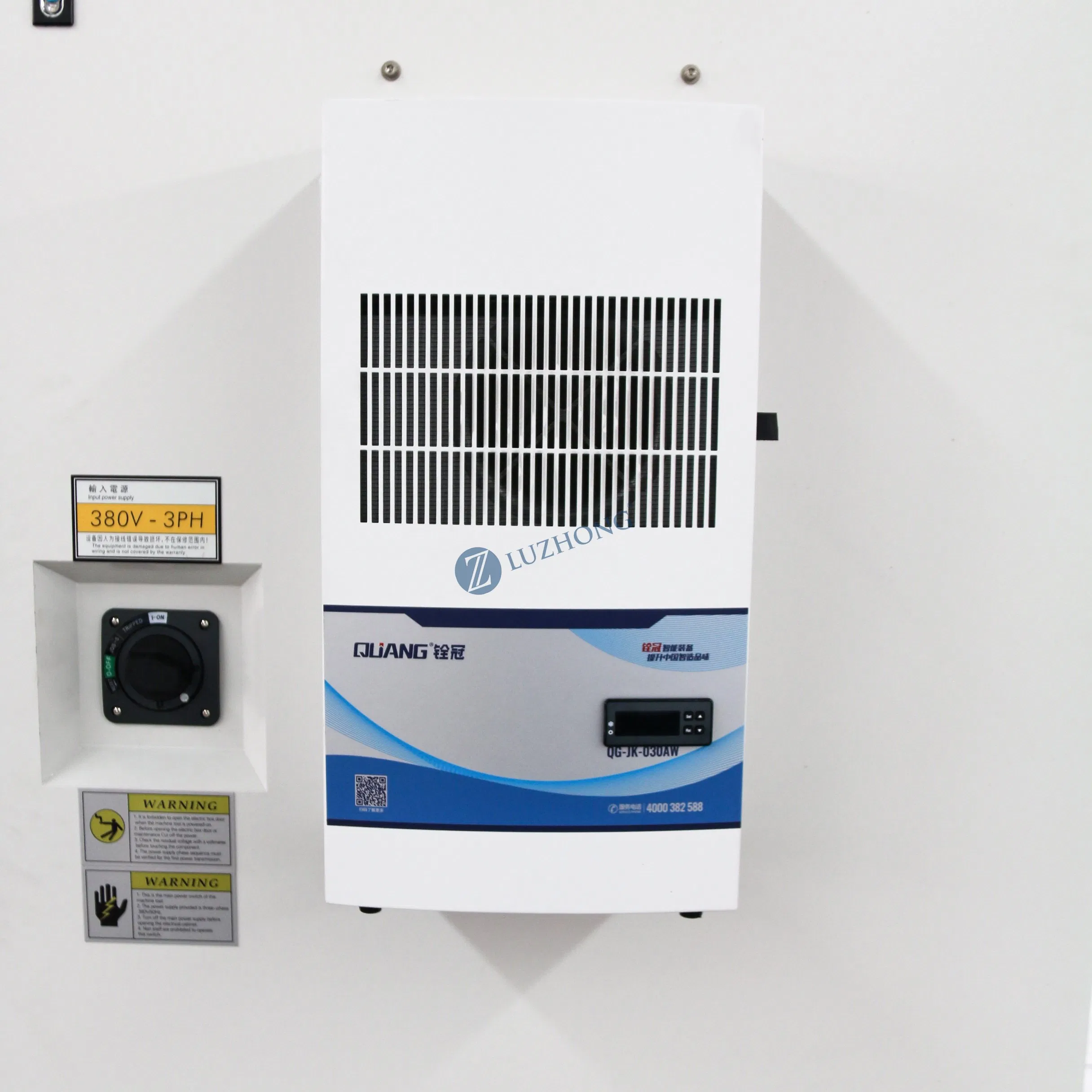

🔹 Components: Equipped with Schneider electrical components and Industrial air conditioning.
🔹 Testing: Each machine passes Renishaw laser interferometer testing.

Optional Accessories
