Compact Slant Bed CNC Pipe Threading Lathe for Precision Work

1 / 5

Compact Slant Bed CNC Pipe Threading Lathe for Precision Work

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

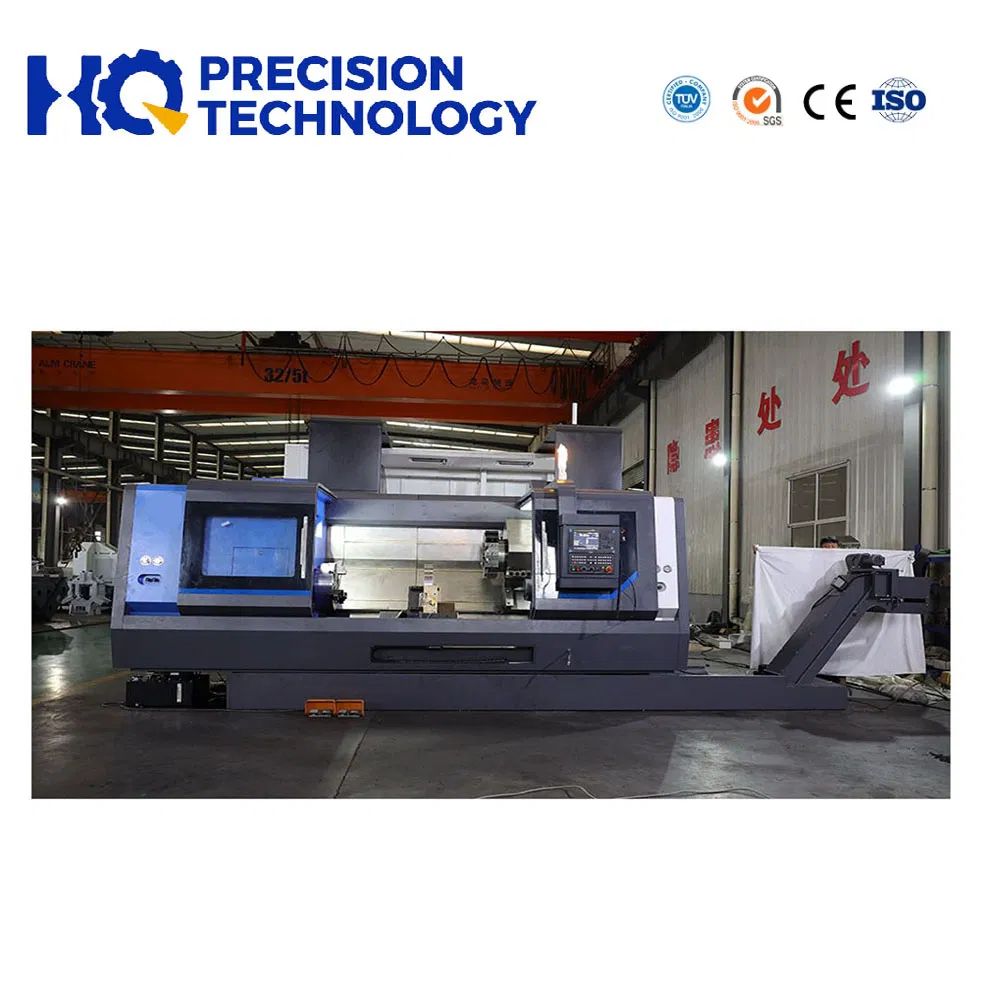

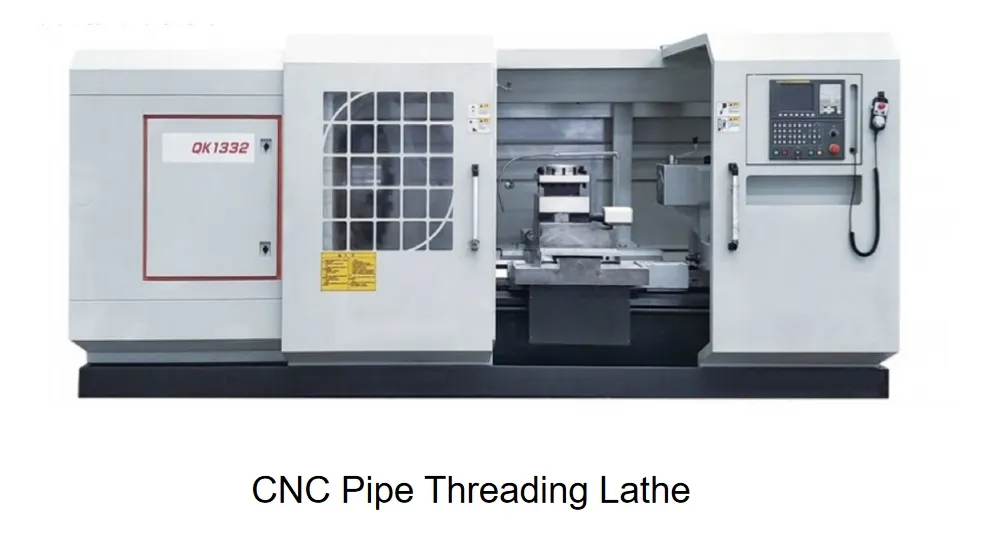

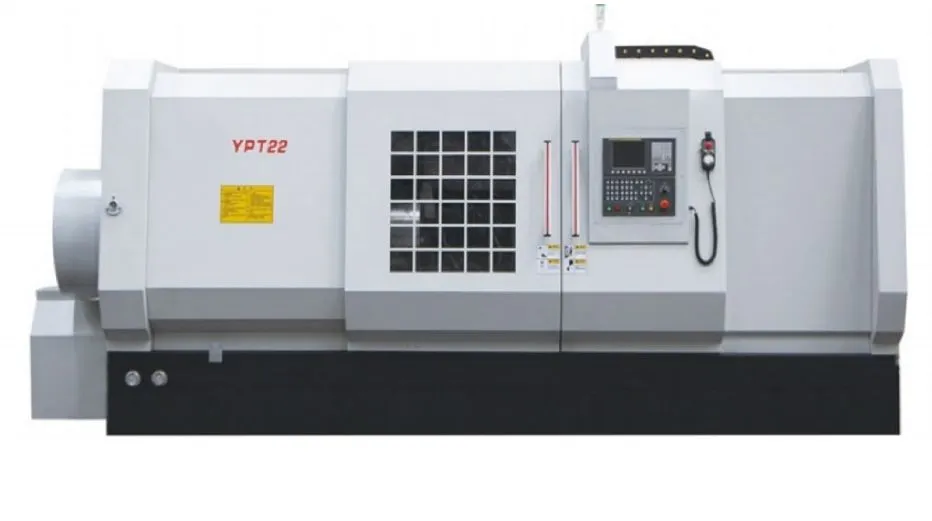

Compact Slant Bed CNC Pipe Threading Lathe

Basic Information

Model NO.

HQ - Slant Bed CNC Pipe Threading Lathe

Application

Metal

Numerical Control

CNC/MNC

Precision

0.008

Spindle Bore

225mm

Certification

GS, CE, RoHS, ISO 9001

Product Description

Uses of Slant Bed CNC Pipe Threading Lathe:

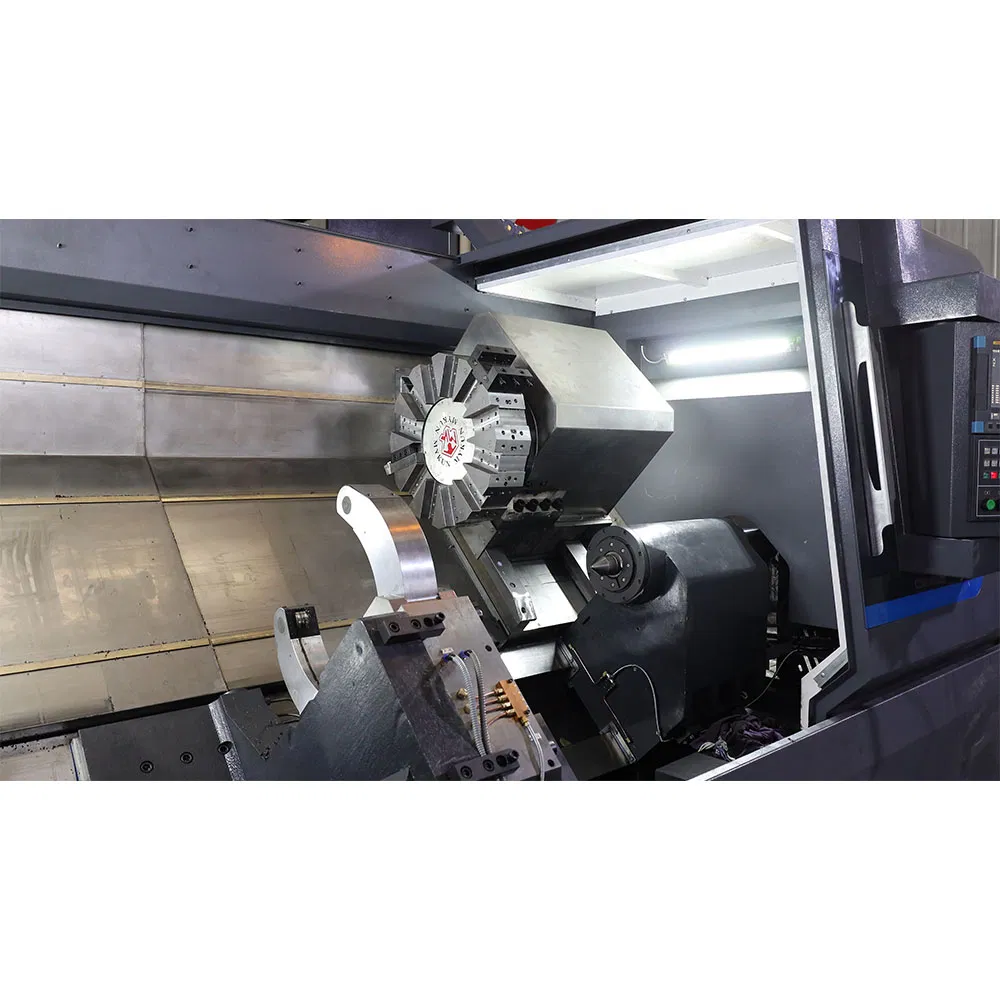

This series of slant bed CNC lathes are high-precision, high-efficiency automated machine tools, equipped with advanced configurations such as multi-station servo or power turrets. They are capable of processing straight cylinders, oblique cylinders, arcs, and various threads, as well as complex workpieces like worms. Ideal for oil pipes and pipe fittings.

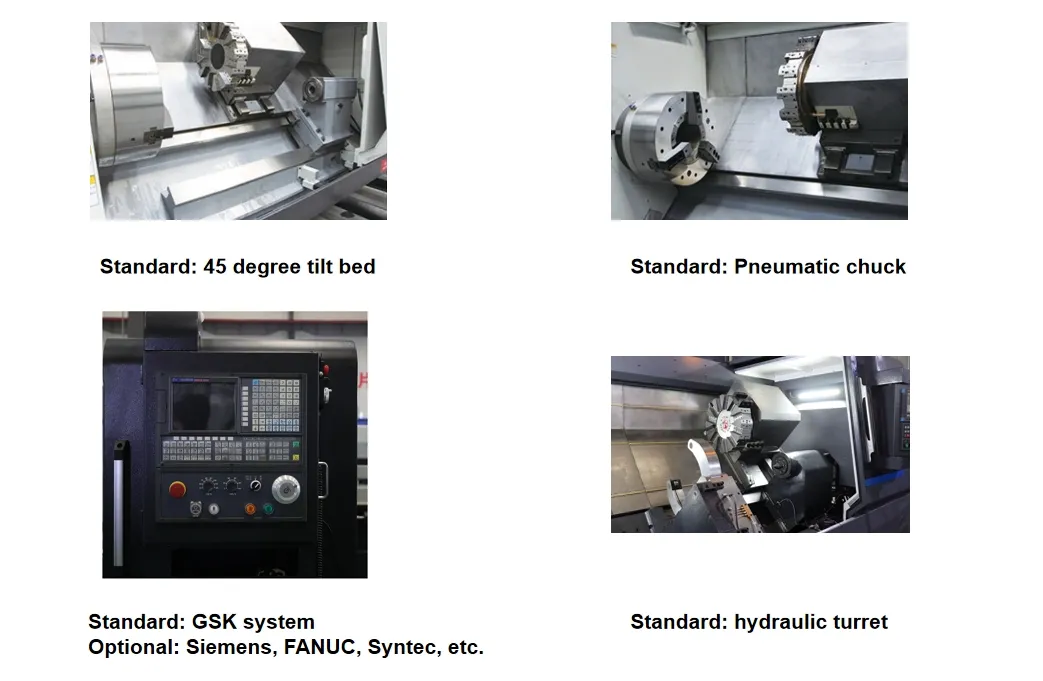

Key Features

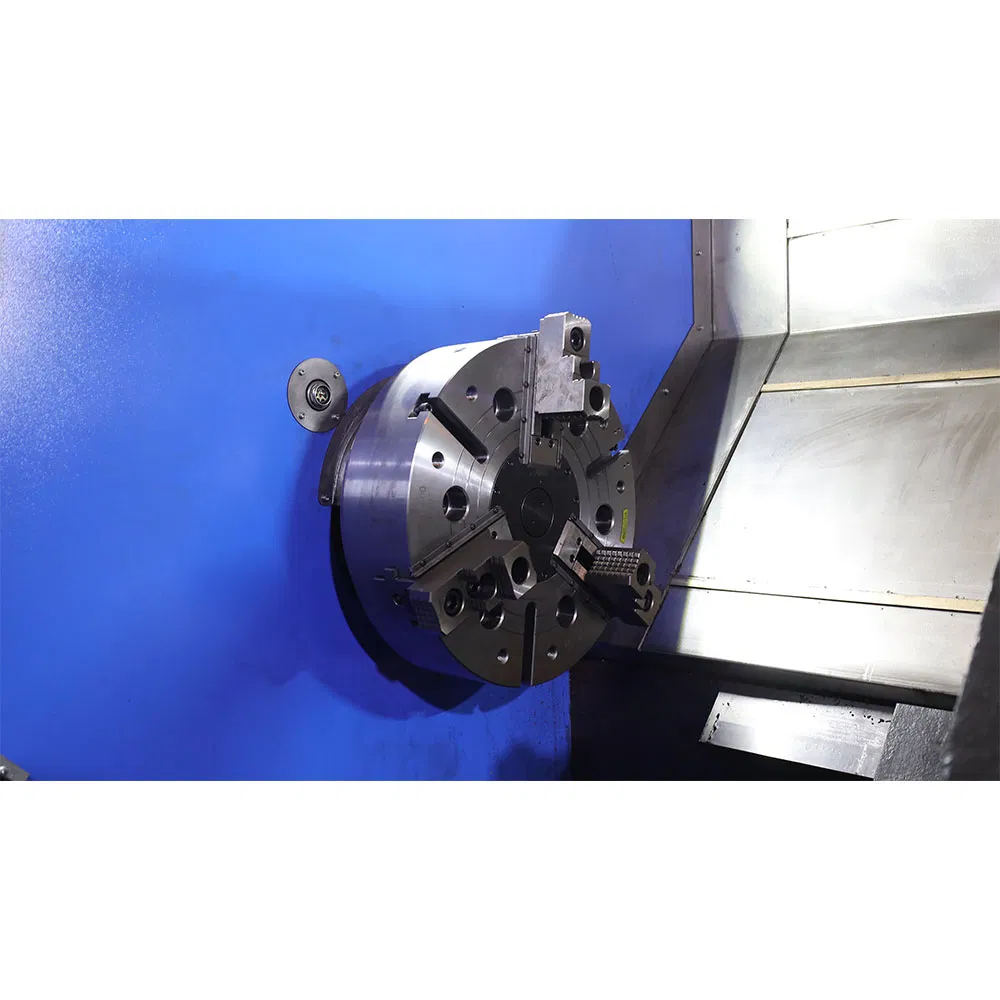

🚀 Large Spindle Bore: High passability with front and rear double pneumatic chucks.
💎 Durable Construction: Bed cast by resin sand technology with aging treatment for rigidity.
🛡️ Quality Protection: High-quality scraper plates and plastic-coated guide rail surfaces.
📐 Precision Cutting: 45° inclined bed and high-frequency quenching hard rails.

Product Parameters

SPECIFICATION	UNIT	QKY1312	QKY1315	QKY1319	QKY1322
Swing over bed	mm	600	630	680	680
Spindle bore	mm	120	150	200	225
Max. Turning diameter	mm	500	600	600	600
Spindle speed range	rpm	850	800	550	550
Main spindle motor	kW	15	15	22	22
Net weight	T	7.5	7.5	11.8	12.0

Customization & Manufacturing

We provide customized services to meet special industry needs. All processes are completed in-house to ensure accuracy and reliability.

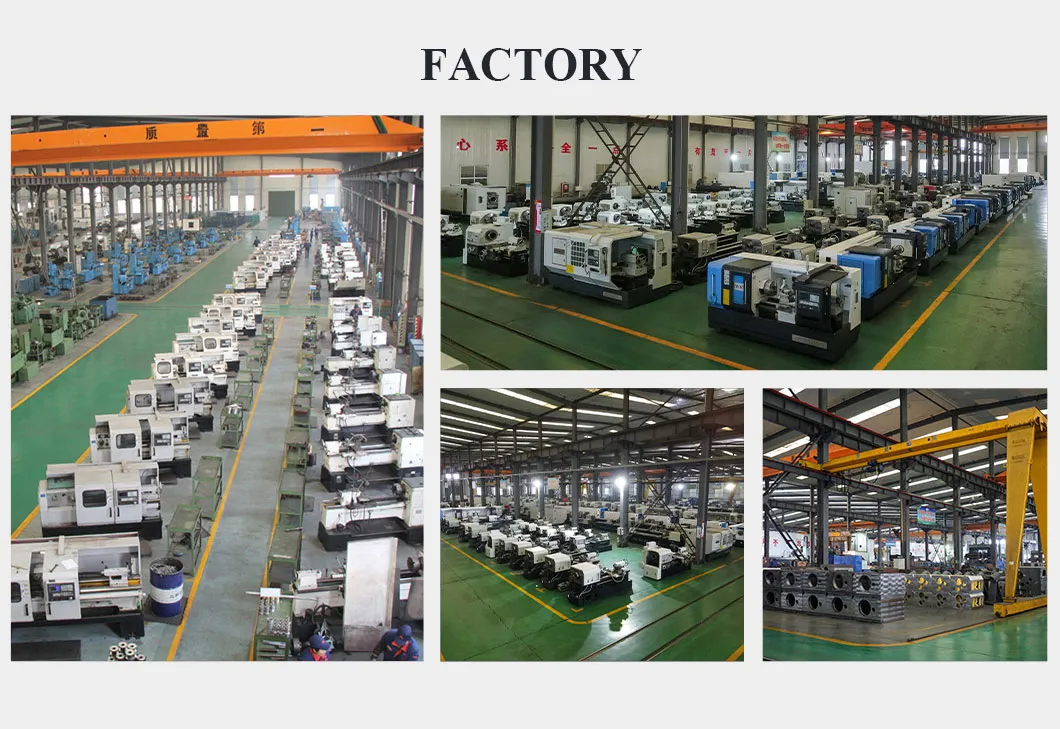

Our Production Excellence

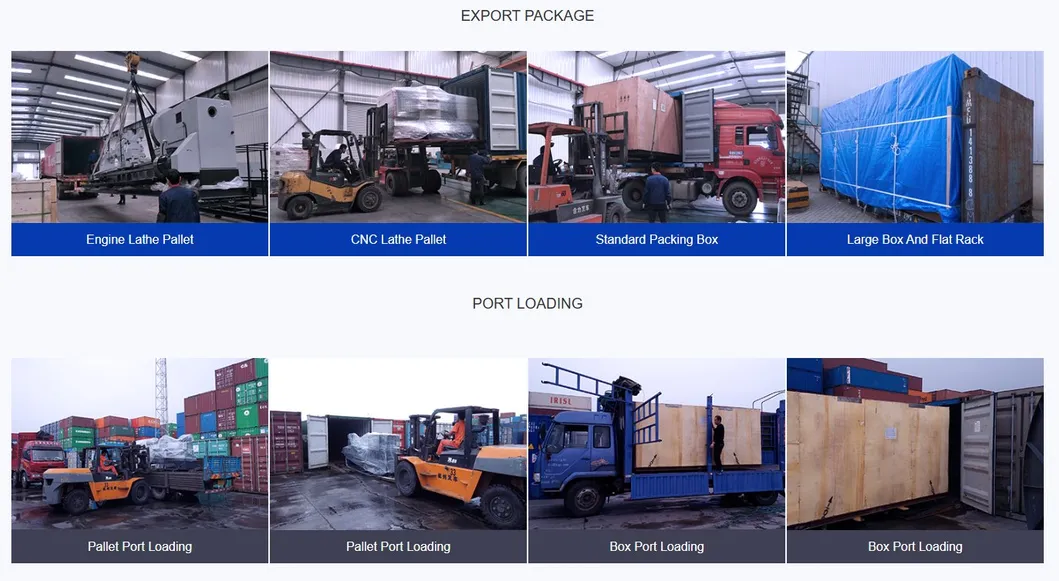

Packaging & Services

✅ Pre-sales: Professional consulting and customization.

✅ In-sales: Order tracking and logistics arrangement.

✅ After-sales: Technical guidance and maintenance.

Frequently Asked Questions

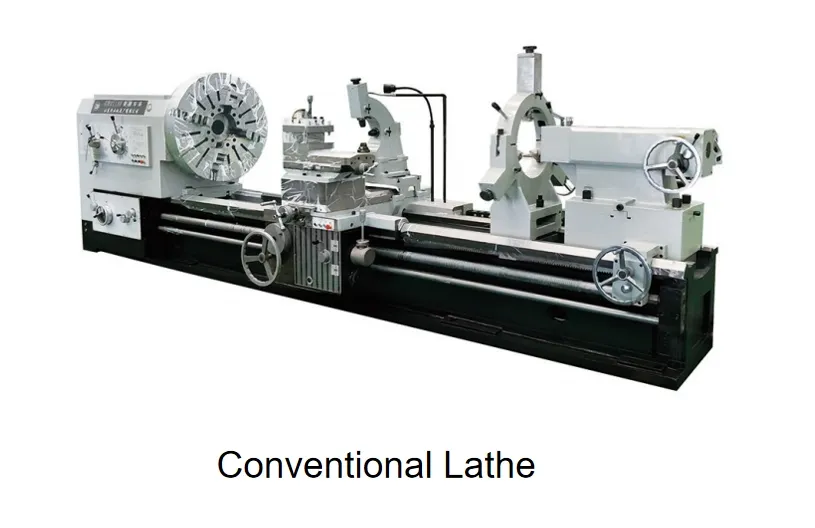

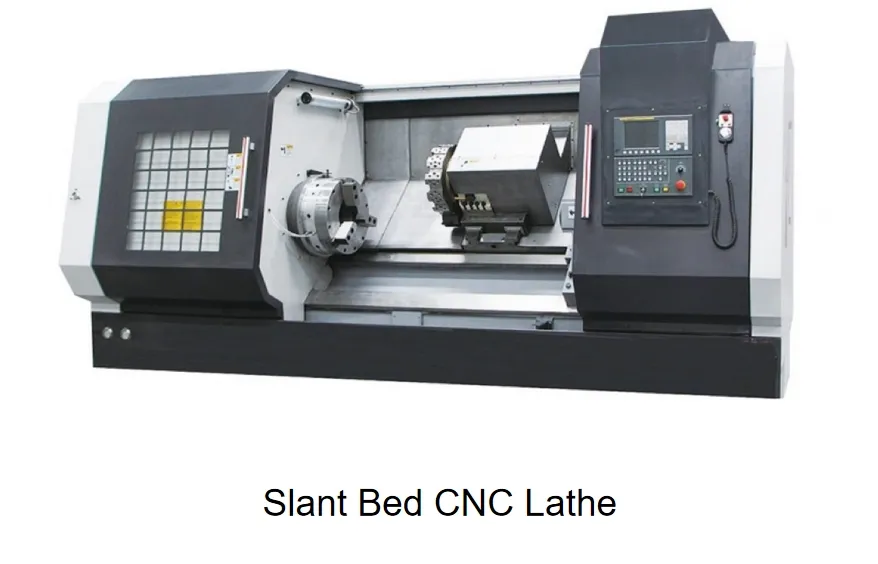

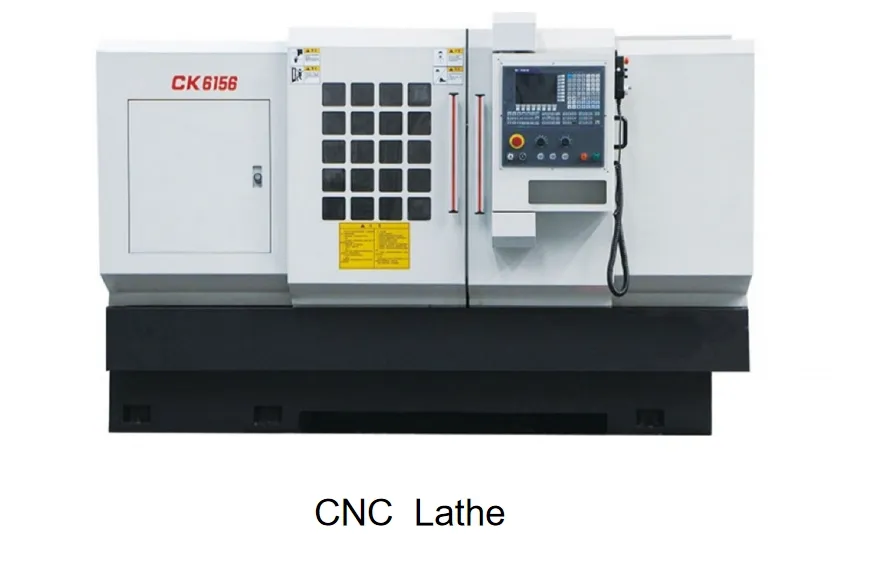

1. What are your main machine products? We specialize in general CNC lathes, pipe thread lathes, cylinder lathes, heavy-duty lathes, and various industry-specific machines with both flat and slant bed structures.

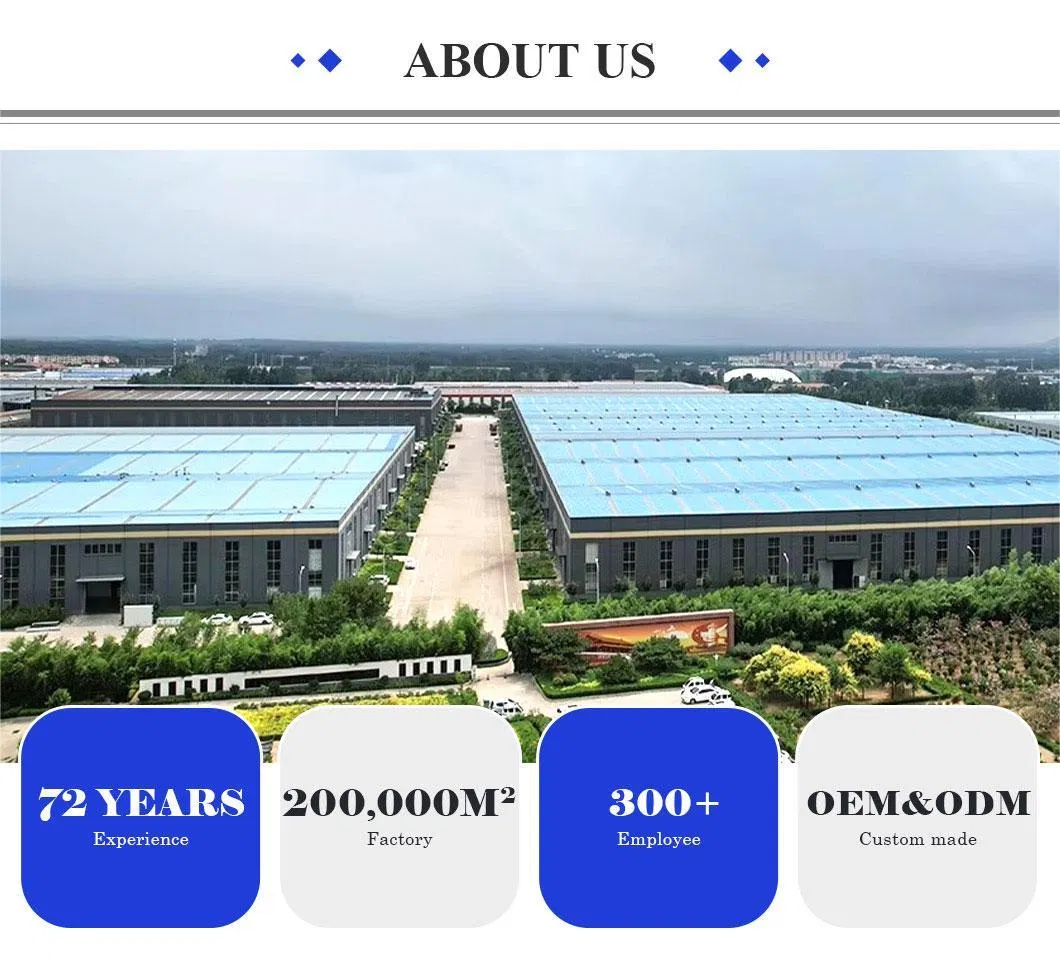

2. Are you a direct manufacturer? Yes, we are a specialized lathe manufacturer founded in 1952 with over 70 years of production history.

3. What trade terms do you support? We accept FOB, CFR, and CIF trade terms.

4. What is the typical delivery time? Usually, a single machine takes 15-20 days. Bulk orders can be discussed on a case-by-case basis.

5. Do you offer OEM/ODM services? Yes, we have full capabilities to provide OEM and ODM solutions to meet specific client requirements.

6. How is product quality ensured? All processes are completed in our own factories, strictly controlled at every link to ensure industry-leading accuracy and stability.
