📦 Basic Info & Overview

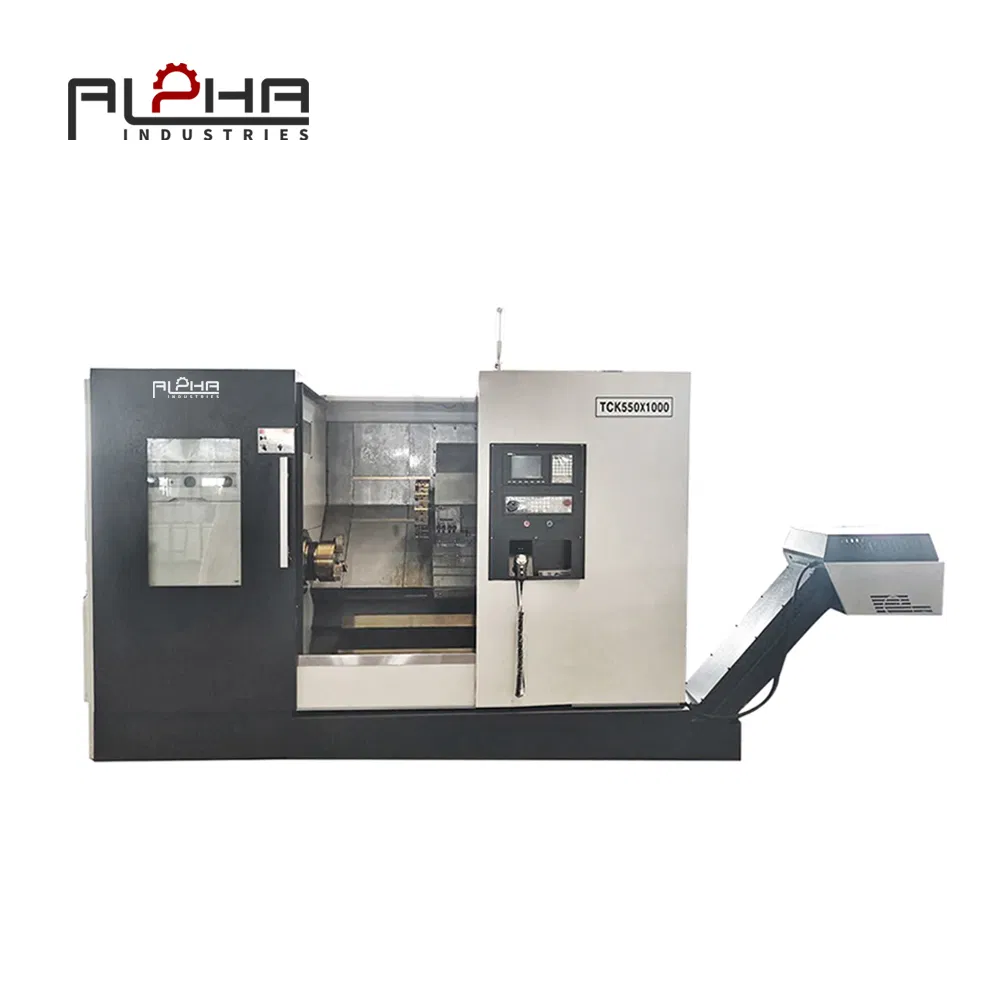

Model NO.TCK550x1000
Guide RailInclined Guide Rail
Tool Holder6/8
Controlling ModeCNC
PrecisionHigh Precision
CertificationCE, ISO 9001
ConditionNew
OriginChina
Package Size2.45cm * 1.75cm * 1.70cm
Gross Weight2000.000kg
Capacity100 Sets/Year
PowerElectric

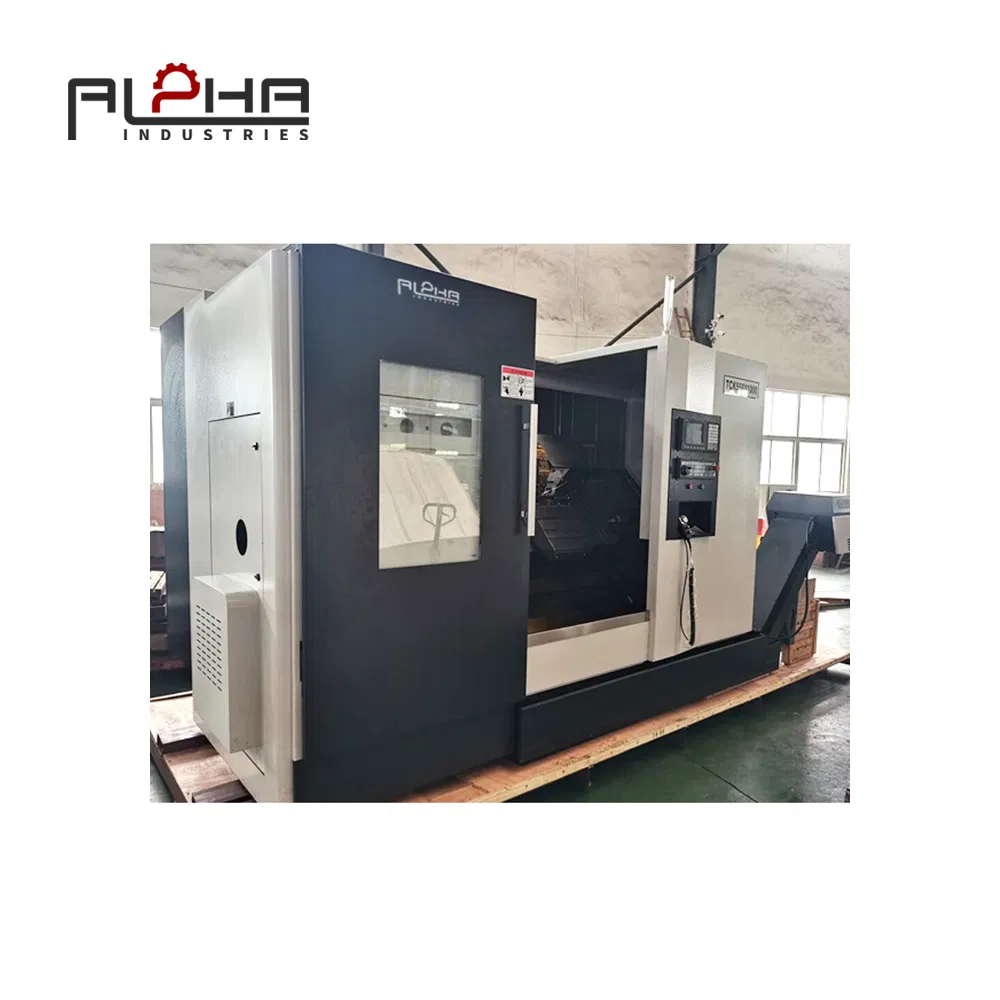

🔍 Product Description
⚙️ Technical Parameters
| Model |
TCK40 |
TCK550 |
TCK630 |
TCK1000 |
| Processing range |
Max spin on bed(mm) |
Φ450 |
Φ580 |
Φ650 |
Φ1200 |
| Max cutting dia(mm) |
Φ400 |
Φ550 |
Φ630 |
Φ1000 |
| Max cutting length(mm) |
520 |
750 |
890 |
1000 |
| Stroke |
X-axis stroke(mm) |
260 |
300 |
360 |
580 |
| Z-axis stroke(mm) |
550 |
750 |
1000 |
1000 |
| Main shaft |
Speed(rpm) |
100-2200 |
80-2000 |
150-2000 |
80-1800 |
| Motor |
Servo motor(kw) |
5.5 |
7.5 |
11 |
22 |
🛠️ Main Components & Suppliers
| Name |
Specification |
Manufacturer |
| Lead screw bearing | X2552 / Z3062 | NSK |
| Ball screw | 3210/4010 | Taiwan Shangyin |
| Linear guide | X35 / Z45 Roller | Taiwan Shangyin |
| Lubrication unit | 18201-1 | Nanjing Bechir |
| Control system | GSK988 | Domestic Professional |

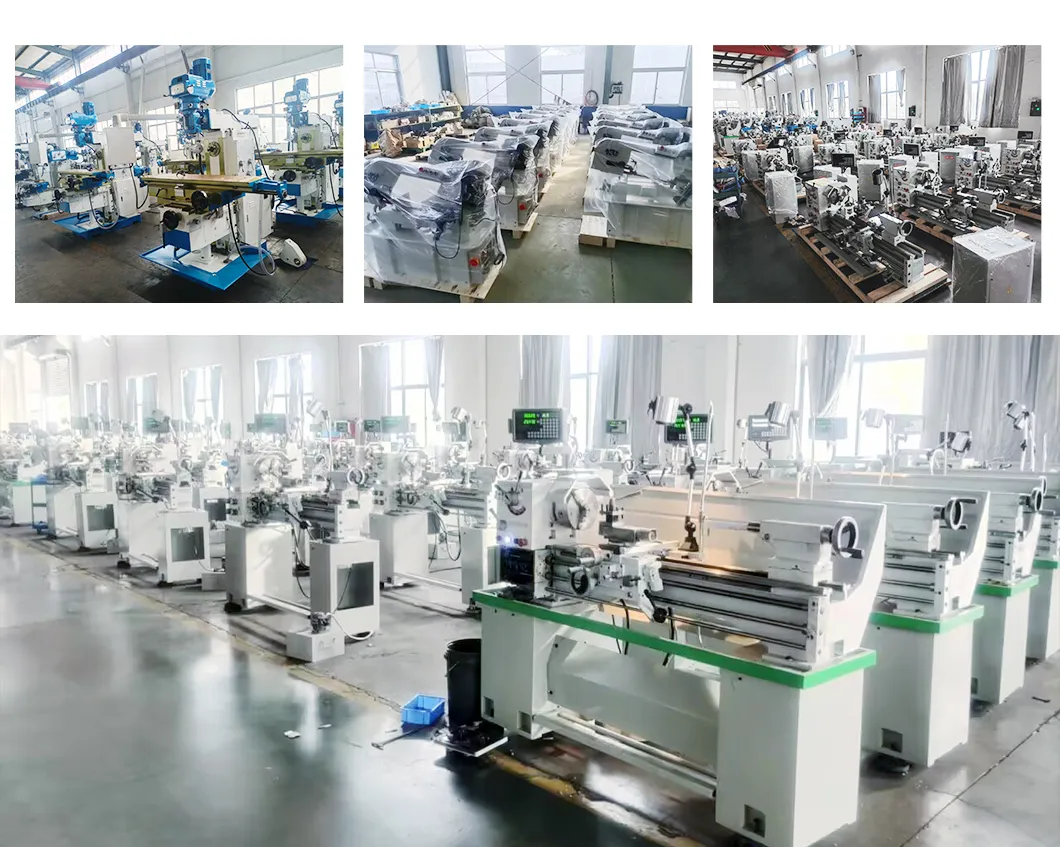

🏢 Workshop & Quality Control
📜 Certifications & Exhibitions
🚢 Packaging & Shipping
Frequently Asked Questions
How is the warranty for the CNC machines?
The warranty time is 15 months after the BL date, ensuring long-term support for your investment.
Do you provide customized machines based on specific requirements?
Yes, we have professional engineers and designers who can design and manufacture equipment according to your specific technical requirements.
What is the Minimum Order Quantity (MOQ)?
The MOQ is just one set, allowing small shops and large factories alike to access our technology.
What quality management systems do you follow?
We are approved by ISO9001:2008, ISO14001, and OHSAS18001. Most products meet European and American safety standards, including CE, GS, EMS, and UL.
Do you have machines in stock?
We maintain stock for popular models, while other units are produced according to specific order requirements.
Can we visit the factory before placing an order?
Absolutely. We welcome all visitors and can assist with local arrangements such as station pick-ups and accommodation booking.
