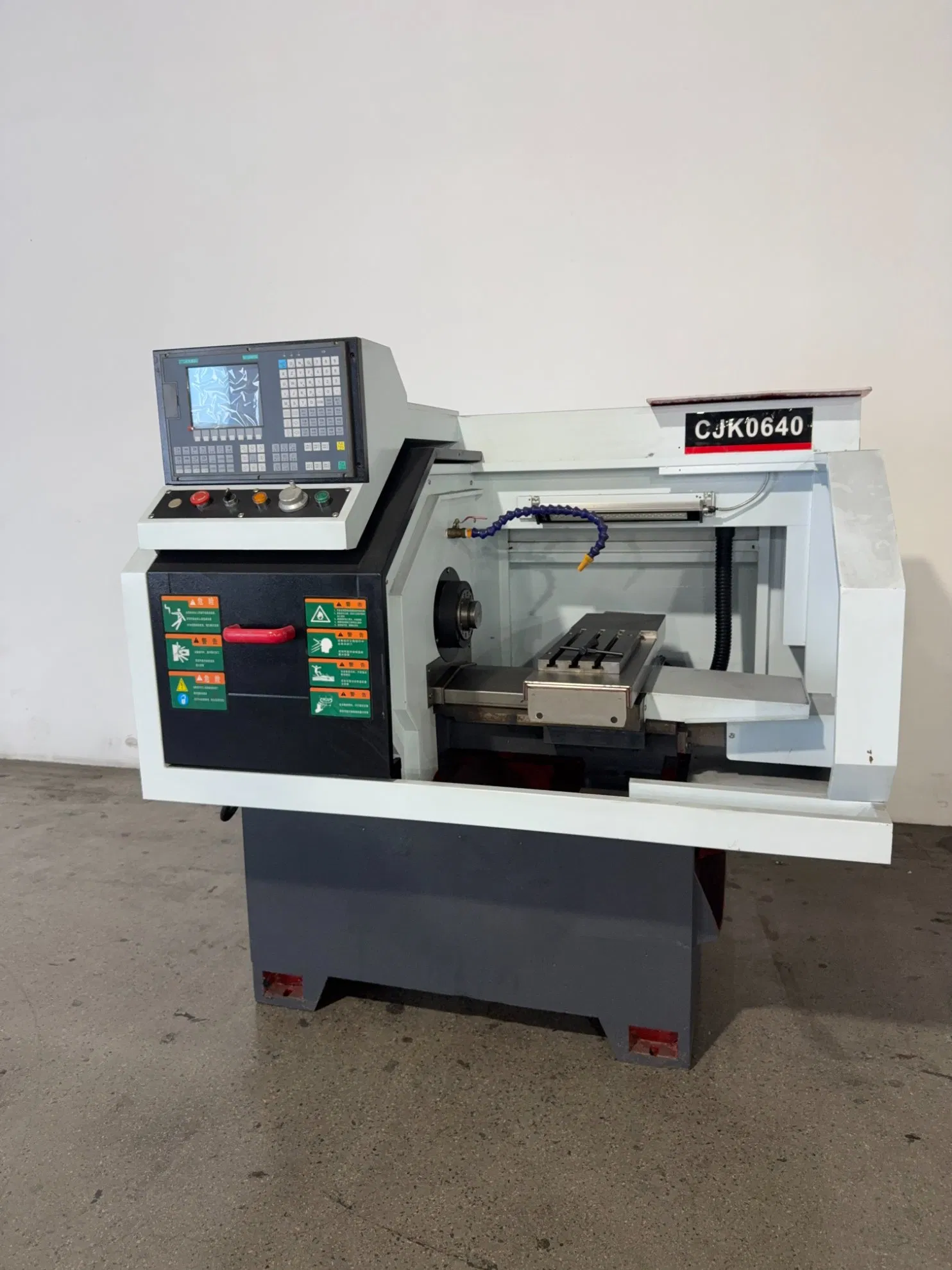

Compact CNC Lathe for Precision Brake Disc and Drum Work

1 / 5

Compact CNC Lathe for Precision Brake Disc and Drum Work

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Info

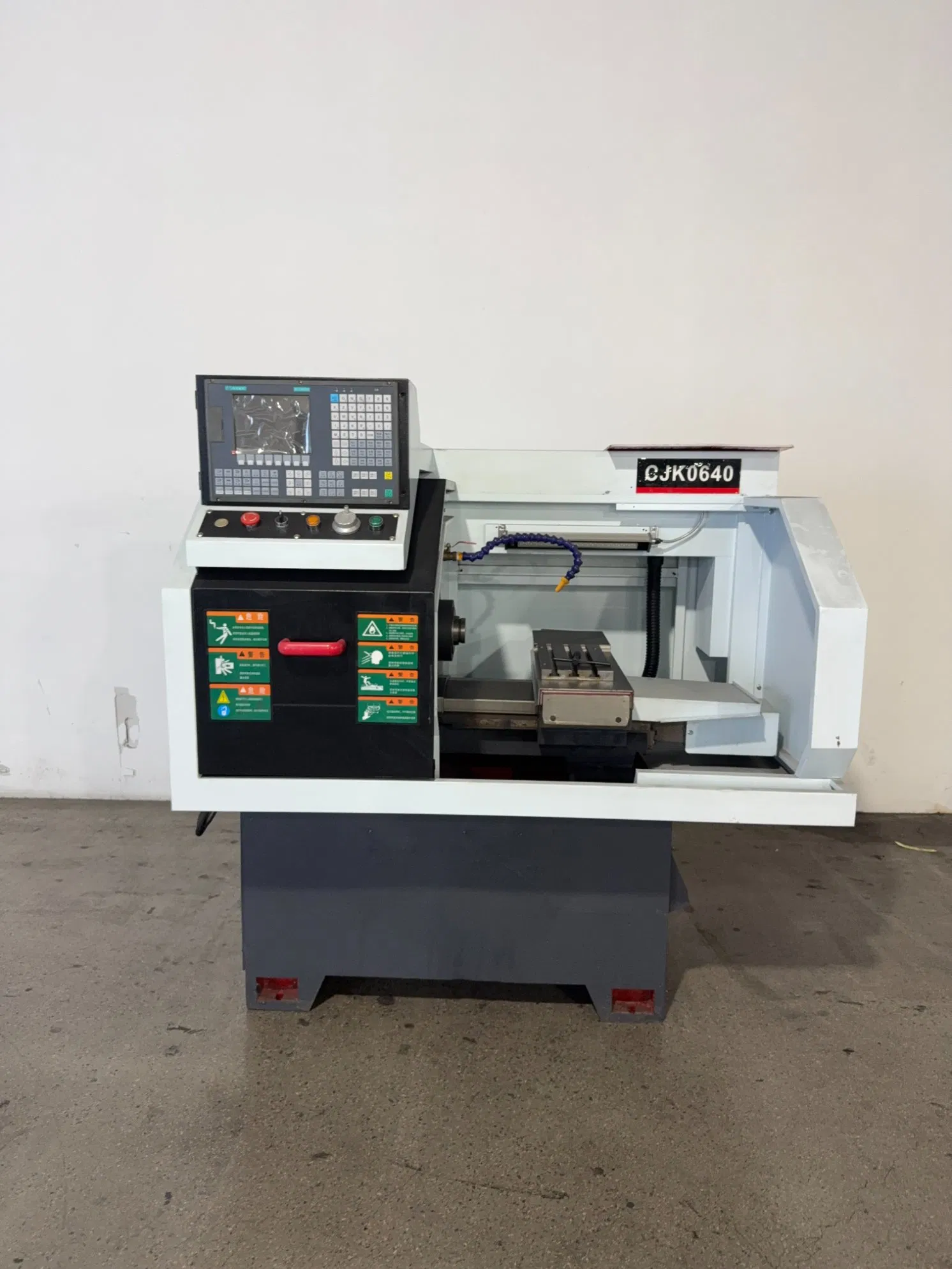

Model NO.	CJK-0640
Type	Overall Flat Rail Machine Tool
Processing Accessory	Chuck CNC Lathe
Guide Rail	Horizontal Guide Rail
Power Source	Electric
Controlling Mode	CNC
Automatic Grade	Automatic
Precision	High Precision
Certification	CE
Condition	New
Machine Dimensions	1680X1300X1720
Production Capacity	2000 pieces/Year

⚙️ Product Description & Features

Overall bed offers high rigidity.
Main shaft with top-notch angular contact bearing (front three, rear two pairs) ensures speed, precision, and low noise.
Centralized auto lubrication extends machine tool life.
Servo motor-driven feed system ensures precise ball screw rod transmission.
Functions: turning, cylindrical, conical, arc surfaces, groove cutting, and thread processing.

📋 Technical Specifications

CJK-0640 Technical Parameters
Process Capability	Maximum rotary diameter on bed	mm	350
	Maximum turning length	mm	350
	Maximum bar diameter	mm	40
	Maximum turning diameter on skateboard	mm	150
Principal Axis	Spindle speed	rpm	20-3000
	Main motor power	kw	4
	Bore diameter of spindle	mm	48
Feed System	X/Z quick move speed	m/min	15/20
Feed System	Type of guide rails	Taiwan linear hard guide GH30

🏭 Company Profile

Your One-Stop CNC Machine Manufacturer with 20+ Years of Expertise

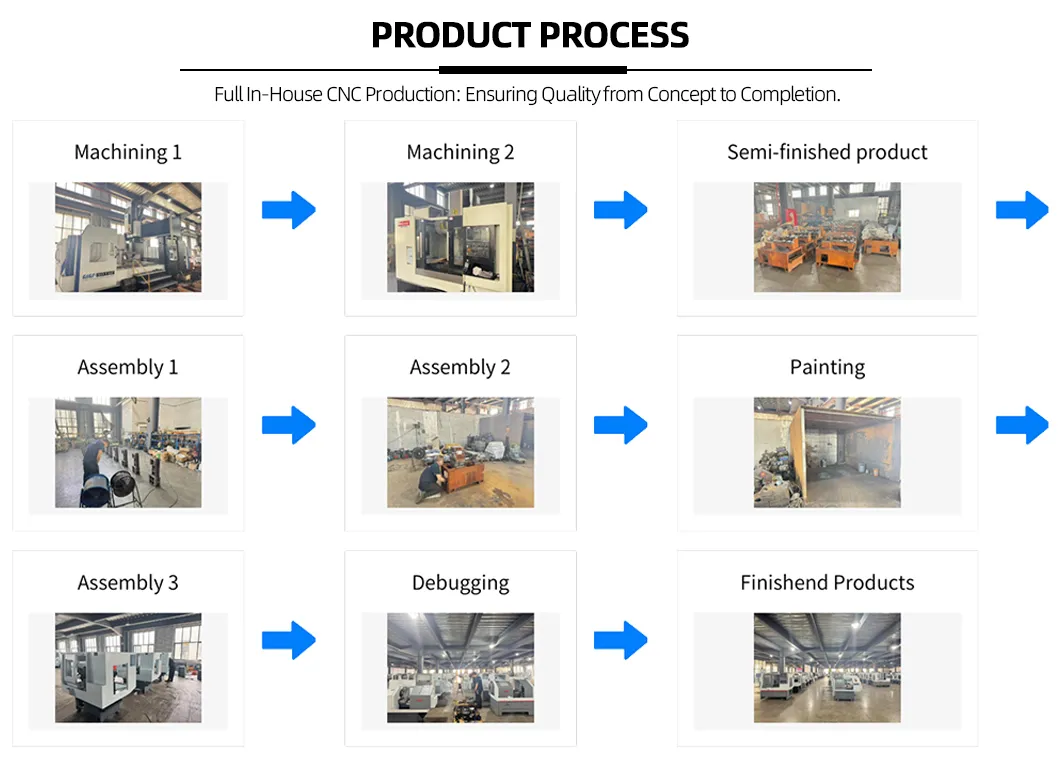

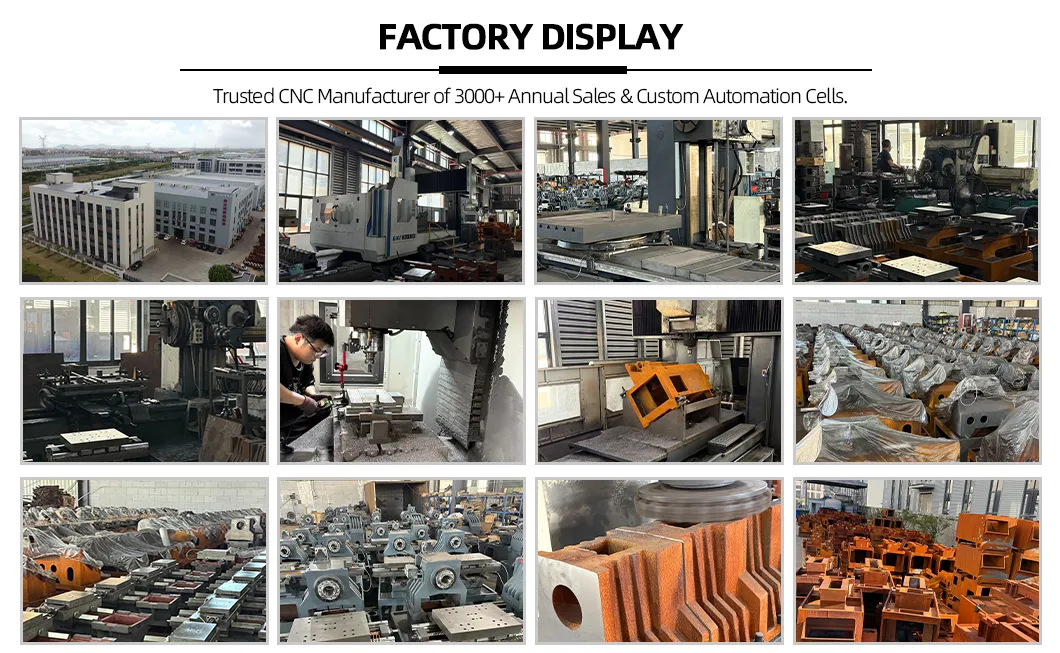

Professional CNC machine tool maker with R&D, production, and sales. Operating a modern 10,000-square-meter facility with a well-defined manufacturing ecosystem. We manage the entire process: precision machining, installation of ball screws, guideways, sheet metal work, CNC integration, and final testing. We deliver integrated automation solutions including vibratory feeders and robotic arms to boost production efficiency.

📦 Packaging & Certifications

❓ Frequently Asked Questions

1. What is your product range?

We offer an extensive portfolio: hard rail, linear rail machines, slant bed lathes, high-low rail, turret-tailstock machines, and 855 series VMCs.

2. What are your accepted trade terms?

We accept EXW, FOB, CFR, and CIF terms.

3. How can I choose the most suitable machine?

Please provide the model or technical parameters needed, and the CNC machining purpose. Sending product pictures or drawings helps us suggest the best machine for your needs.

4. What is the warranty and after-sale service?

We provide a one-year warranty and free replacement for any broken parts during the warranty period.

5. What information should I provide before an inquiry?

Please specify your metal workpiece size, the materials used (Aluminum, Steel, Iron, Titanium Alloy, etc.), and ideally, send us your workpiece drawing.

6. Do you offer customized design solutions?

Yes, we offer customized design solutions tailored to specific requirements, materials, and manufacturing processes.
