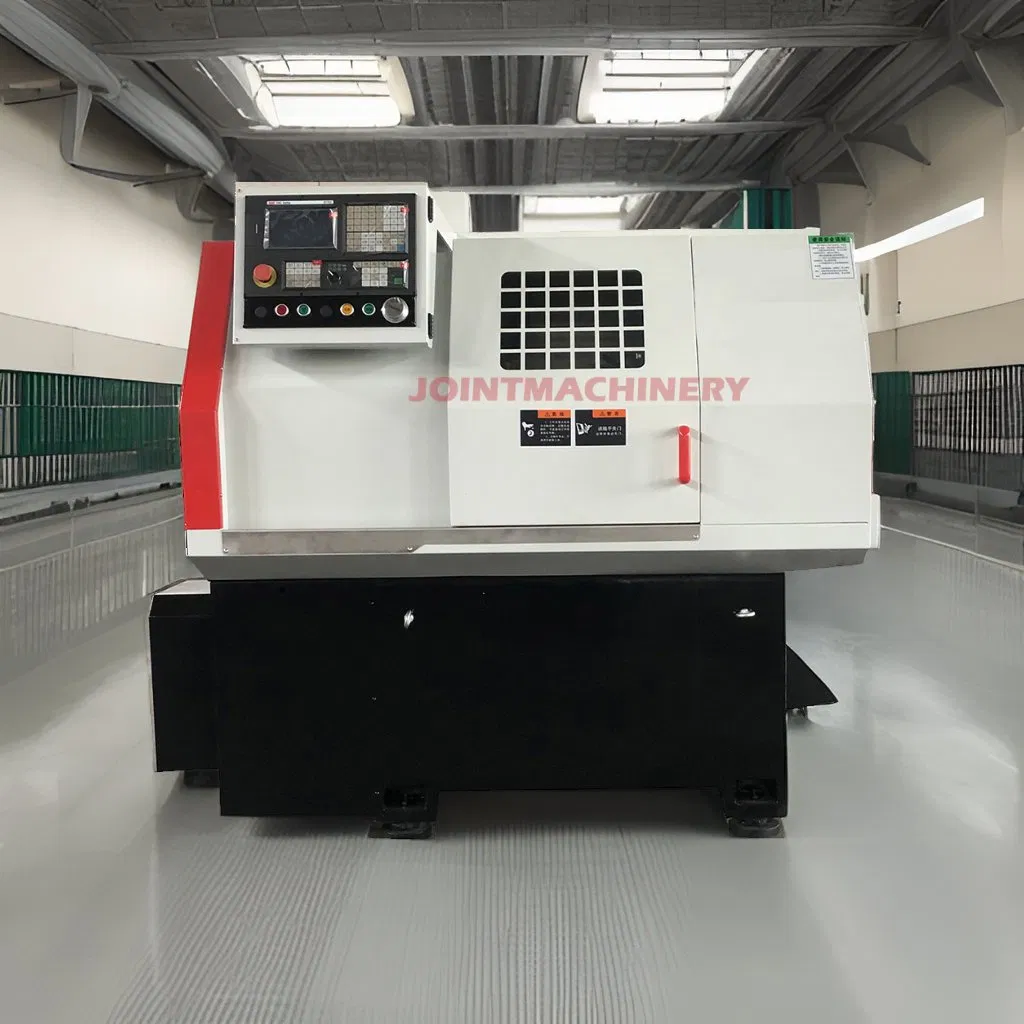

Compact Gang Tool CNC Lathe for Precision Metal Cutting Tasks SL37

1 / 5

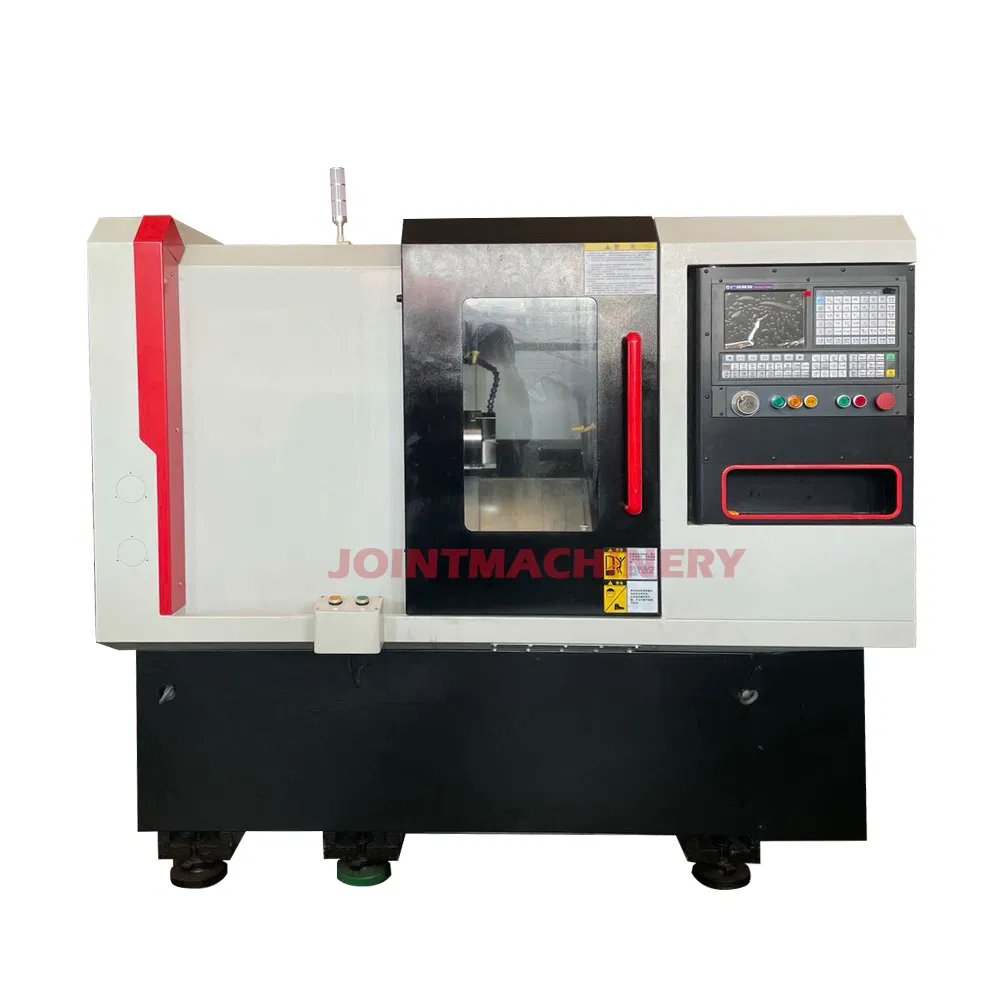

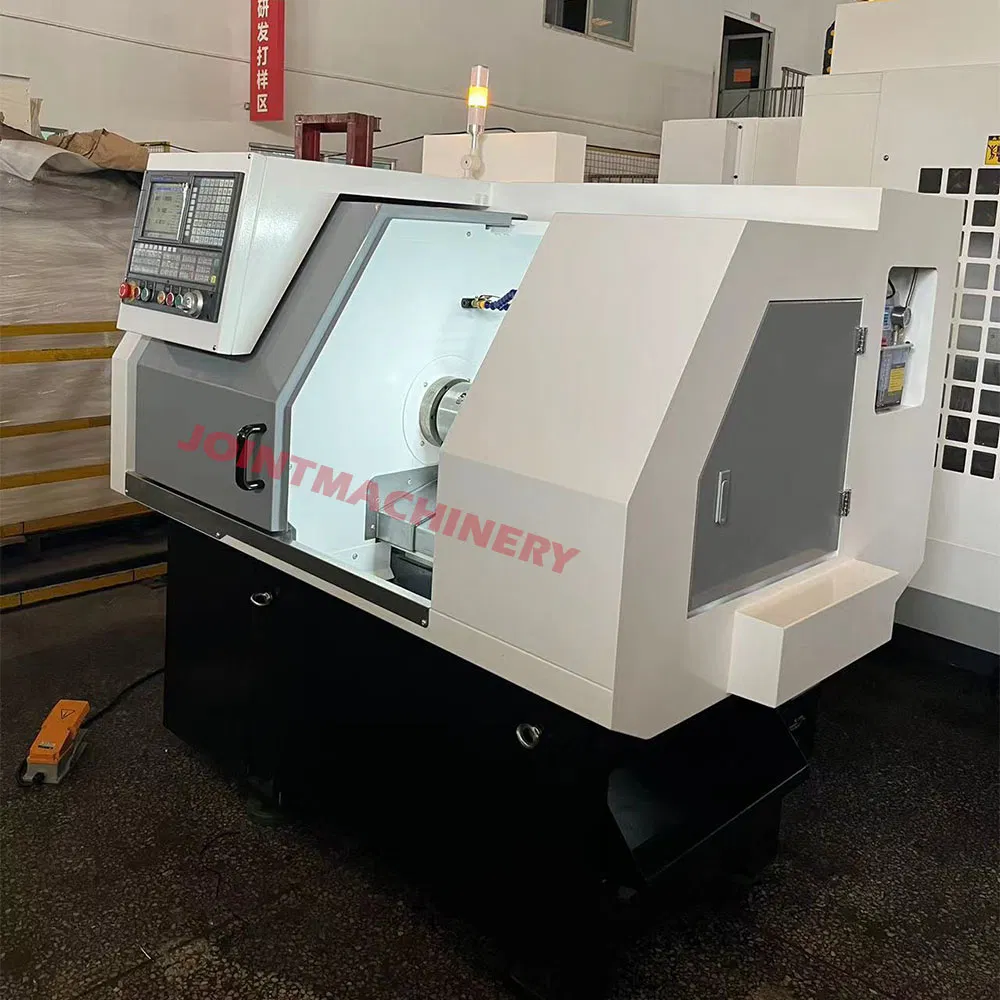

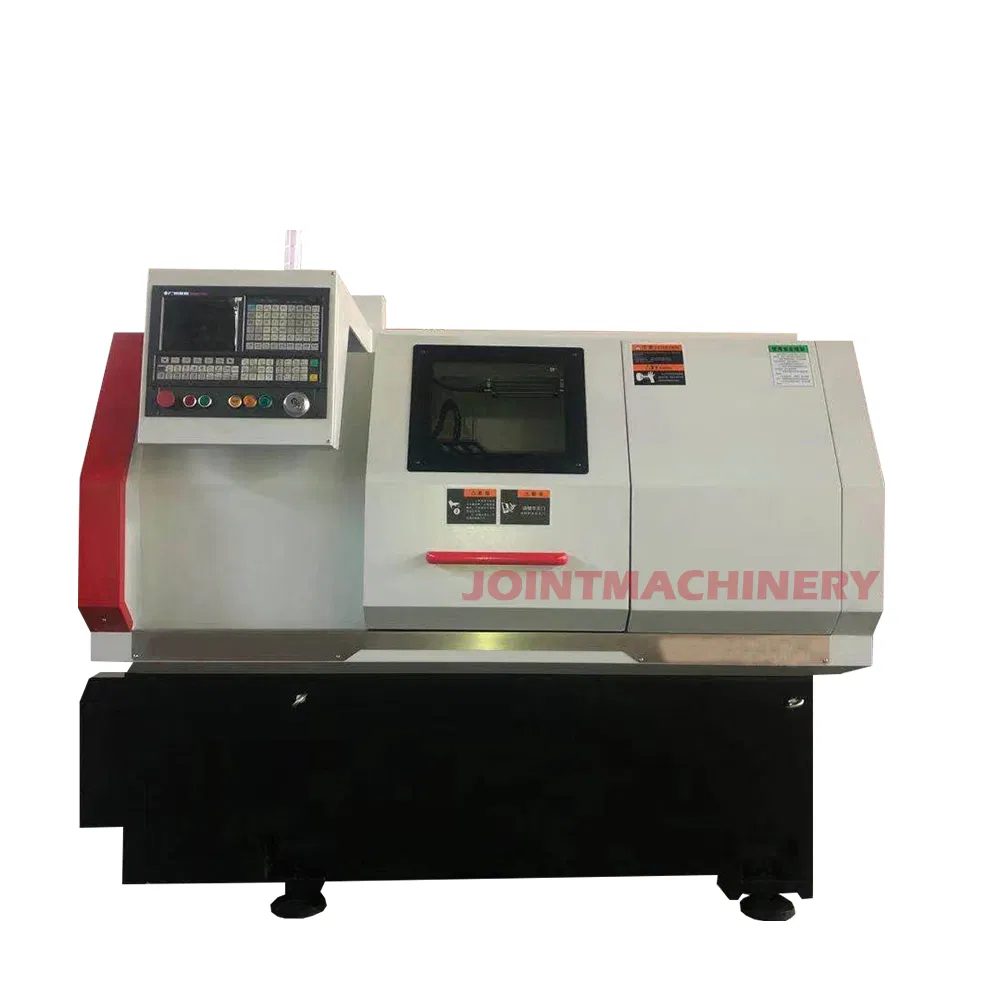

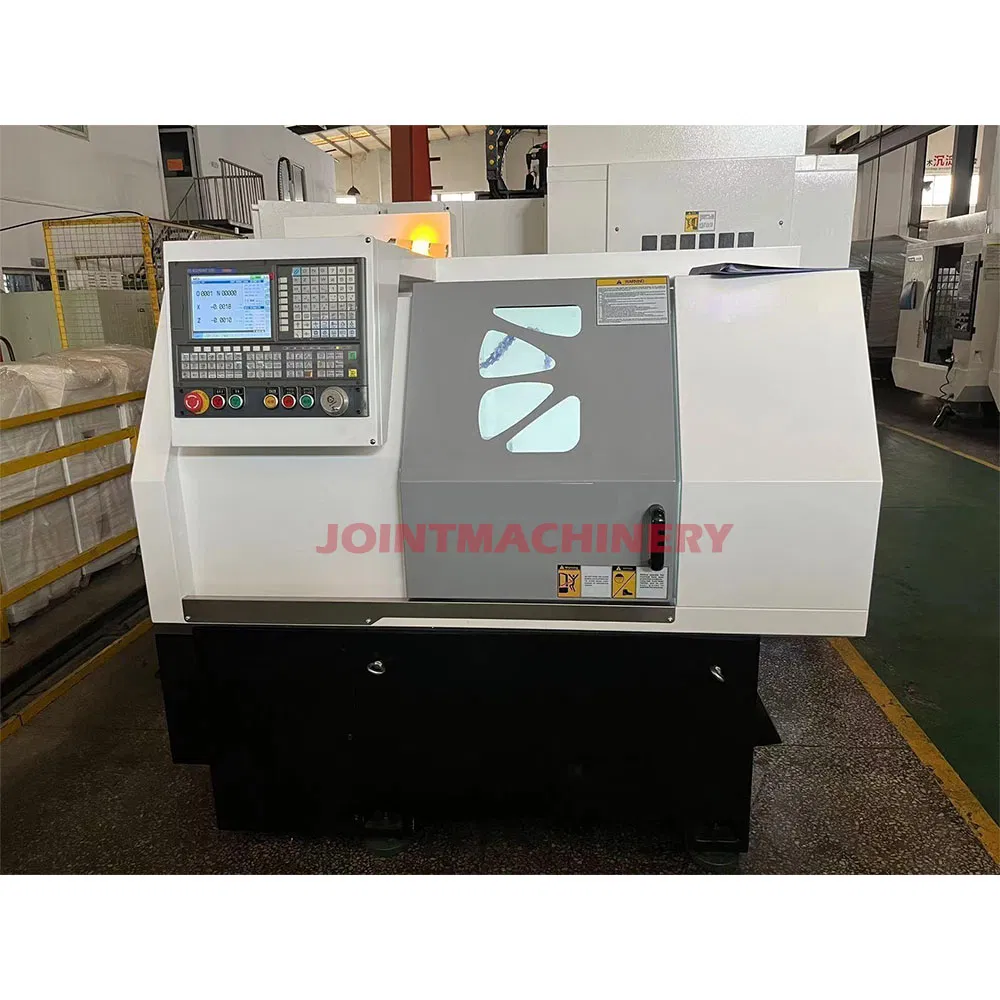

Compact Gang Tool CNC Lathe for Precision Metal Cutting Tasks SL37

Customization:	Available
After-sales Service:	Online After-Sale Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

SL37

Application

Metal

Processing Precision

0.01~0.02(mm)

Max Swing Diameter

375mm

Max Workpiece Diameter

300mm

Max Bar Diameter

36/52mm

Spindle Speed

3000/2600rpm

Net Weight

1800kg

Certification

CE, ISO 9001

CNC Control

GSK / Fanuc / Siemens

Product Description & Features

Flat bed design equipped with high-precision linear ways from Taiwan, boosting speed and stability.

Angular contact spindle bearings for enhanced rigidity and precision during heavy cutting tasks.

Optimally designed mid-screw reinforced machine stability for smooth, consistent operation.

High efficiency and cost-performance ratio, making it ideal for precision metal cutting.

Machine Details Display

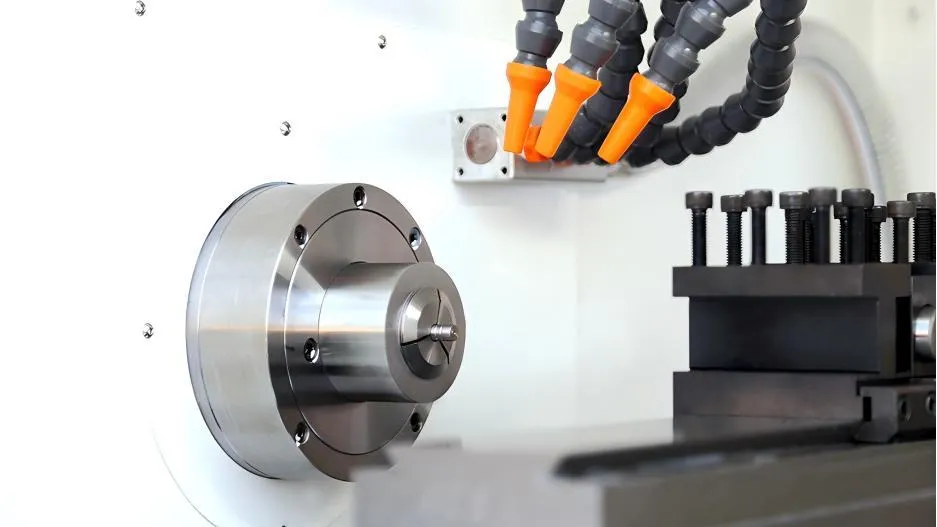

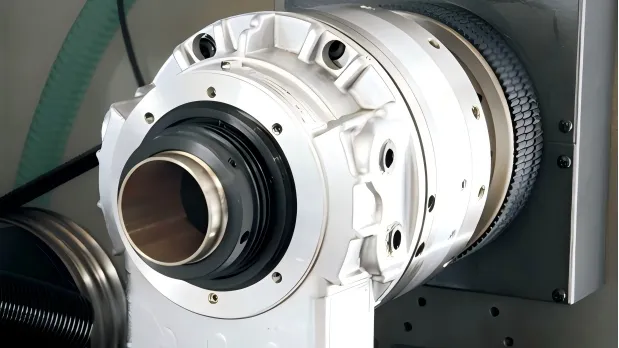

High Precision Spindle
The machine tool features a built-in electric spindle structure. Enhanced with NSK ultra-high precision angular contact ball bearings, it ensures extraordinary rigidity and a spindle runout of ≤2μm.

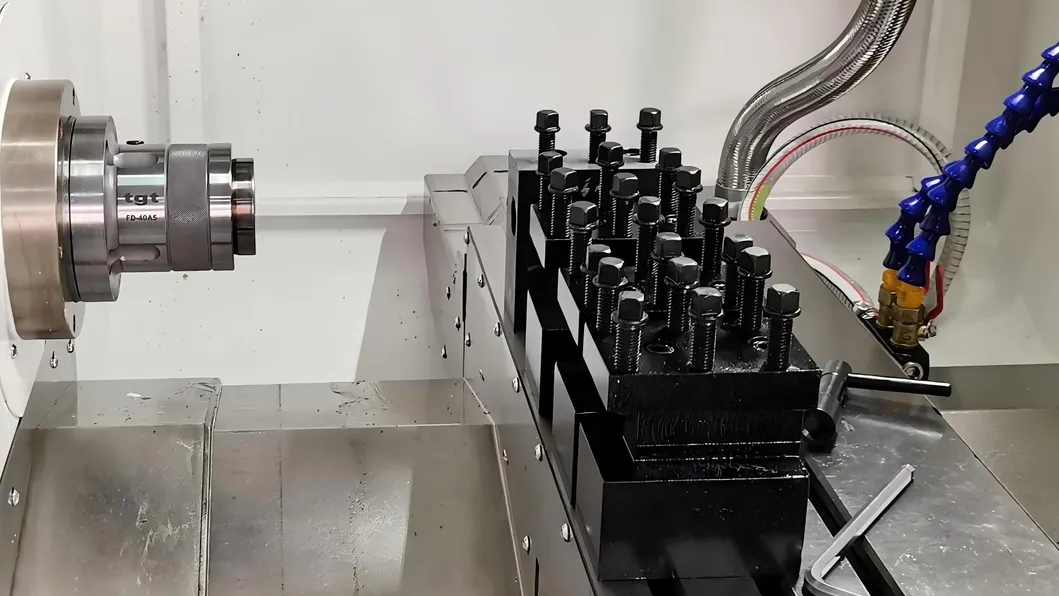

Gang Type Tool
Boasting a compact gang type tool arrangement, this machine delivers high accuracy in tool changes and rapid tool switch speeds, maximizing productivity.

SL37 Technical Parameters

Item	Unit	Specification (SL37)
Bed Frame	-	Flat bed (Integrated)
Max Swing Diameter over Bed	mm	Φ375
Max Workpiece Diameter	mm	Φ300
Max Processing Length	mm	320
Spindle Through Hole	mm	Φ49 / Φ69
Spindle Speed	r/min	3000 / 2600
Chuck / Collet	-	6'' or 8'' / 42-52 collet
X/Z Axis Rapid Feed	mm/min	X:12000 / Z:15000
Spindle Motor Power	kw	3.7 / 5.5 / 7.5
Dimension	mm	216013501760
