Compact CNC Lathe CK6120 for Precision Metal Work

1 / 5

Compact CNC Lathe CK6120 for Precision Metal Work

Customization:	Available
After-sales Service:	Online after-sales service
Warranty:	13months

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.	CK6120
Application	Metal
Processing Precision	0.01~0.02(mm)
Certification	GS, CE, RoHS, ISO 9001
Swing over bed	190mm
Distance between centers	200mm
Spindle speed range	150-2500rpm
Main motor power	3kw

📦 Packaging & Delivery

Package Size: 150.00cm * 110.00cm * 165.00cm
Gross Weight: 800.000kg
Transport Package: Plywood Case

⚙️ Product Description

This machine is widely used in processing and manufacture the electric appliance, instrumentation industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high efficient equipment in the hardware machining industry.

📋 Technical Parameters

Item Description	Units	CK6120 Specification
Swing over bed	mm	190
Swing over cross slide	mm	80
Distance between centers	mm	200
Spindle bore	mm	37
Spindle bore taper	-	MT5
Spindle speed steps	-	Stepless
Spindle speed range	rpm	150-2500
X/Z axis rapid traverse	mm/min	8000 / 10000
Machine weight	kg	800

🔍 Machine Standard Details

MACHINE CONSTRUCT
High strength cast iron

GUIDEWAY
Quenching hardness HRC52

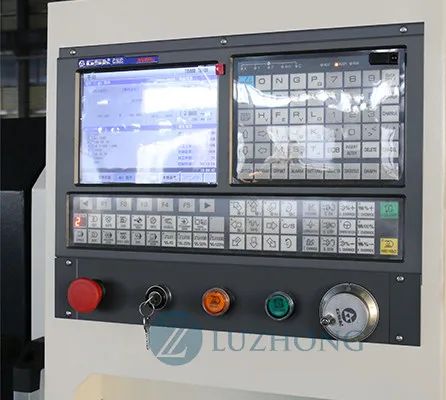

CONTROL SYSTEM
Standard: GSK980 Controller

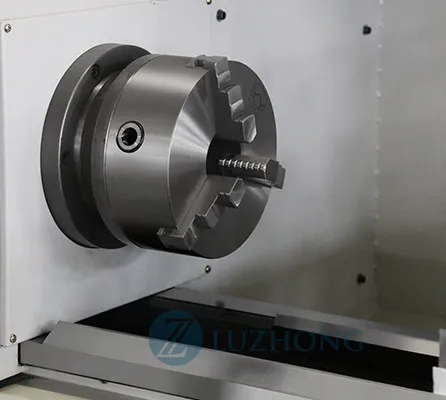

CHUCK
3-jaw manual chuck

🏢 Manufacturing Excellence

Factory area over 100,000m²
30+ years of CNC machine manufacture experience
Strict 24-step QC testing process
Exported to 150+ countries worldwide
18-month warranty period
Support for ODM & OEM services

❓ Frequently Asked Questions

How can I choose the most suitable machine?

Please provide your technical specifications or product drawings. We will analyze your requirements and recommend the most suitable model for your specific production needs.

What are your main product categories?

We specialize in a comprehensive range of machinery including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Shaper machines.

What are the accepted trade terms?

We support standard international trade terms including FOB, CFR, and CIF to accommodate different shipping preferences.

What are the payment terms?

Typically, we require a 30% initial payment upon order, with the remaining 70% balance due before shipment. We also accept Irrevocable LC at sight.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set for most of our machines. Certain low-cost auxiliary equipment may require a higher quantity.

Do you offer after-sales technical support?

Yes, we provide 24-hour online service and long-term overseas technical guidance to ensure the smooth operation of your equipment.
