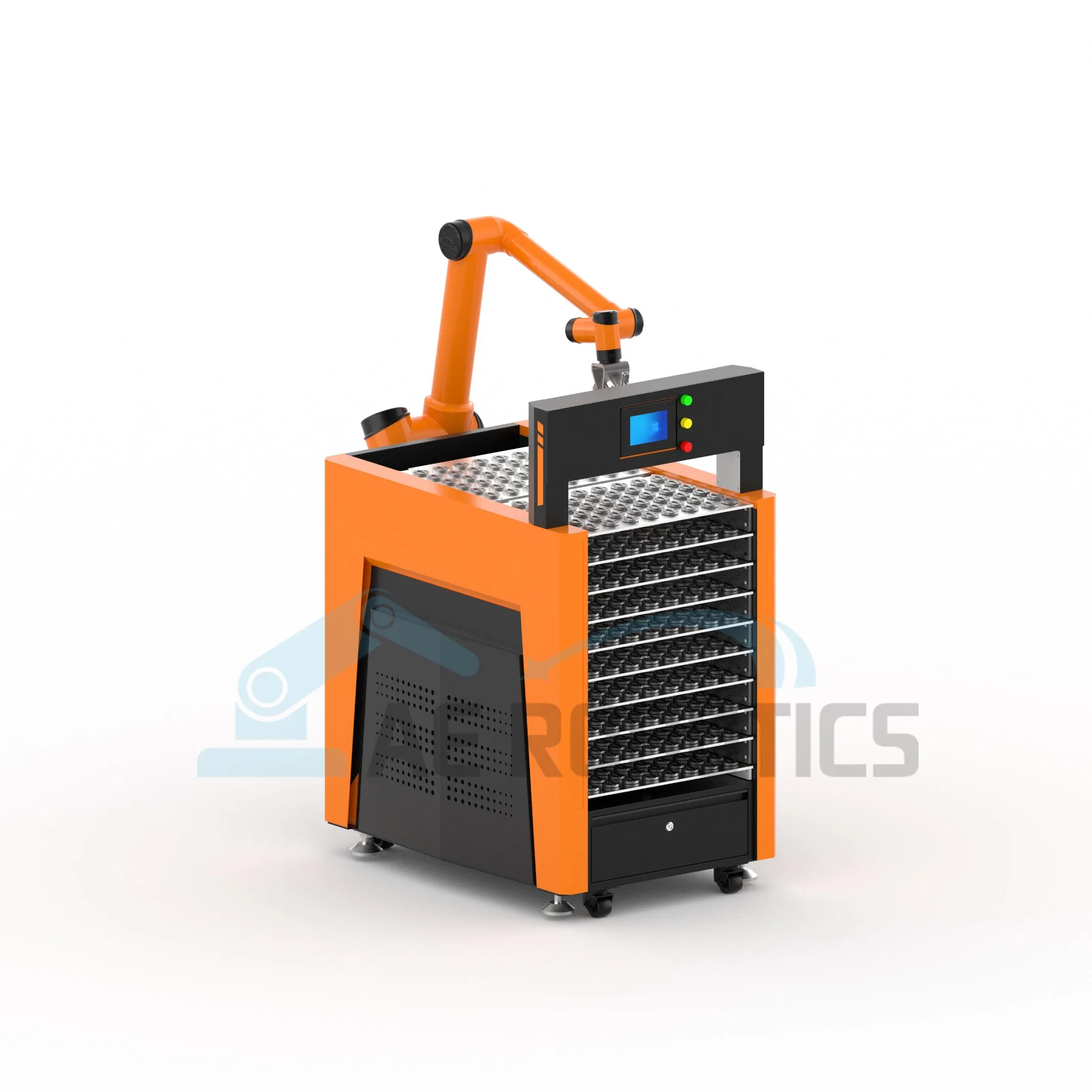

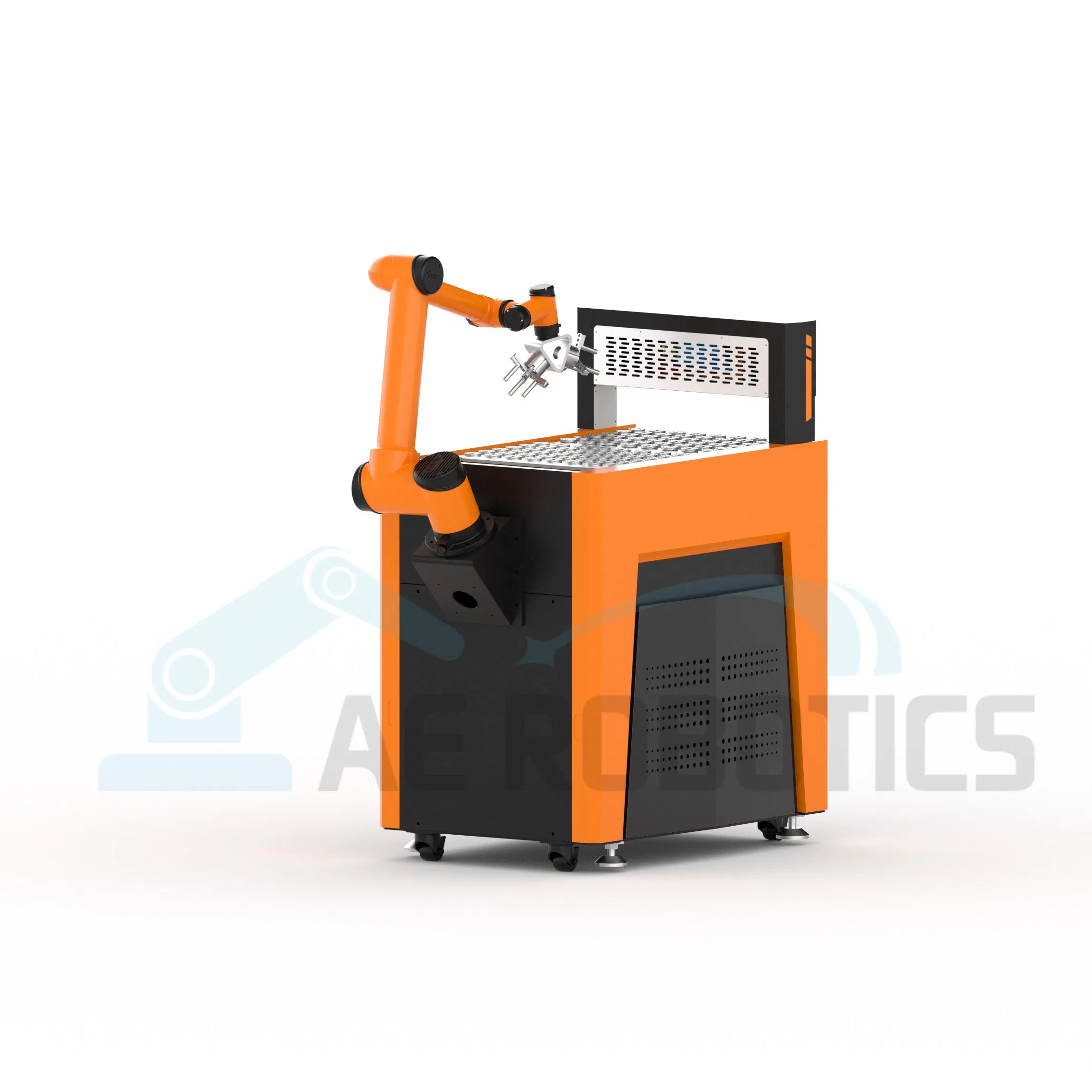

6 Aixs Collaborative Robot Arm for CNC Tending Machine Solution Industrial Robot

1 / 5

6 Aixs Collaborative Robot Arm for CNC Tending Machine Solution Industrial Robot

Customization:	Available
Application:	Machine Tending, Picking and Placing, CNC Tending, Loading, Pick and Place, Assembly
Control Mode:	Continuous Path Control

Send Inquiry

Product Description

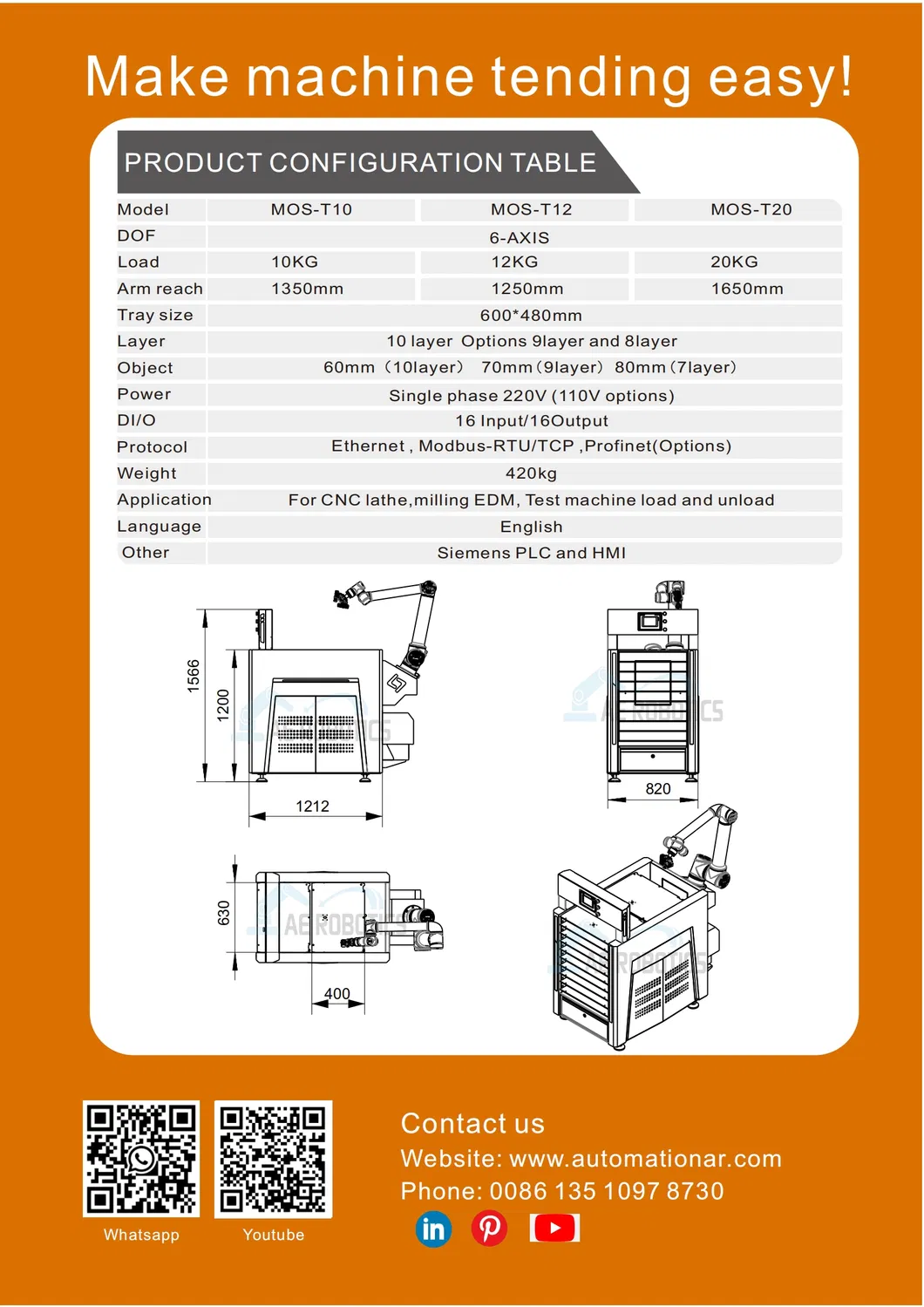

Basic Specifications

Model NO.	MOS-T10 / MOS-BT10
Degrees of Freedom	6-axis
Payload Capacity	10 kg
Cobot Arm Reach	1350mm
Tray Size	600480mm / 1000688mm
Drive Mode	Electric (Single Phase 220V)
Protocol	Ethernet, Modbus-RTU/TCP, Profinet(Options)
Weight	420kg

CF605-886 6 Axis Collaborative Robot Pick and Place Workstation

Advantages of application

Wide range of applications: Adapted to different brands and types of equipment.
Easy to operate: Technicians do not need complex programming.
Flexible material change: Simple tray adjustments for various workpieces.
High versatility: Powerful software control system for custom processes.
Safe and reliable: Complies with multiple human-machine safety standards.
Cobot Advantages: Short deployment, high security, and small footprint.

Technical Configuration

Tray Type	Flexible tray compatible with round and square raw material
Gripper	Double two or three finger gripper with air blow for clean tools
DI/O	16 Input / 16 Output
Application	For CNC lathe, milling EDM, Test machine load and unload
Language	English

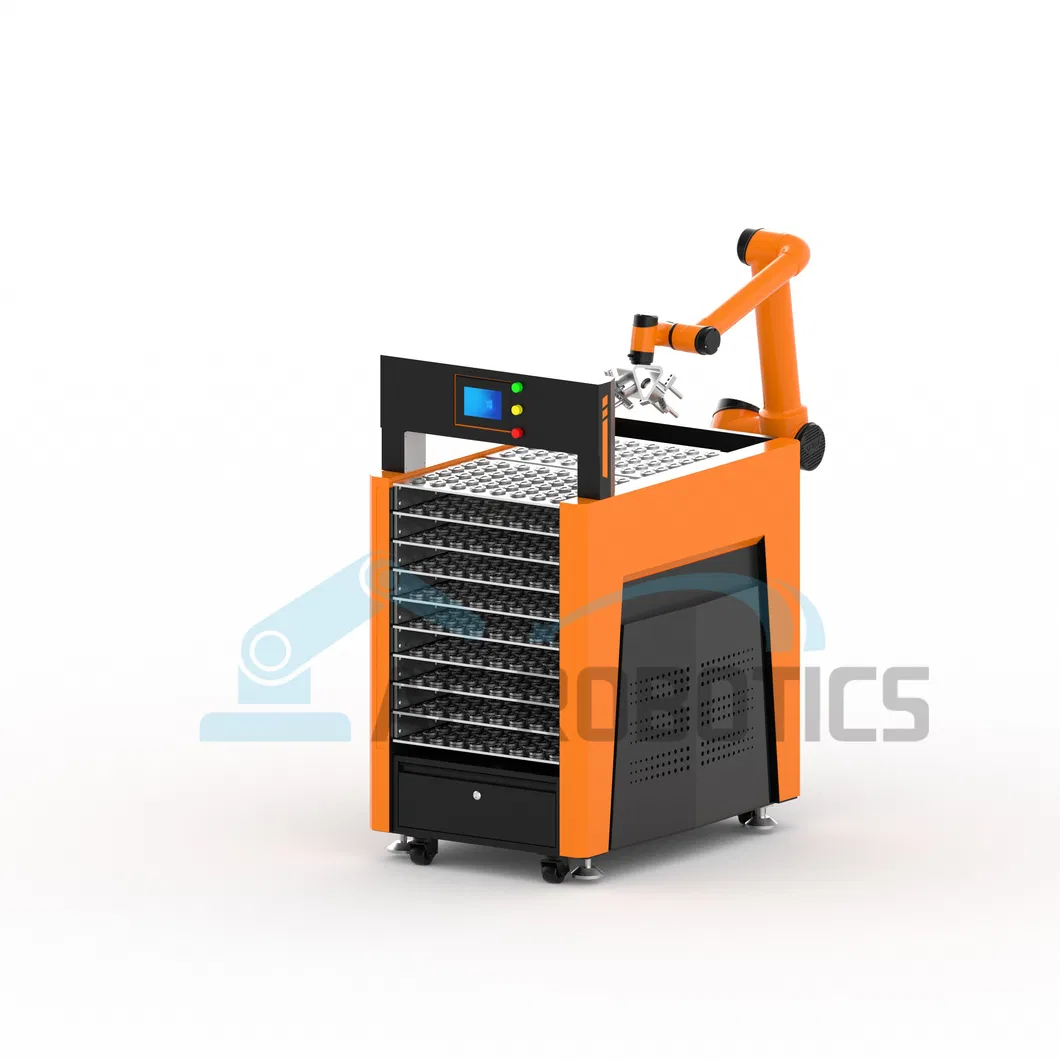

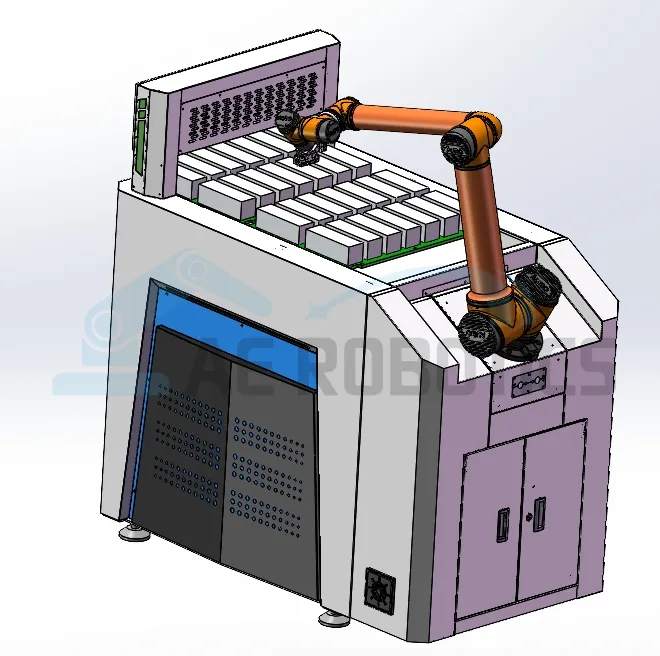

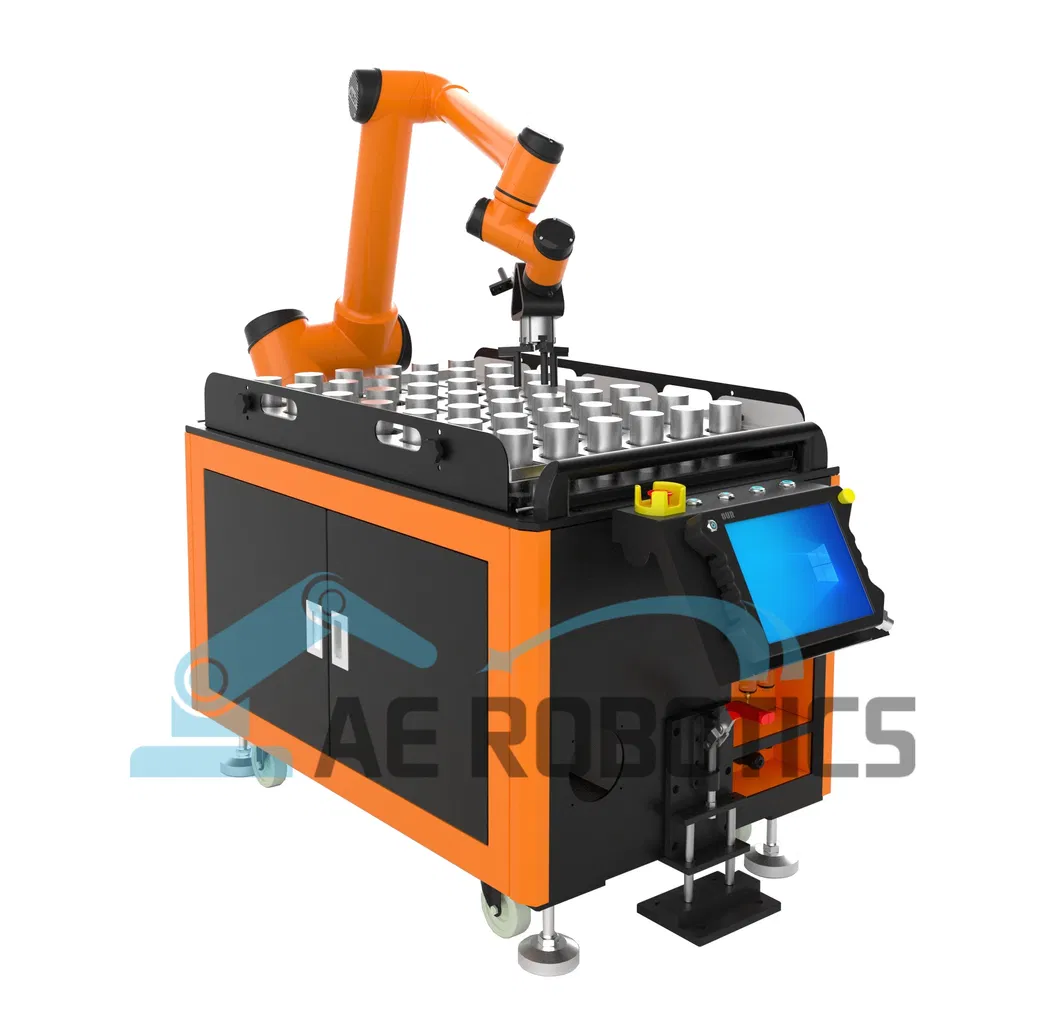

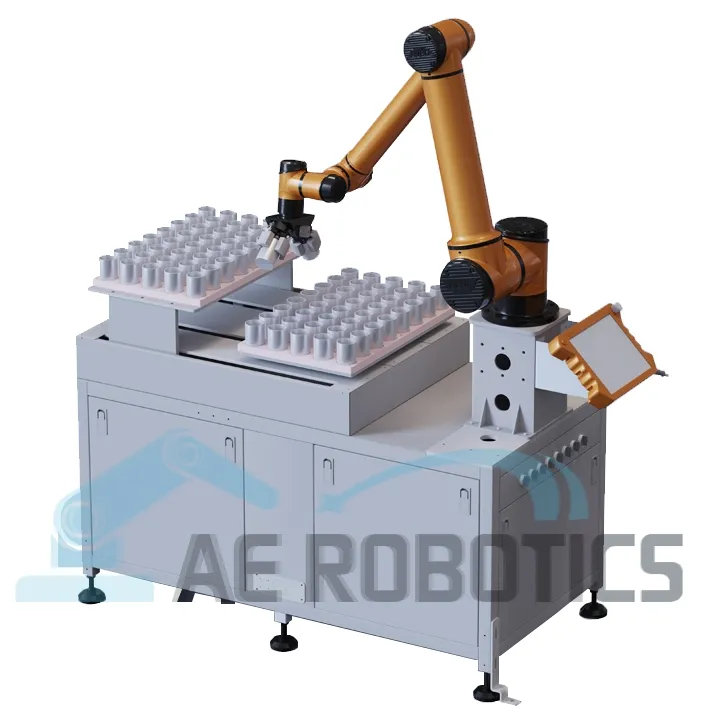

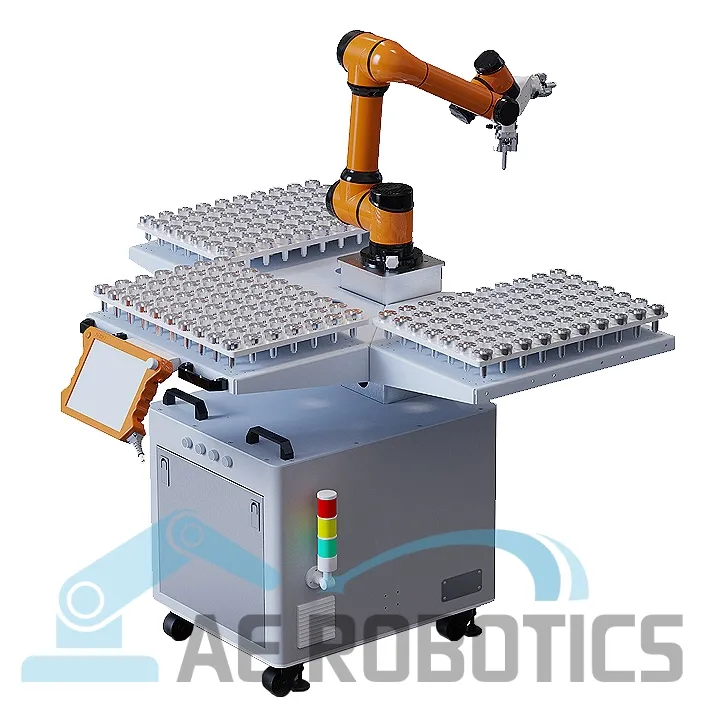

Application Showcase

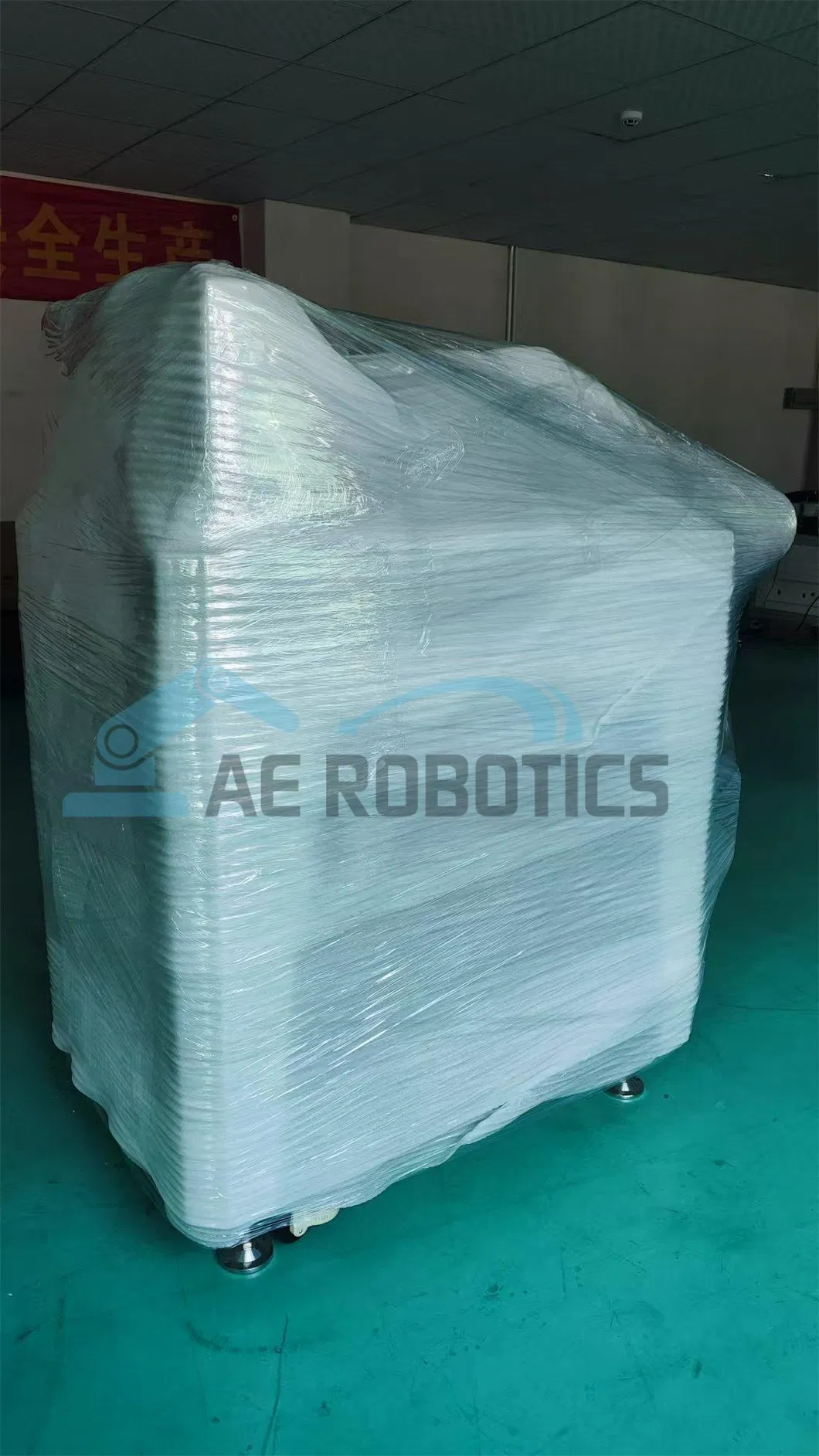

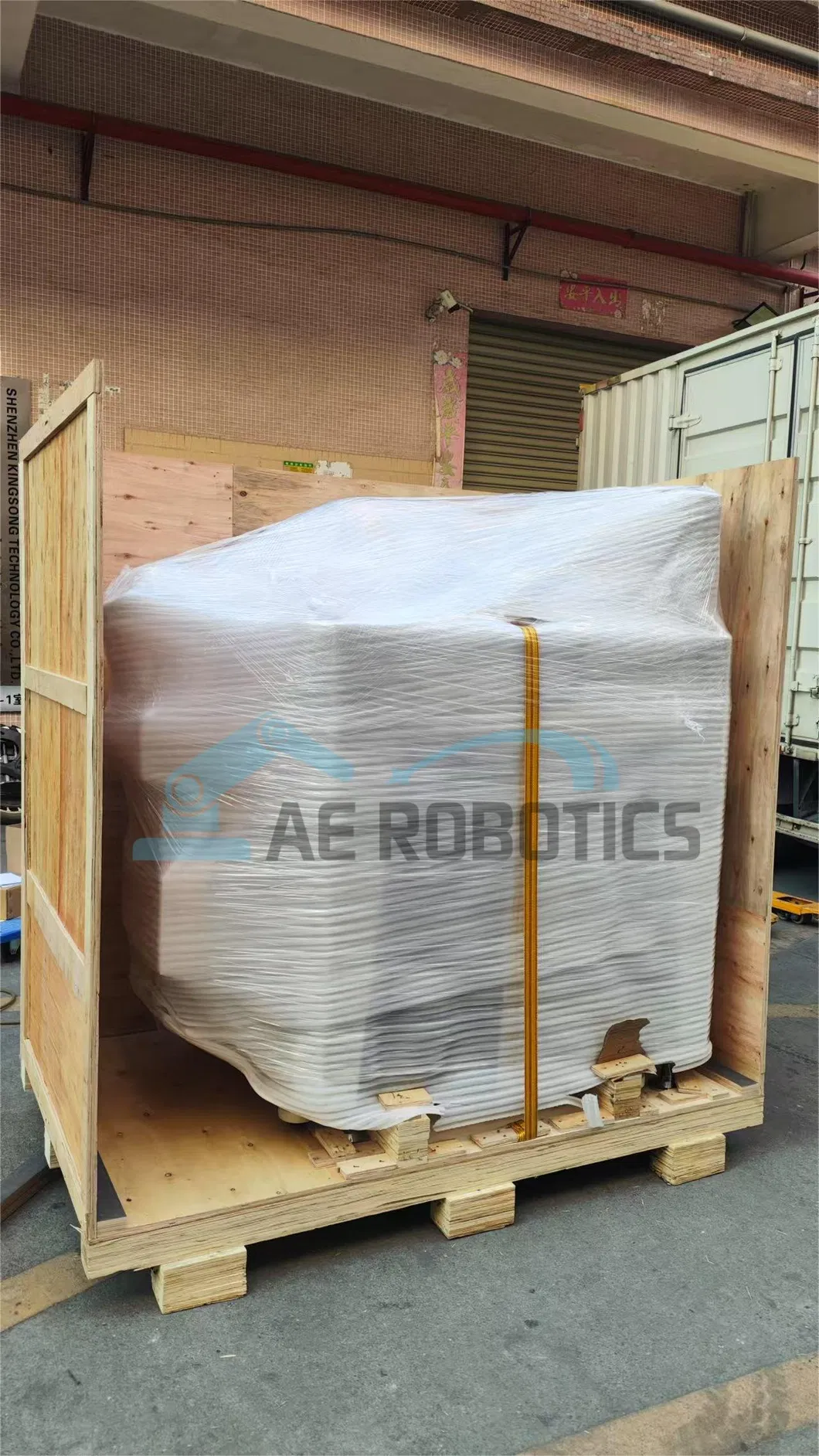

Package & Logistics

About Our Robotic Integration

We specialize in providing innovative robotic solutions that streamline processes and enhance efficiency across various industries. Our expertise lies in designing, developing, and implementing customized robotic arm systems to meet the unique needs of our clients worldwide.

Our Services Include: Tailored Robotic Arm Solutions, Comprehensive Project Integration, and Cutting-edge Innovative Technologies. We prioritize sustainability and high-quality standards in every automation project.

Certifications & Partnerships

Frequently Asked Questions

Q1: What is the payload capacity of the MOS-T10 robot?

A1: The MOS-T10 collaborative robot has a payload capacity of 10kg, making it ideal for most CNC tending and pick-and-place tasks.

Q2: Does the technician need complex programming knowledge?

A2: No, the system is designed to be user-friendly. Technicians do not need extensive programming skills to get started quickly with the workstation.

Q3: What types of materials are compatible with the tray?

A3: The workstation features a flexible tray that is compatible with both round and square raw materials.

Q4: What communication protocols are supported?

A4: It supports Ethernet, Modbus-RTU/TCP as standard, with Profinet available as an optional configuration.

Q5: Is human-machine collaboration safe?

A5: Yes, the collaborative robot complies with multiple safety standards specifically designed for safe human-machine interaction in shared workspaces.

Q6: What are the power requirements for this workstation?

A6: The standard requirement is Single Phase 220V, with a 110V option available upon request.
