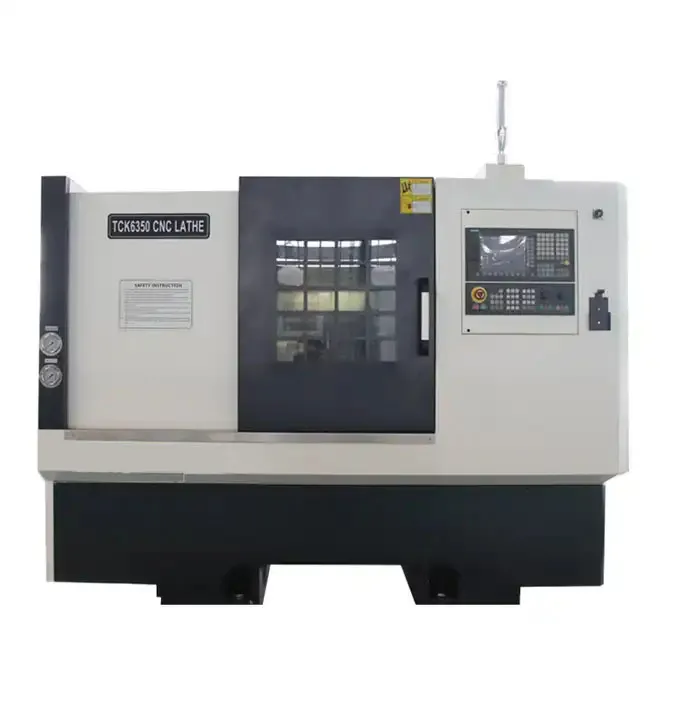

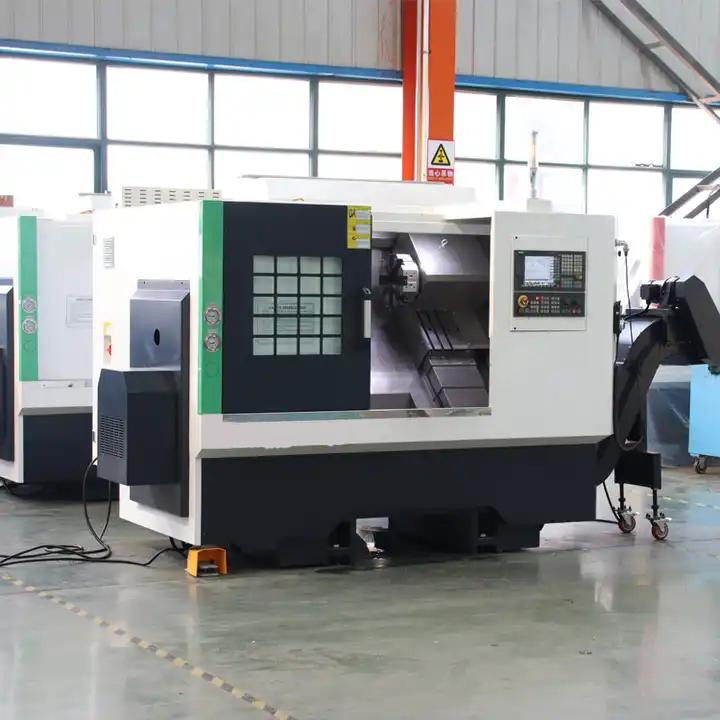

CNC Turning Centre Tck6350 High Precision Compact Slant Bed CNC Lathe

1 / 5

CNC Turning Centre Tck6350 High Precision Compact Slant Bed CNC Lathe

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Info.

Model NO.

Tck6350

Application

Metal

Process Usage

Metal-Forming CNC Machine Tools

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Performance

High-End CNC Machine Tools

Certification

CE, ISO 9001

Condition

New

Max.Turning Length

850/1350/1850 mm

Max.Swing Over Bed

500 mm

⚙️ Product Description

Slant bed CNC metal lathe Main features:
The machine tool is suitable for automobile, motorbike, electronics, petroleum and other industries. It can turn conical surfaces, arc surfaces, end surfaces of rotary parts, and also various metric and imperial threads, etc. It has higher efficiency and batch accuracy.

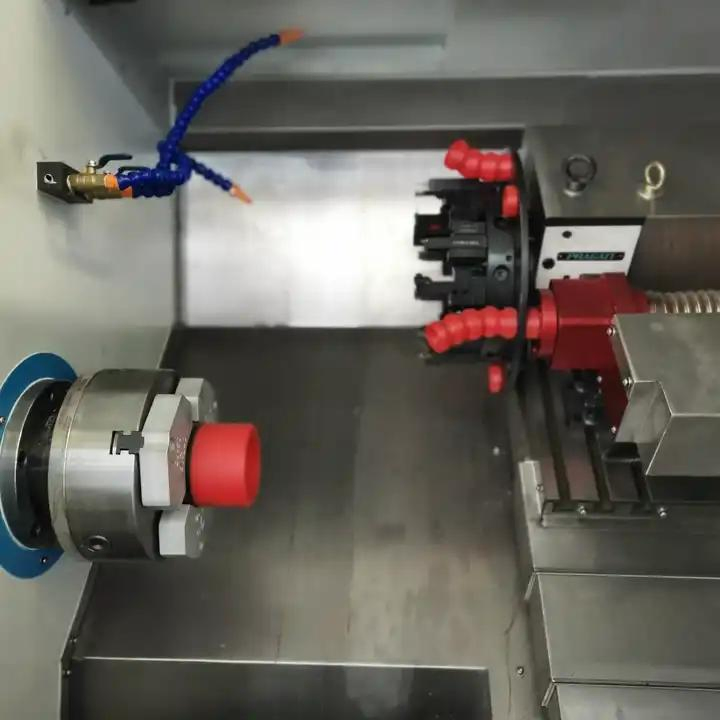

45 degree inclined-bed CNC lathe
Taiwan linear guideway with higher precision
Large chip conveying capacity
X and Z direction servo motors directly connected with screws

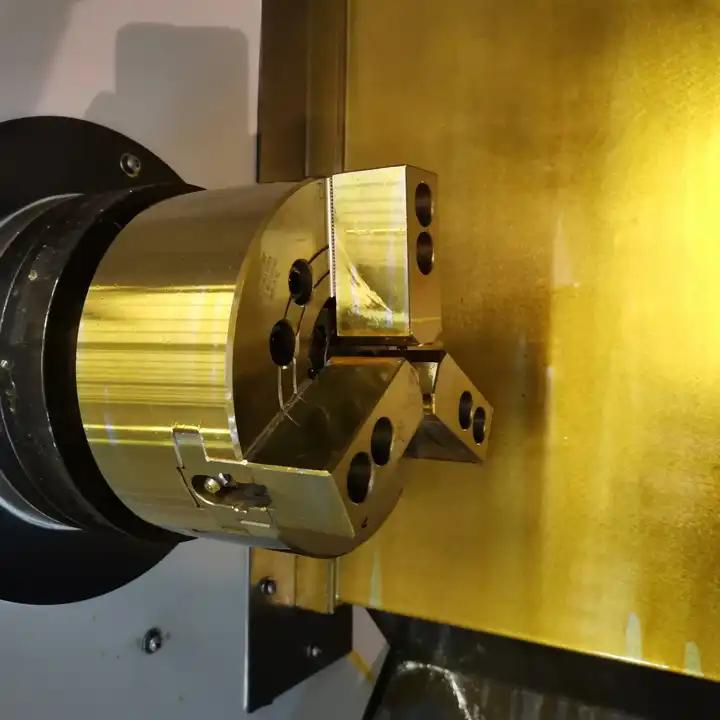

High-speed, high-precision and high-rigidity shell-type spindle unit
Advanced centralised lubrication system

Model	TCK6340 (GSK990TC3)	TCK 6350 (GSK980TDC)
Max turning diameter of bed	Φ400 mm	Φ520 mm
Max turning diameter of cross slide	Φ140 mm	Φ220 mm
Maximum processing length	200 mm	410 mm
Spindle speed	3500 rpm	3000 rpm
Spindle through hole	Φ48 mm	Φ66 mm
Rapid movement rate (X/Z)	24/24 m/min	24/24 m/min
Total Weight	2200 KG	2900 KG
