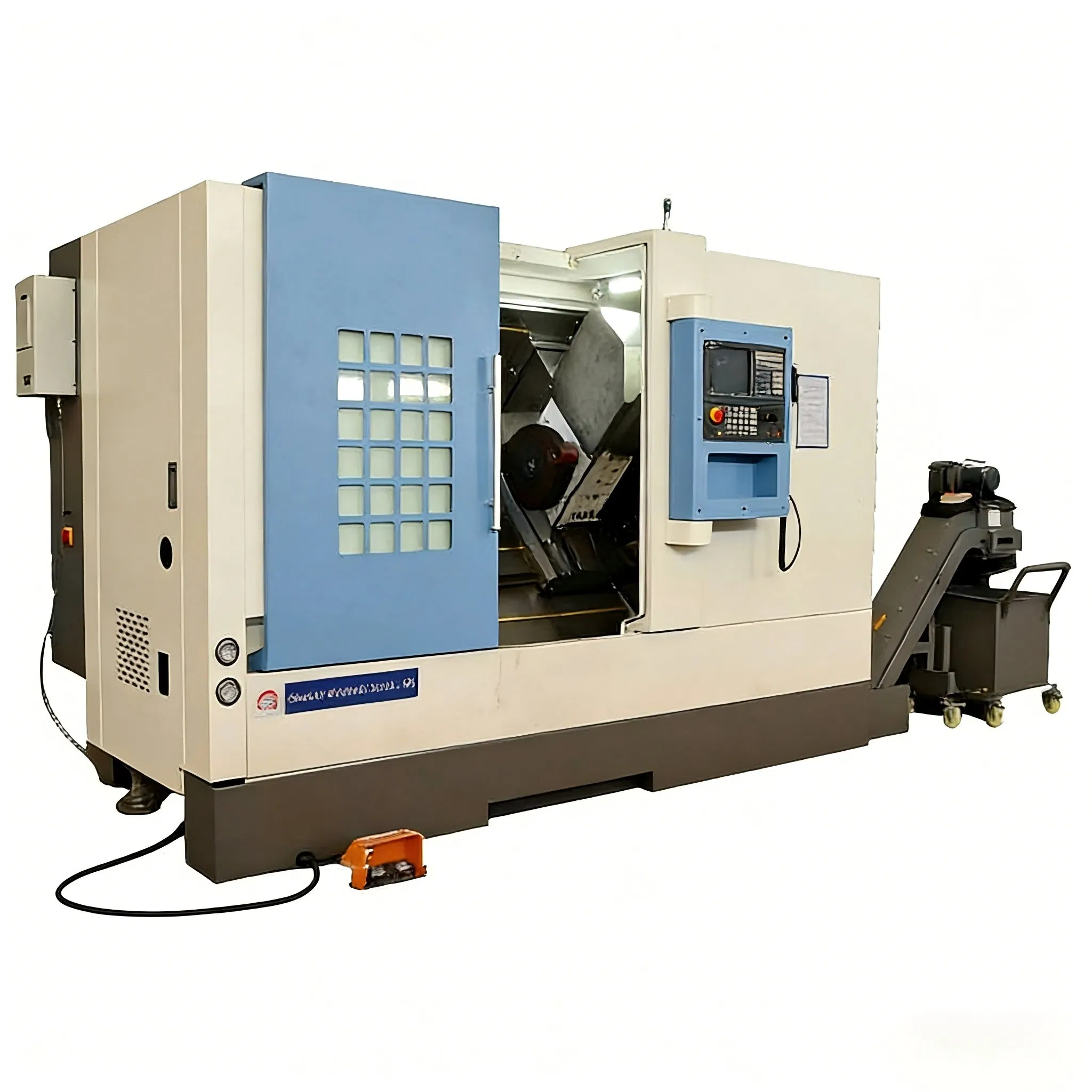

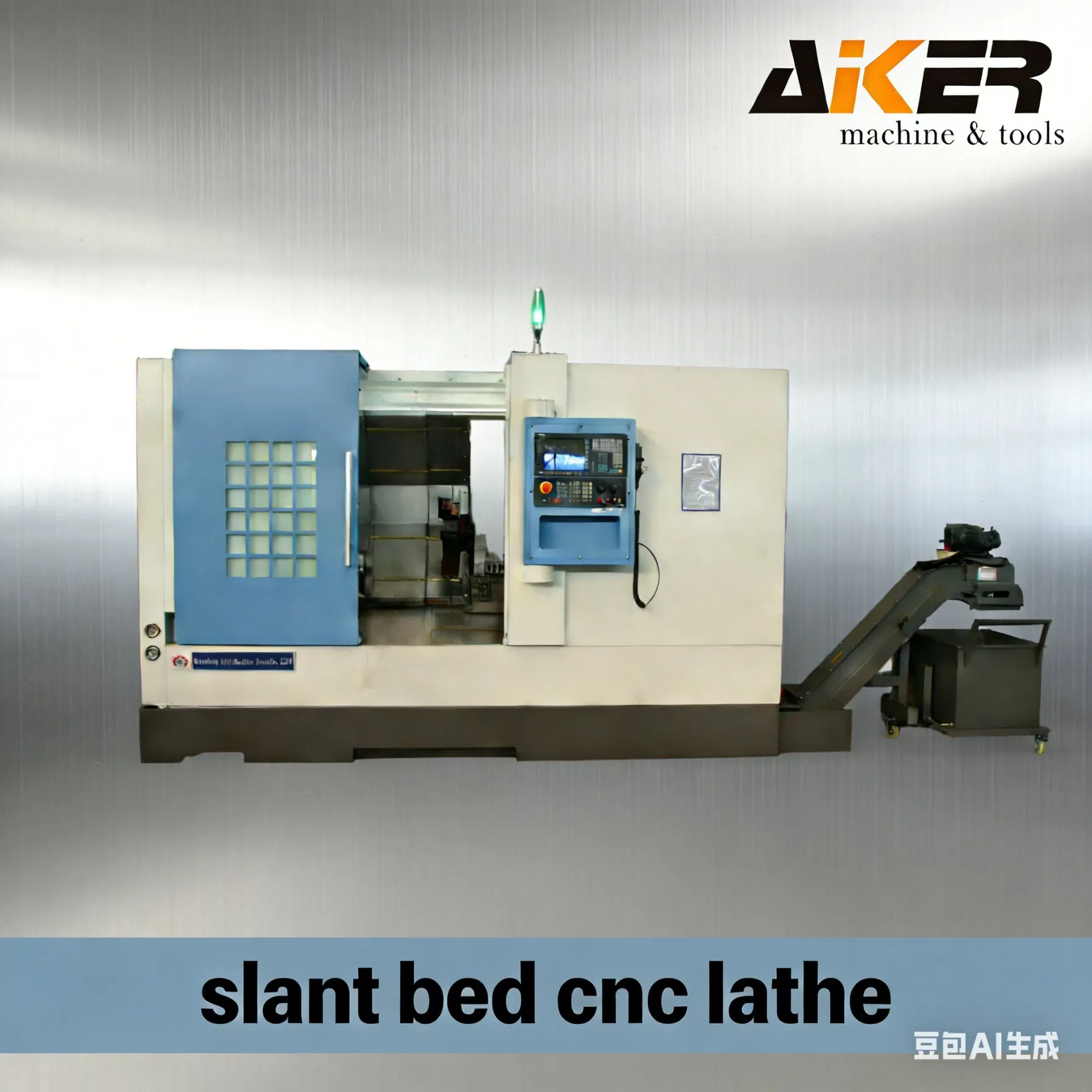

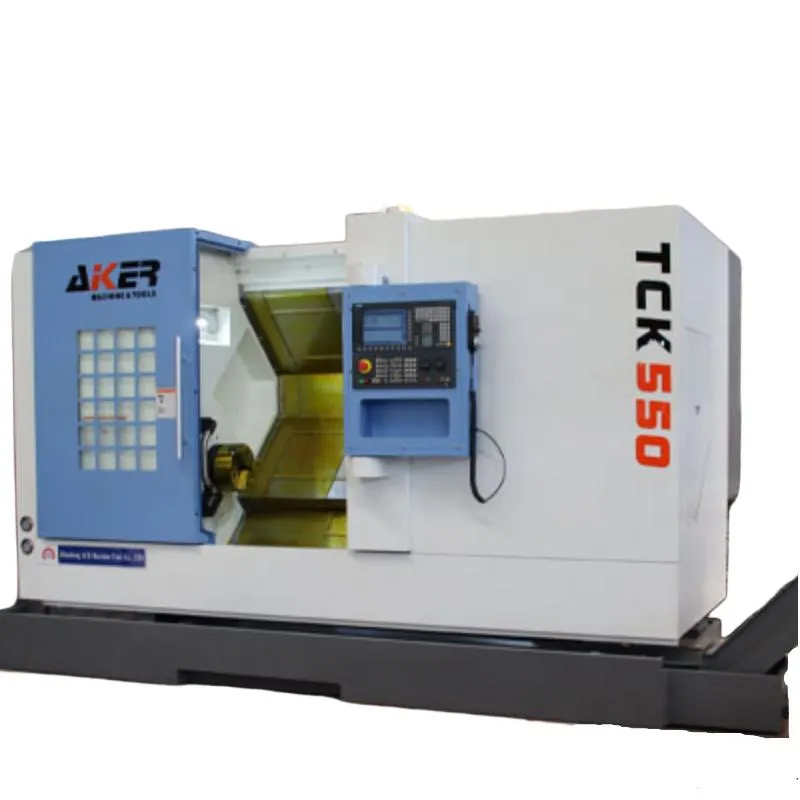

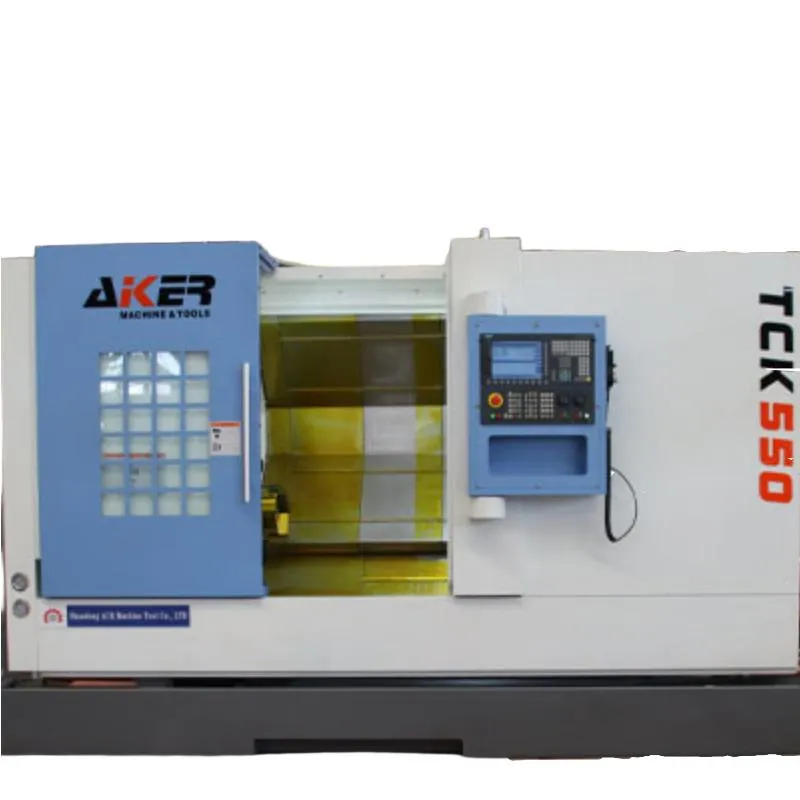

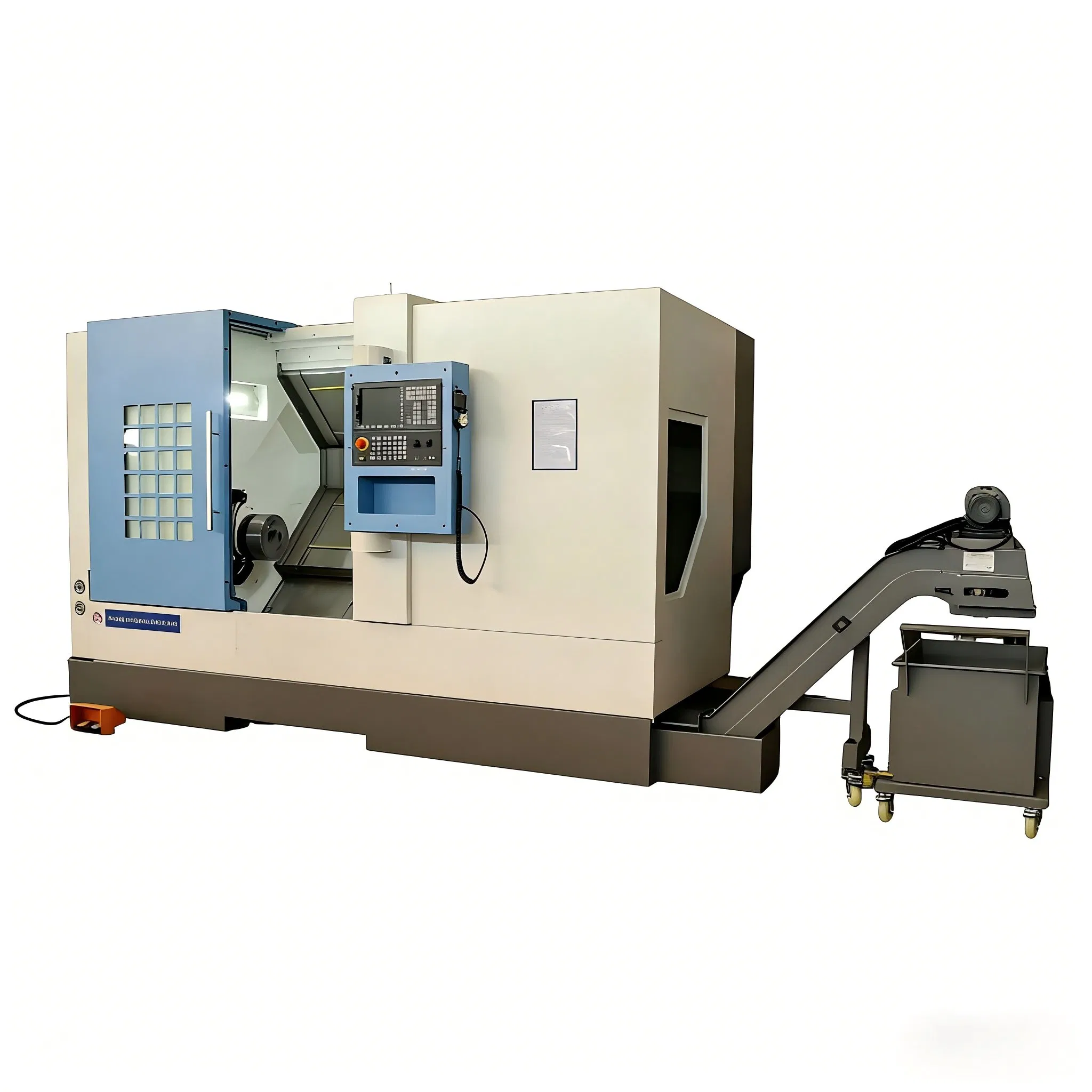

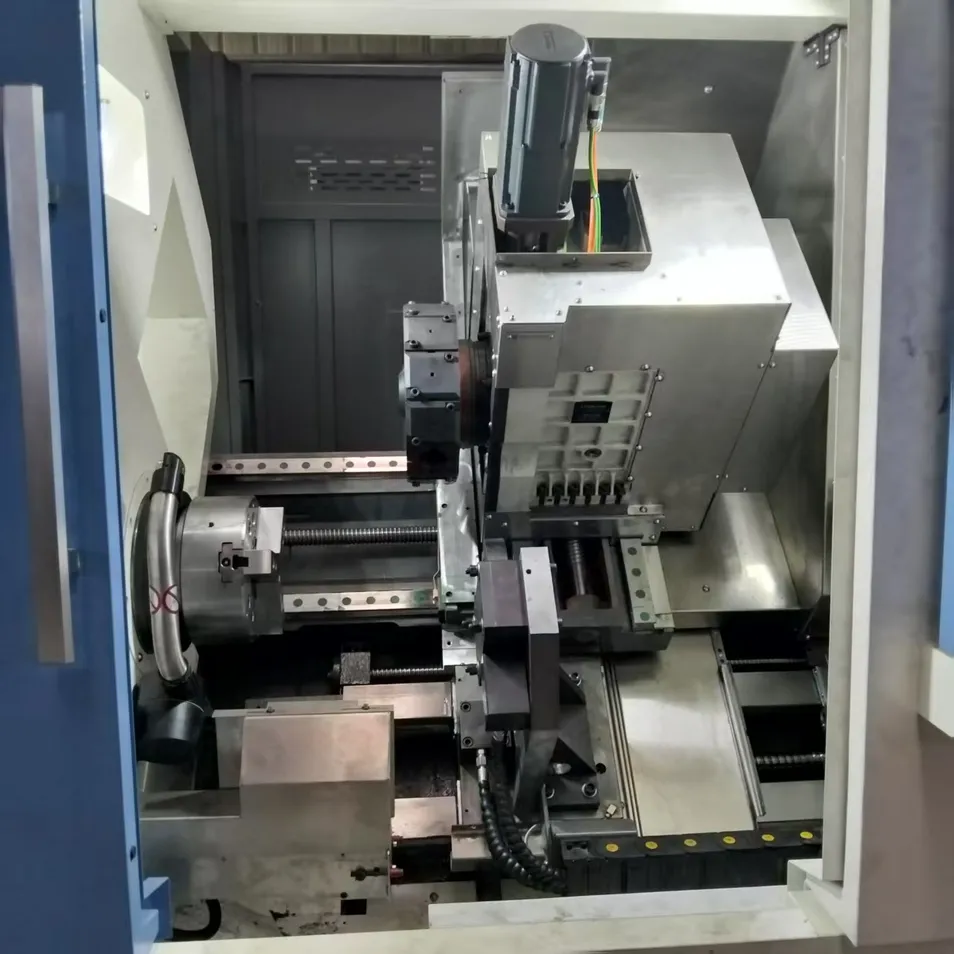

The TCK550 CNC inclined bed lathe adopts an inclined bed structure and a fully enclosed protective cover design. It is equipped with an integrated CNC operation panel and an automatic chip removal machine. It is a batch precision processing equipment for shafts, discs, and sleeve parts. It can complete multiple processing procedures such as turning, boring, and tapping in one step.
| Specifications | Unit | TCK550 |
|---|---|---|
| Max. swing dia. over bed | mm | 600 |
| Max. processing length | mm | 350 |
| Max. bar capacity | mm | 50 |
| Spindle nose | - | A2-6 |
| Diameter of spindle through hole | mm | 65 |
| Spindle speed range | r/min | 20-3000 |
| Motor power of spindle | kw | 7.5 |

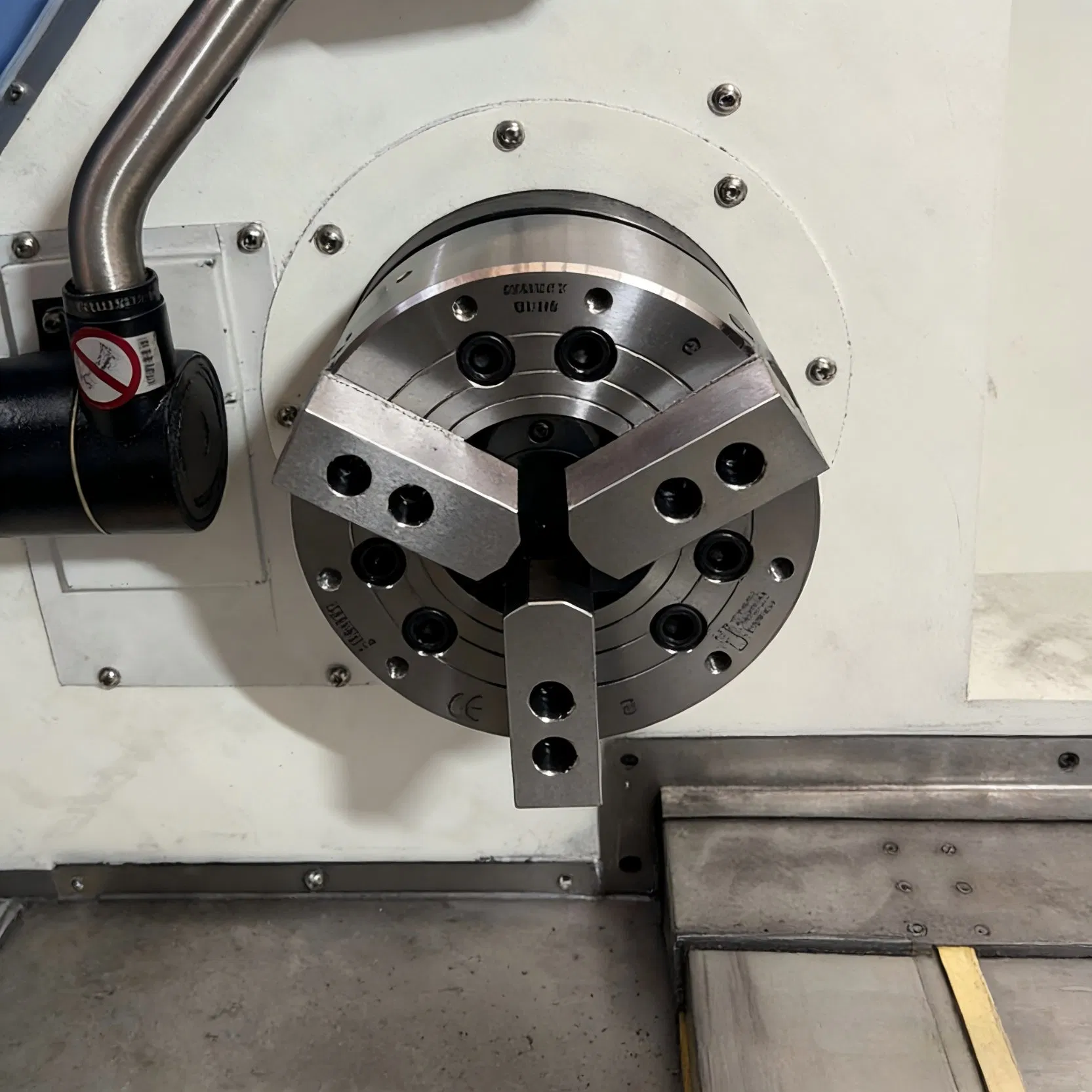

| Chuck type | - | Hydraulic chuck |
| X/Z axis travel | mm | 210 / 560 |
| Tool post type | - | 12 Station |
| Machine dimension | mm | 2750×2000×2000 |
A: The TCK550 is primarily designed for high-precision metal cutting, including various steel alloys, aluminum, and other metallic materials.
A: The inclined bed design facilitates natural chip removal, improves machine rigidity, and saves workshop floor space compared to flat-bed lathes.
A: Yes, it features a 12-station tool post, allowing for complex multi-process machining in a single setup.
A: It utilizes a semi-closed loop CNC control system, ensuring high precision and reliable performance for batch production.
A: The machine is securely packed in a professional wooden box to ensure safety during long-distance maritime or land transport.
A: Yes, the TCK550 features stepless speed regulation within a range of 20 to 3000 r/min to suit different processing requirements.
