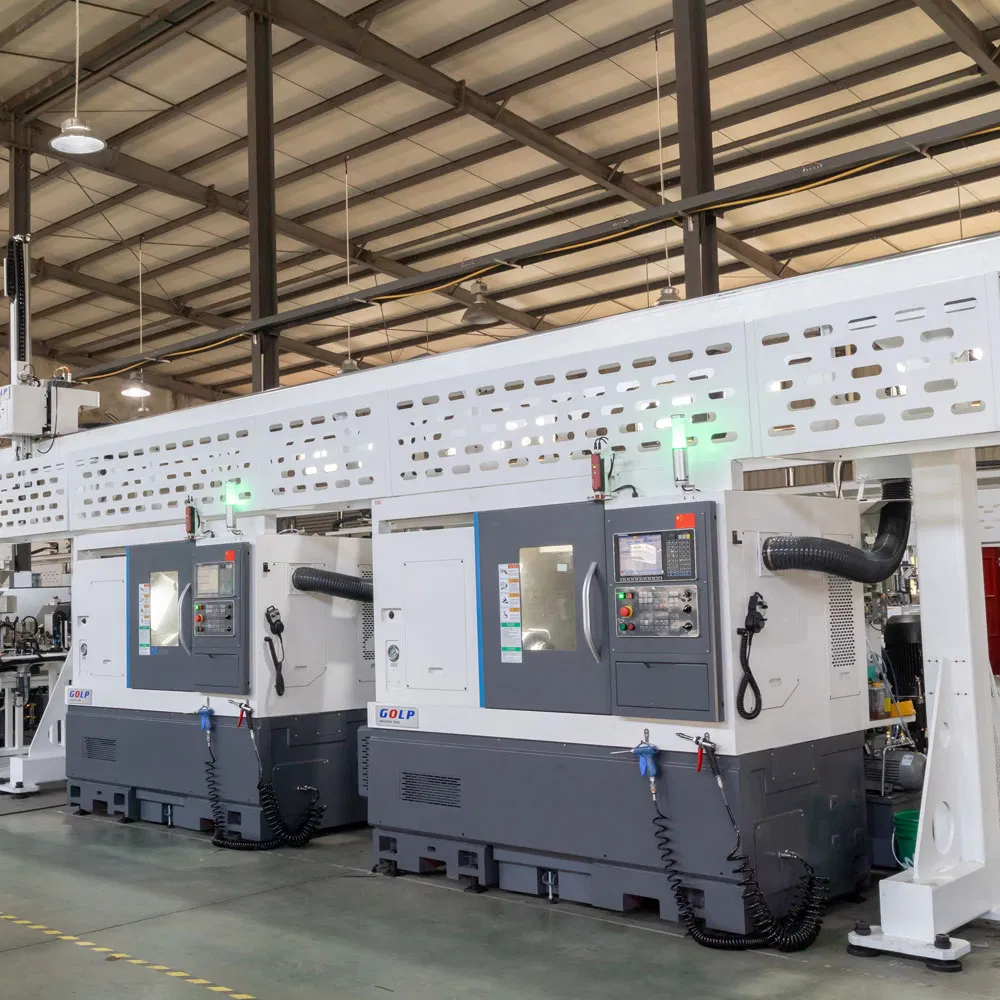

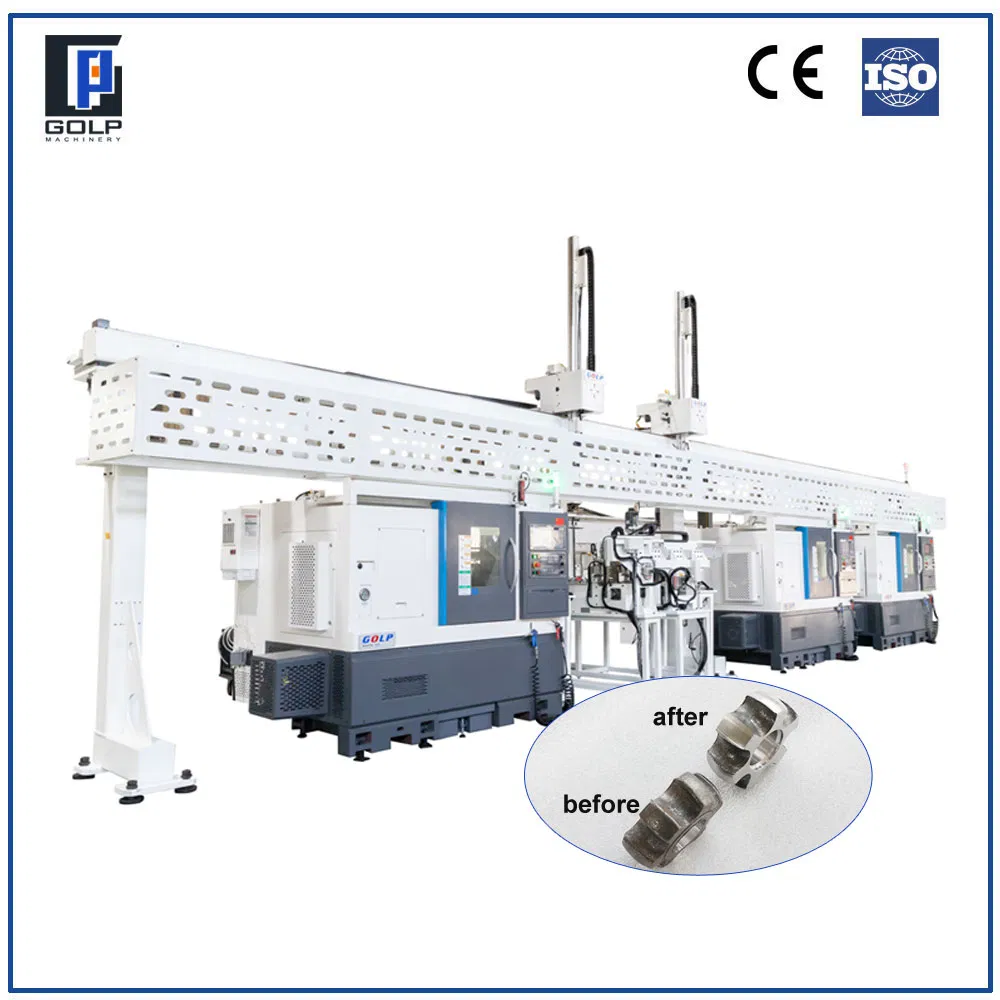

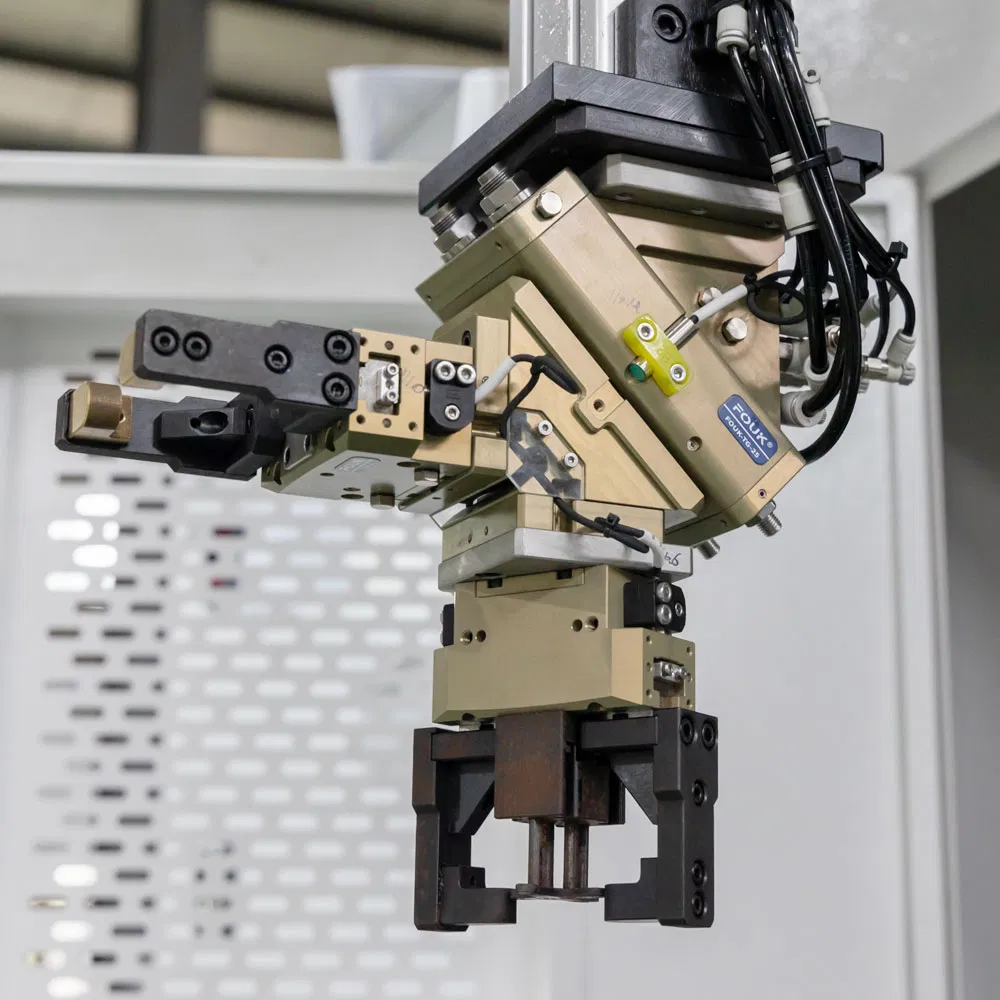

According to the requirements, we have developed an automated solution. Through precise programming control, the CNC lathe can achieve high-precision machining of complex geometric shapes, ensuring that each part meets strict technical specifications. Equipped with an automatic loading and unloading station, this system not only improves the automation level of the production line, but also greatly reduces non-productive time.
Especially for large-batch production, this automated setup can operate continuously for 24 hours, ensuring consistent and stable production. The machine tool with a max. turning diameter of 360mm and a turning length of up to 500mm effectively meets the machining requirements of larger-sized parts.

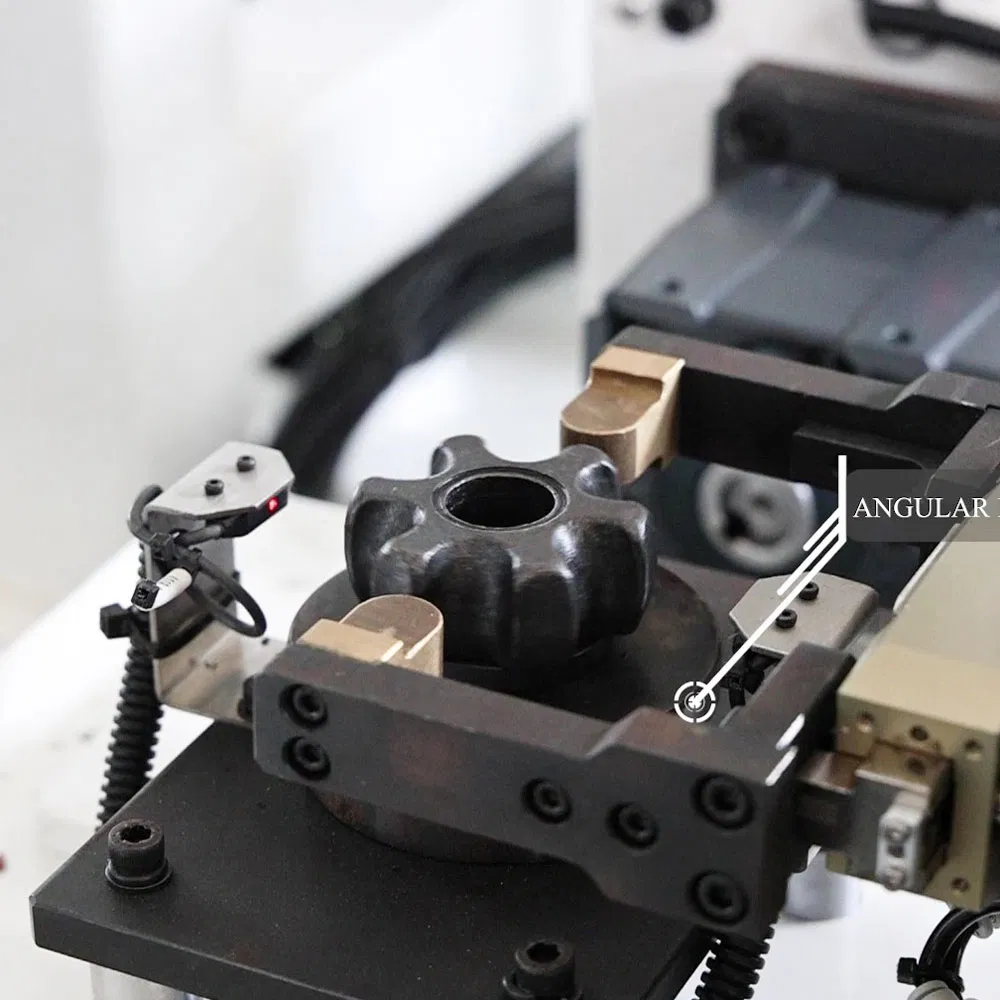

Enables high-precision rotational alignment, ensuring consistency and accuracy in multi-station machining.

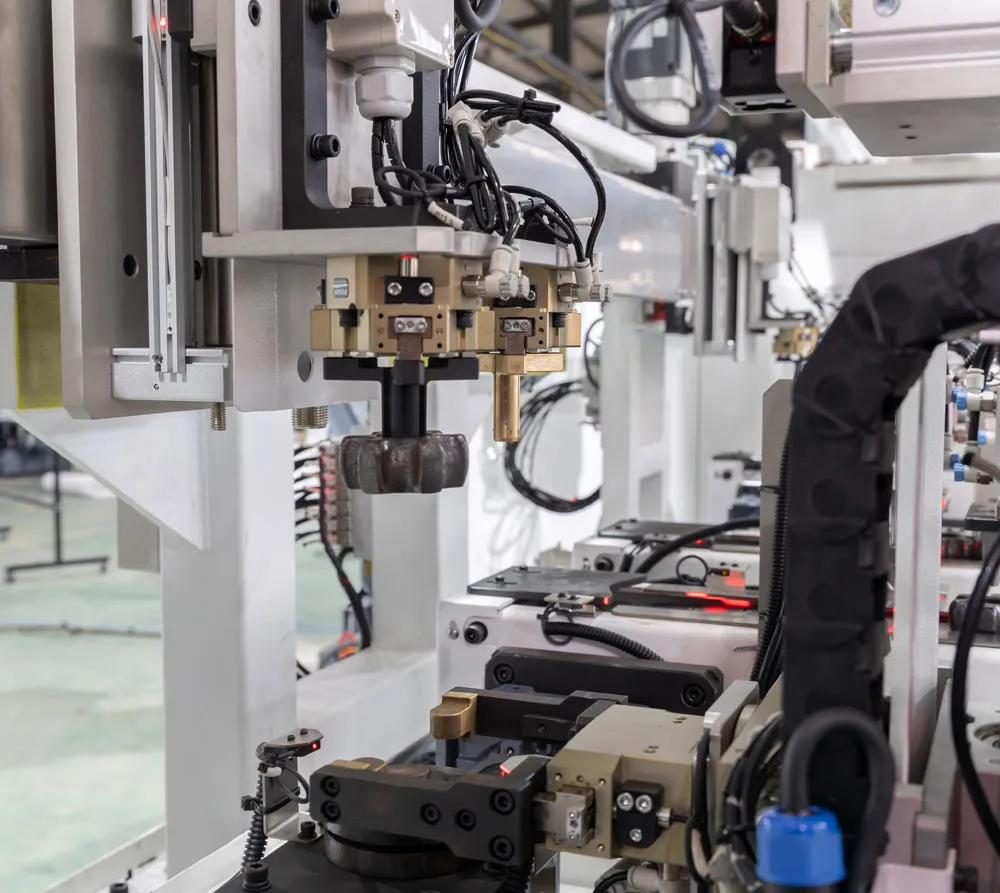

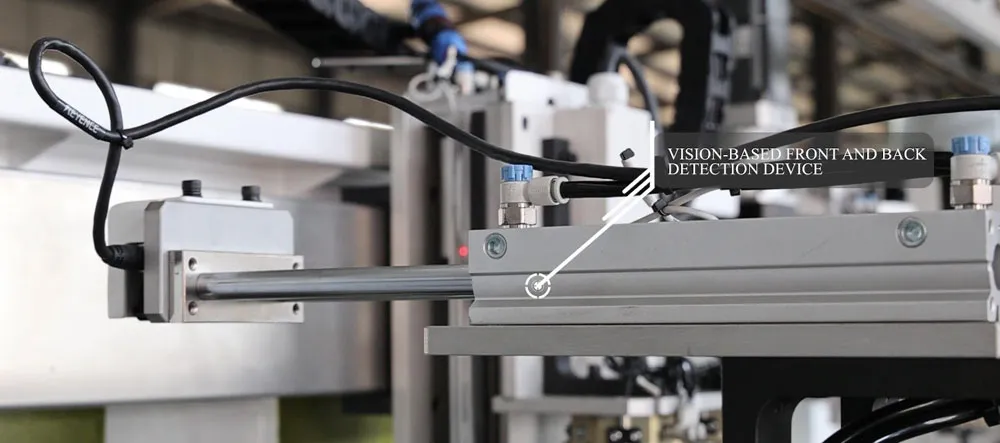

Enables automatic recognition to ensure correct loading and prevent misplacement.
| No. | Category | Item | Size / Specification |
|---|---|---|---|
| 1 | Processing Scope | Max bed rotary diameter | Φ500 mm |
| Max turning diameter | Φ360 mm | ||
| Max turning length | 500 mm | ||
| 2 | Spindle | Spindle head type | A2-6 |
| Spindle bore diameter | Φ55 mm | ||
| Max speed | 3000 rpm | ||
| Motor power | 11 kw | ||
| 3 | Feeding | X/Z axis travel | 195 / 500 mm |
| X/Z rapid speed | 18 / 24 m/min | ||

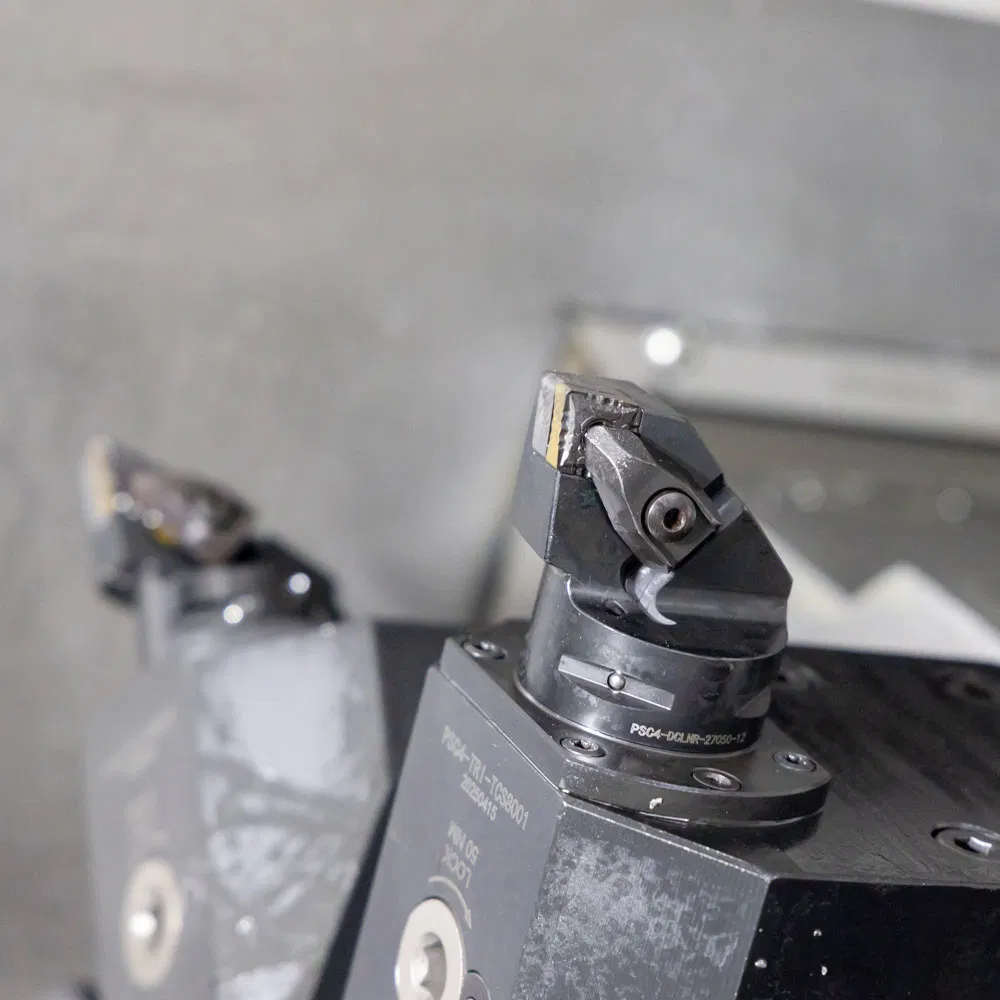

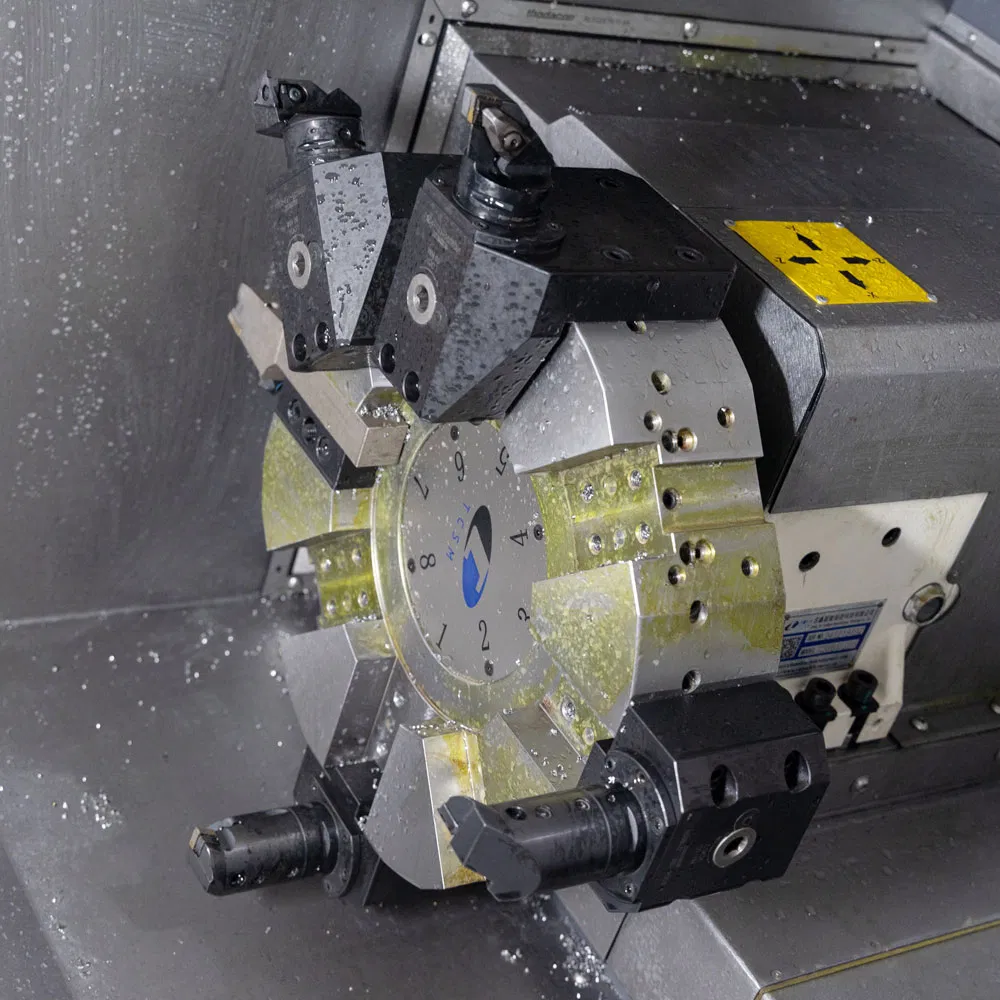

| 4 | Turret | Tool number | 8 |
| Tool size | CAPTO C4 |
