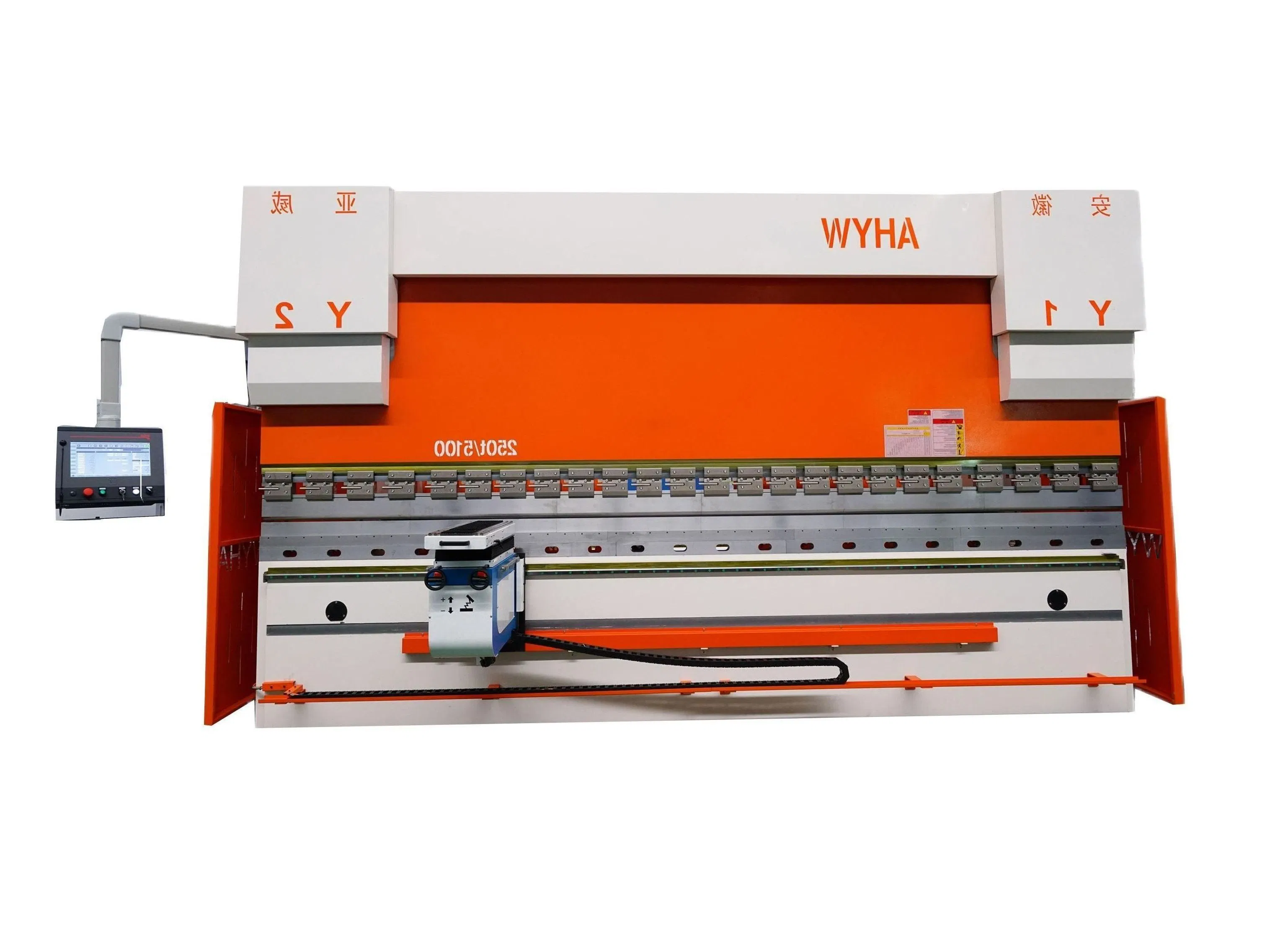

Robitic CNC Press Brake 125t 4000 for Sale Flexible Bending Cells-6-Axis Robot

1 / 5

Robitic CNC Press Brake 125t 4000 for Sale Flexible Bending Cells-6-Axis Robot

Customization:	Available
After-sales Service:	Have a Complete After-Sales Service System
Waterproof Rating:	IPX-6

Send Inquiry

Product Description

Basic Information

Model NO.	AHYW bending center
Warranty	2-year
Certification	ISO 9001, CE
Automation	Automatic
Pressing Force	4000kN

Bending Width	4000mm
Main Power	30kw
Suitable for	Copper, Aluminum, Carbon Steel, Stainless Steel
Origin	China
Capacity	300/Month

Product Description

Note: Machines with different parameters and configurations will produce different prices. Please consult for details.

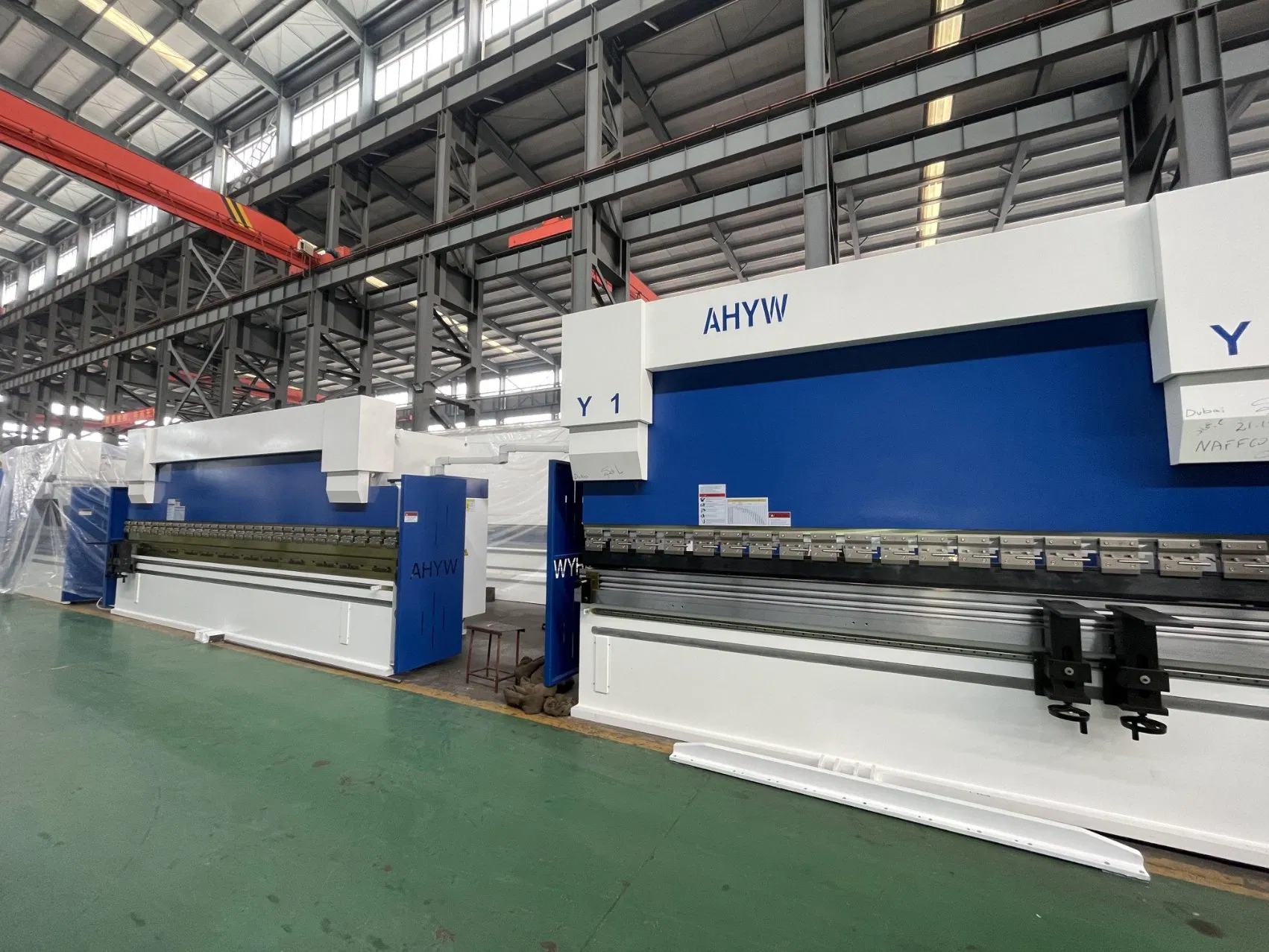

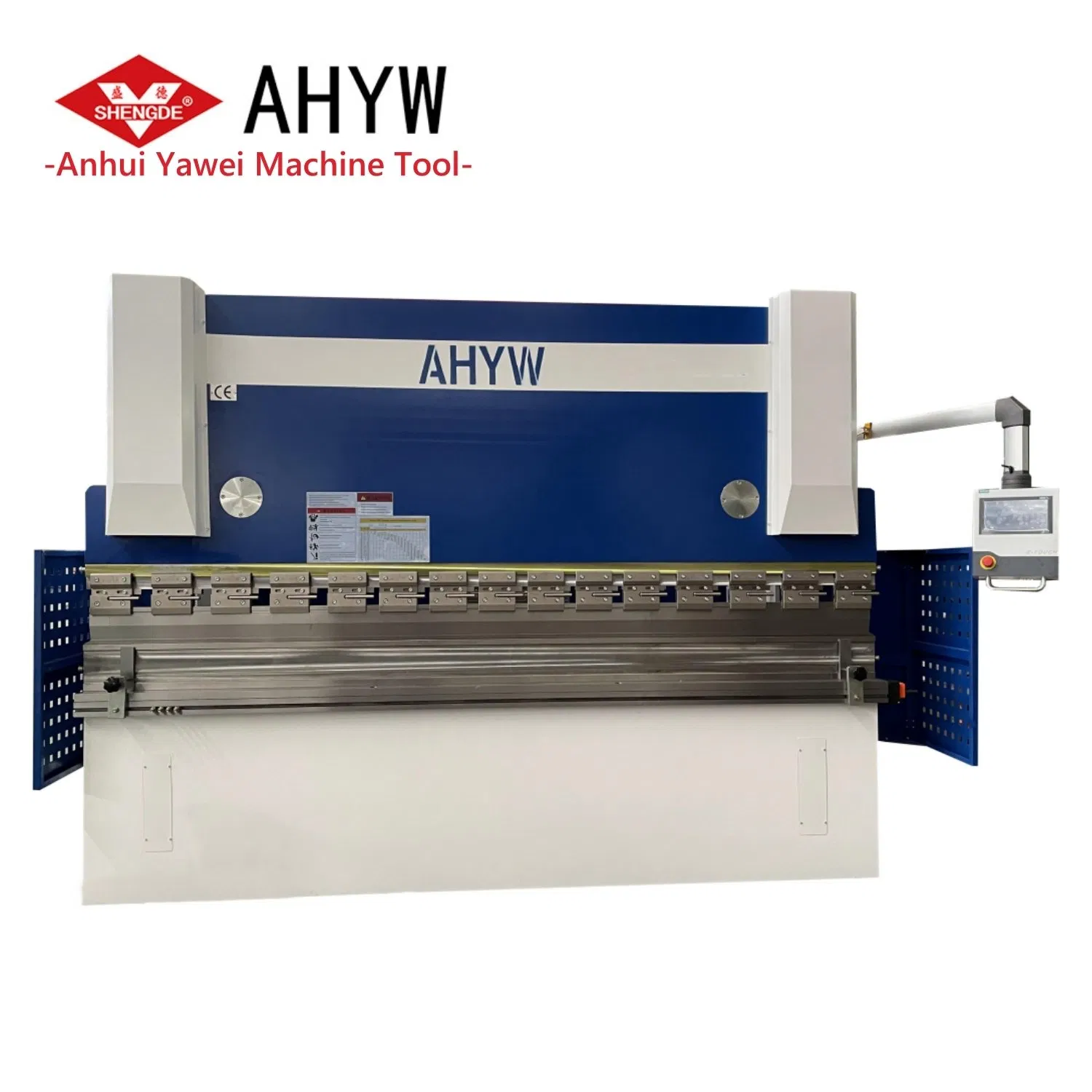

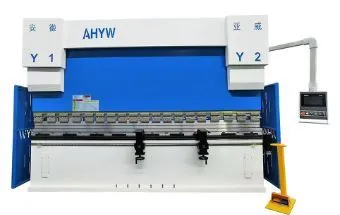

CNC Press Brake

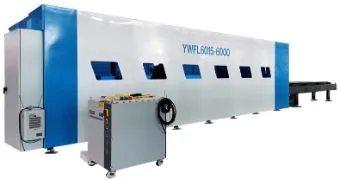

Laser Cutting Machine

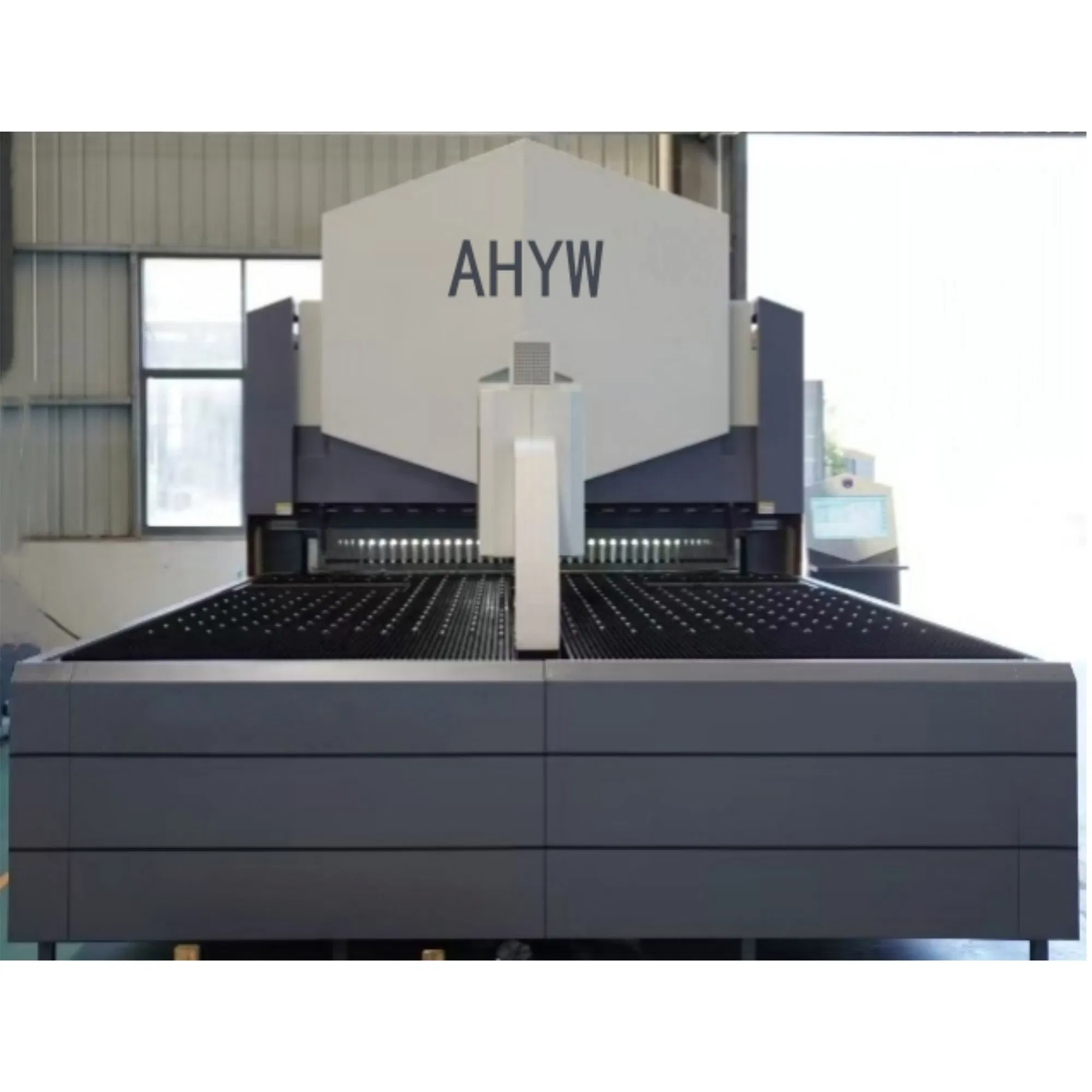

Bending Center

Key Features of AHYW CNC Press Brake

✓ Advanced proportional valve for synchronized hydraulic cylinder work.
✓ Precise repeatability performance (+/-0.01mm) and parallelism (+/-0.02mm).
✓ Deflection compensation table or crowning system for high precision.
✓ High-end components: Delem DA52S CNC, Bosch-Rexroth valves, Siemens motors.

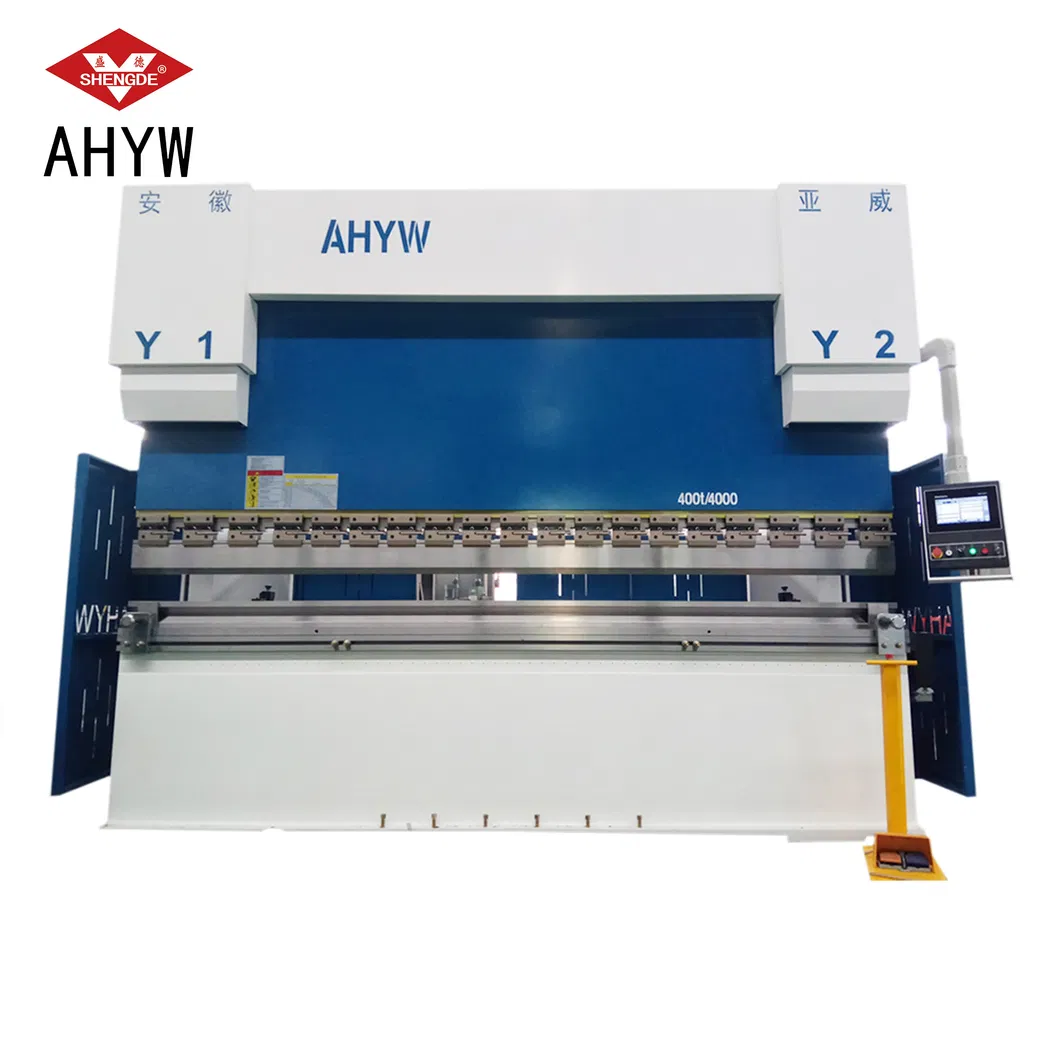

Detail Images & Components

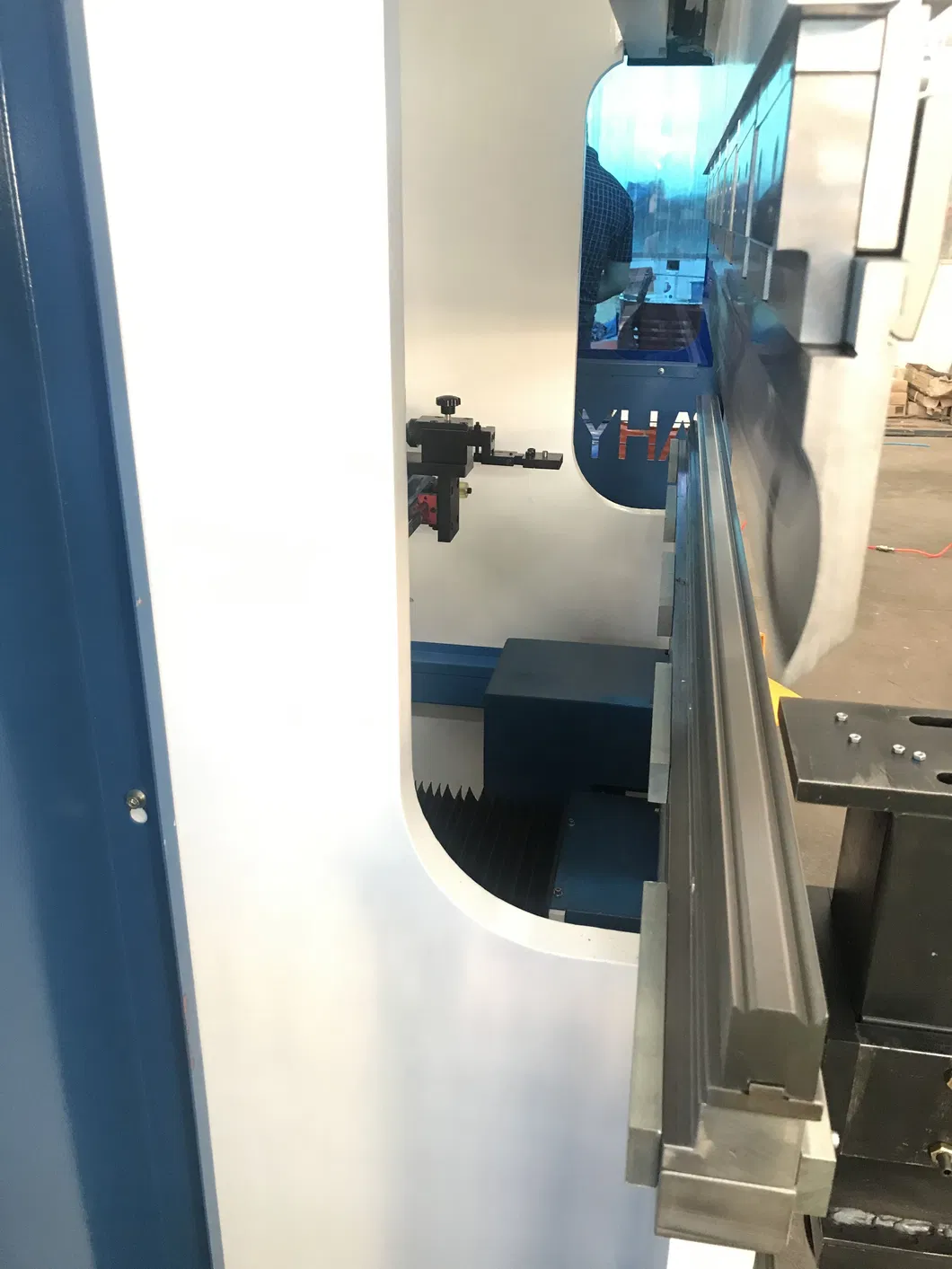

42Crmo Toolings
Heat treatment up to 42° for long service life.

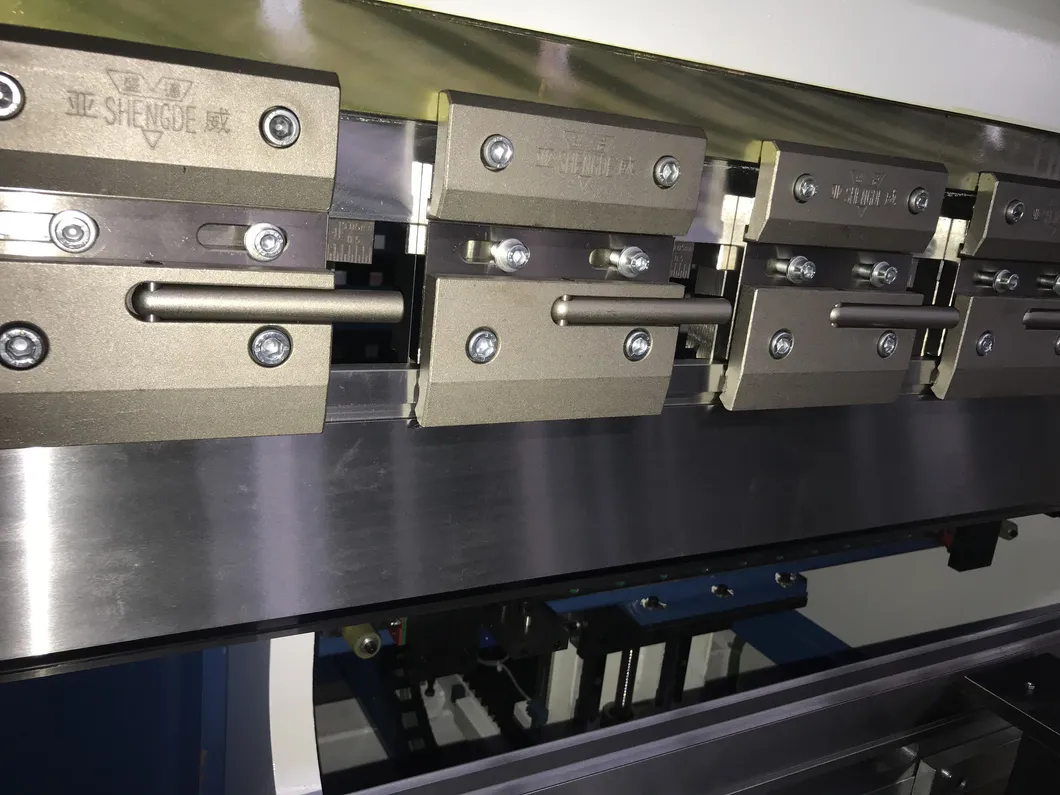

Mechanical Quick Clamps
Convenient and safe die changes.

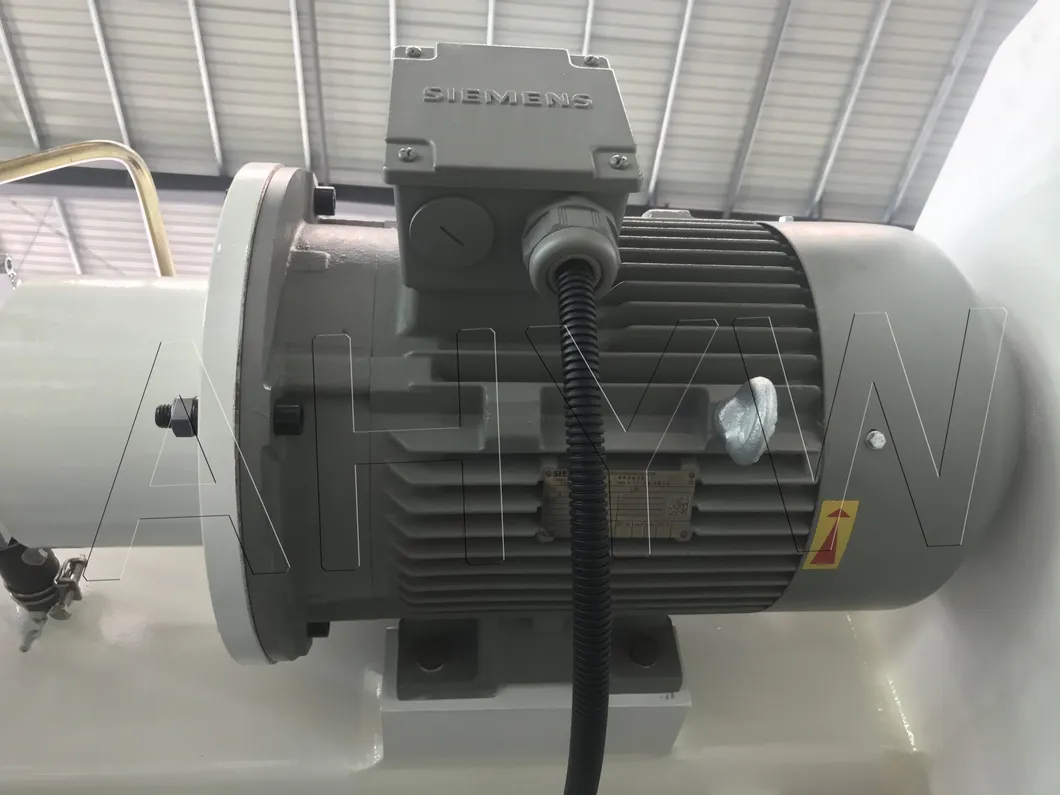

Germany Siemens Motor
Guaranteed working stability and efficiency.

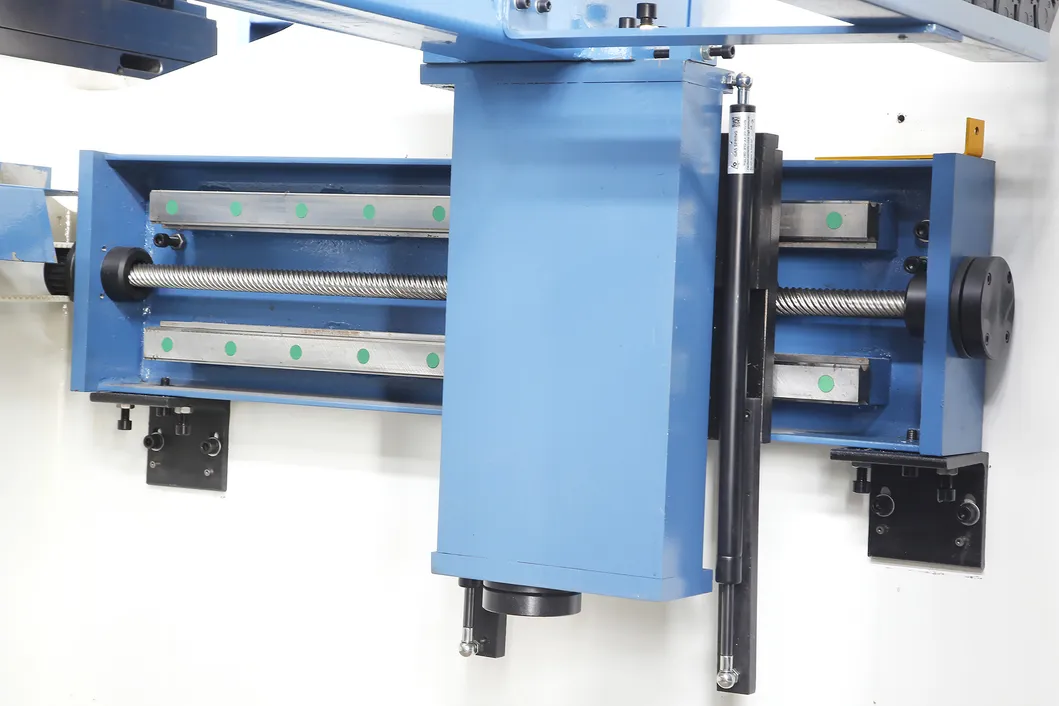

Ball Screw & Linear Guide
High accuracy backgauge positioning.

Technical Specification

TYPE	Throat Depth (mm)	Worktable Length (mm)	Dimension (mm)	Nominal Force (KN)	Travel (mm)	Power (kw)
100t/3200	400	3200	373020002500	1000	200	7.5
125t/4000	400	4000	455019502550	1250	200	7.5
160t/4000	400	4000	460020002670	2000	200	11
200t/4000	400	4000	460020002670	2000	200	15
400t/4000	400	4000	510023003420	4000	300	30

Frequently Asked Questions

Q1: What materials can this CNC bending machine handle? A1: It is suitable for bending copper, aluminum, alloy, carbon steel, and stainless steel plates.

Q2: What is the warranty period for the machine? A2: We provide a 2-year warranty for the machine to ensure reliable operation.

Q3: Does the machine include a crowning system? A3: Yes, it features a deflection compensation table or crowning system for high-precision bending.

Q4: What control system is used in the CNC press brake? A4: It typically uses the Holland Delem DA52S CNC system for advanced control and ease of use.

Q5: Is the machine frame treated for stress relief? A5: Yes, after welding by robots, the frame undergoes a vibration stress relief process before being machined in 5-axis centers.

Q6: What certifications do your products have? A6: Our machines are ISO 9001 and European Union CE certified, meeting international quality and safety standards.
