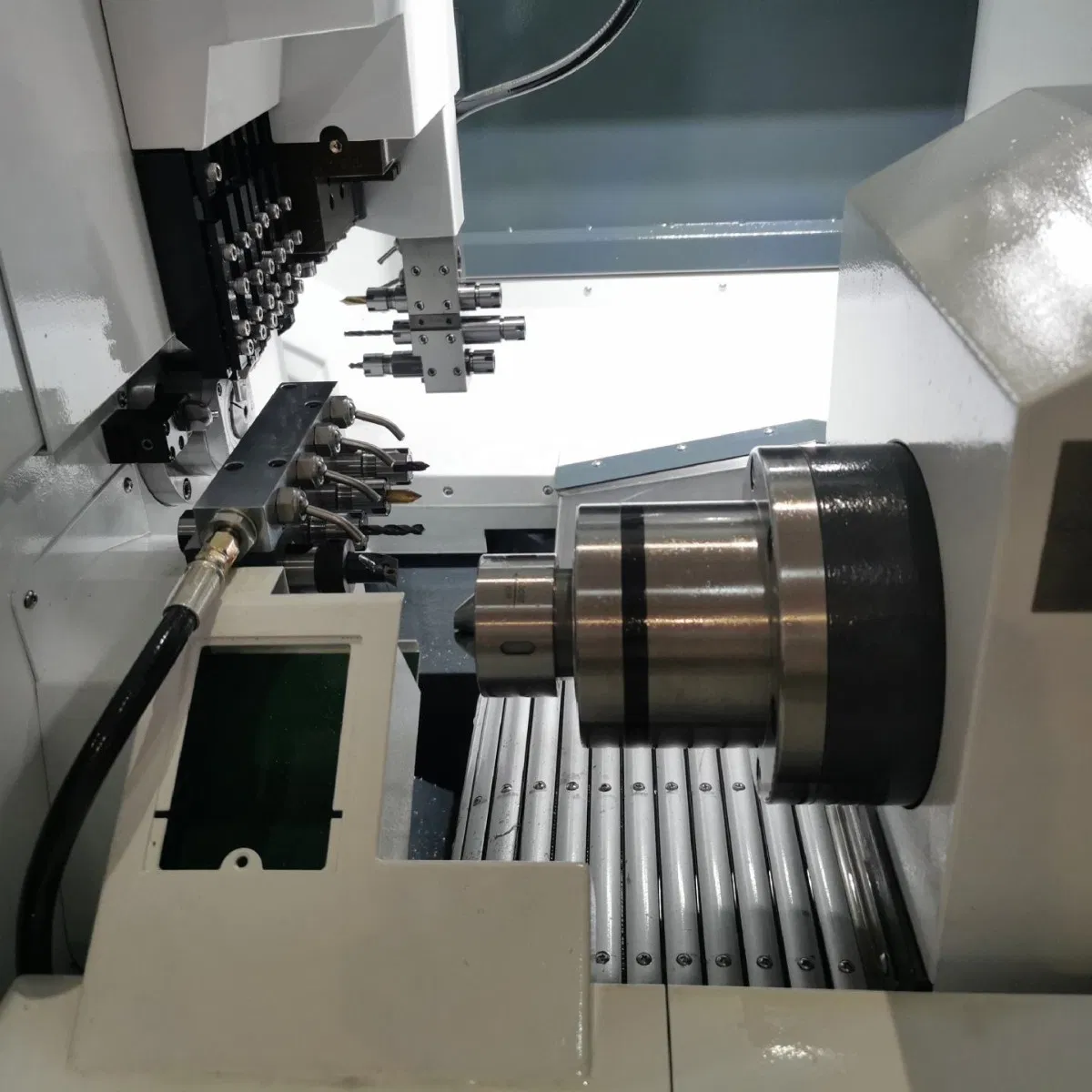

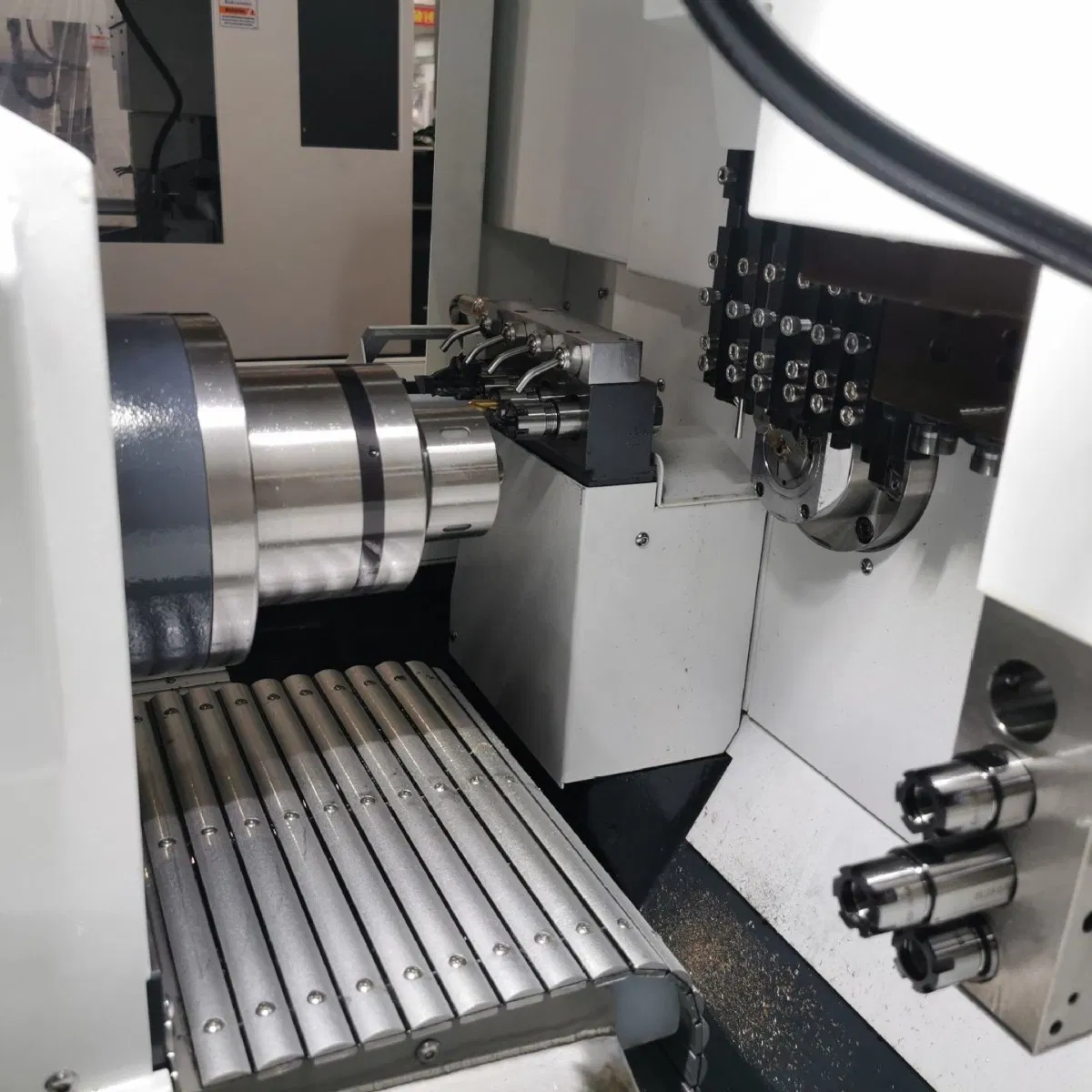

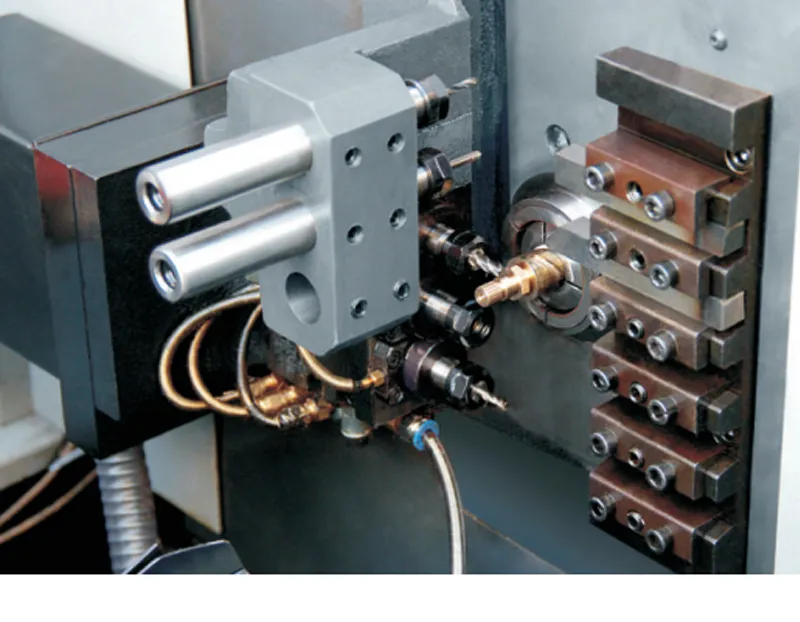

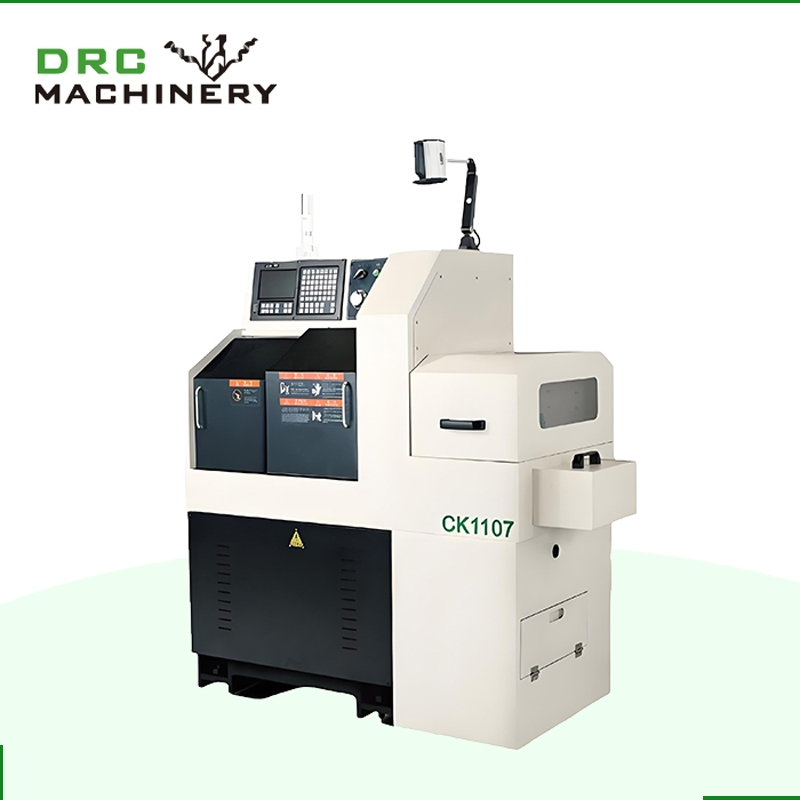

CK1107 high-speed walking machine features a left and right row tool structure with a large number of tools, fast tool change, and superior rigidity. It is specifically designed for processing ultra-slender parts with high efficiency. All three axes adopt linear rolling guides driven by servo motors.
Spindle Movable Design: Offers reasonable structure and high reliability. Compared to others in its class, it significantly reduces material feeding times and improves efficiency for slender parts.
Automatic System: Equipped with an integrated automatic bar feeder system. One-time material feeding is sufficient for parts up to 150mm in length.
Broad Application: Ideal for complex shapes requiring high precision in medical, electronics, automotive, and micro-axis industries.
| Power Supply | Rated Voltage | Three-phase AC 380V |
| Rated Frequency | 50HZ | |
| Total Input Power | 4kW | |
| CNC System | Model | BYSK YZ150 |
| Min Setting Unit | 0.001mm | |
| Rapid Feed Rate (X/Y/Z) | 15000mm/min | |
| Cutting Speed | 1--4000mm/min | |
| Spindle | Max Bar Diameter | Φ7mm |
| Spindle Speed | 0-5000r/min | |
| Spindle Motor Power | 2kW | |
| Travel | X Axis Travel | 38mm | Y Axis Travel | 80mm | Z Axis Travel | 150mm |
