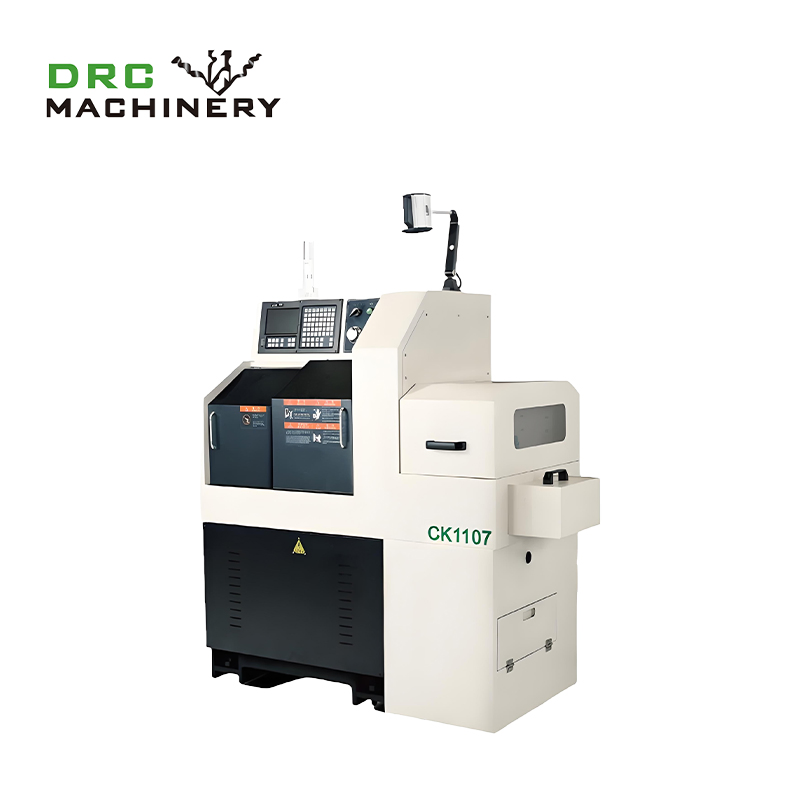

High Precision CNC Lathe Machine Ck1107 for Metalworking

1 / 5

High Precision CNC Lathe Machine Ck1107 for Metalworking

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.CK1107

TypeHorizontal Lathe

Control ModeCNC

Automatic GradeAutomatic

PrecisionHigh Precision

Axis Config7-Axis (X, Y, Z, C, Sub-Axis)

Power SourceHydraulic Pressure

CertificationCE

Product Description

High Precision 2 Spindle 5 Axis Swiss CNC Automatic Lathe

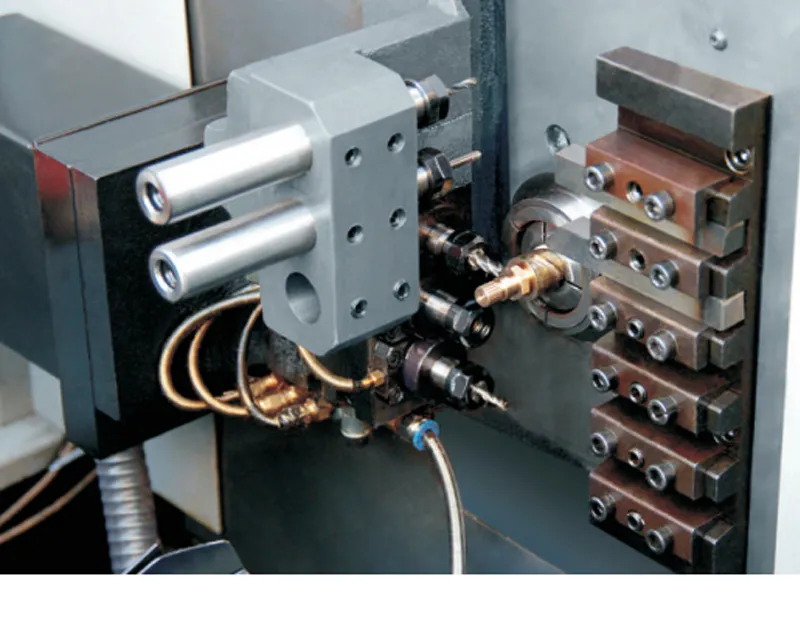

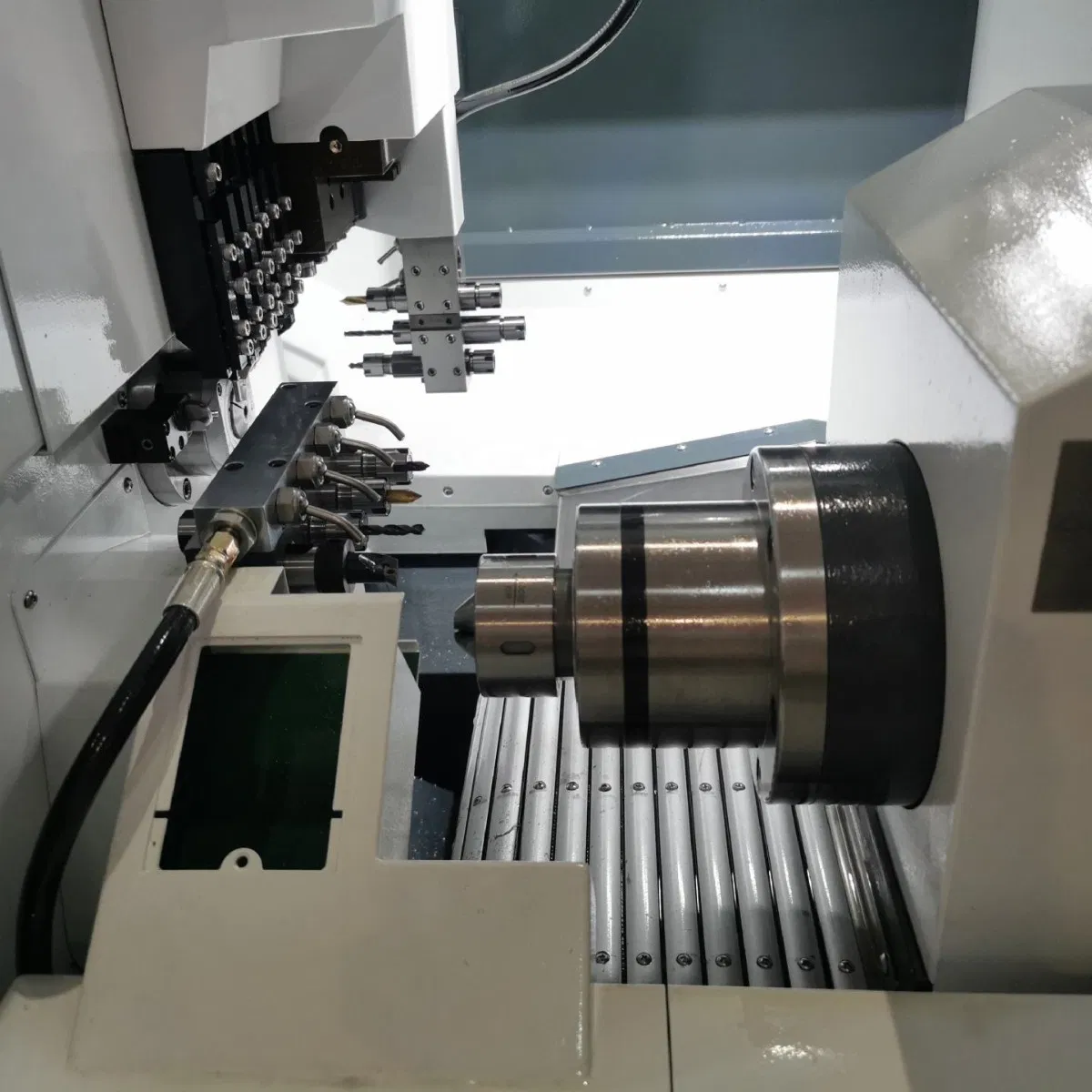

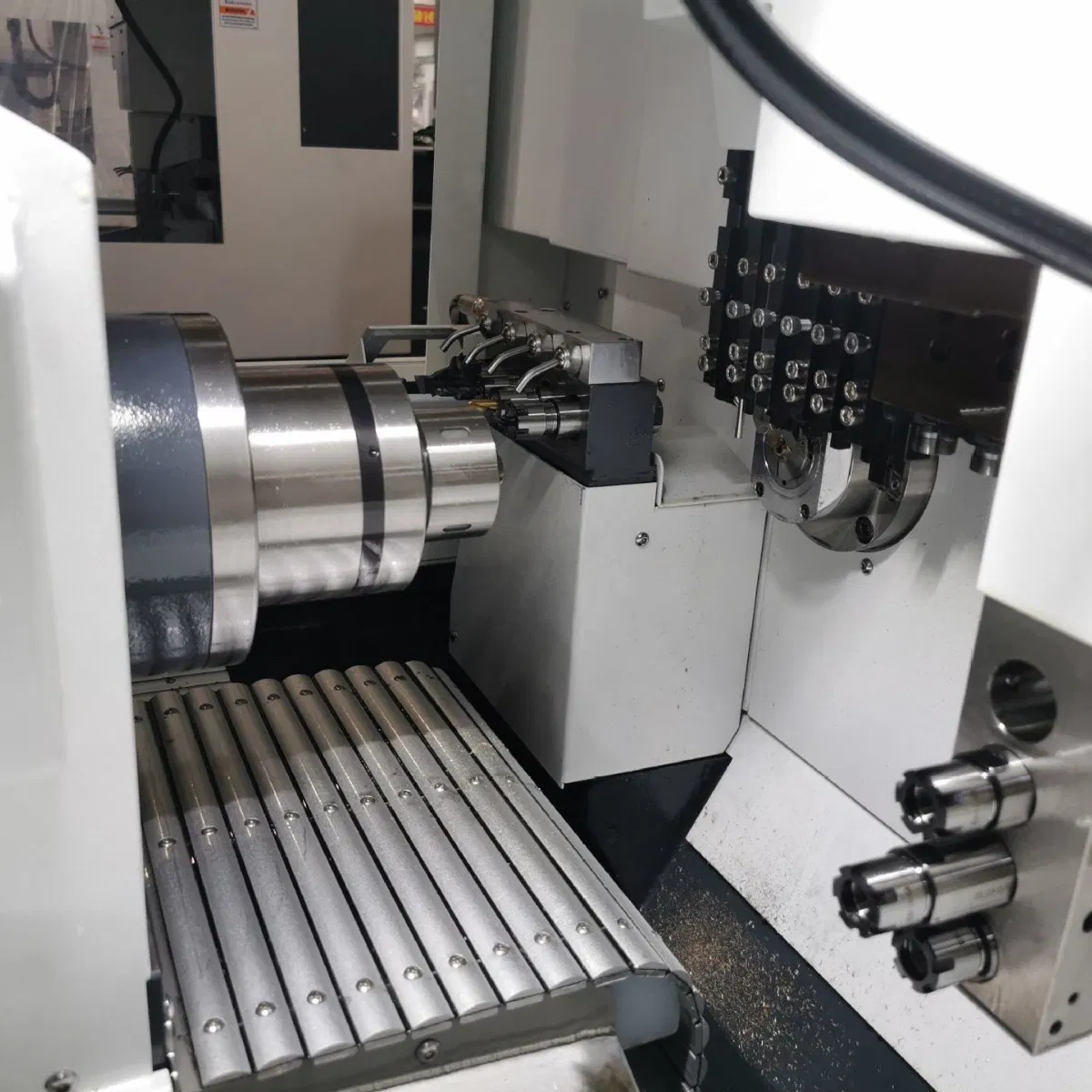

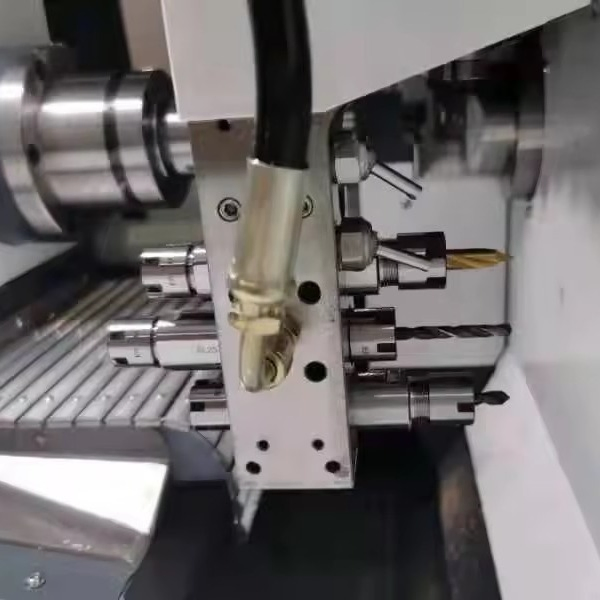

CK1107 high-speed walking machine features a left and right row tool structure with a large number of tools, fast tool change, and excellent rigidity. It is designed to process ultra-slender parts with a compact layout that saves floor space.

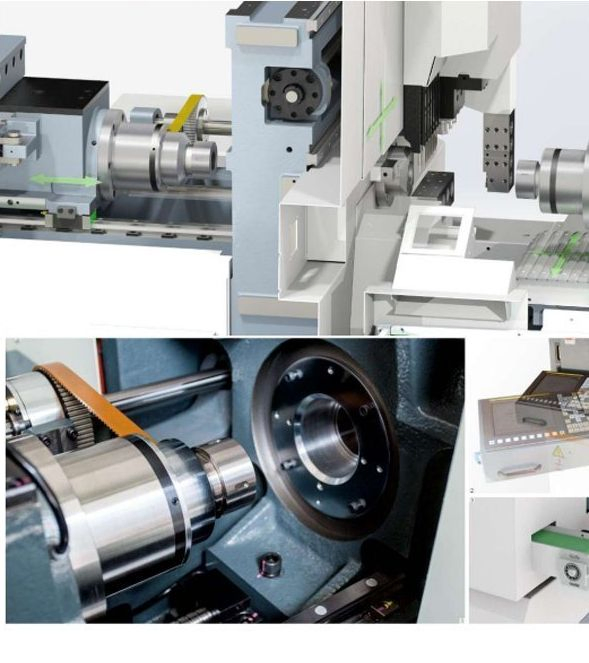

Swiss Type CNC Lathe Features

Main Advantages

Three feeding axes adopt imported linear guide rails for high-speed travel.
Reduced idle movement time increases overall work efficiency.
Extended tool capacity compared to standard gang-type lathes.
Ideal for machining various super-slender components with high precision.
Equipped with an automatic feeder to realize fully automated production.

Technical Specifications

Power Supply	Rated Voltage	Three-phase AC 380V
	Rated Frequency	50HZ
	Total Input Power	4kW
CNC System	Model	BYSK YZ150
	Small Setting Unit	0.001mm
	X/Y/Z Pulse Equivalent	0.0005mm / 0.001mm
	Cutting Speed	1--4000mm/min
Spindle	Max Bar Diameter	Φ7mm
	Spindle Speed	0-5000r/min
	Spindle Motor Power	2kW
Travel	X/Y/Z Travel	38mm / 80mm / 150mm
	Servo Motor Power	0.4kW (Each Axis)
	Slide Form	Linear Guides

Frequently Asked Questions (FAQ)

Q1: What is the maximum processing length for the CK1107?

A1: A one-time material feeding is sufficient for processing parts with a full length of less than 150mm.

Q2: Which industries are best suited for this Swiss-type CNC lathe?

A2: It is ideal for medical, electronics, aerospace, car and motor accessories, and clock industries requiring high precision.

Q3: Does the machine support automated production?

A3: Yes, it is equipped with an automatic feeder system to realize fully automated production.

Q4: What are the advantages of the 7-axis configuration?

A4: The 7-axis setup, including the sub-axis and C-axis, allows for complex turning and milling operations in a single setup.

Q5: What kind of guide rails are used in this model?

A5: All three feeding axes adopt imported high-speed linear rolling guides for maximum precision and durability.

Q6: How does it handle ultra-slender parts?

A6: The Swiss-type design and high-speed centering ensure stability and rigidity when processing slender components.
