| Movement Control | Control axes: X, Z, Y, A, B, C; Interlinked interpolation; Minimum unit: 0.001mm; Fast speed: 30000mm/min. |
| G Codes | 29 kinds of G codes including G00-G04, G28, G32-G34, G40-G42, G70-G76, macro instruction G65. |
| Accuracy | Reverse gap compensation: 0-2.000mm; Pitch error compensation: 512 points. |
| Thread Machining | Single/multi-head external metric threads, tapered, end face, and variable pitch threads (0.0001mm to 500mm). |

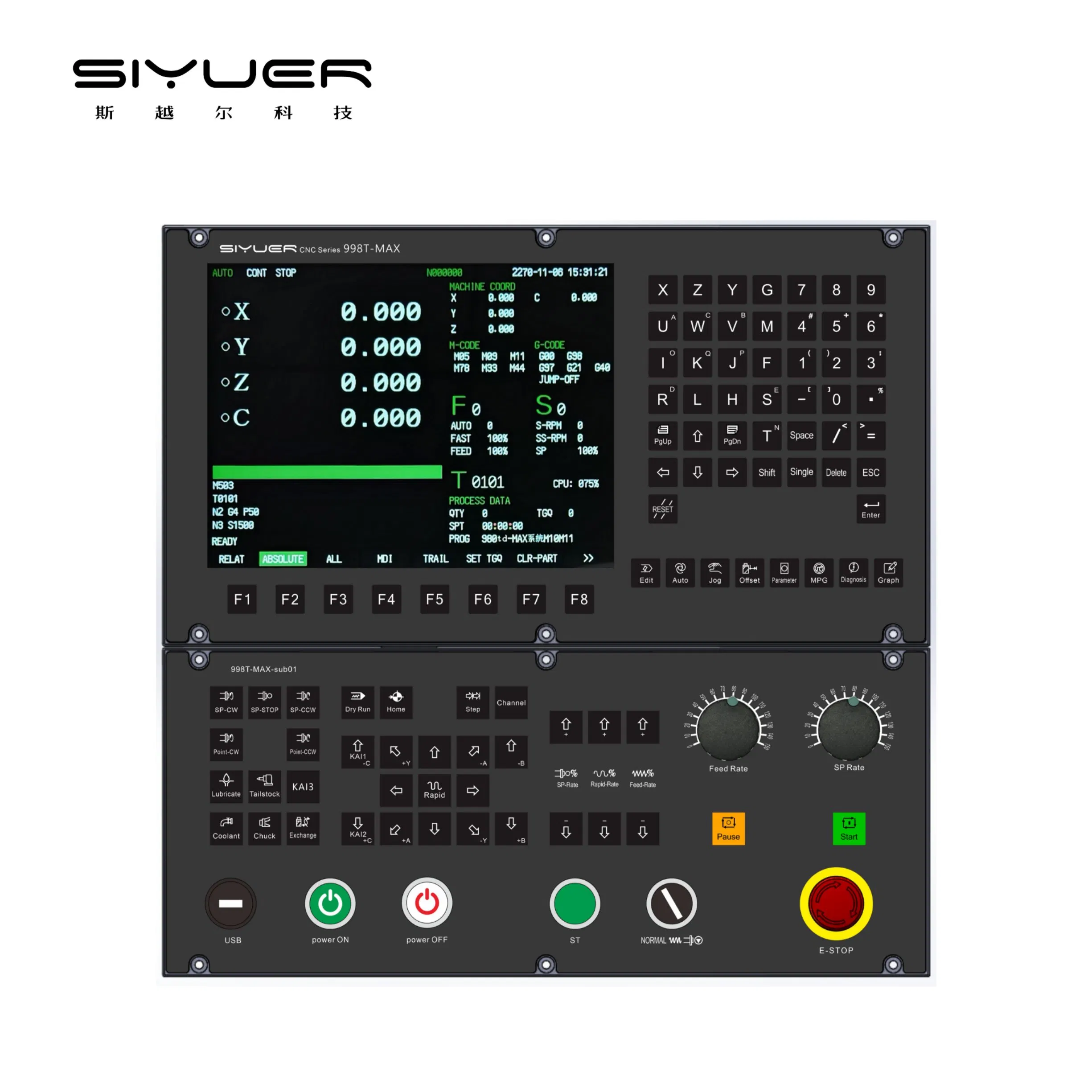

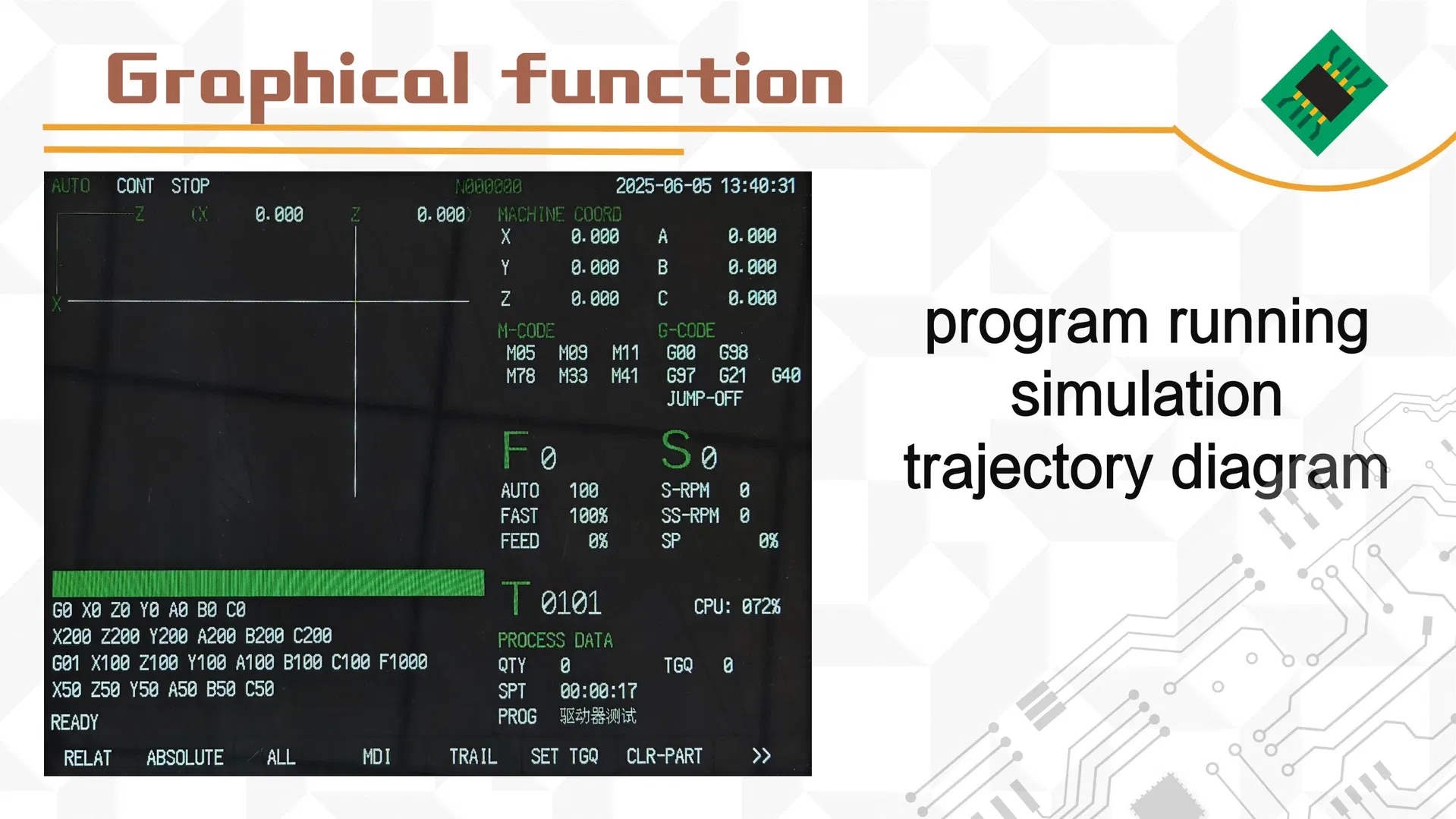

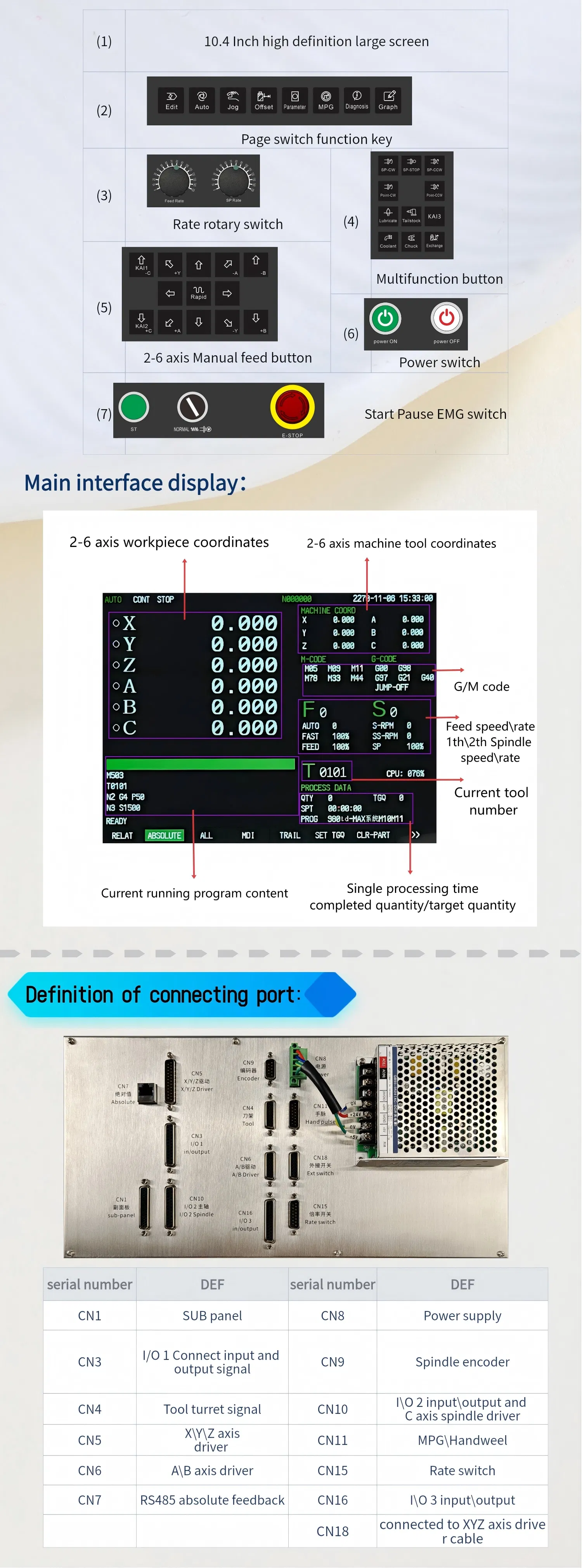

| Display | 10.4-inch LCD display; supports Chinese/English interface and processing trajectory graphics. |
| Memory | Program capacity: 100M, up to 10000 programs, supports subroutine four-level nesting. |
