| Movement Control | Control axes: X, Z, Y, A, B, C; interlinked axis, servo spindle C axis. Position command range: -9999.999mm~9999.999mm. Fast moving speed: up to 30000mm/min. |
| G Function | 29 kinds of G codes including G00-G04, G32-G34, G70-G76, G90-G99. Supports macro instruction G65 for complex arithmetic and logic operations. |
| Thread Machining | Metric straight, tapered, end face, and variable pitch threads. Pitch range: 0.0001mm to 500mm. |
| Accuracy | Reverse gap compensation: 0mm~2.000mm. Pitch error compensation: 512 points per axis. |

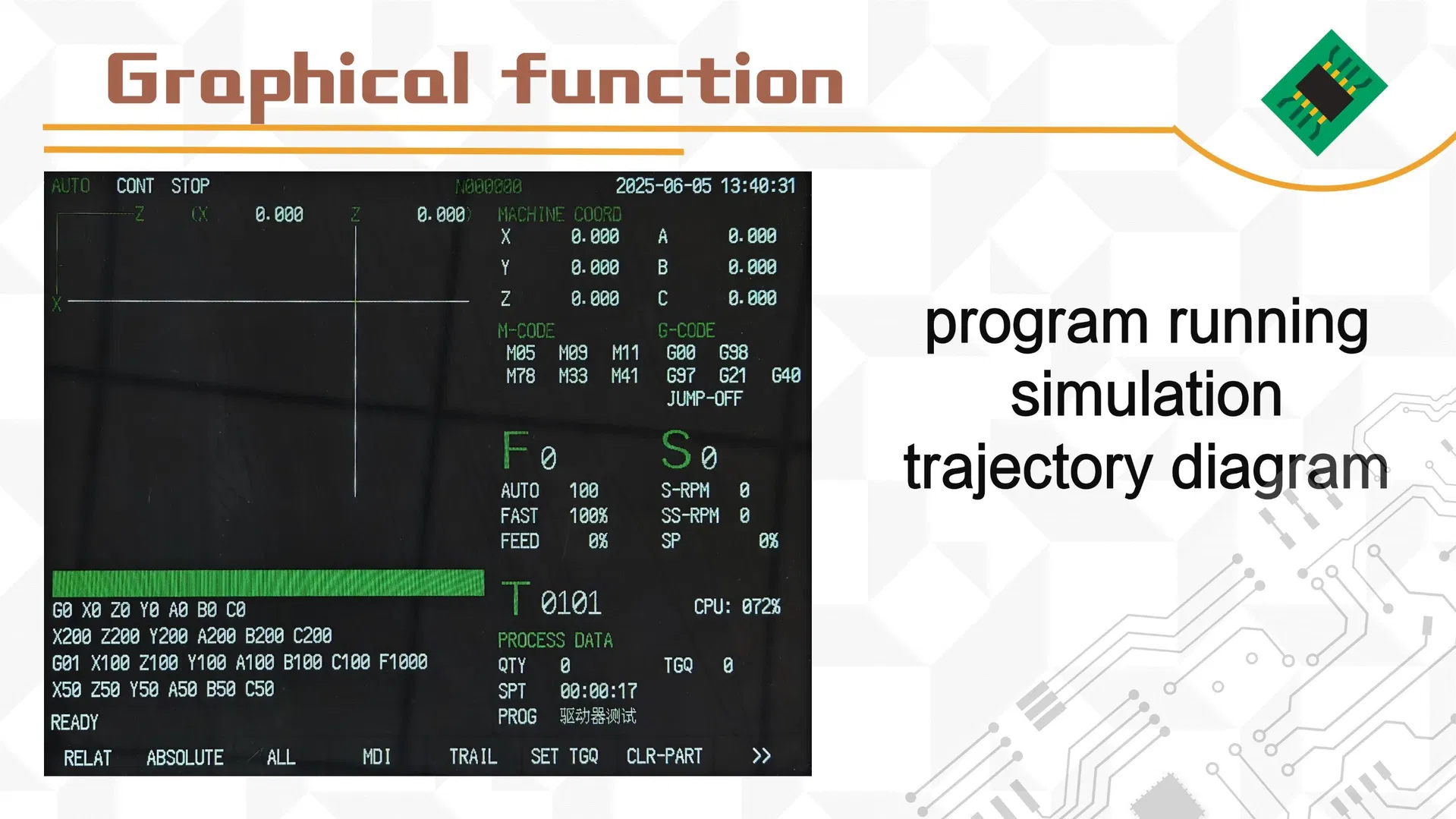

| Display | 8-inch / 10.4-inch LCD display (800x600). Supports Chinese/English interface and processing trajectory graphics. |

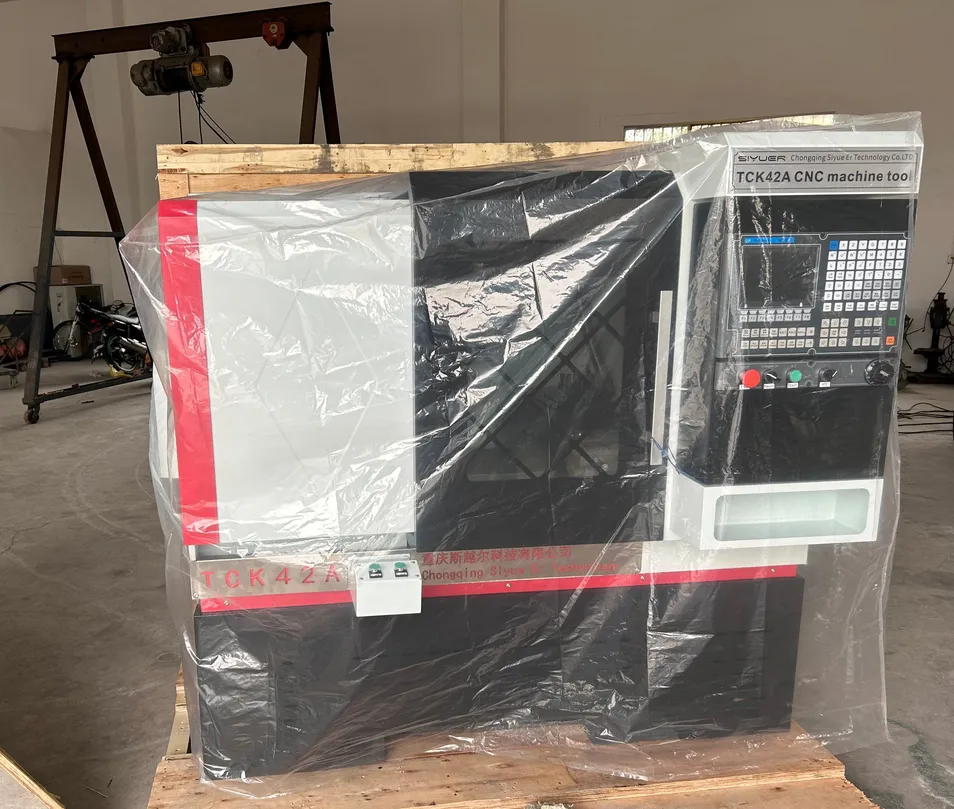

Professional, environmentally friendly, and efficient packaging services using export wooden crates to ensure the safety of your goods.
