CNC Efficient Processing Fldka 70bar 4kw High Pressure Through Spindle Coolant System

Customization: Available
After-sales Service: 7*24h Service
Warranty: 1 Year

Product Description

Basic Specifications

Model NO.FD-CTS230L70Bar-4KW
TypeHigh-Pressure Through-Spindle Coolant
Cooling WaterIndustrial Water
System TypeClosed System
Fans SpeciesSingle-speed Fan
Noise LevelLow
ApplicationPrecision Machining, Turning, Milling and Drilling
CertificationISO, CE
ConditionNew
Weight250kg
Specification750*1200*1650
OriginShanghai, China
High Pressure Through Spindle Coolant System

Product Description

During product processing and over cutting and hot cutting, the steam barrier is formed and the chip liquid is unevenly distributed, so that the tool tip cannot obtain the required cooling. In the case of insufficient cooling of the cutting tool, the iron chips will return to the cutting point. Therefore, repeated processing of chips will shorten the tool life and damage the surface finish of the workpiece.

High-pressure Through spindle coolant filtration system high-pressure centralized aiming chip liquid can penetrate the steam barrier, smoothly reduce the high temperature generated during cutting, effectively supply chip liquid, significantly improve the tool life, sufficient lubrication, and improve the surface finish and accuracy of the workpiece.

Coolant System Detail Machining Efficiency
🔹 Superior Heat Management
By delivering high-pressure coolant straight to the cutting edge, our system rapidly dissipates heat generated during machining. This reduces thermal deformation and ensures tighter tolerances.
🔹 Efficient Chip Evacuation
The high-pressure coolant flow effectively flushes away chips from the cutting zone, preventing chip re-welding and tool breakage.

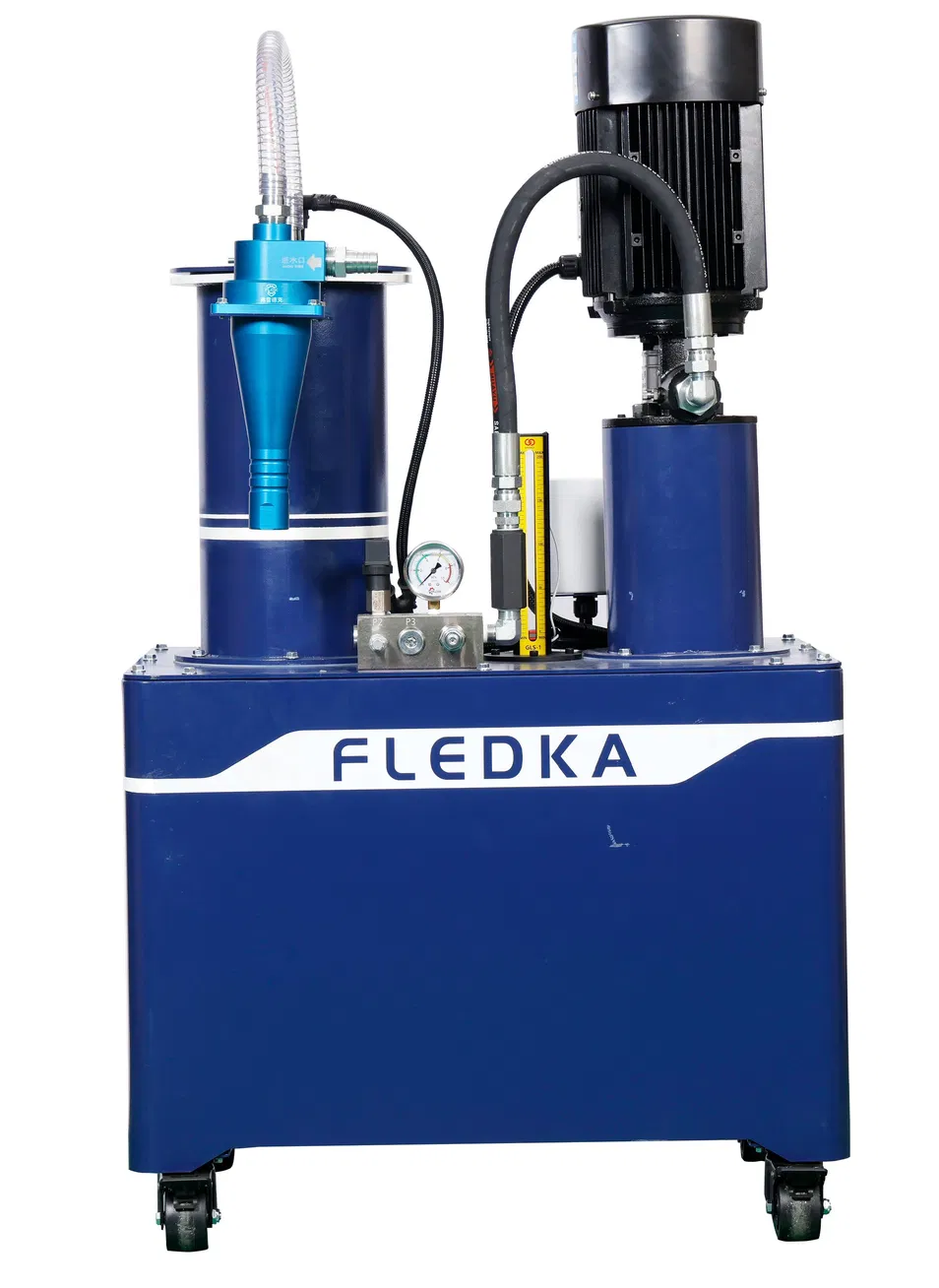

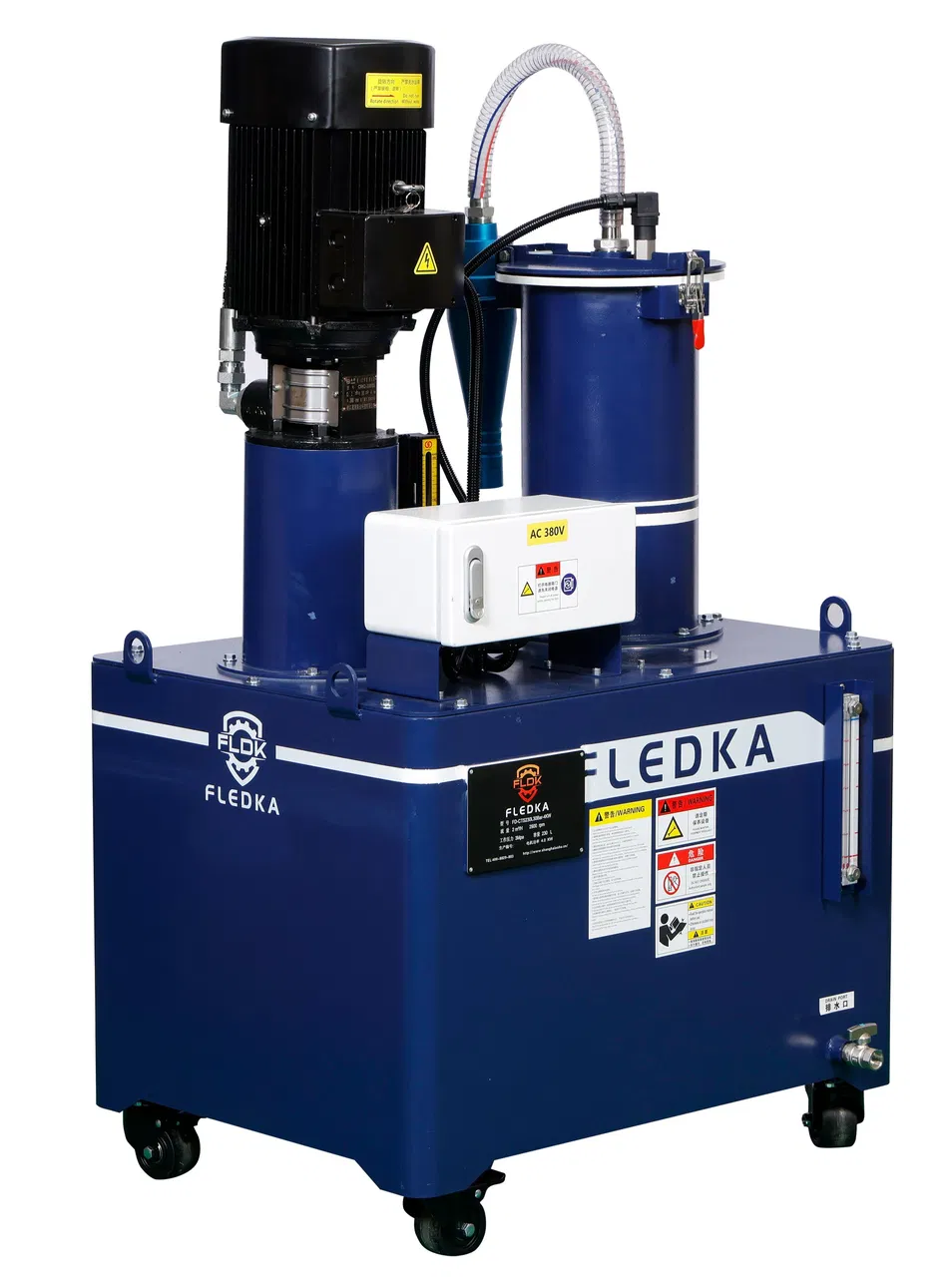

Heat Management Chip Evacuation Force Transmission
🔹 Efficient Force Transmission
Equipped with advanced sealing technology, the system ensures efficient force transmission with minimal energy loss and fast response times.

Technical & Manufacturing Excellence

Integrating production, trade, and technical R&D, the facility covers over 4,000 square meters. With 4 technical R&D teams and 5 dedicated testing laboratories, we maintain strong capabilities in mass production and product innovation.

Factory Overview Testing Lab

Frequently Asked Questions

Q1. Can I get samples for testing?
As our quotation is highly competitive, we do not provide free samples. However, for large subsequent orders, the cost of sampling can be deducted from the final cooperation total.
Q2. Do you support OEM or ODM customization?
Yes, we provide full OEM/ODM services. Your logo and specific designs can be applied to the products, and we support non-standard customization for unique requirements.
Q3. What is the production capacity for coolant systems?
Our annual capacity includes 2,000 high-pressure through-spindle coolant systems, alongside 5,000 hydraulic units and 70,000 sets of CNC cables.
Q4. What is the typical lead time for orders?
Standard products are in stock and ready for immediate shipment. For customized non-standard products, the lead time is typically 2-4 weeks.
Q5. Is the system compatible with different CNC brands?
Yes, our team has a profound understanding of electrical and mechanical systems for over 100 global brands, ensuring seamless integration.
Q6. What certification does the equipment carry?
All our high-pressure systems and components are manufactured under ISO standards and carry CE certification for global safety compliance.
