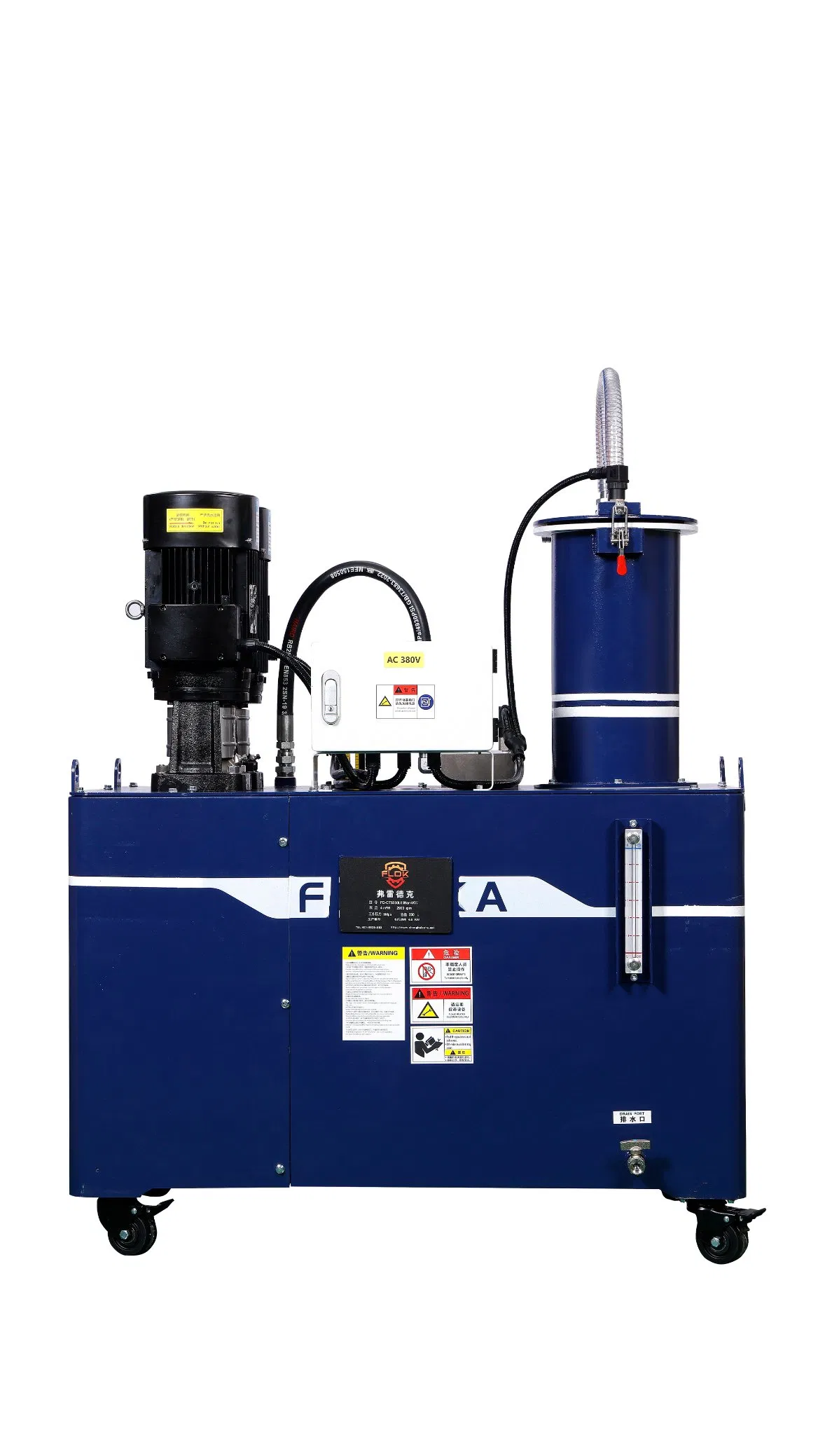

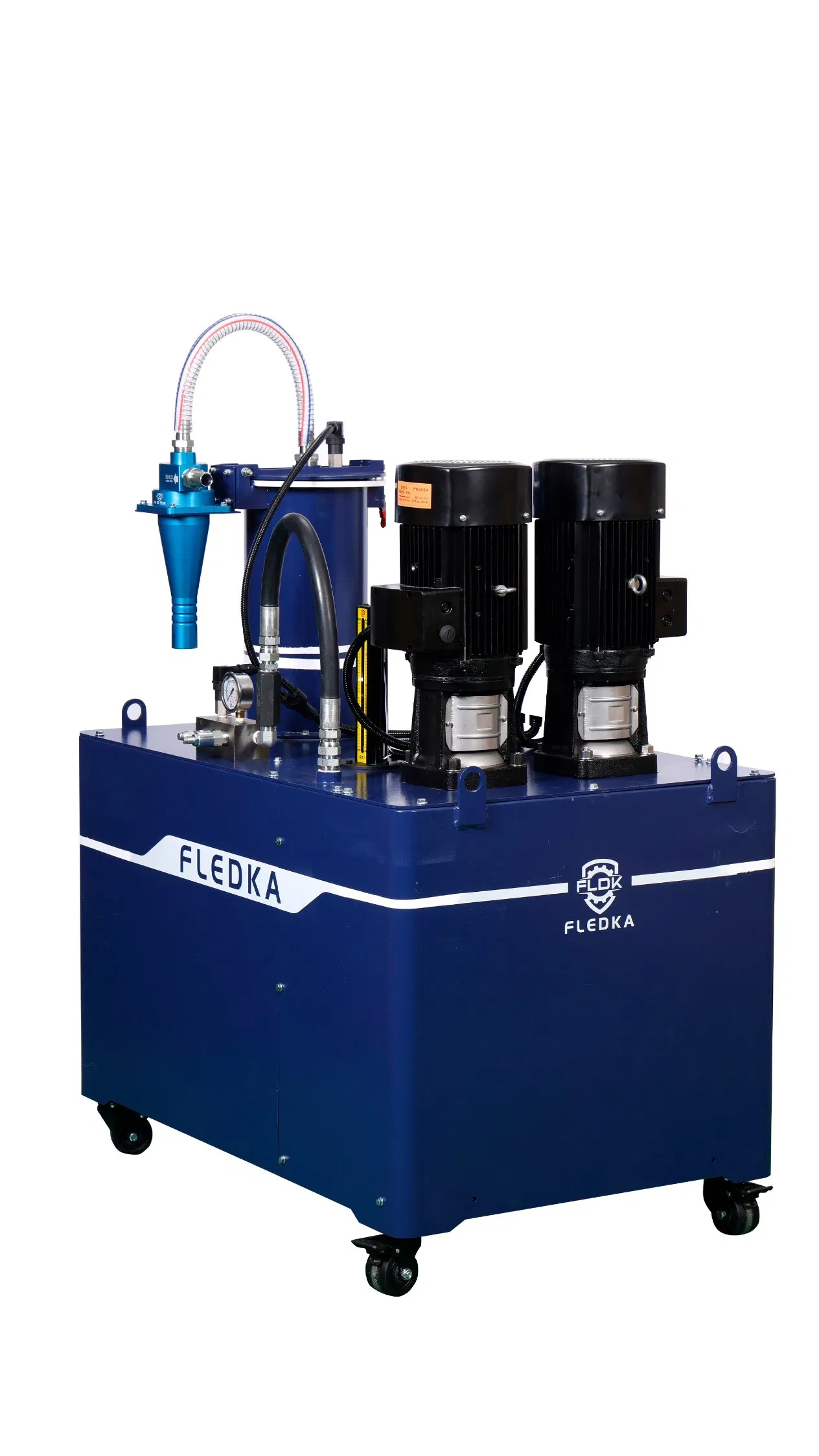

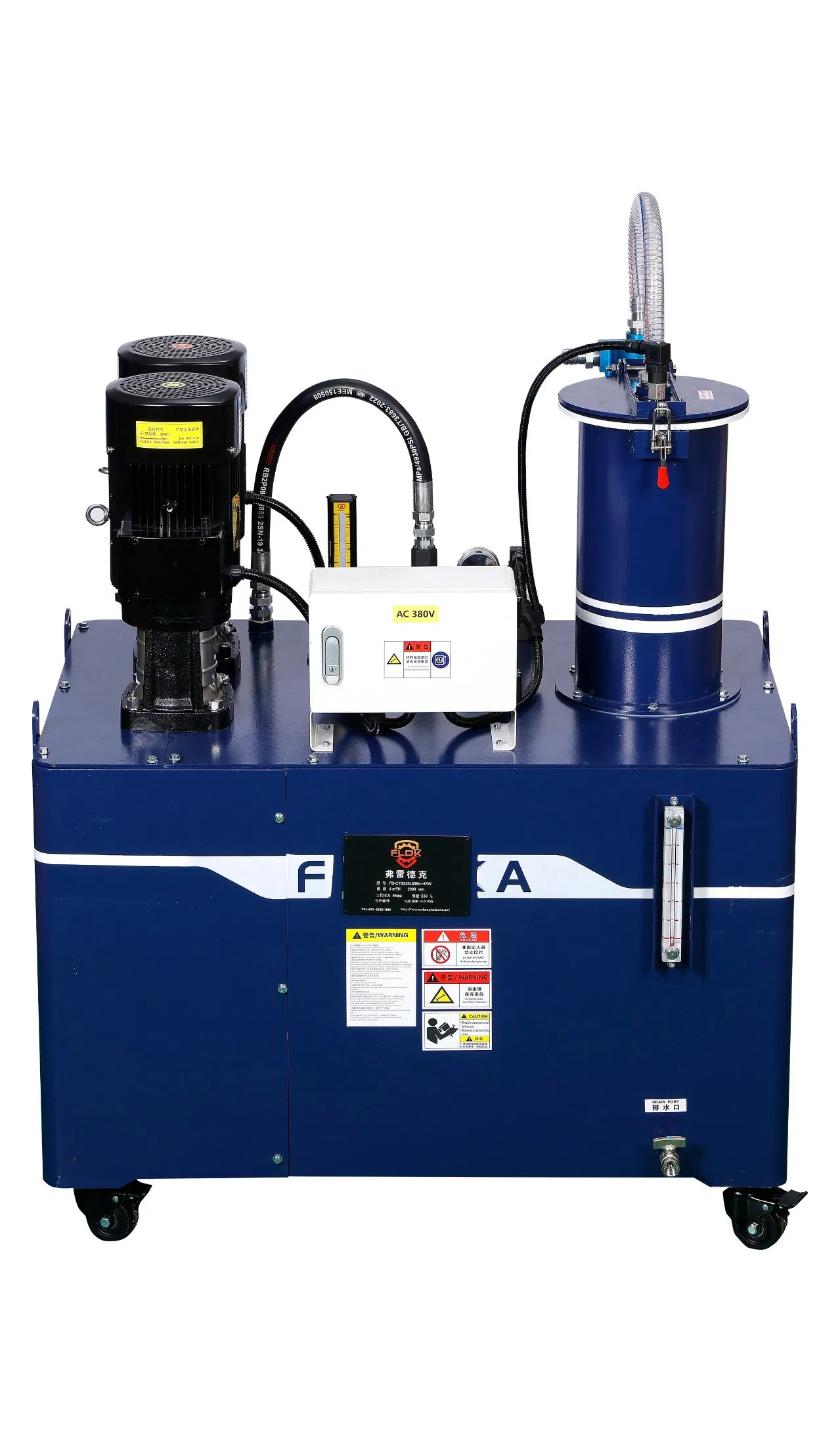

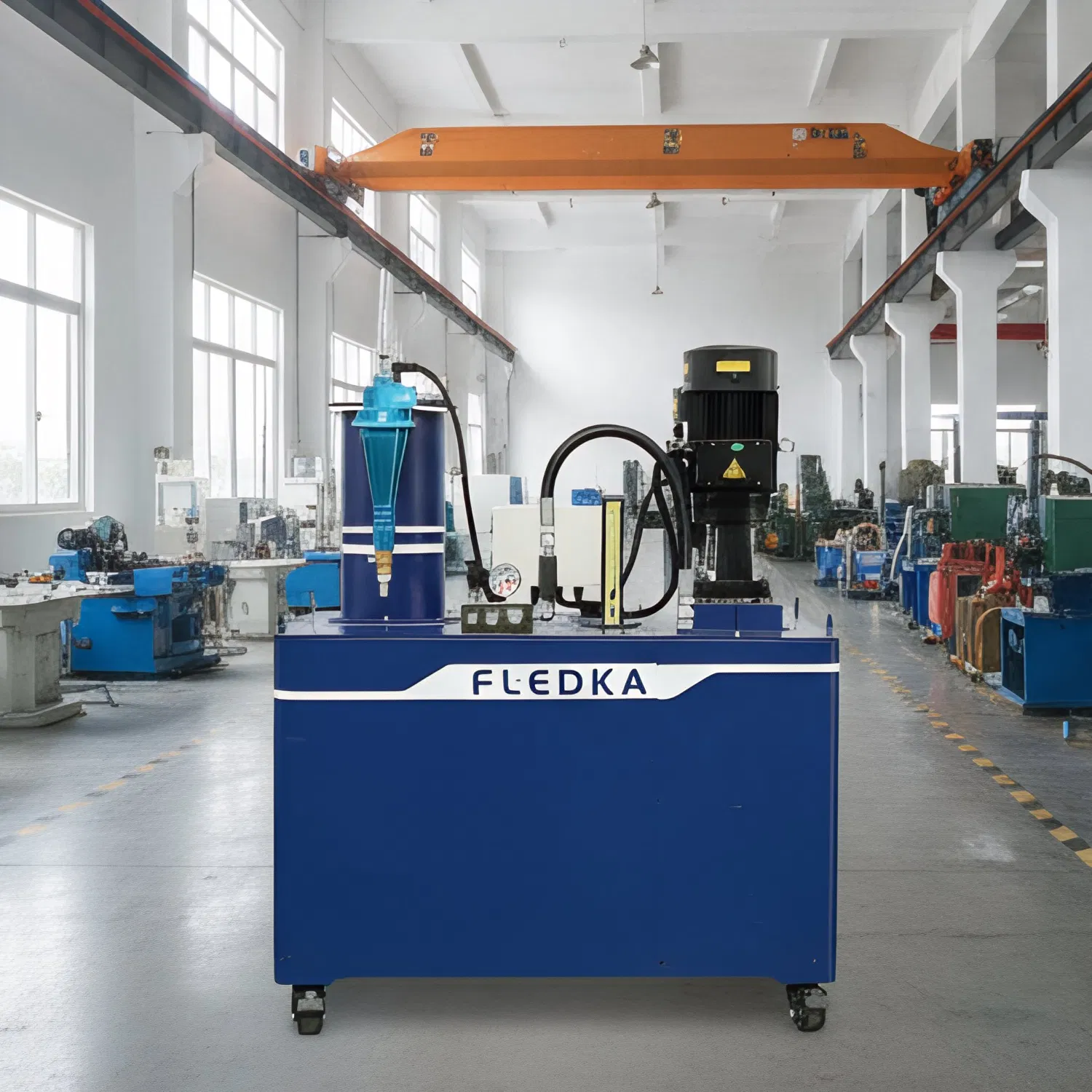

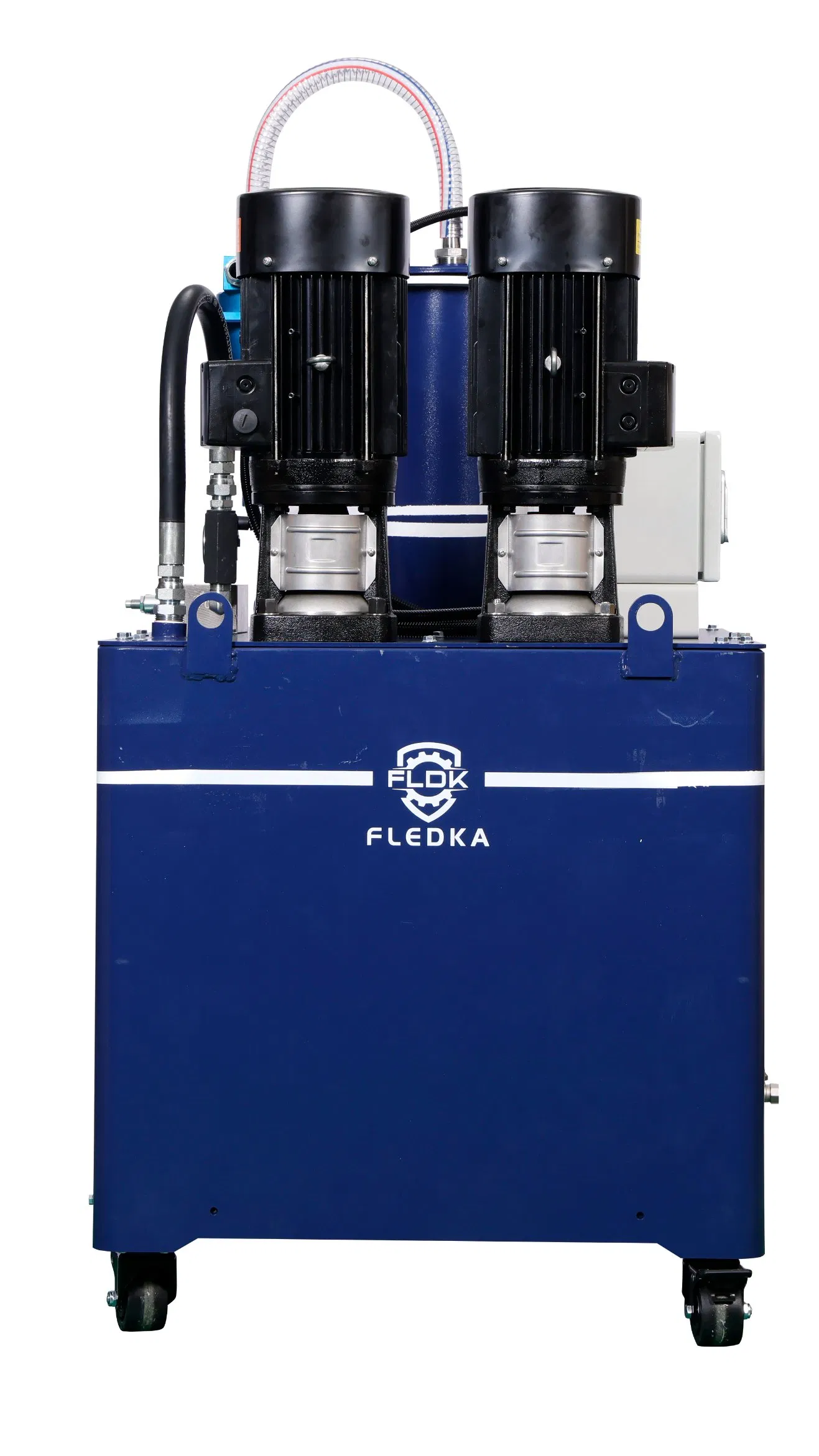

CNC Through Spindle Coolant Filter System 50bar for Deep Hole

1 / 5

CNC Through Spindle Coolant Filter System 50bar for Deep Hole

Customization:	Available
After-sales Service:	7*24h Service
Warranty:	1 Year

Send Inquiry

Product Description

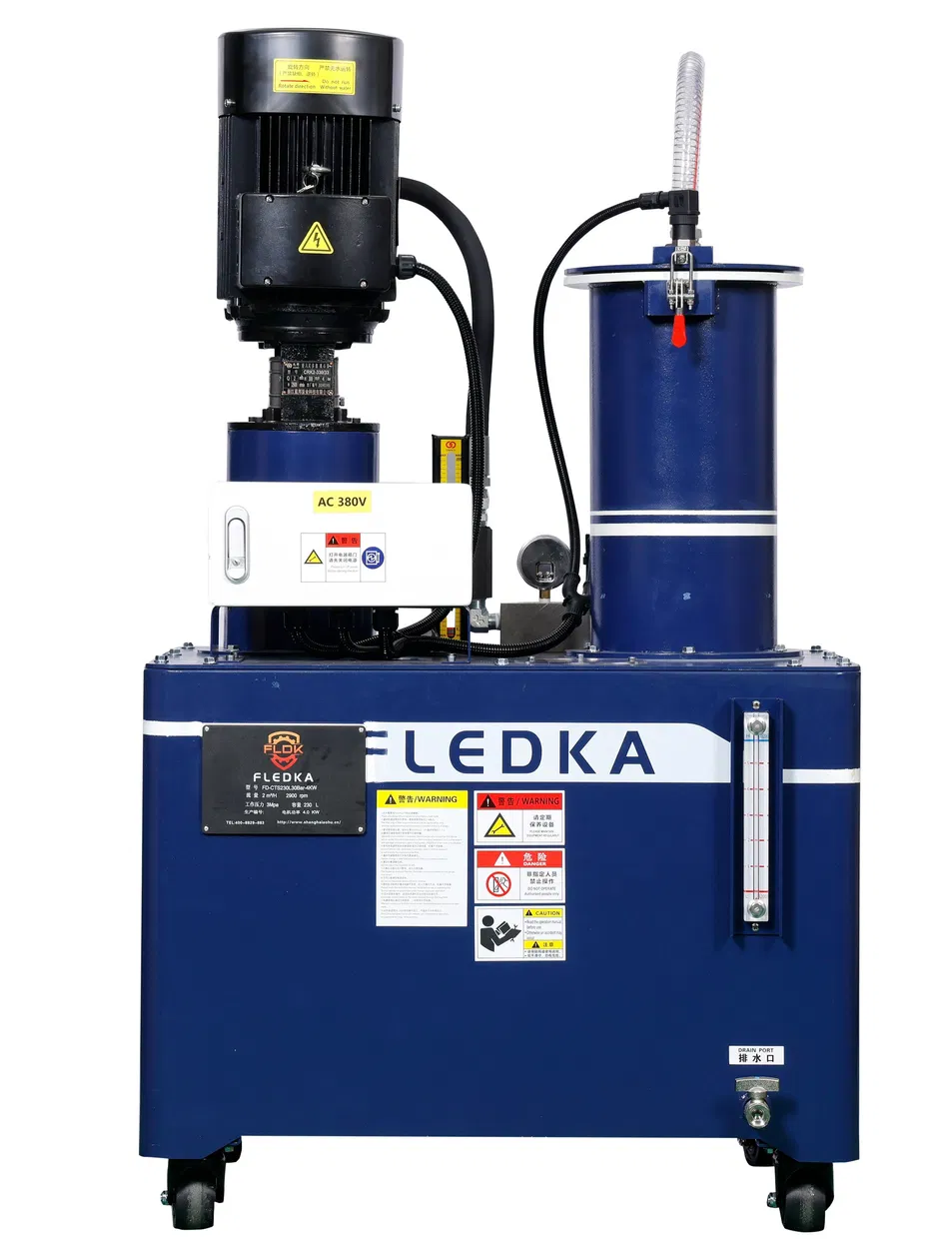

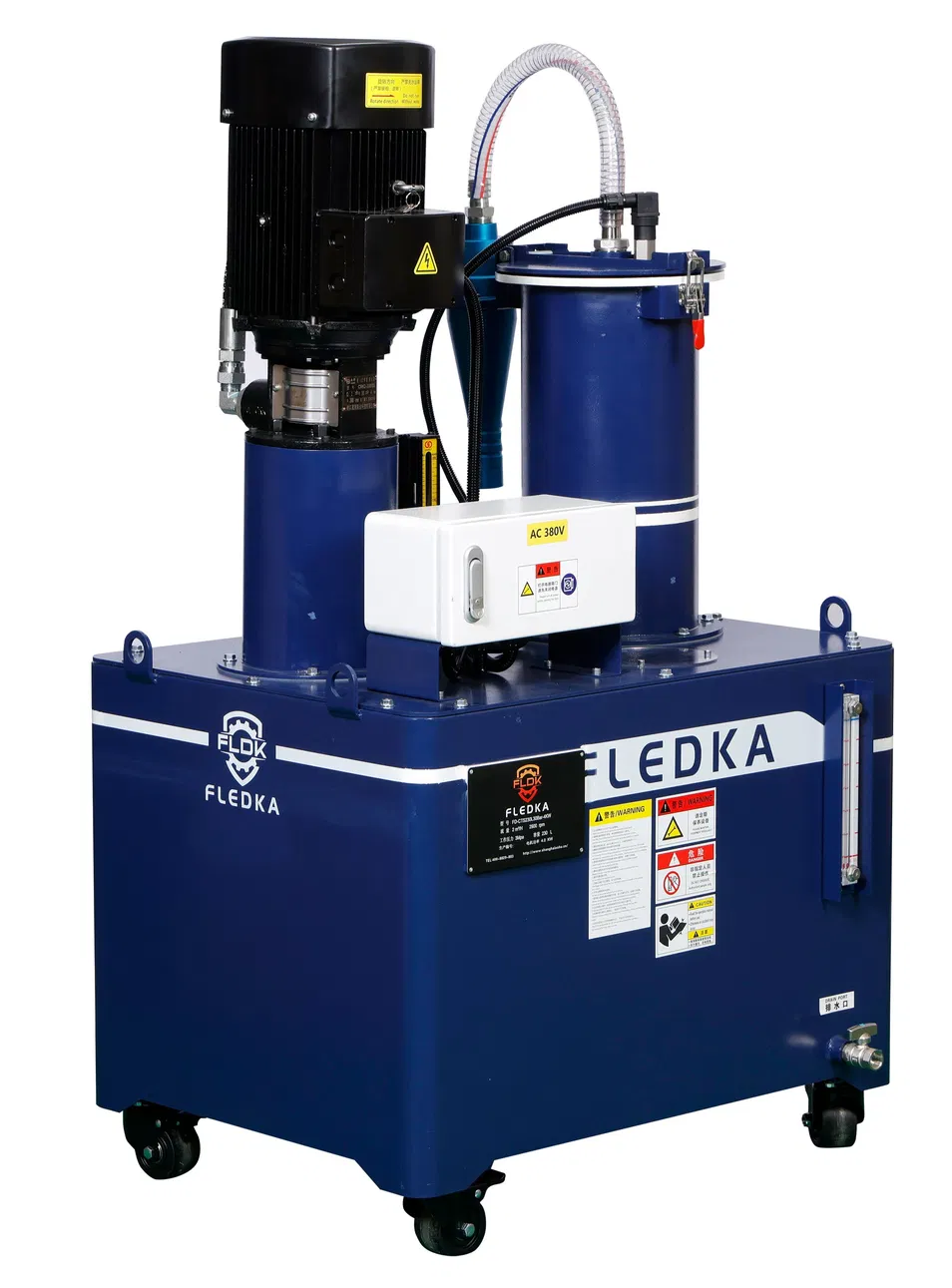

CNC Through Spindle Coolant Filter System

Basic Specifications

Model NO.	FD-CTS230L50Bar-3.75KW
Type	High Pressure Through Spindle Coolant
Cooling Water	Industrial Water
System Type	Closed System
Fans Species	Single-speed Fan
Noise Level	Low
Application Fields	Precision Machining, Turning, Milling and Drilling
Certification	ISO, CE
Weight	250kg
Dimensions	75012001650
Package Size	121.00cm * 87.00cm * 172.00cm

Product Overview

During product processing and over cutting and hot cutting, the steam barrier is formed and the chip liquid is unevenly distributed, so that the tool tip cannot obtain the required cooling. In the case of insufficient cooling of the cutting tool, the iron chips will return to the cutting point.

Repeated processing of chips will shorten the tool life and damage the surface finish of the workpiece. This high-pressure Through spindle coolant filtration system can penetrate the steam barrier, smoothly reduce high temperatures, significantly improve tool life, and improve surface finish and accuracy.

Core Advantages

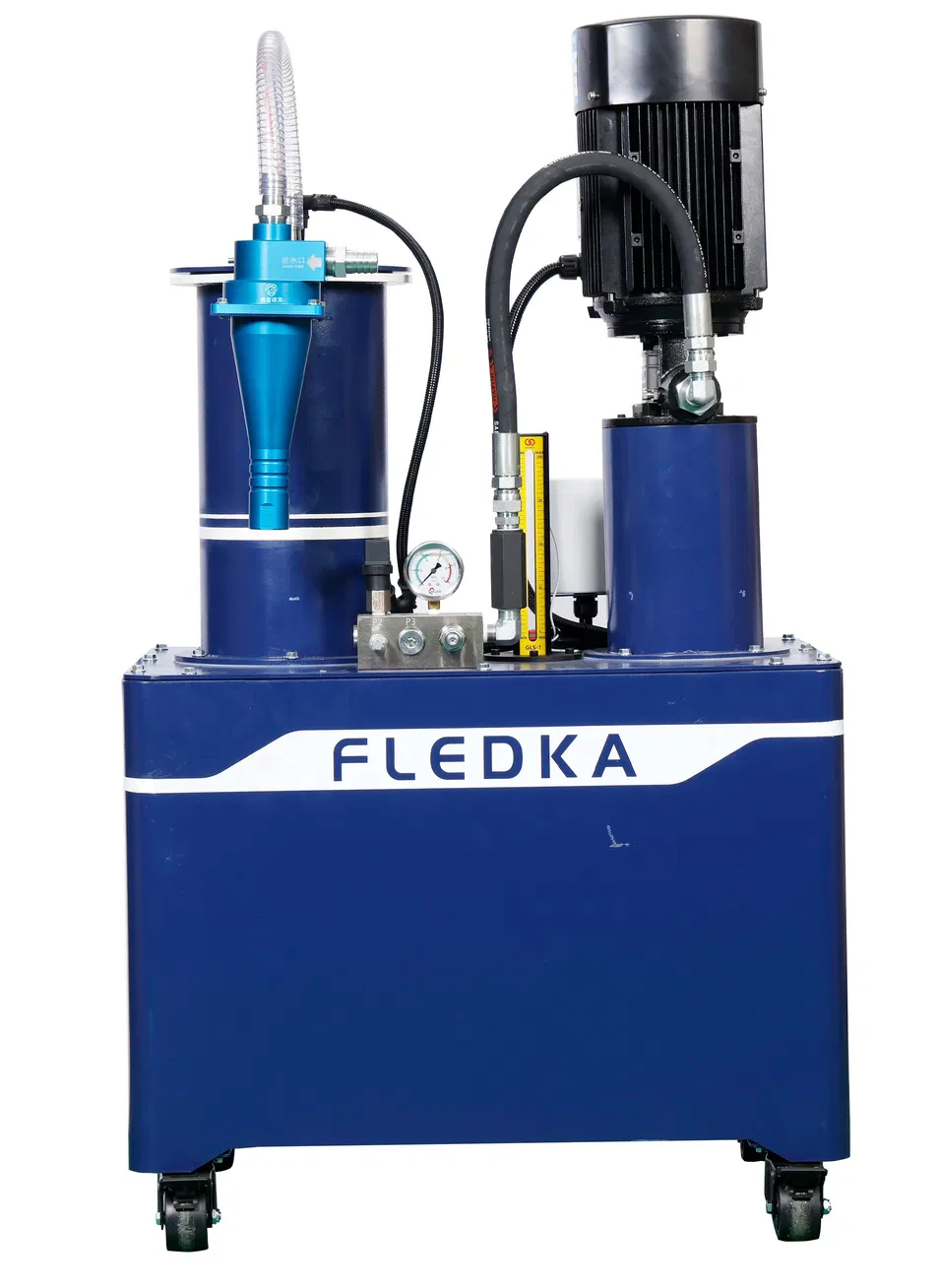

1. Superior Heat Management

By delivering high-pressure coolant straight to the cutting edge, our system rapidly dissipates heat generated during machining. This reduces thermal deformation of the workpiece and tool, ensuring tighter tolerances and consistent part quality.

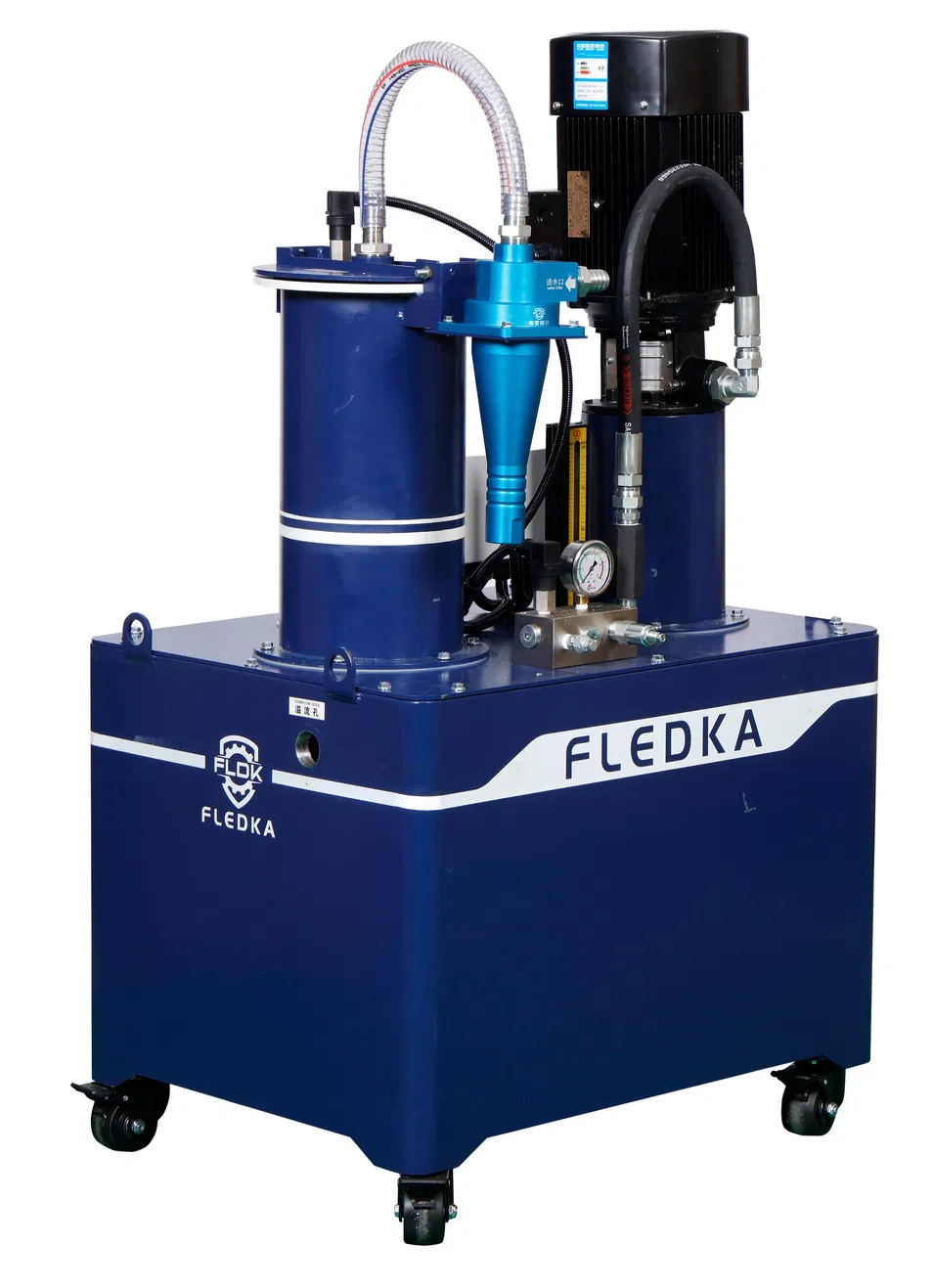

2. Efficient Chip Evacuation

The high-pressure coolant flow effectively flushes away chips from the cutting zone. It prevents chip re-welding, entanglement, and accumulation, which can lead to tool breakage and surface finish defects.

3. Efficient Force Transmission & Responsiveness

Equipped with advanced sealing technology and optimized hydraulic/pneumatic pathways, the cylinder ensures efficient force transmission with minimal energy loss. Fast response times enable quick blade actuation.

Professional Manufacturing & R&D

We are a manufacturing-based enterprise that integrates production, trade, and technical R&D. Our facility covers over 4,000 square meters, equipped with warehousing and inventory capabilities that allow us to respond swiftly to orders. We currently have 4 technical R&D teams and 5 dedicated testing and inspection laboratories.

Frequently Asked Questions

Q1. Can I get samples for testing?

Due to high-value nature and low quotation margins, we do not provide free samples. However, for large subsequent orders, sample costs can be deducted from the total balance.

Q2. Do you provide OEM or ODM services?

Yes, we provide full OEM/ODM services. Your logo and specific designs can be applied to the products, and we support non-standard customization to meet unique requirements.

Q3. What is the current production capacity?

We produce annually approximately 70,000 sets of 4th/5th axis cables, 5,000 hydraulic power units, 5,000 tool release cylinders, and 2,000 high-pressure through-spindle coolant systems.

Q4. What is the typical lead time for orders?

Standard products are kept in stock and can be shipped immediately. For non-standard or customized products, the lead time is generally 2-4 weeks depending on component selection.

Q5. Is the system compatible with different machine brands?

Yes, with over a decade of experience, our team has a profound understanding of the electrical and mechanical systems of rotary tables and CNC tools from over 100 global brands.

Q6. What are the primary application fields?

Our systems are ideal for high-precision machining, including turning, milling, and deep-hole drilling where temperature control and chip evacuation are critical.
