Product Description

📊 Basic Information

Model NO.

Customized Products

Material

High-Speed Steel

Processing Method

Punching and Shearing Mould

Technics

Forming Die

Process Combination

Single-Process Mould

Manufacturing Tech

Automation Technology

Mold Cavity Tech

CNC Milling

Production Frequency

15 Seconds Each

Packaging Type

Wooden Box (Fumigation-Free)

Production Capacity

1,000,000 Units/Year

📦 Product Description

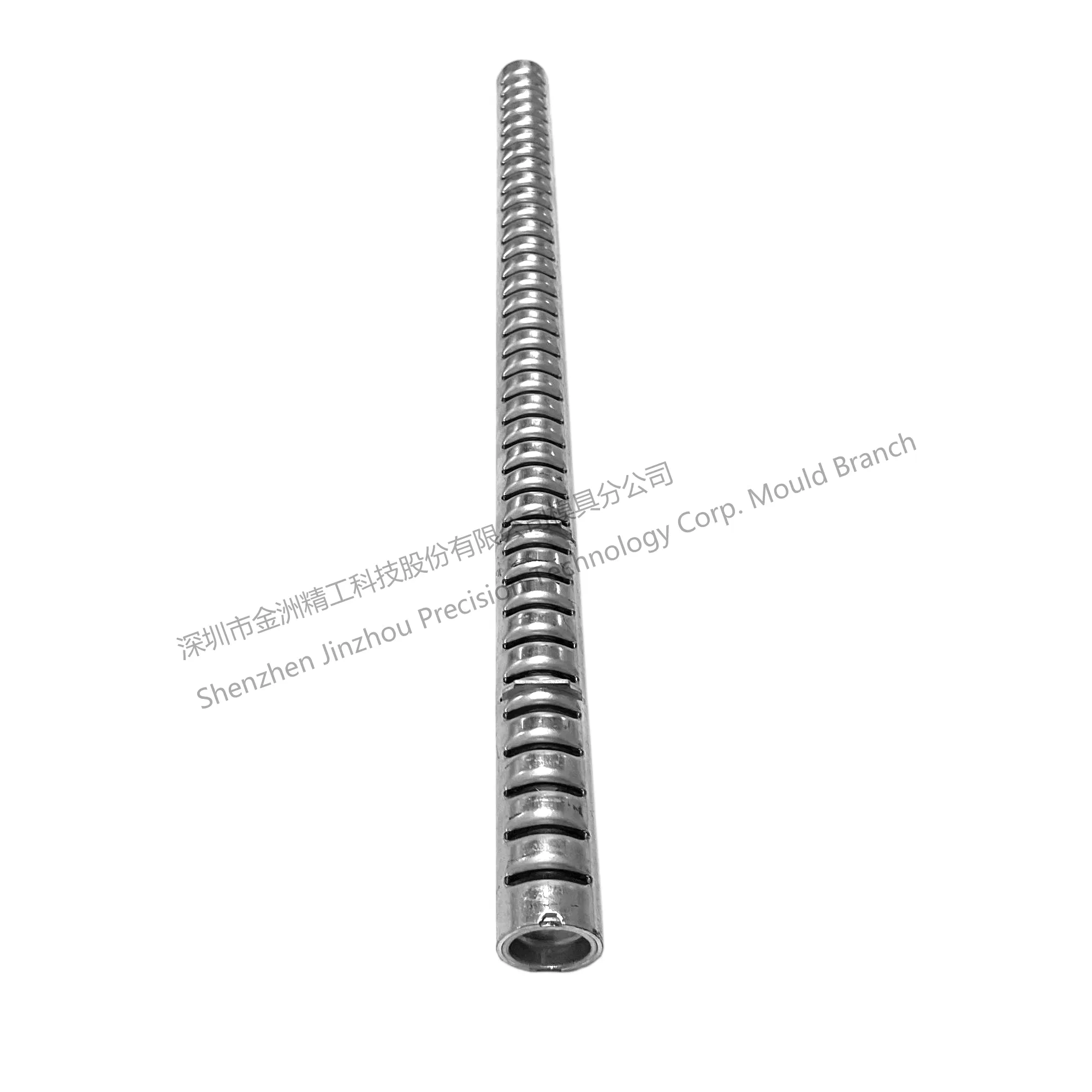

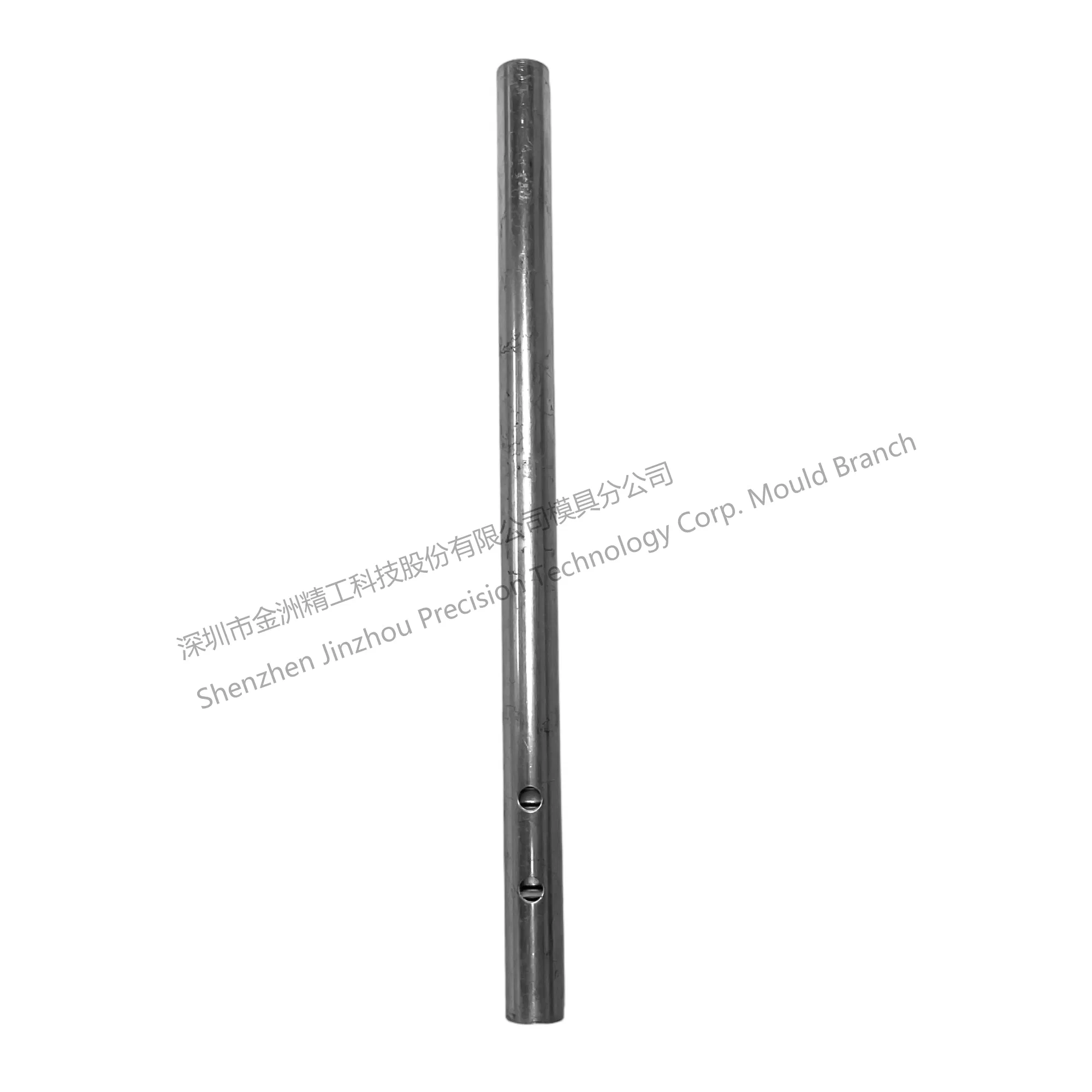

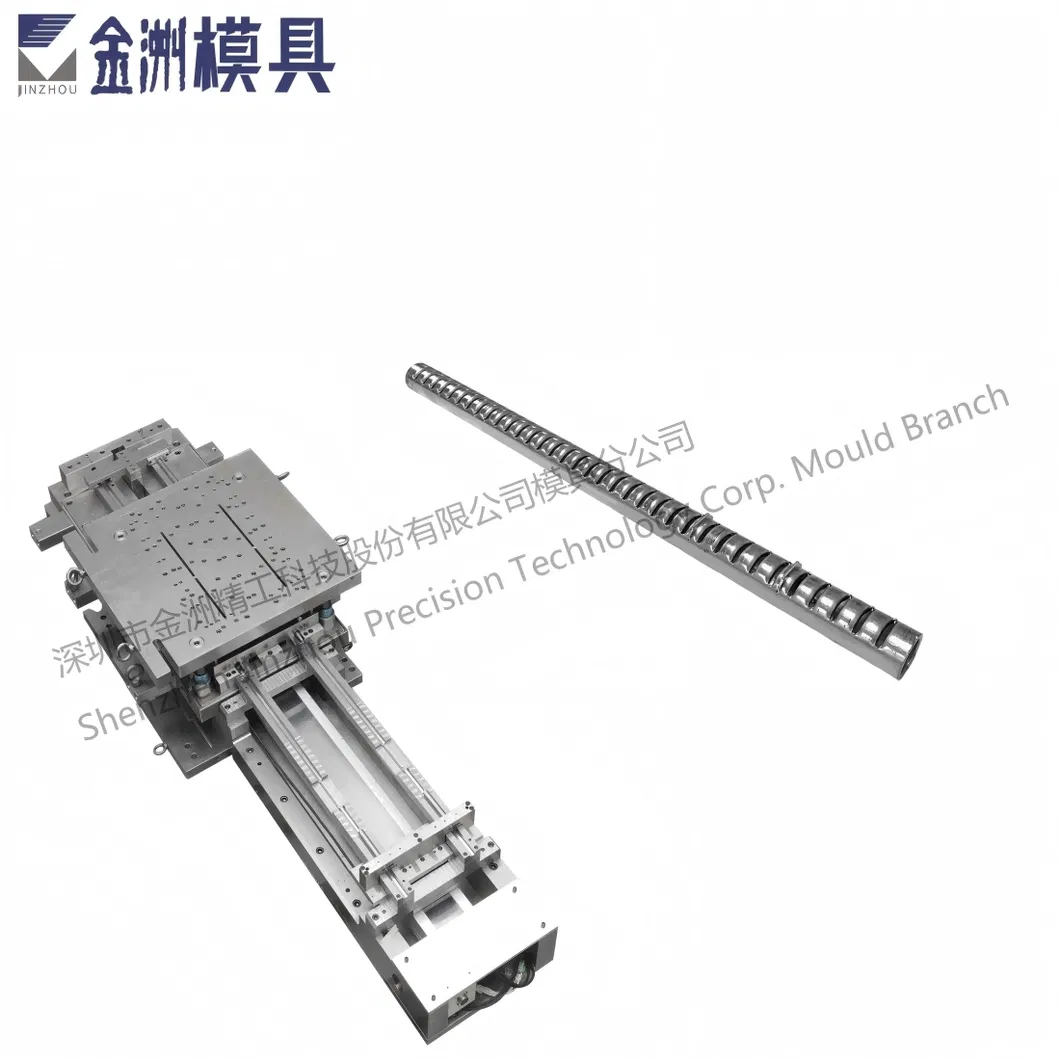

Cluster Tool-Compatible Die Unit for Flexible Manufacturing Cells (SEMI E54 Standard)

Category: Stamping Die

Precision Engineering:

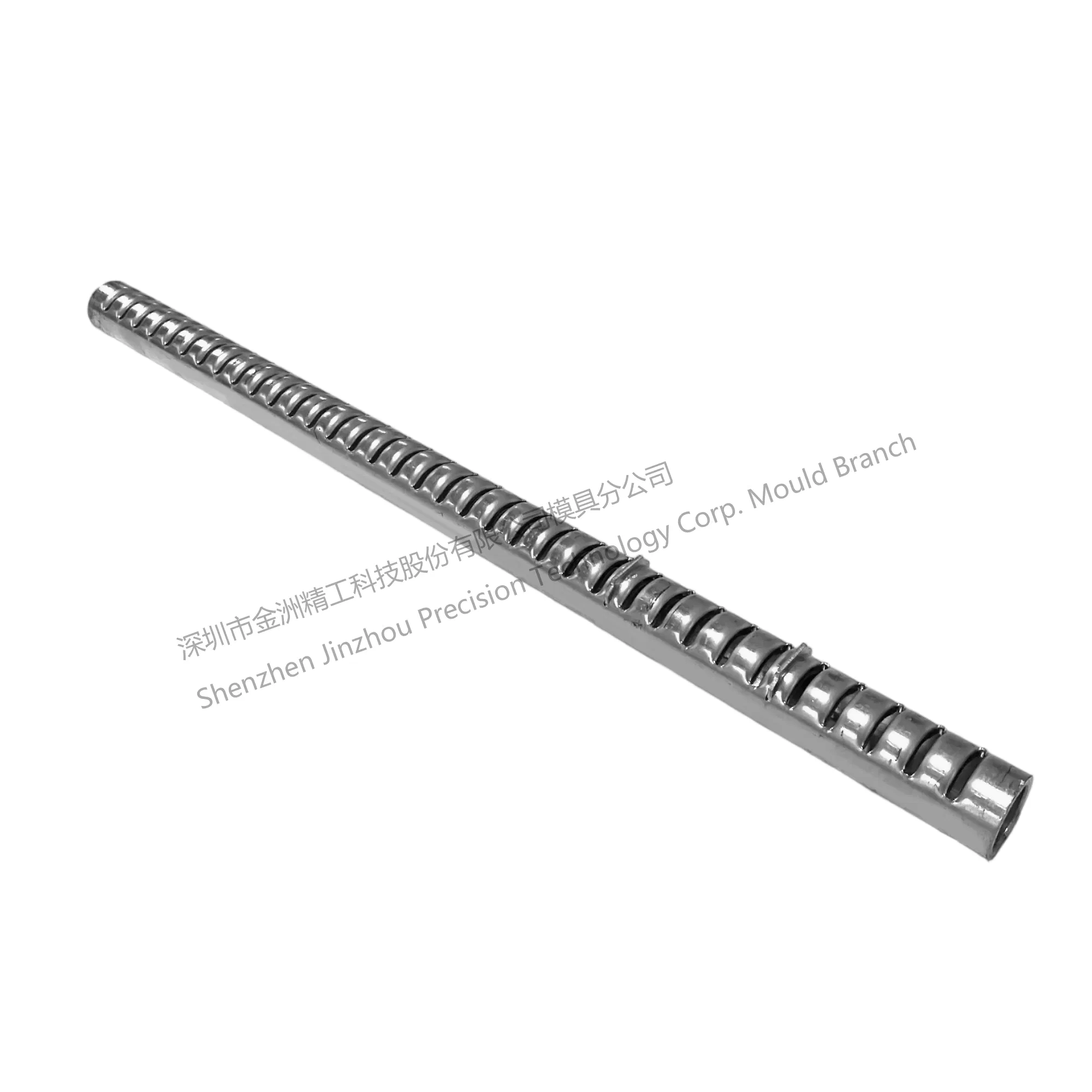

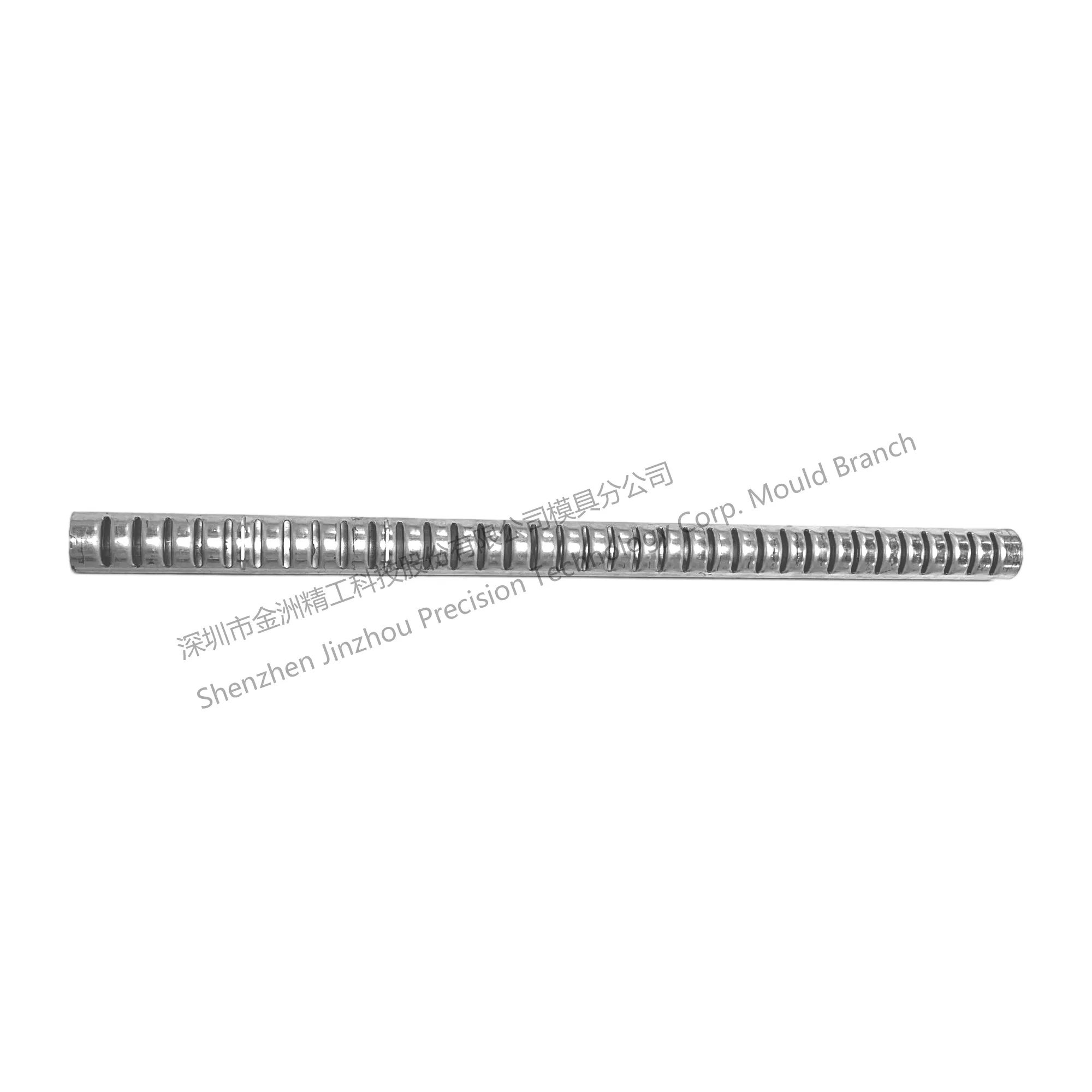

Integrating laser-guided progressive dies (CMM ±0.003mm) with NanoArmor™ 8μm DLC coating (HV3800), this system maintains 0.8-1.2mm wall uniformity in 6063-T5/3003 alloy tubes across 10M+ cycles. AI-driven control dynamically adjusts 200-1200kN stamping force and monitors 23 parameters.

Core features include 15-min quick mold change (VDI 3323-2015), 30% energy efficiency gains, and multi-material adaptability for Φ8-25mm aluminum/copper/steel tubing.

Other Similar Products

🏢 About Our Expertise

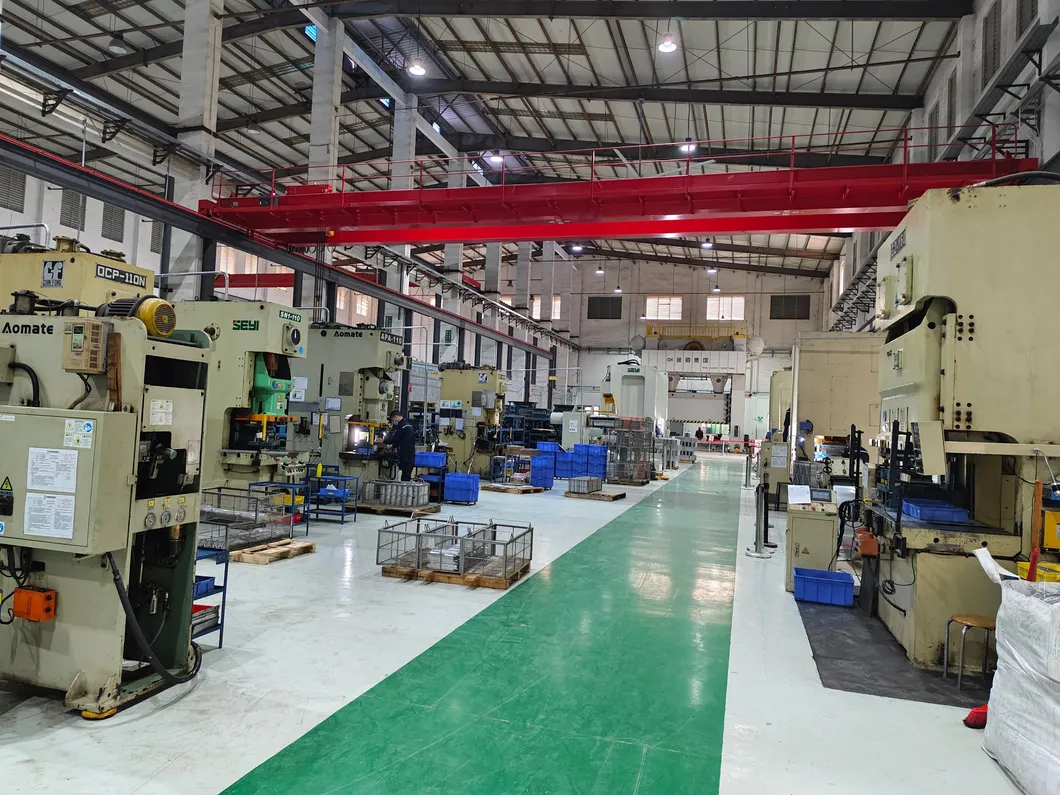

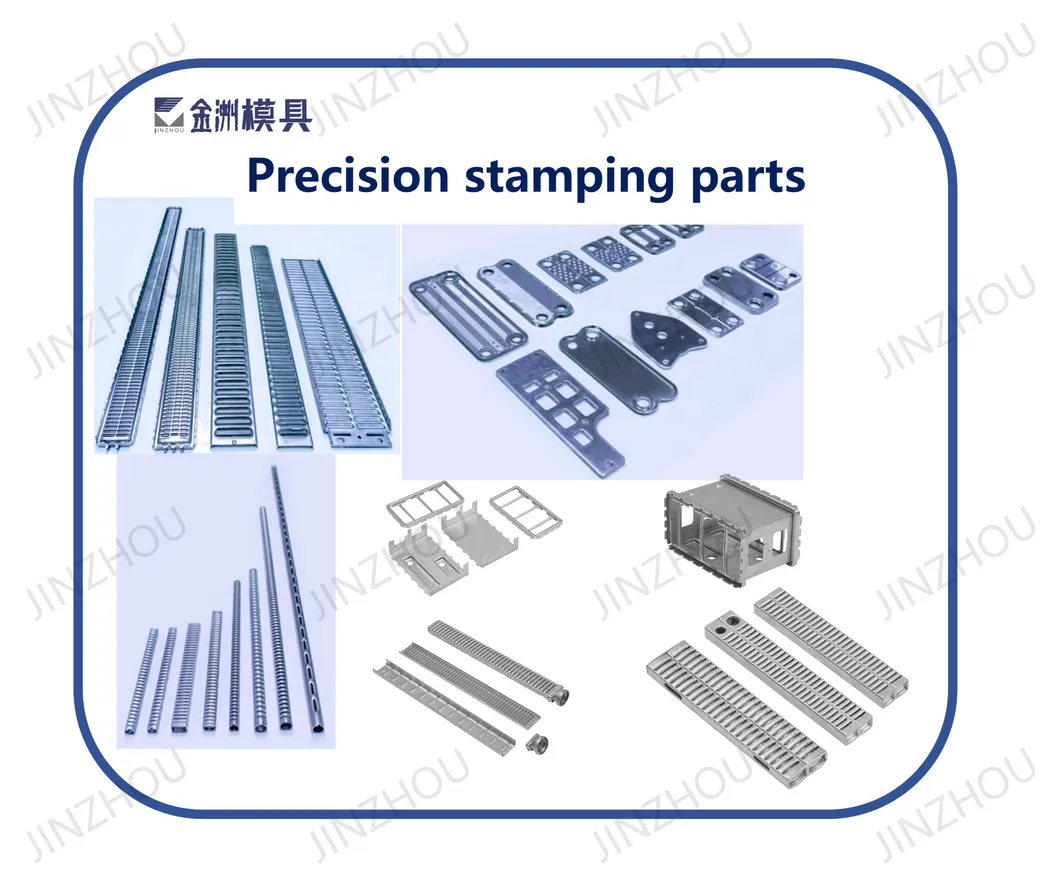

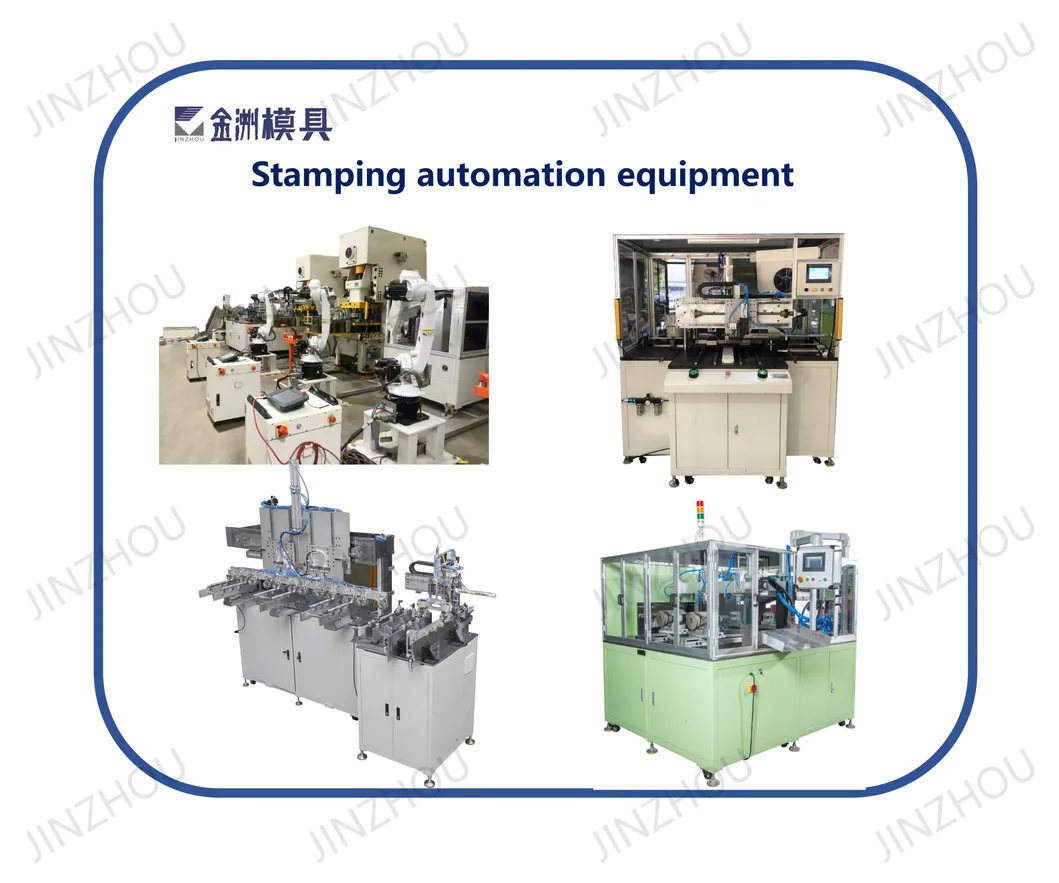

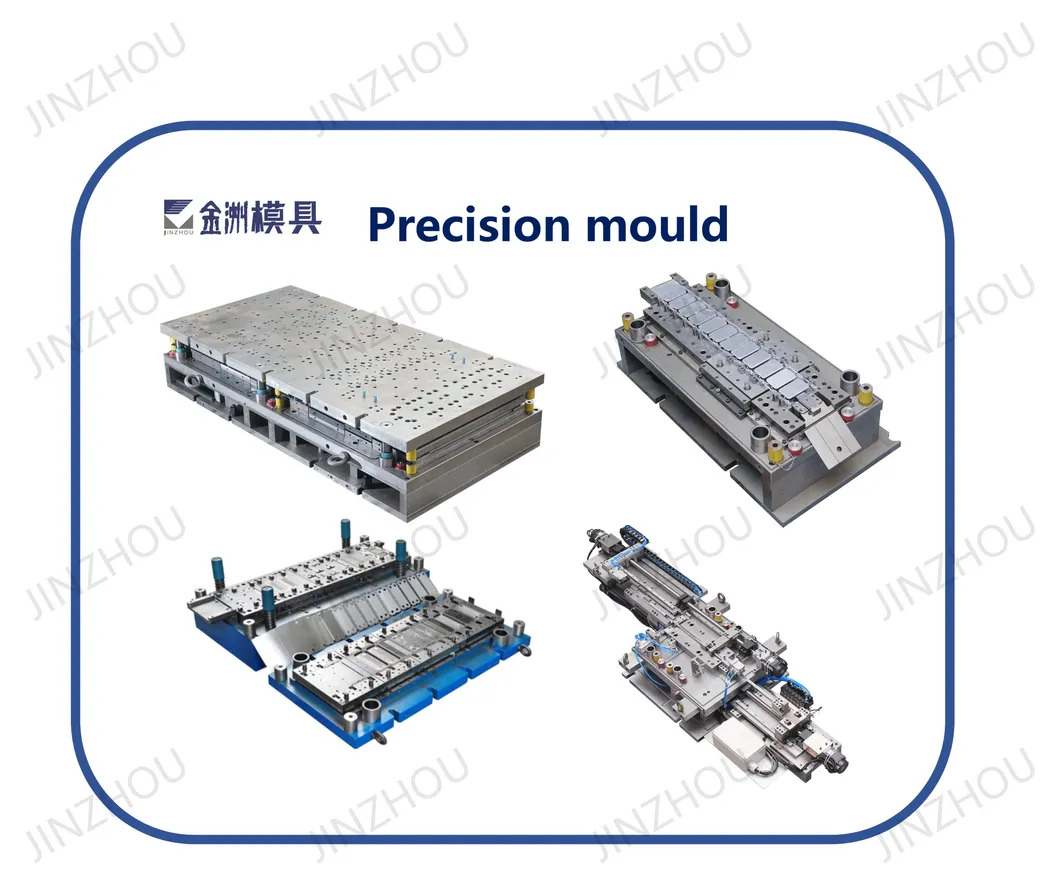

We excel in crafting stamping automation equipment and precision stamping products. Our skilled engineering team is dedicated to excellence in mold design and manufacturing. We have achieved ISO9001, ISO14001, and IATF16949 certifications. Our range encompasses automotive air conditioning evaporators, radiators, condensers, and thermal management systems for new energy batteries.

📜 Certificates & Honors

🚚 Shipping & Logistics

✈️ DHL: 3-5 working days
✈️ UPS/TNT: 5-7 working days
✈️ FedEx: 7-9 working days
🚢 Sea Freight: Depends on destination

❓ Frequently Asked Questions

Q1: What materials are your dies compatible with?

Our die units are designed for high versatility, compatible with 6063-T5/3003 alloy tubes, SUS304/C1220T alloys, and various aluminum, copper, and steel tubing.

Q2: What is the precision level of your stamping dies?

We utilize laser-guided progressive dies achieving a CMM precision of ±0.003mm, ensuring high consistency across millions of cycles.

Q3: How long does a mold change take?

The system supports a quick mold change in approximately 15 minutes, following VDI 3323-2015 standards for flexible manufacturing.

Q4: What certifications do your products hold?

Our manufacturing processes and products are certified under ISO9001, ISO14001, and IATF16949 quality management systems.

Q5: What is your annual production capacity?

We have a robust production capacity of up to 1,000,000 units per year for precision stamping components.

Q6: How are the molds packaged for international shipping?

All molds are securely packaged in fumigation-free wooden boxes to ensure safety and compliance during global transport.
