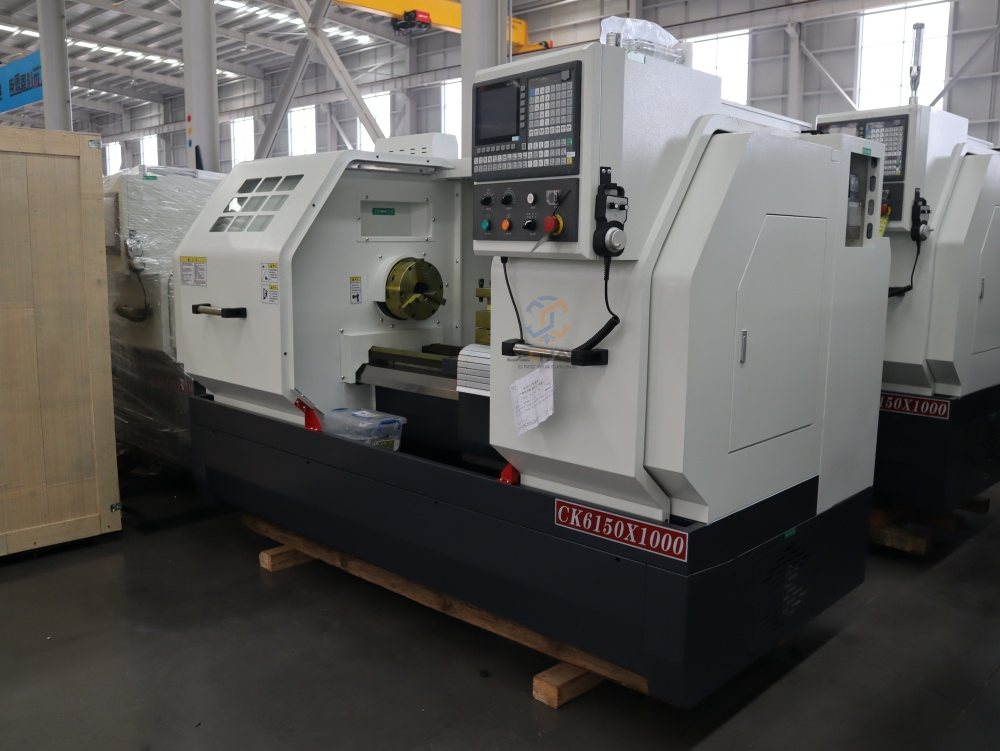

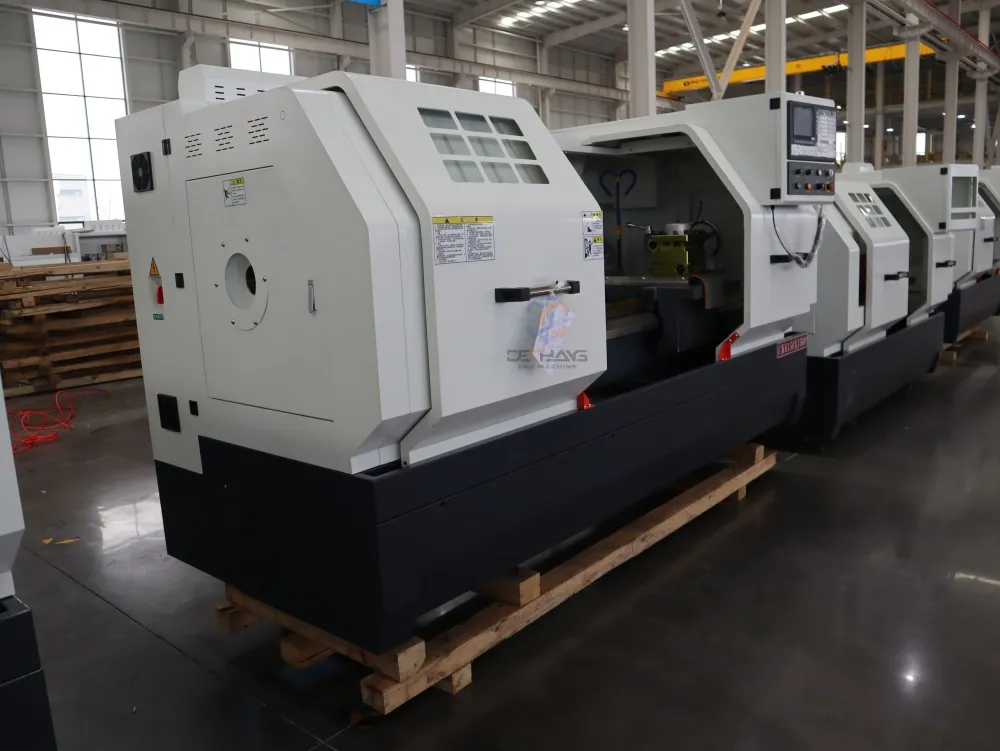

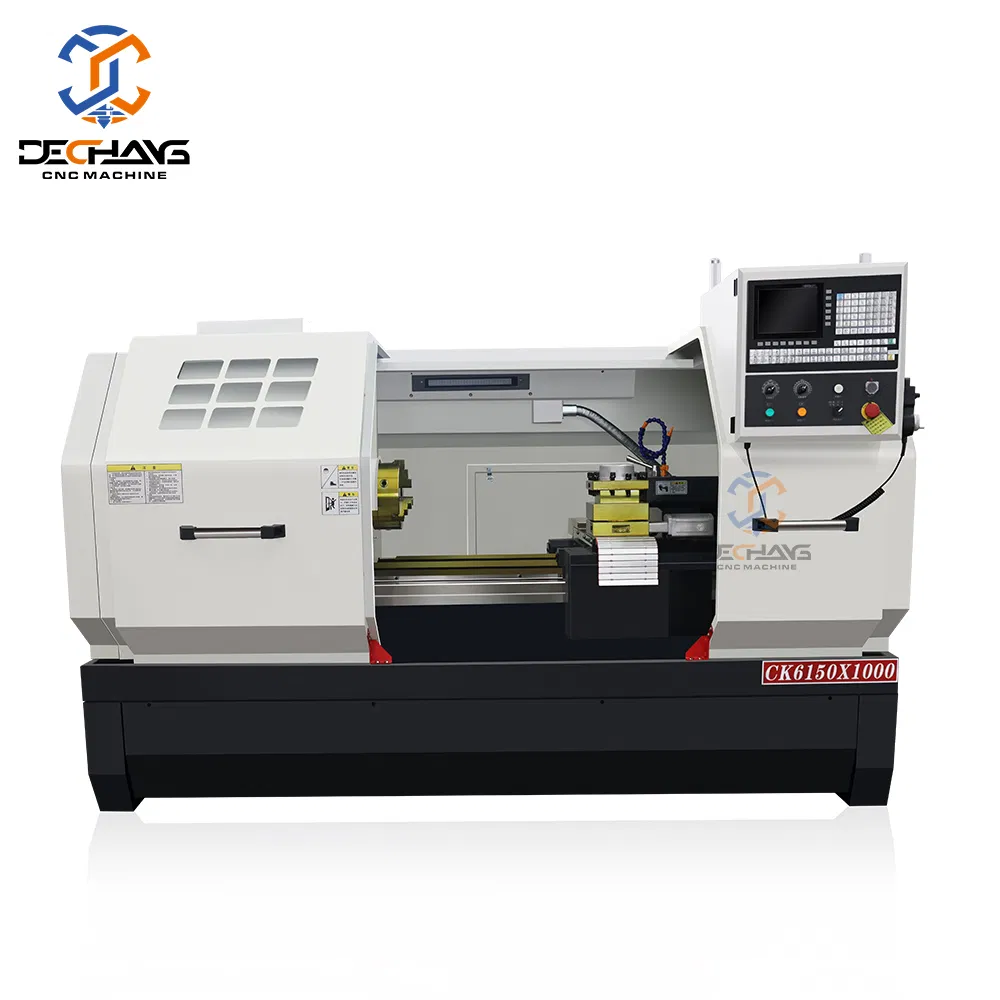

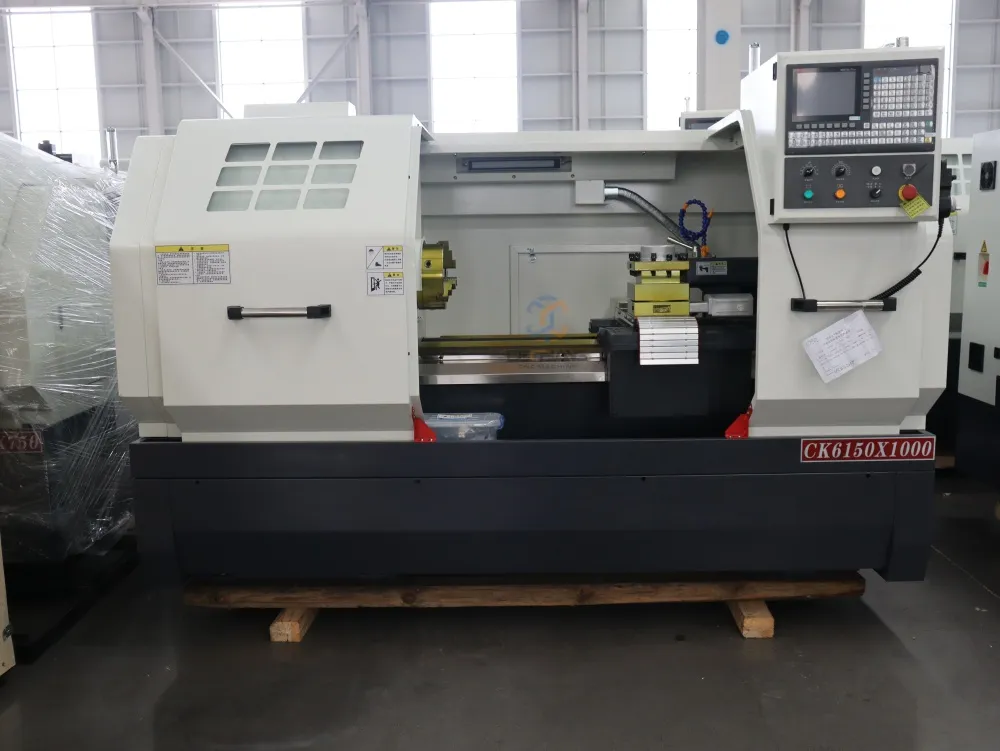

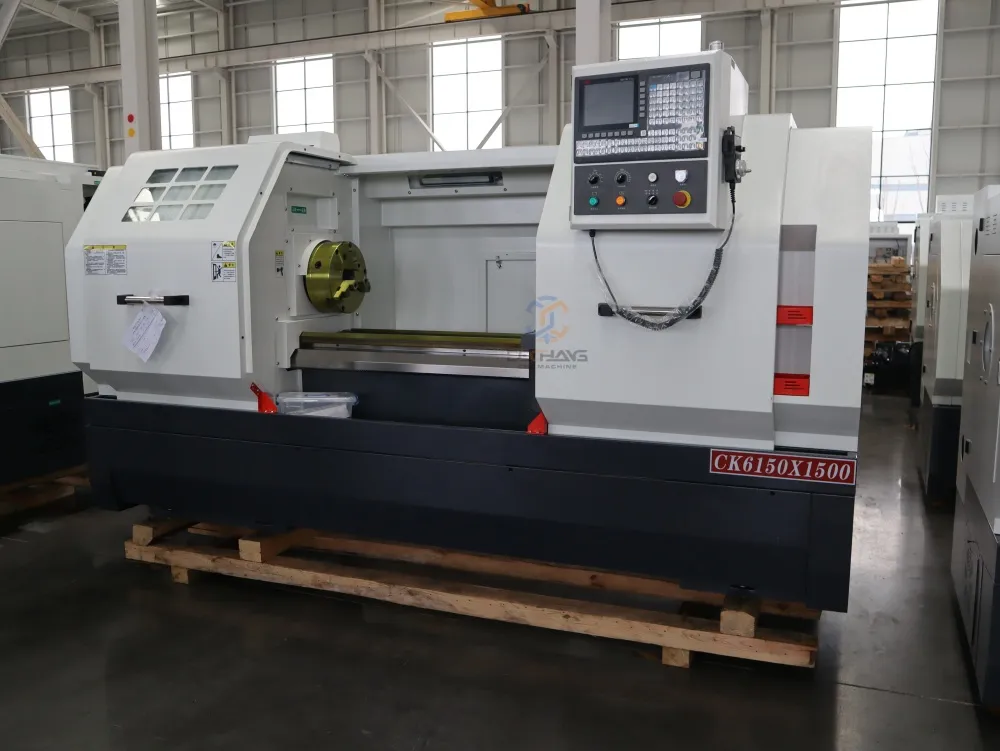

Usage: CNC Lathe Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, and single/multiple threads in metric, inch, and other standards.

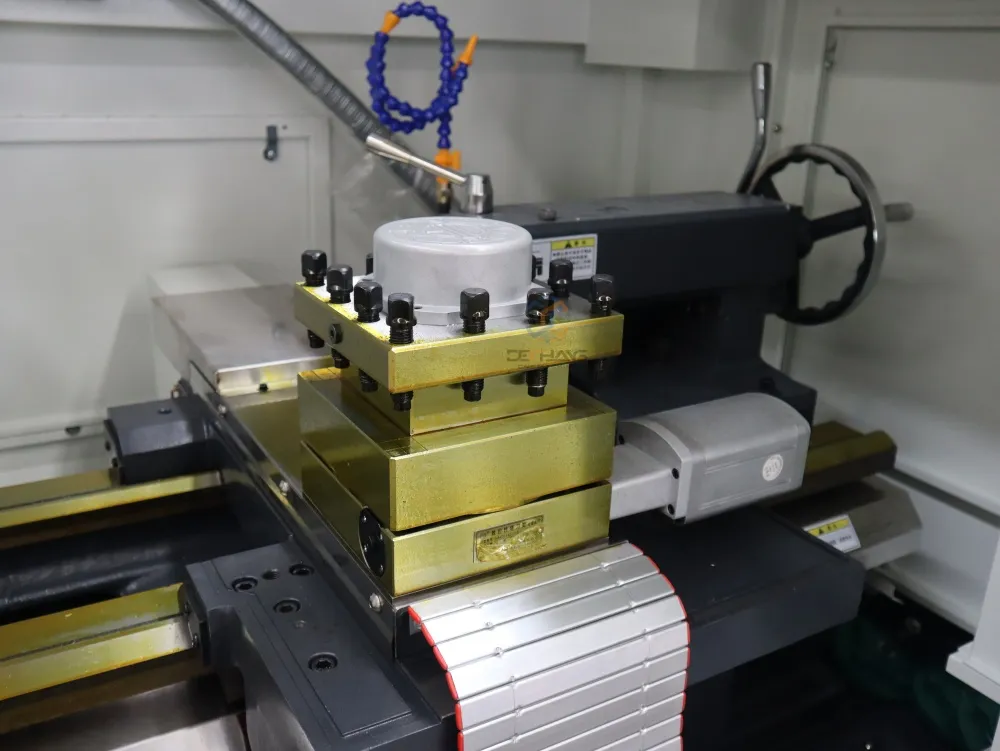

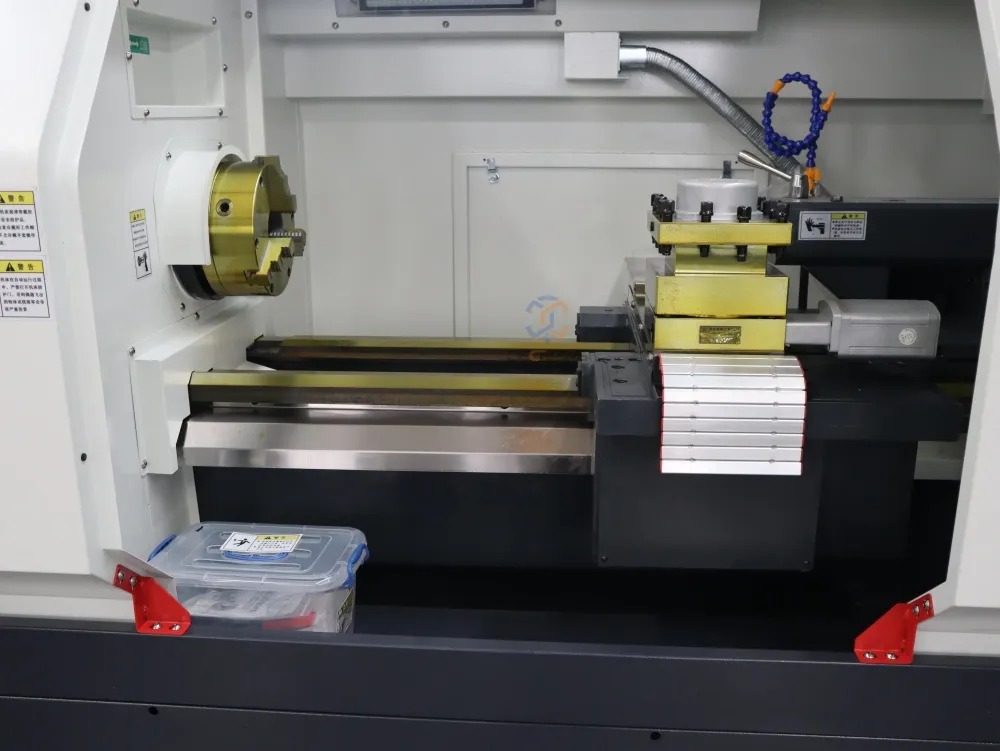

Features: Reinforced Yunnan helical gear bed, plastic-coated guideways, and ball screw drive. Excellent dynamic characteristics, high precision, and strong rigidity. Features semi/fully enclosed protection with double sliding doors.
| Specifications | Units | CK6150 |
|---|---|---|
| Swing over bed | mm | 500 |
| Swing over cross slide | mm | 275 |
| Distance between centers | mm | 1000/1500/2000 |
| Bed width | mm | 400 |
| Spindle bore | mm | 82/105/130 |
| Spindle speed range | rpm | 45-1800 / 920 |
| Main motor power | kw | 7.5/11 |
| Machine weight | kg | 2600/2900/3300 |
Our machines serve various industries including Aviation, Railway locomotive manufacturing, Mold manufacturing, and Power equipment manufacturing.
We provide comprehensive CNC and manual machine solutions to global customers.
