| Model NO. | CK1107 |
| Type | Horizontal Lathe |
| Machine Type | Swiss-Type CNC Lathe |
| Axis Configuration | 7-Axis (X, Y, Z, C + Sub-Spindle Axes) |
| Controlling Mode | CNC |
| Precision | High Precision |
| Automatic Grade | Automatic |
| Certification | CE |

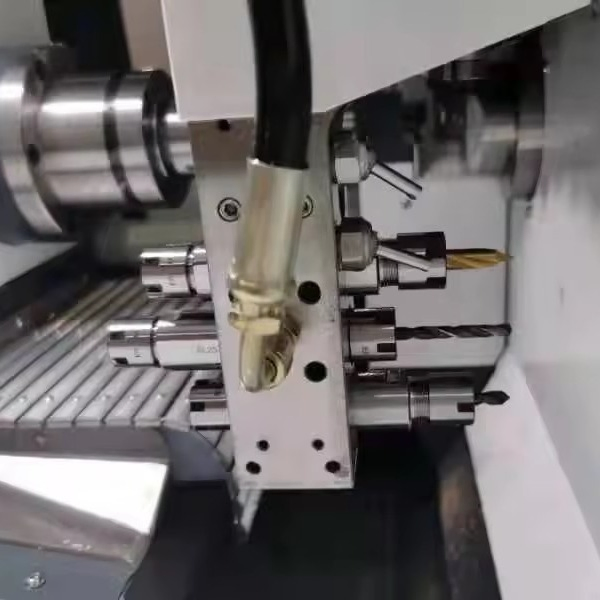

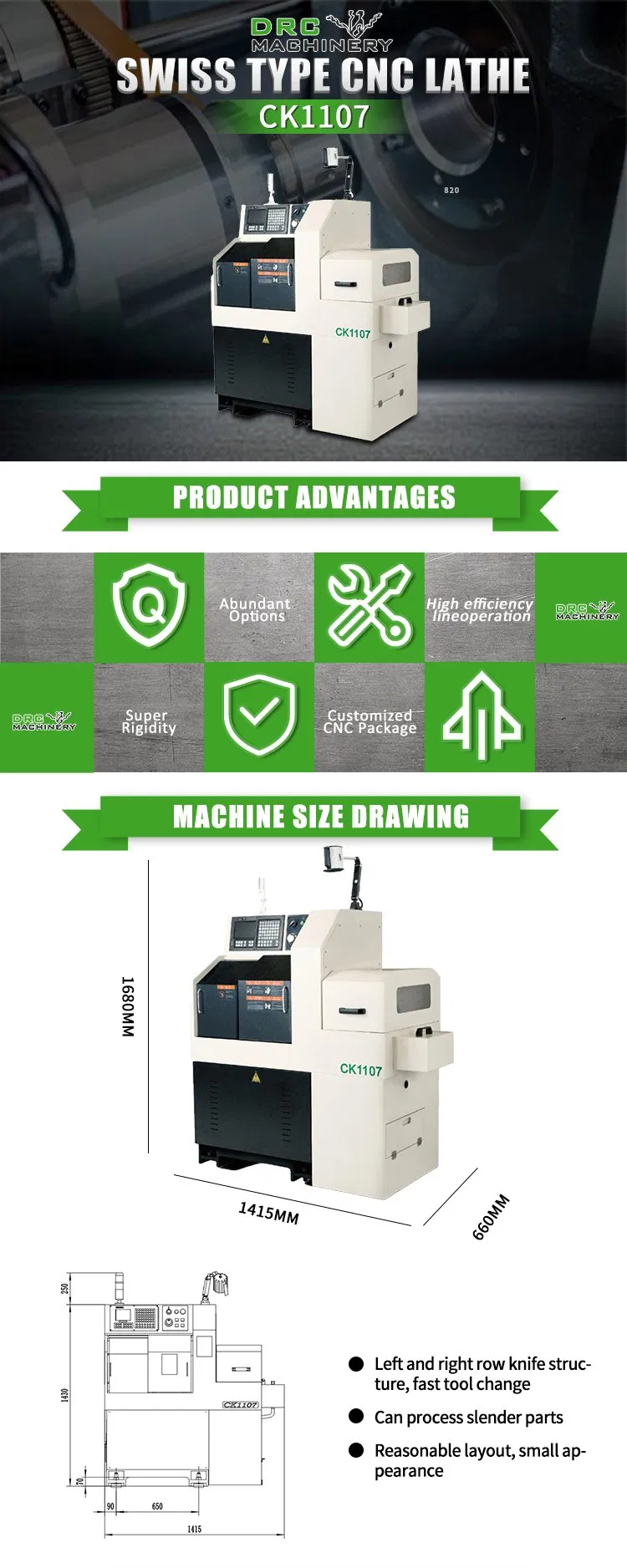

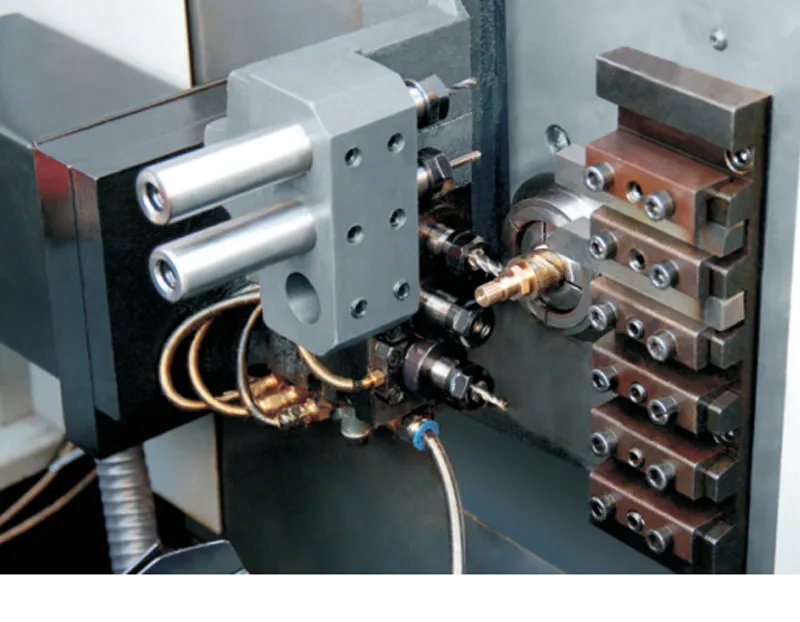

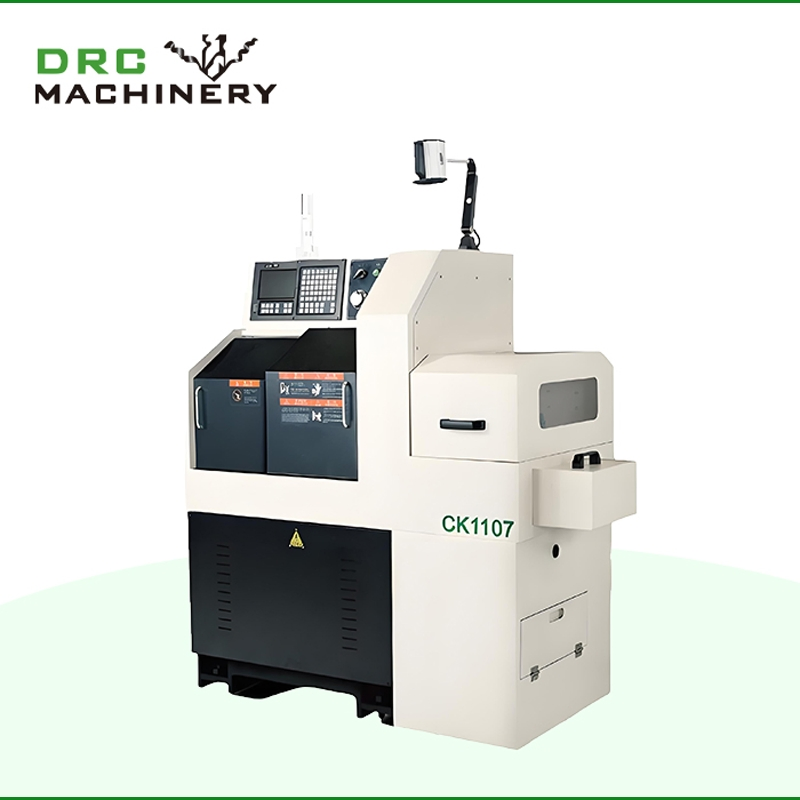

CK1107 high-speed walking machine has a left and right row tool structure, with a large number of tools, fast tool change, and good rigidity. It can process all kinds of ultra-slender parts. Reasonable layout, compact appearance and less floor space. High-speed centering CNC lathe, all three axes adopt linear rolling guides and are driven by servo motors. The linear tool structure has the characteristics of fast tool change and high precision.
Ck1107 Spindle Movable Type CNC machine has features of reasonable structure, fast tool changing, and high reliability. A one-time material feeding is enough for processing full length of parts that less than 150mm. This kind of machine is the best for processing shaft parts that have complicated shape and require high precision and mass production in car and motor accessory, medicine, micro-axis, electronic component, pneumatic tool, and clock industries.
| Parameter Item | Specifications | |
|---|---|---|
| Power Supply | Rated Voltage | Three-phase AC 380V |
| Rated Frequency | 50HZ | |
| Total Input Power | 4kW | |
| CNC System | System Model | BYSK YZ150 |
| Small Setting Unit | 0.001mm | |
| Cutting Speed | 1--4000mm/min | |
| Rapid Feed Rate (X/Y/Z) | 15000mm/min | |
| Spindle | Max Bar Diameter | Φ7mm |
| Spindle Speed | 0-5000r/min | |
| Spindle Motor Power | 2kW | |
| Travel | X Axis Travel | 38mm |
| Y Axis Travel | 80mm | |
| Z Axis Travel | 150mm | |
| Package Size | 435.00cm * 720.00cm * 170.00cm |
| Gross Weight | 11000.000kg |
| Package Type | Seaworthy Wooden Cases |
