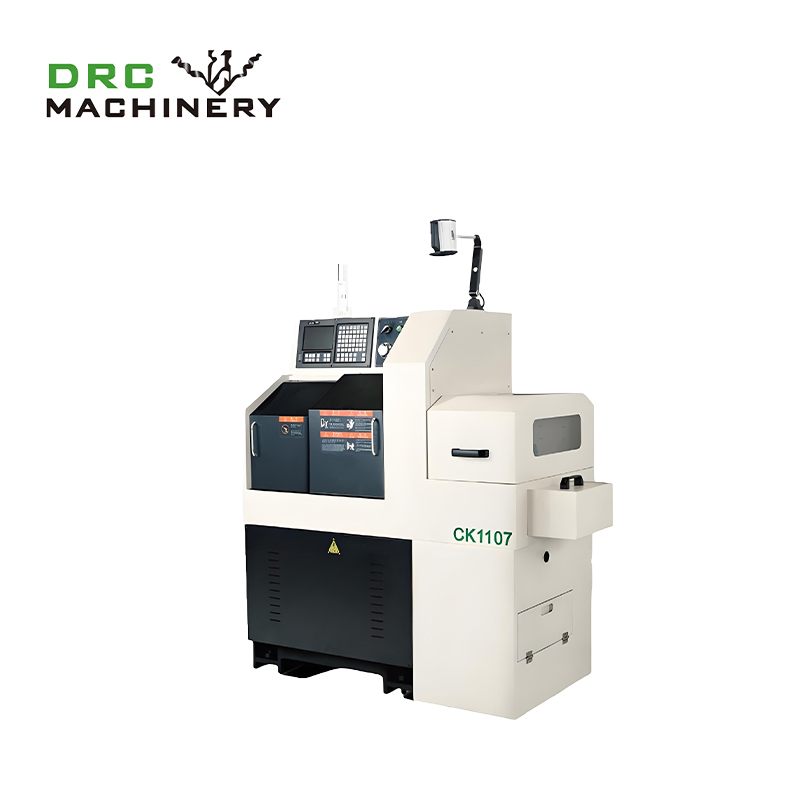

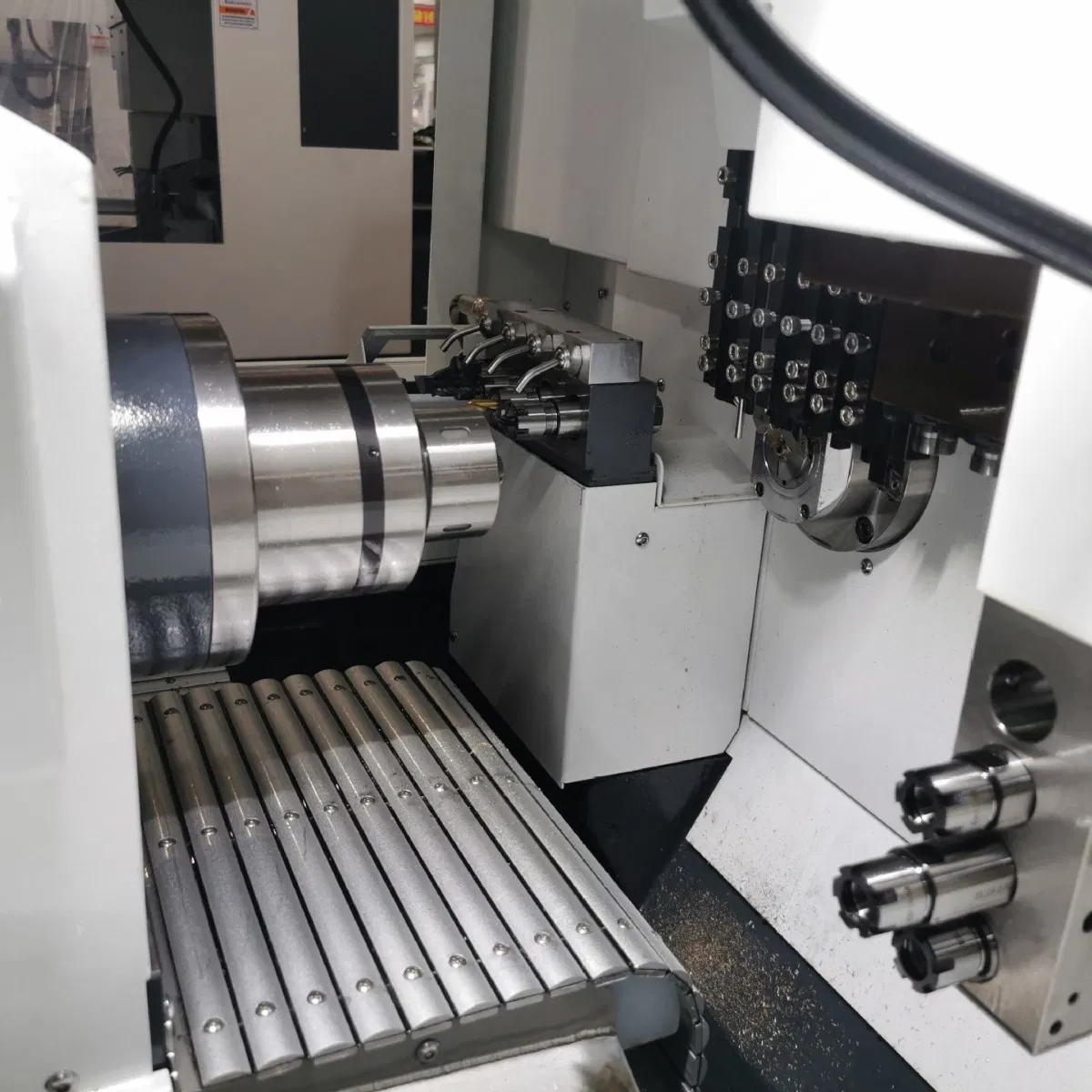

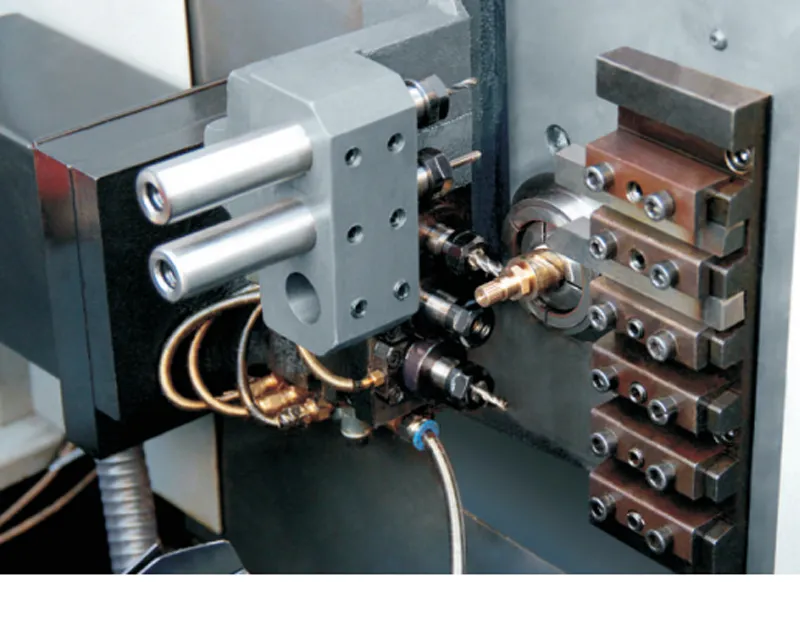

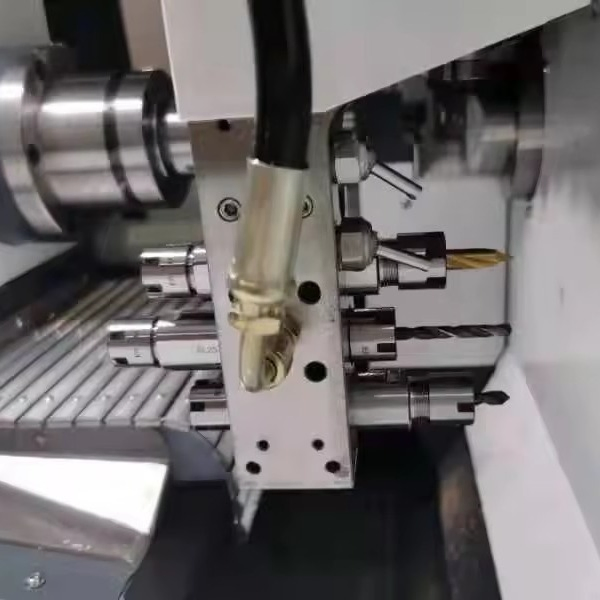

The CK1107 high-speed walking machine features a left and right row tool structure with a large number of tools, ensuring fast tool changes and excellent rigidity. It is specifically designed to process various ultra-slender parts with a reasonable layout and compact floor space requirements.

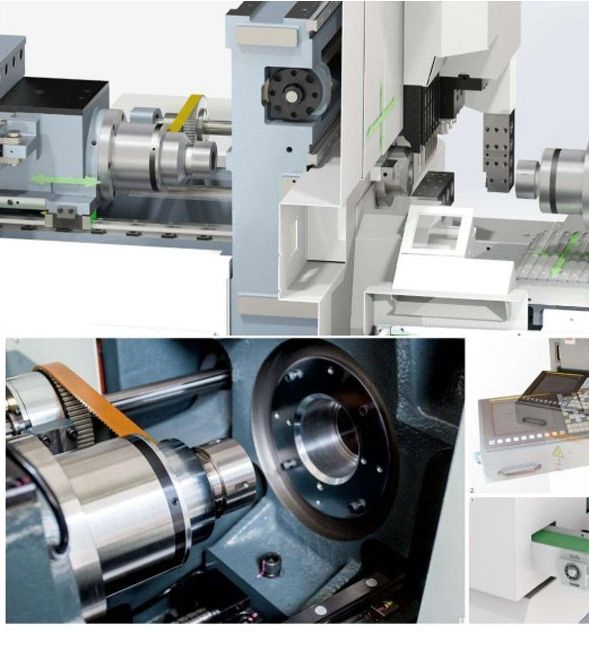

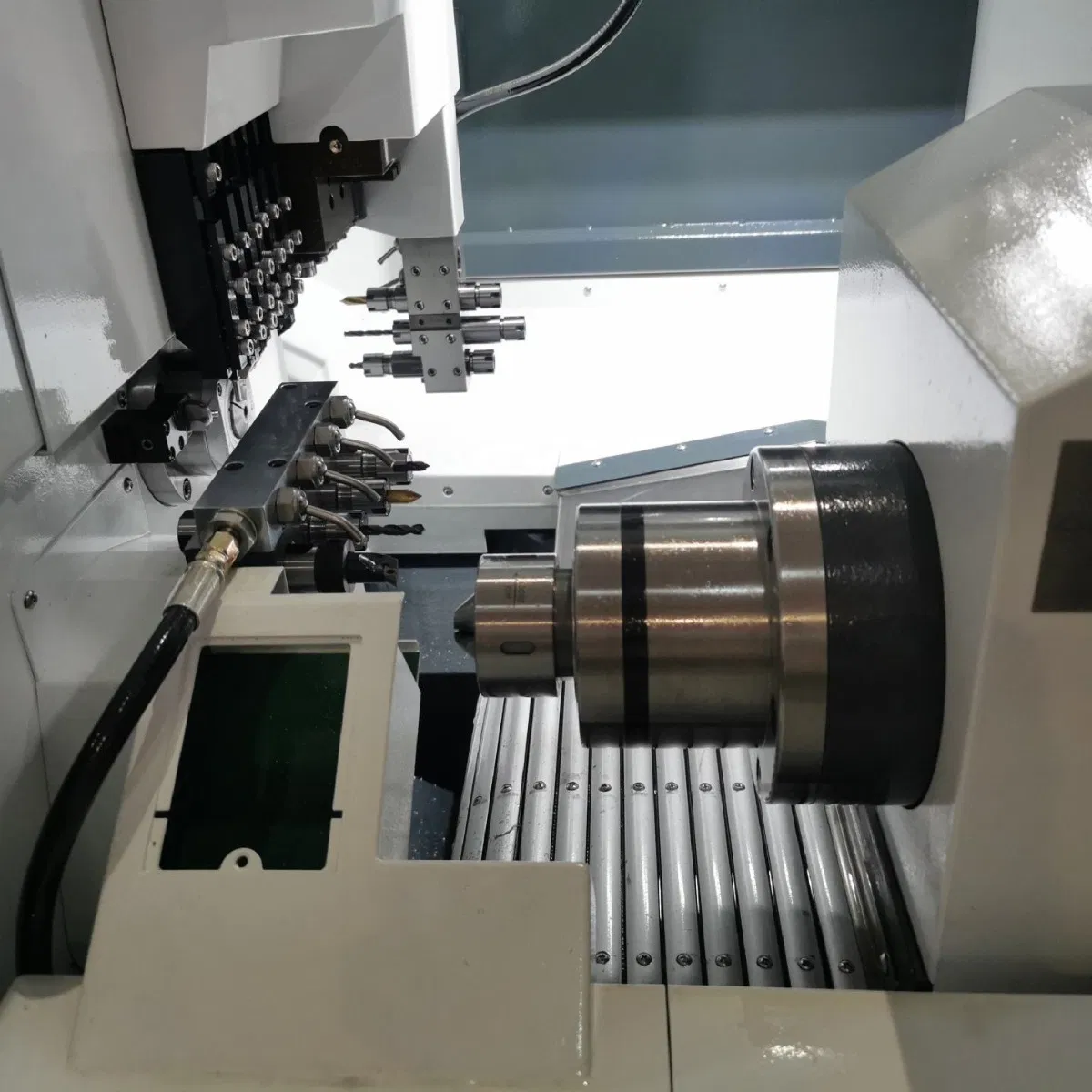

Equipped with an automatic feeder, this Swiss-type CNC lathe allows for fully automated production. The spindle movable type structure obviously reduces material feeding times, improving efficiency for parts less than 150mm in length. It is the ideal solution for high-precision mass production in medical, electronic, and aerospace industries.
| Category | Parameter | Value |
| Power Supply | Rated Voltage | Three-phase AC 380V |
| Rated Frequency | 50HZ | |
| Total Input Power | 4kW | |
| Spindle | Max Bar Diameter | Φ7mm |
| Hole Diameter | Φ8mm | |
| Speed | 0-5000r/min | |
| Motor Power | 2kW | |
| Travel | X / Y / Z Axis Travel | 38mm / 80mm / 150mm |
| Rapid Feed Rate | 15000mm/min | |
| Slide Form | Linear Guides |
A: It is ideal for high-precision mass production of complicated shaft parts in medical devices, electronics, aerospace, and watchmaking industries.
A: Yes, its Swiss-type Spindle Movable structure is specifically designed for processing ultra-slender components with high stability.
A: Yes, it is equipped with an automatic feeder and can be fitted with part-catching devices to realize unattended operation.
A: The linear guides on all three axes ensure high-speed travel, reduce idle movement time, and increase overall work efficiency and precision.
A: A single material feeding is sufficient for processing parts with a full length of up to 150mm.
A: The gross weight is approximately 1100kg, and it is packed in seaworthy wooden cases measuring roughly 1435cm x 720cm x 1700cm.
