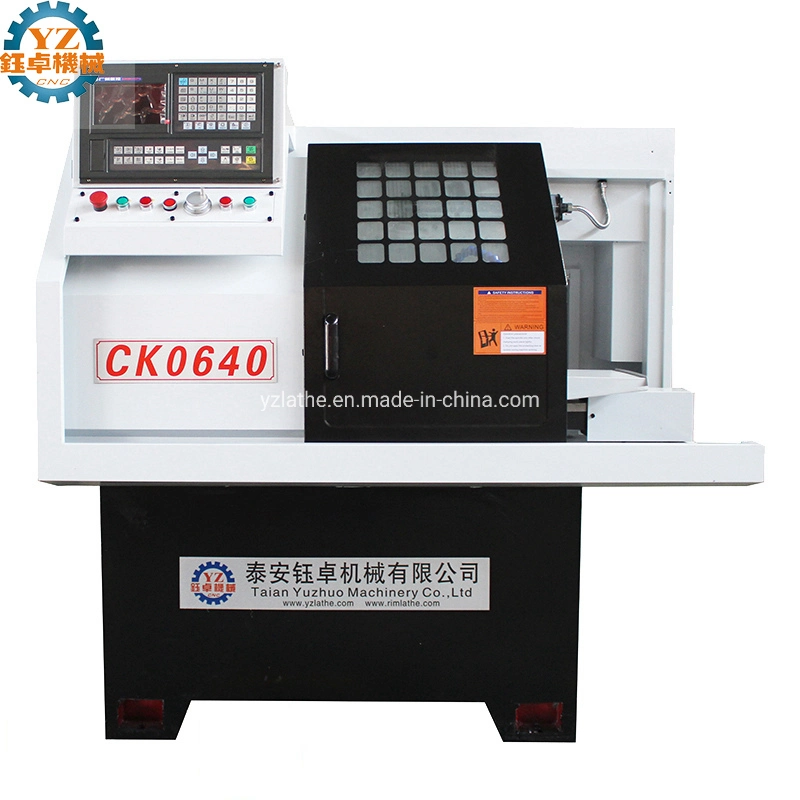

Ck0632 Small Mini Lathe Micro CNC Lathe for Sale

1 / 5

Ck0632 Small Mini Lathe Micro CNC Lathe for Sale

Customization:	Available
Application:	Metal
Process Usage:	Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Send Inquiry

Product Description

Basic Info

Model NO.CK0640

Movement MethodCNC

Control MethodOpen-Loop Control

Numerical ControlCNC/MNC

Processing Precision0.01~0.02(mm)

PerformanceHigh-End CNC Machine Tools

CertificationCE, ISO 9001

ConditionNew

Chuck Size200mm

CNC ControllerGSK, Siemens, Fanuc

Power Motor3kw

WarrantyOne Year

Product Description

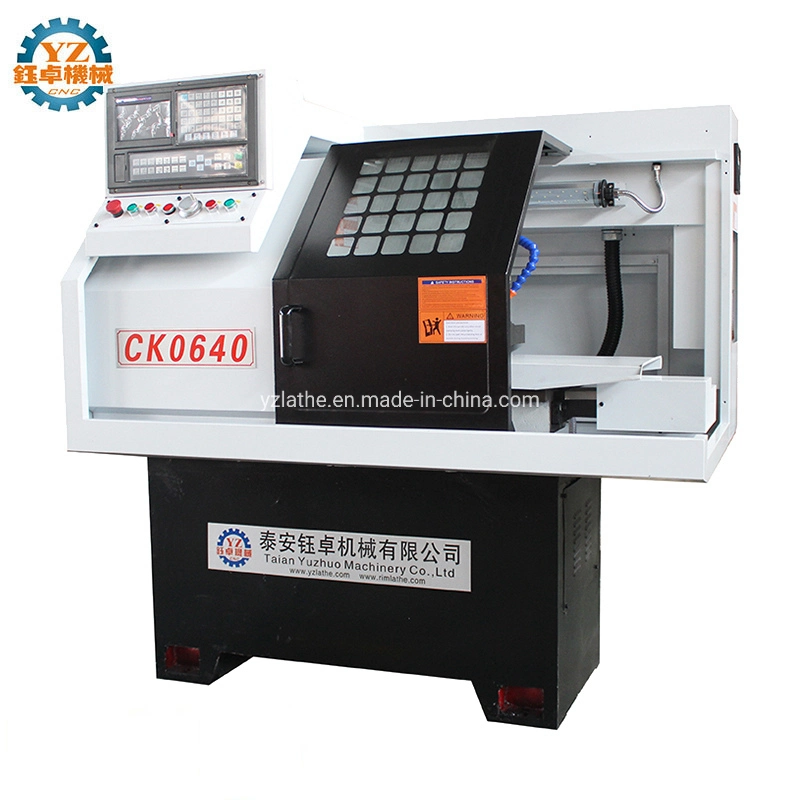

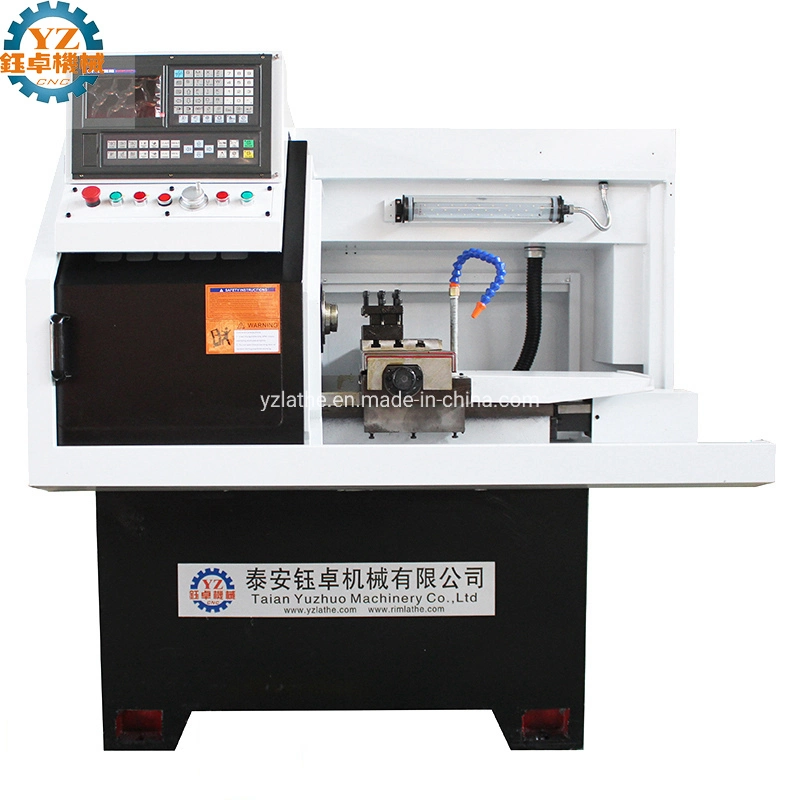

CK0640 Small CNC Lathe Mini CNC Lathe Metal Turning Lathe Small CNC Turning Lathe machine

Items	CK0625	CK0632	CK0640	CK0660	CK0680
Spindle bore	Φ25mm	Φ32mm	Φ42mm	Φ60mm	Φ80mm
Max. swing over bed	Φ300mm
Max. swing over carriage	φ130mm
Max length of work piece	240mm
X- axis max motion	200mm
X/Z Fast moving speed	6000 / 8000 mm/min
Range of spindle speed	50~2500rpm
Power of main motor	3KW
Overall dimensions	15509201450mm
Net weight	850kg

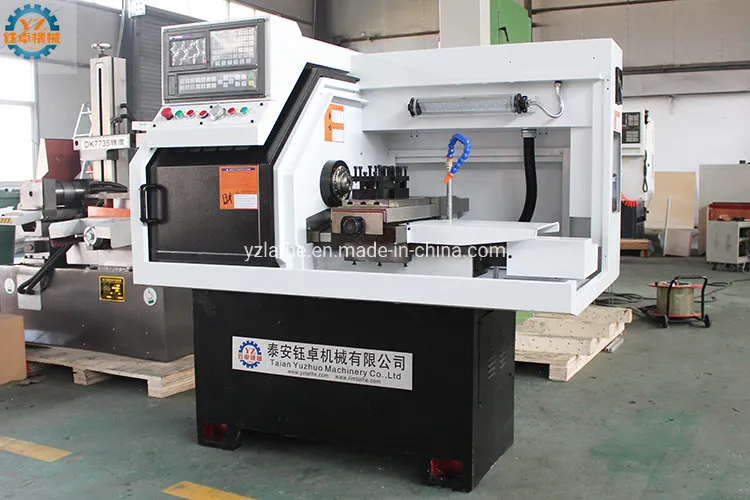

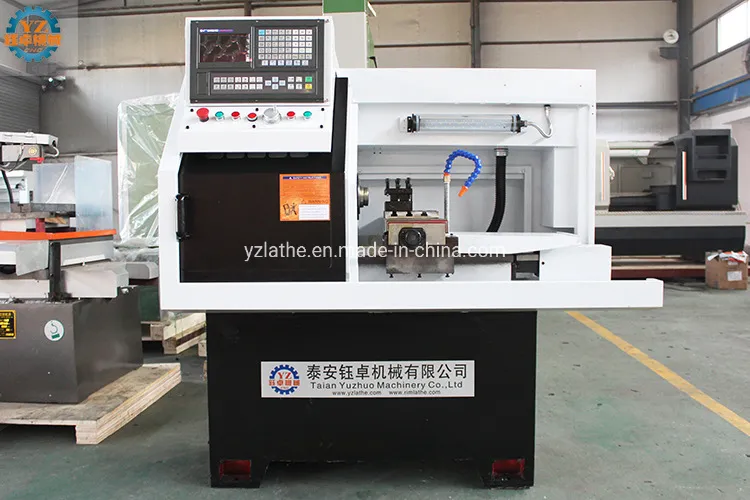

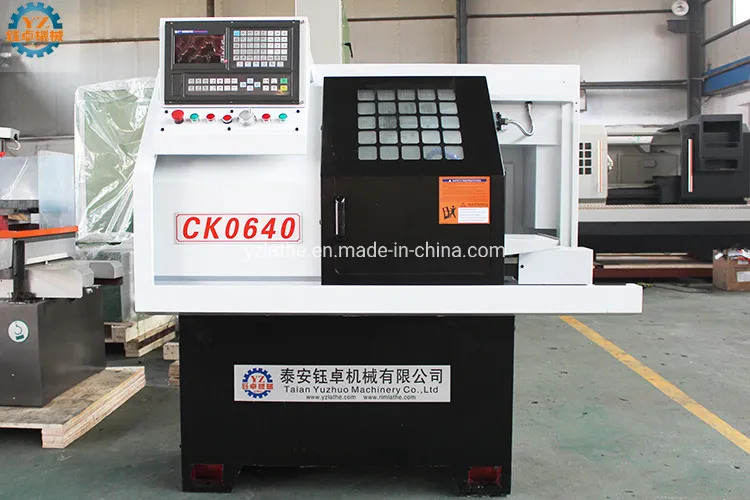

Machine Detailed Photos

Standard Configuration

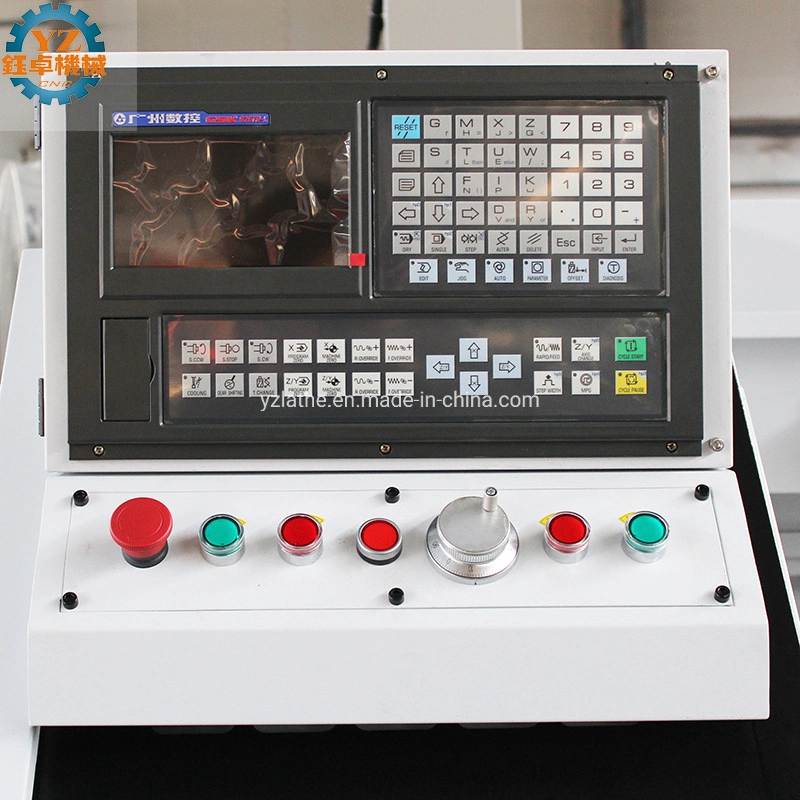

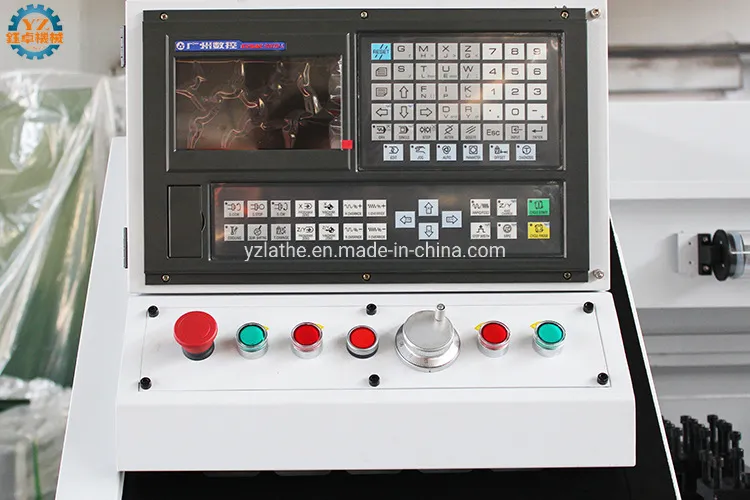

CNC system: GSK928

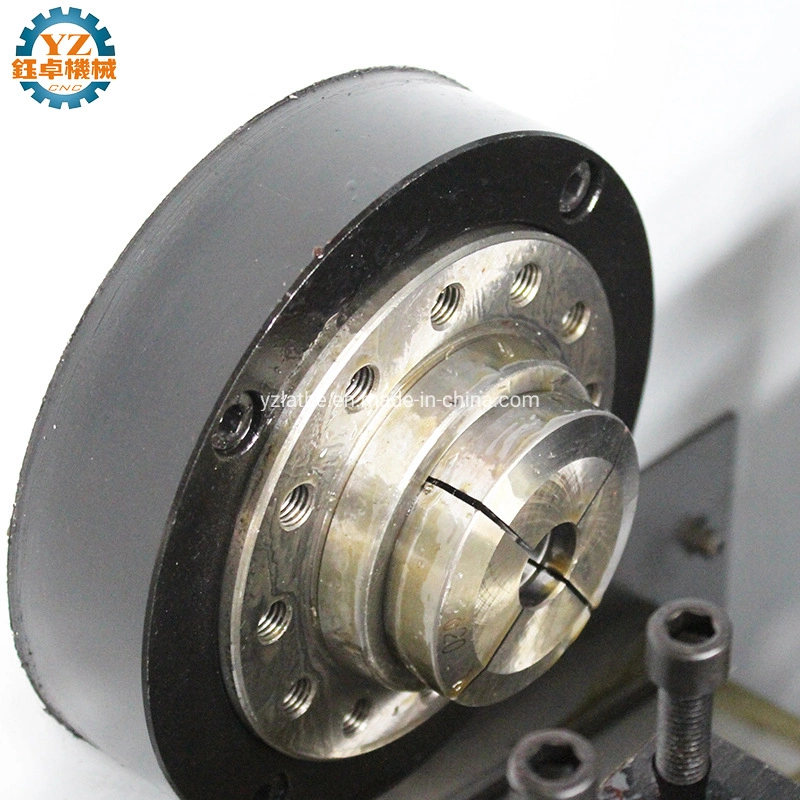

Pneumatic collet

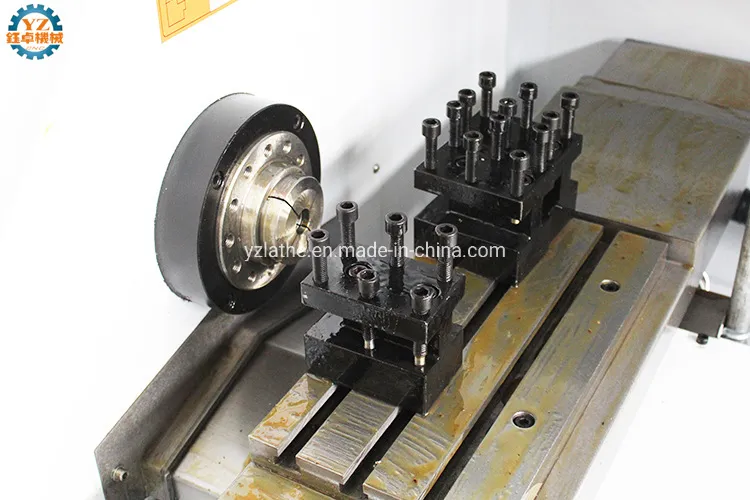

Gang type tool carrier

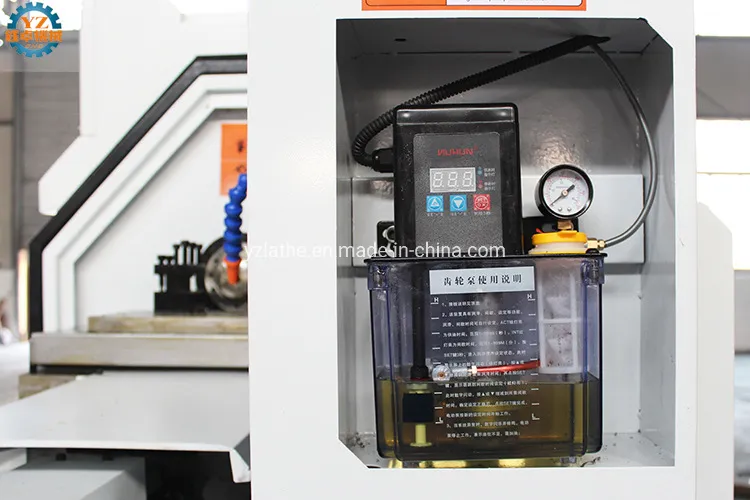

Automatic lubrication system
Work lighting & Cooling system
Cast iron stand

Optional Configuration

System: GSK980, KND, Siemens 808D, Fanuc
Manual/Pneumatic/Hydraulic chuck
Manual/Pneumatic/Hydraulic tailstock
Automatic feeder
Vertical four-station turret

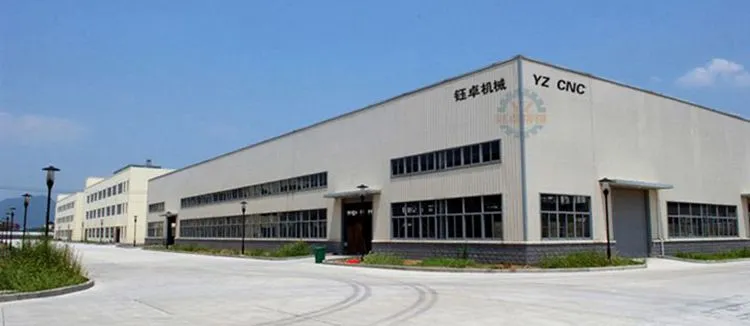

Manufacturing Excellence

Professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. All products have passed CE, SGS certificates.

Frequently Asked Questions

Q1: What is the warranty period for the CK0640 CNC Lathe? The standard warranty is one year. However, for GSK systems, servo drives, motors, and transformers, the warranty is extended to 3 years.

Q2: Can the spindle bore size be customized? The CK0640 model comes with a Φ42mm spindle bore. Other models in the series offer ranges from Φ25mm to Φ80mm.

Q3: Which CNC controllers are supported? We support a wide range of controllers including GSK, KND, Siemens 808D, and Fanuc.

Q4: Is it possible to use a hydraulic chuck instead of a pneumatic collet? Yes, hydraulic chucks (solid or hollow) are available as an optional configuration.

Q5: Does the machine support automatic lubrication? Yes, an automatic lubrication system is included in the standard configuration for all models.

Q6: What certifications do these machines have? Our CNC machines have passed CE and SGS certifications, ensuring compliance with international quality standards.
