| Processing Dimensions | 1500 * 300mm (customizable) |

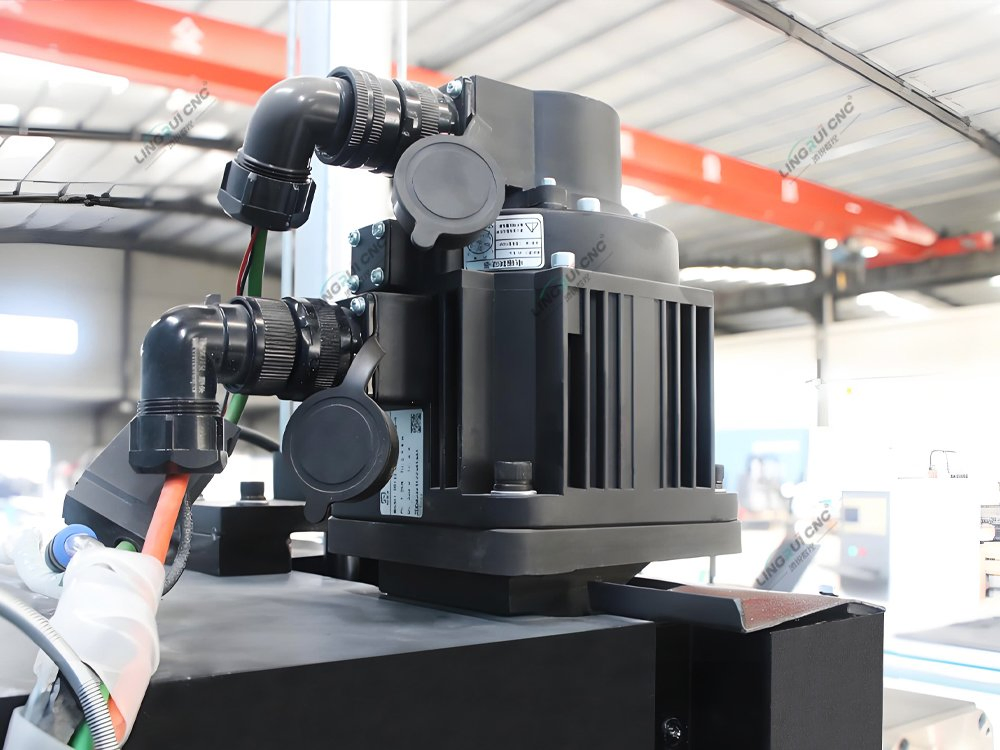

| Linear Axis Motor | Bus-type absolute 1500W servo motor |
| Drive-Spindle Motor | 4KW pure servo high-torque and high-speed motor |
| Multi-functional Spindle | 7.5KW high-speed air-cooled four-head spindle |
| Control System | Taiwan LNC control system |
| Repeat Positioning | ±0.02mm |

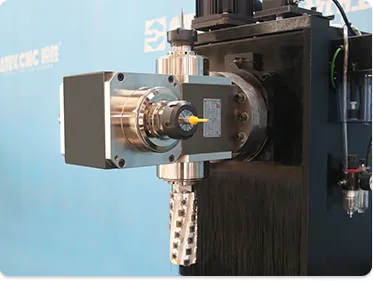

💡 Multi-Head Spindle: The four-head electric spindle features an integrated design with a max speed of 18,000 rpm. Equipped with an ER40 toolholder, it supports four tool types and offers ±90-degree tilt adjustment for complex drilling and engraving.

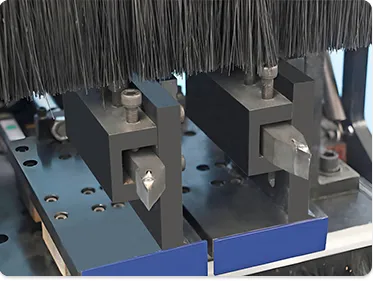

💡 Turning Tools: Equipped with two turning tool mounting positions switched via pneumatic cylinder, accommodating V-type, U-type, and O-type tools based on workpiece requirements.

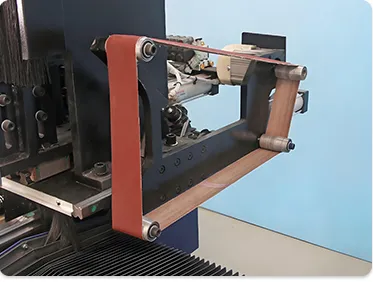

💡 Sanding Device: Driven by an 1100W brushless servo motor (6000 rpm), providing adjustable grinding for high-quality finishes.

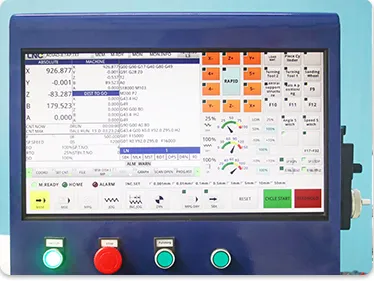

💡 Control System: Taiwan LNC five-axis CNC system supports RTCP linkage and handwheel simulation for intuitive control.

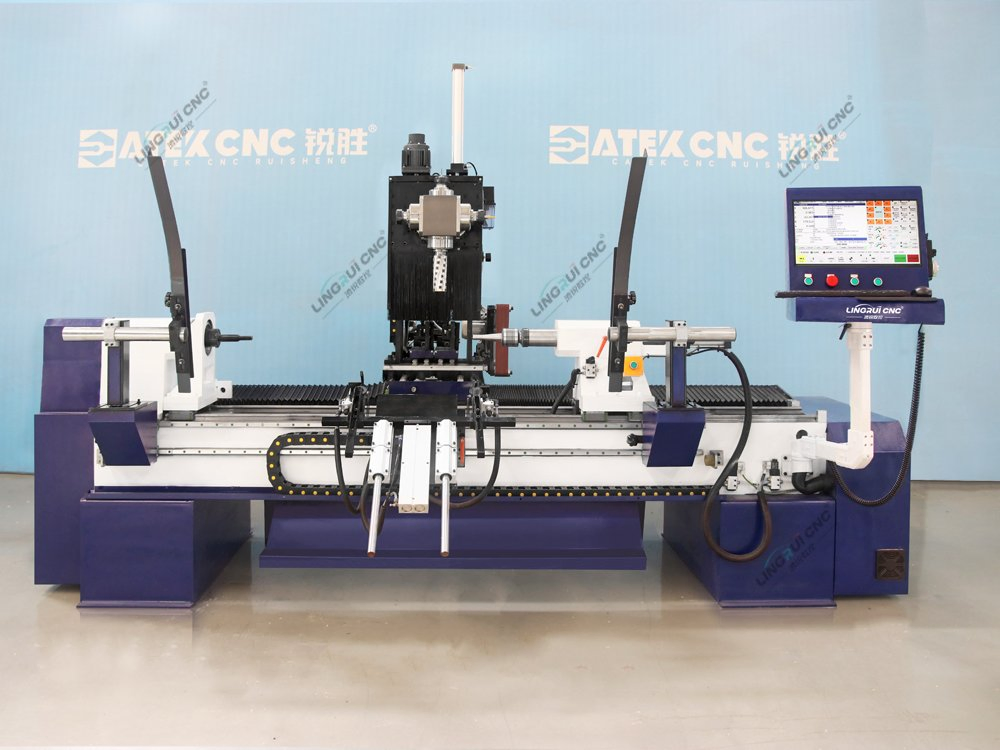

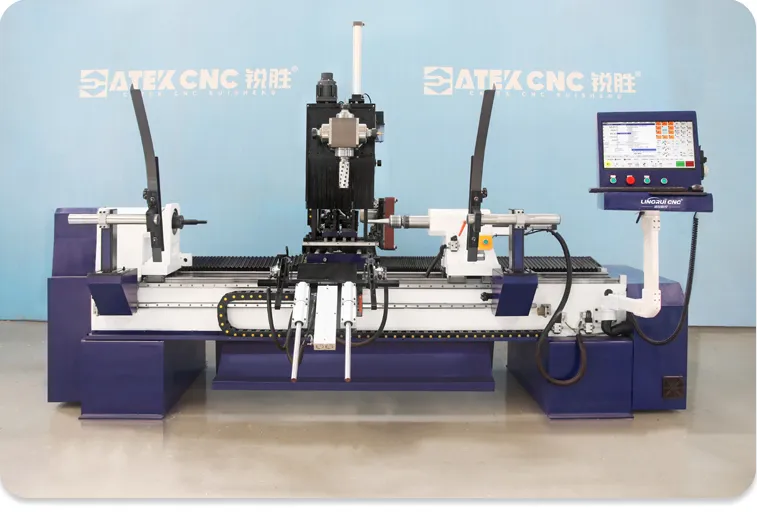

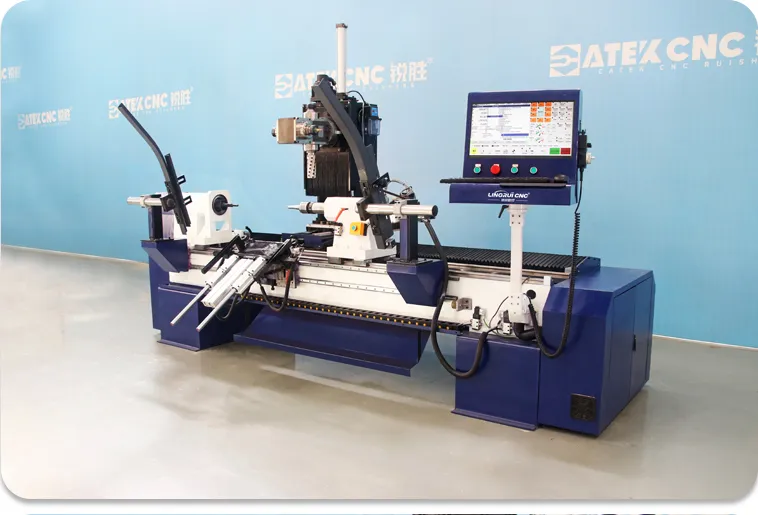

The LR-1530-7T-5AXIS is ideal for furniture manufacturing (curved table legs, sofa armrests), architectural decoration (Roman columns, staircase parts), and musical instruments (guitar necks, violin fretboards).
We are a certified factory with export licenses and 19 years of OEM experience.
We provide a 3-year full machine warranty with 12-hour response times and 24/7 technical support.
Provide your material specifications and product dimensions, and our engineers will recommend the optimal solution.
All machines are pre-tested. We include operation manuals and video guides; onsite commissioning is also available globally.
Yes, full customization is supported by our professional engineering team to meet your specific needs.
Yes, we provide free sample processing videos based on your drawings for functional verification.
