Basic Info & Technical Specifications
Model NO.:CK-1530-7T-5AXIS
Voltage:380V
Automatic Grade:Automatic
Precision:High Precision
Controlling Mode:CNC
Certification:CE, ISO, FDA, RoHS
Repeat Accuracy:±0.02mm

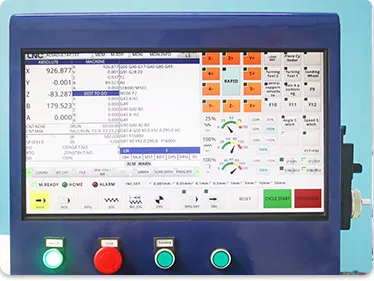

Control System:Taiwan Lnc Control System
Machine Photos
Product Parameters
| Model | LR-1530-7T-5AXIS |
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds |
| Drive Motor | Bus-type absolute 1500W servo motor |
| Spindle Speed | 0-18000r/min |
| Operating Voltage | AC380V/220V 50/60Hz |
| Dimensions | 3750*2150*2150mm |
| Weight | 2300kg |
Details & Core Components
The four-head electric spindle, designed for five-axis machining, features an integrated design with a max speed of 18,000 rpm. Equipped with an ER40 toolholder, it automatically switches tools and offers ±90-degree tilt adjustment for complex drilling, grooving, and engraving.
Equipped with an 1100W brushless servo motor sanding belt unit for high-quality grinding. The Taiwan LNC five-axis CNC system supports RTCP linkage and handwheel simulation for precise control.
Sample Display & Applications
Applications: Furniture manufacturing (special shaped chair legs, sofa armrests), Architectural decoration (staircase columns, Roman columns), Musical instruments, and fine Craft manufacturing.
Factory & Production
Customer & Certification
Frequently Asked Questions (FAQ)
1. Are you a factory or trading company?
We are a certified factory with export licenses and extensive manufacturing experience.
2. Do you offer OEM services?
Yes, we provide OEM services based on 19 years of experience collaborating with global partners.
3. What is included in your after-sales service?
We offer a 3-year full machine warranty, 12-hour guaranteed response time, and 24/7 technical support.
4. How do I choose the right machine for my needs?
Please provide your material specifications and product dimensions. Our engineering team will recommend the optimal solution.
5. Do you provide installation and training?
Machines are pre-tested and ready-to-use. We include operation manuals and video guides; onsite commissioning is also available globally.
6. Can the CNC machines be customized?
Yes, customization is fully supported by our dedicated engineering team to meet your specific production requirements.
