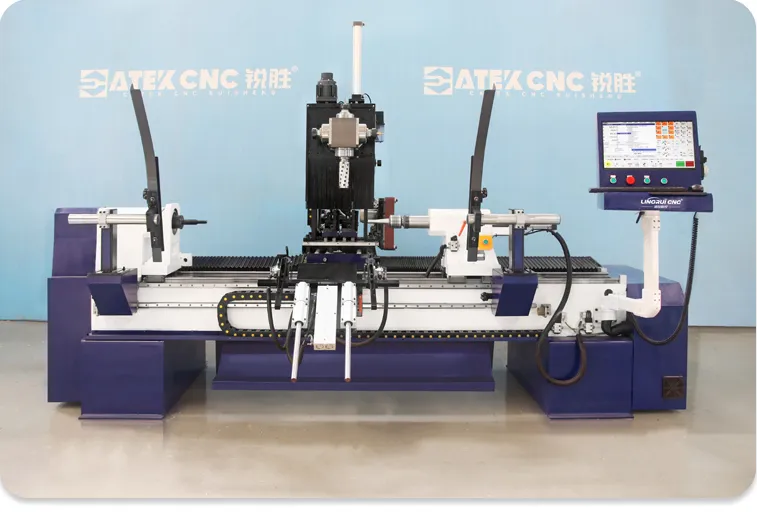

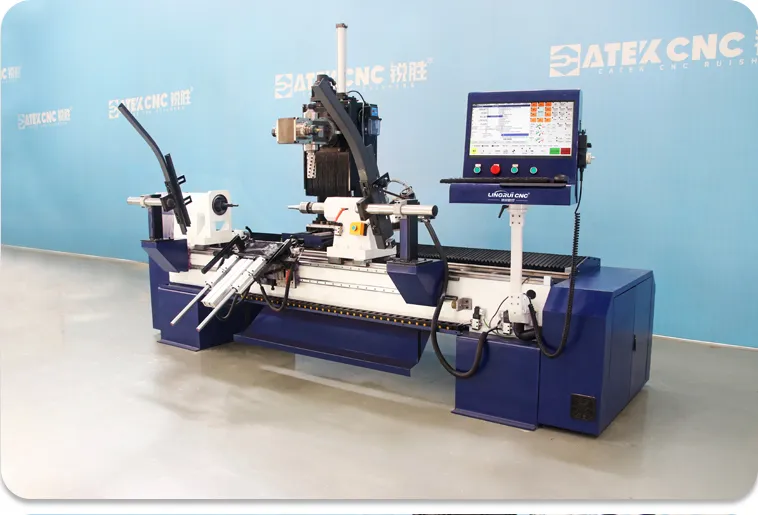

MACHINE PHOTOS

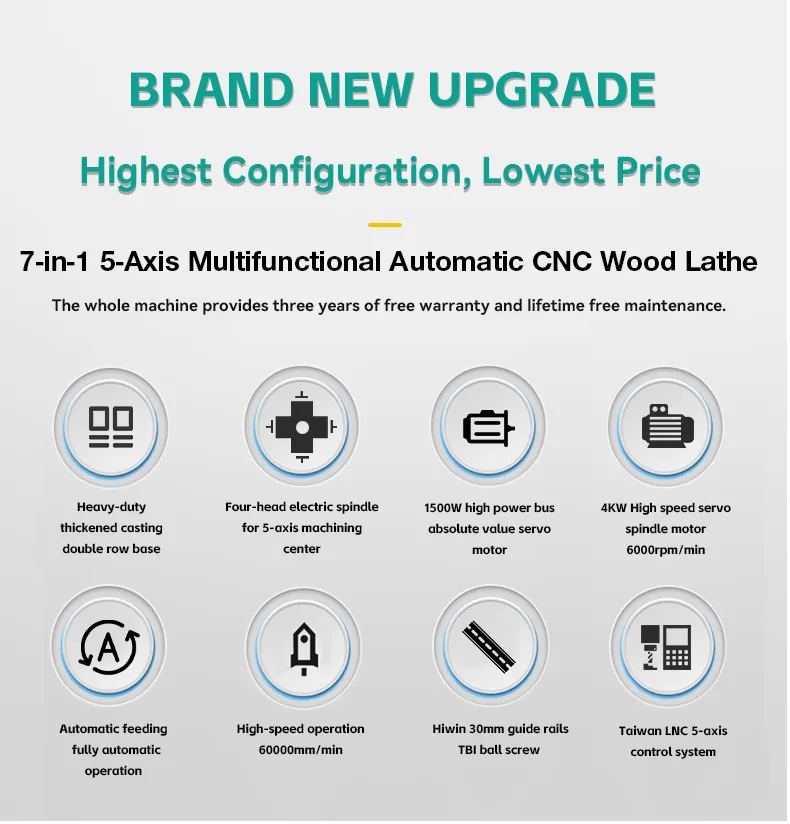

PRODUCT PARAMETERS
| Model | CK-1530-7T-5AXIS |
| Voltage | 380V |
| Automatic Grade | Automatic |
| Control Mode | CNC (Taiwan LNC System) |
| Precision | High Precision (±0.02mm) |
| Linear Axis Motor | Bus-Type Absolute 1500W Servo Motor |

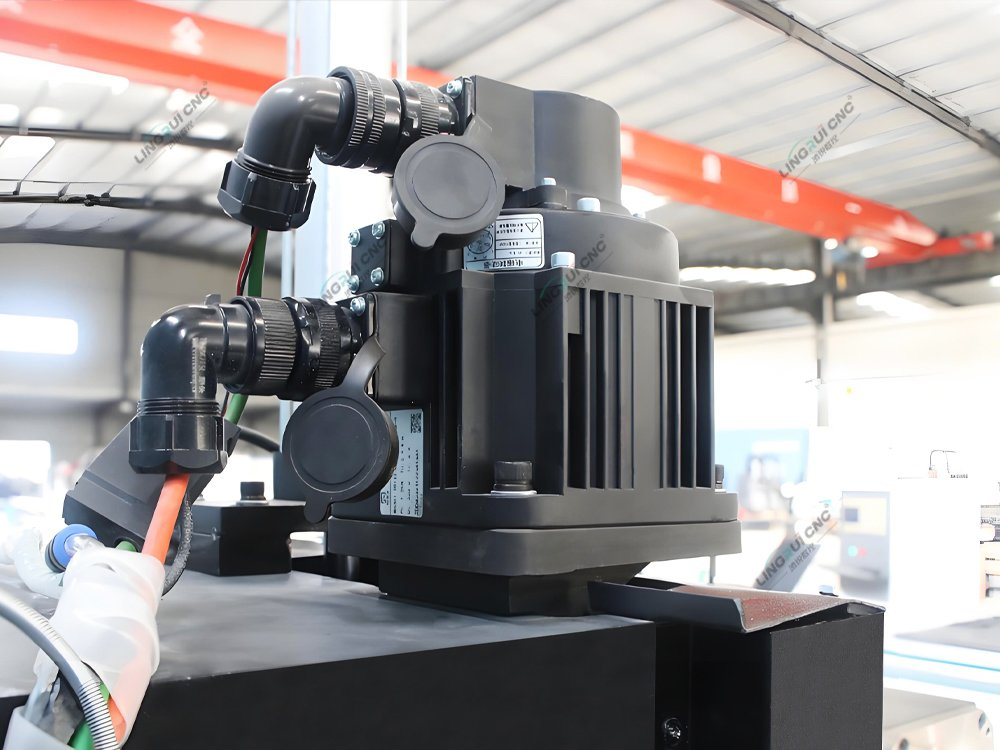

| Main Spindle | 4kw Pure Servo High-Torque Motor |
| Multi-Functional Spindle | 7.5kw Air-Cooled Four-Head Spindle |
| Sanding Device | 1100W Variable Frequency Servo Control |
| Processing Dimensions | 1500 * 300mm (Customizable) |
| Certification | CE, ISO, FDA, RoHS |
DETAILS IMAGES

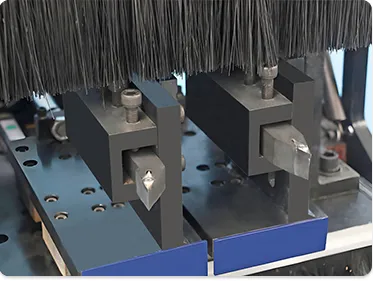

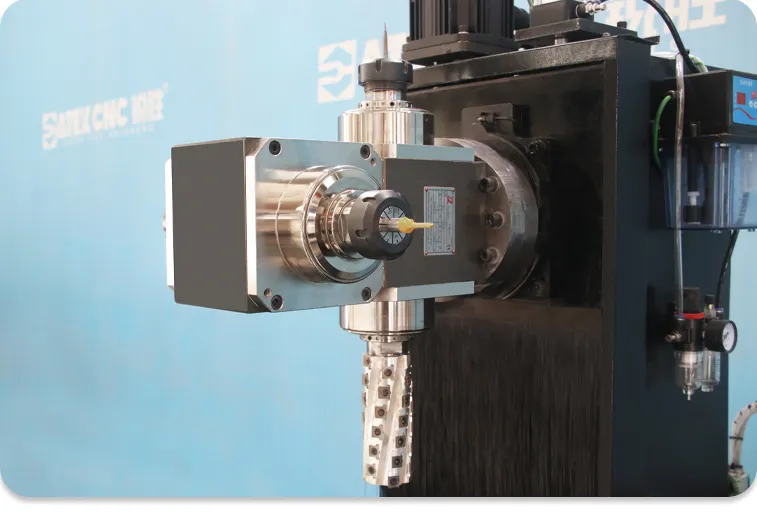

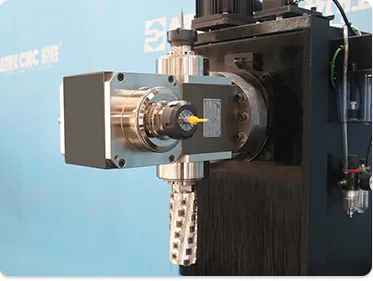

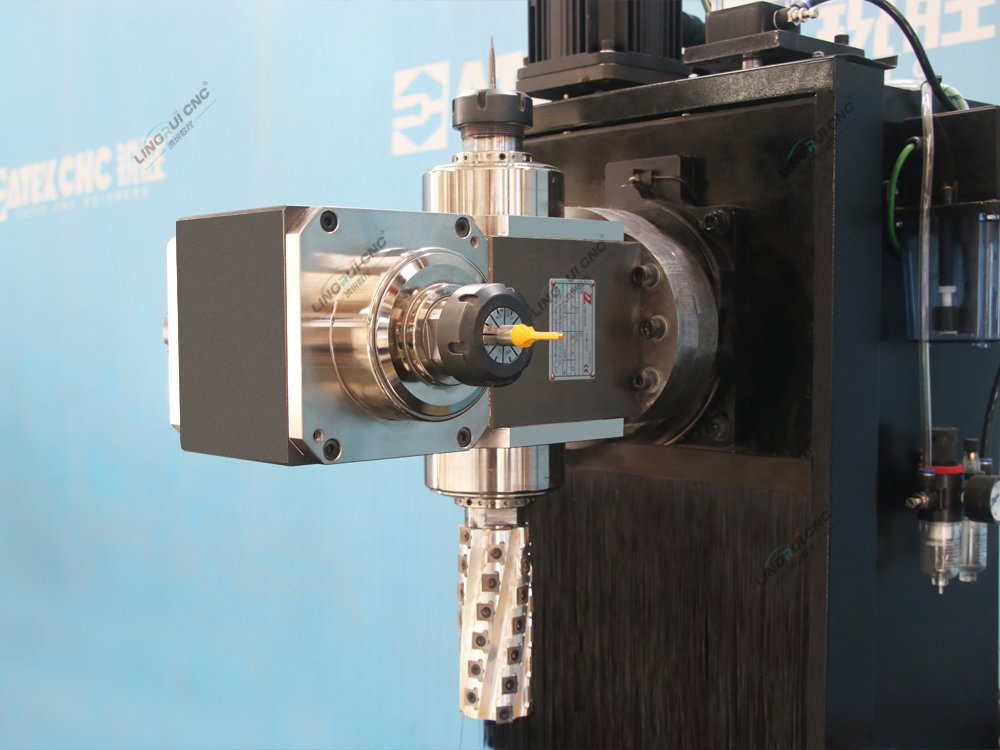

The four-head electric spindle features an integrated design with a maximum speed of 18,000 rpm. Equipped with an ER40 toolholder, it switches tools automatically to complete complex processes like drilling, grooving, and engraving on inclined or vertical surfaces.

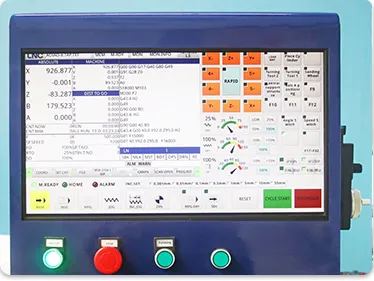

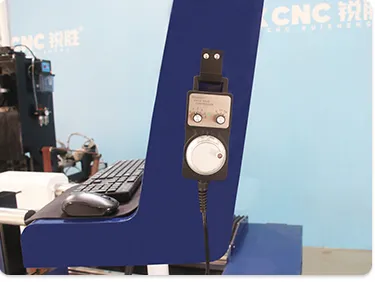

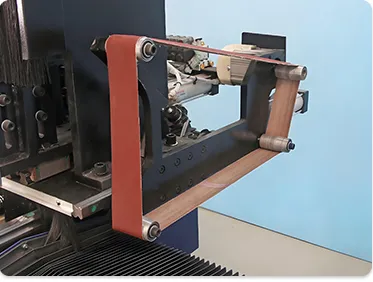

Driven by an 1100W brushless servo motor, the sanding belt unit reaches up to 6000 rpm. The Taiwan LNC five-axis CNC system supports RTCP and handwheel simulation for precise control.
SAMPLE DISPLAY
Furniture: Curved table legs, sofa armrests, relief patterns, and S-shaped curves.
Decoration: Staircase columns, Roman columns, and wooden hangers.
Instruments: Guitar necks, flutes, and violin fretboards.
Crafts: Gun stocks, sculptures, and antique furniture pieces.

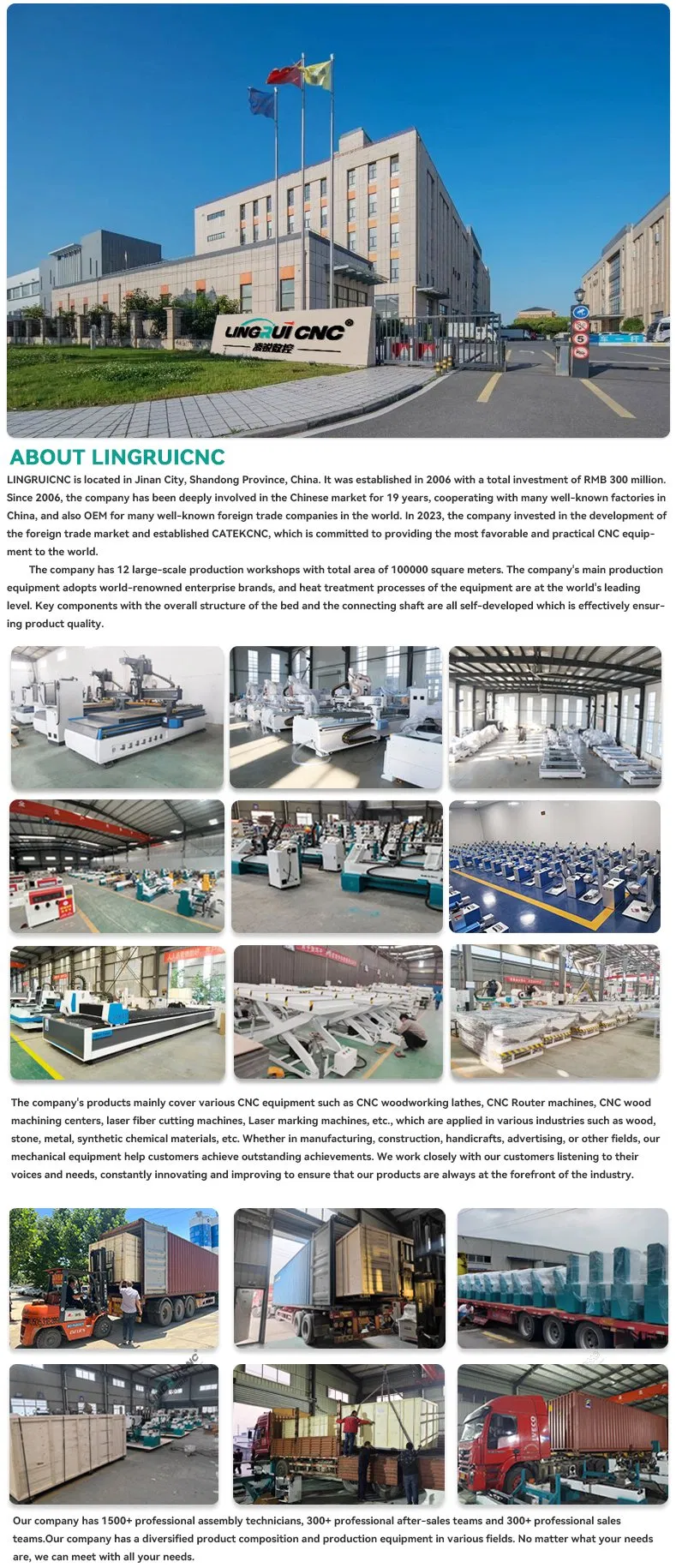

COMPANY PROFILE & CERTIFICATION
Frequently Asked Questions
1. Are you a factory or trading company?
We are a certified factory with professional export licenses and 19 years of manufacturing experience.
2. Do you offer OEM services?
Yes, we have extensive experience collaborating with global partners for customized OEM solutions.
3. What is included in the after-sales service?
We provide a 3-year full machine warranty, 12-hour guaranteed response time, and 24/7 technical support.
4. How do I choose the right machine for my needs?
Provide your material specifications and product dimensions; our engineering team will recommend the optimal configuration.
5. Is installation and training provided?
Machines are pre-tested and ready to use. We include comprehensive video guides and manuals. Onsite commissioning is available globally.
6. Can the machine process complex 3D shapes?
Yes, the 5-axis RTCP linkage system allows for high-precision carving of complex special-shaped crafts and furniture parts.
