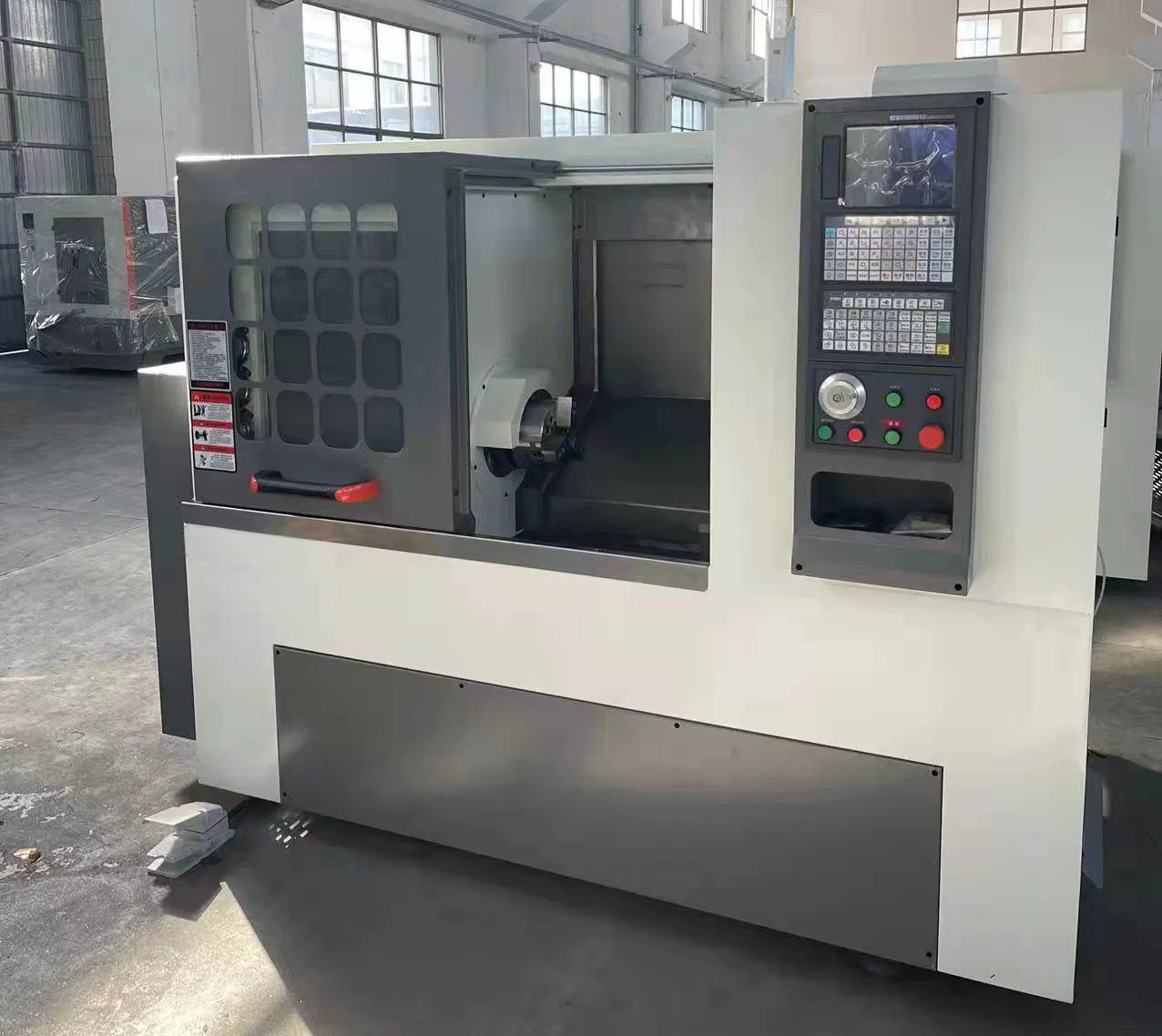

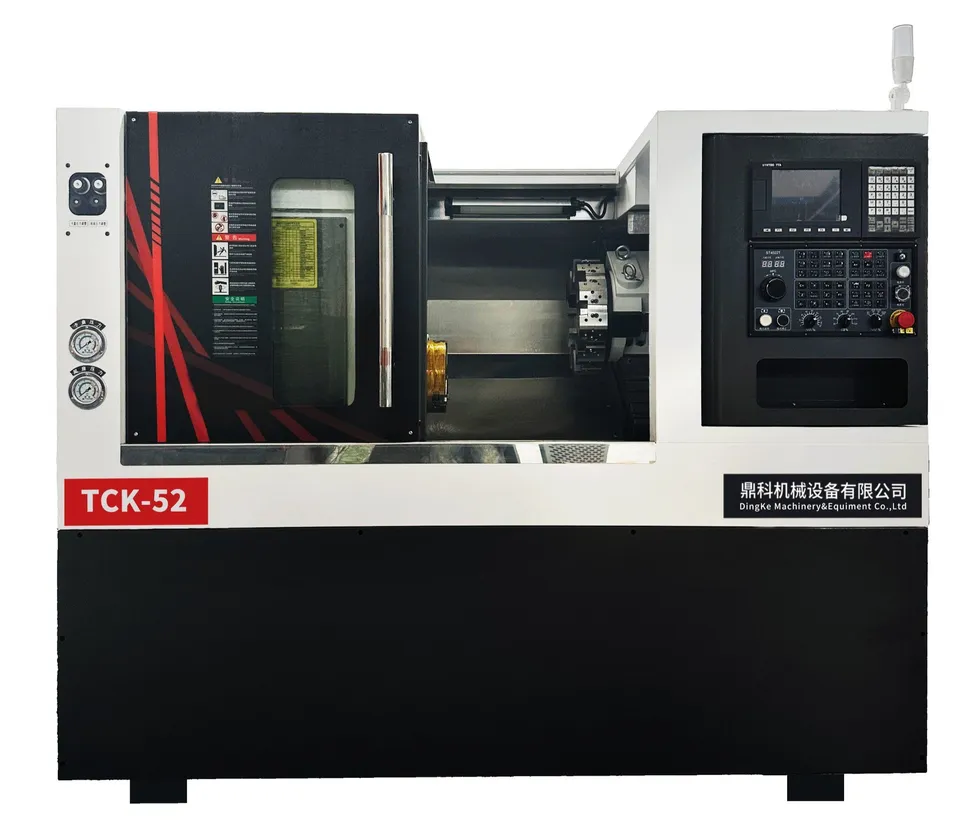

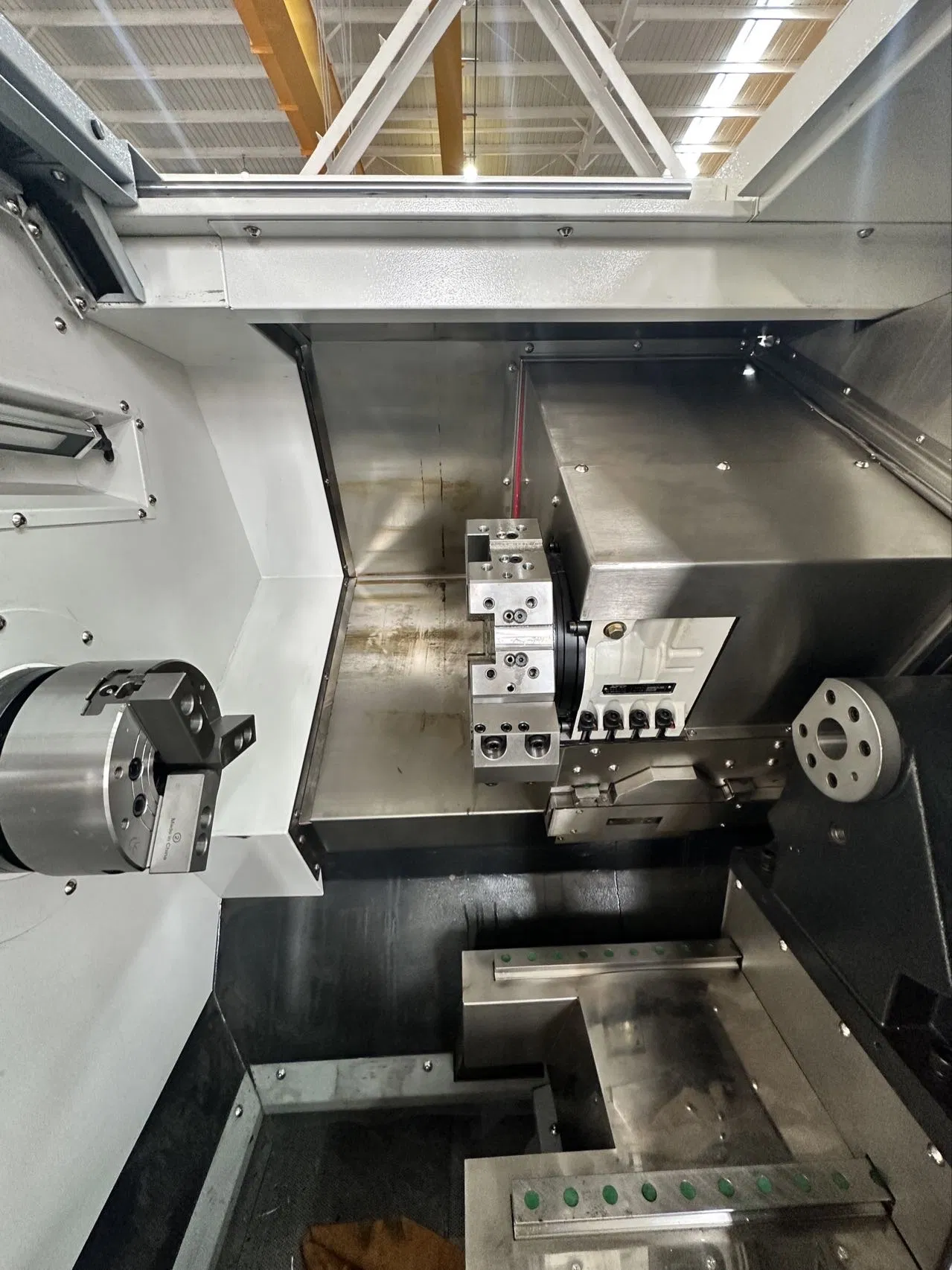

Cdk Tck52 High Accuracy Slant Bed Turning Center Compact Industrial CNC Lathe Machine for Precision Metal Machining

1 / 5

Cdk Tck52 High Accuracy Slant Bed Turning Center Compact Industrial CNC Lathe Machine for Precision Metal Machining

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

One-stop service for R&D, design, production and manufacturing of various kinds of automatic drilling/tapping machines, automatic assembly machines CNC lathes and Drilling Tapping Center.

Basic Information

Model NO.

TCK52

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Inclined Guide Rail

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Package Size

230.00cm * 150.00cm * 180.00cm

Product Description

✓ Applications

The Integral Slant Bed Structure Provides High Machine Tool Rigidity And Superior Hard Turning Performance, Maximizing Space Utilization And Effectively Solving Chip Removal And Drainage Issues.

High-Precision Linear Guides Reduce Guide Rail Wear. Centrally Positioned Lead Screw Enhances Machine Tool Motion Stability.

Optional Cnc Systems From GSK, Mitsubishi, Siemens, And Fanuc Are Available. Optional Automatic Loading And Unloading Mechanisms, Special Tooling Fixtures, And Automatic Chip Conveyors Are Available.

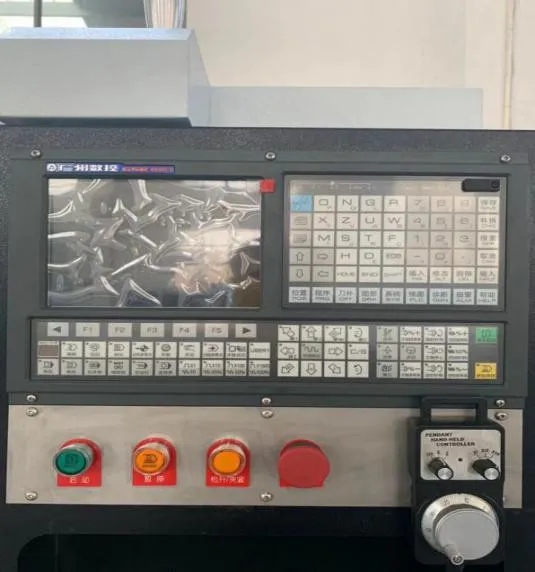

CNC CONTROL SYSTEM
Standard: GUANGSHU. Optional: Syntec, Siemens, Fanuc, Mitsubishi.

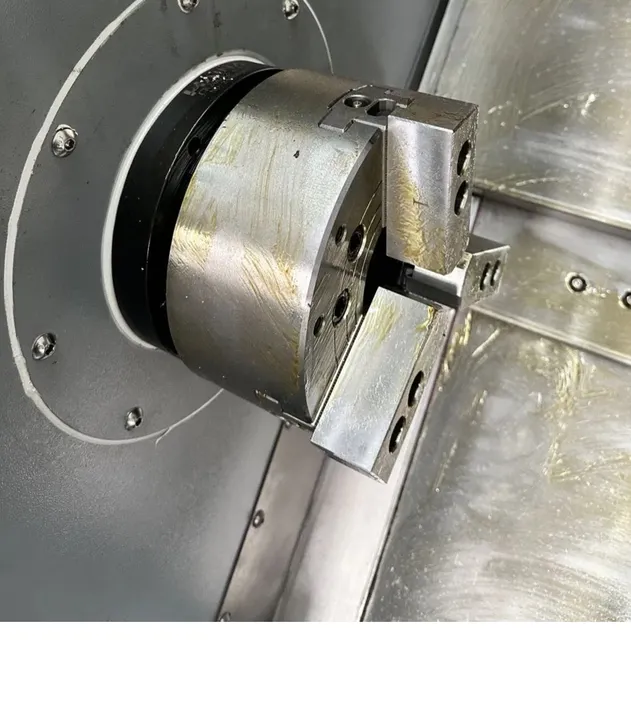

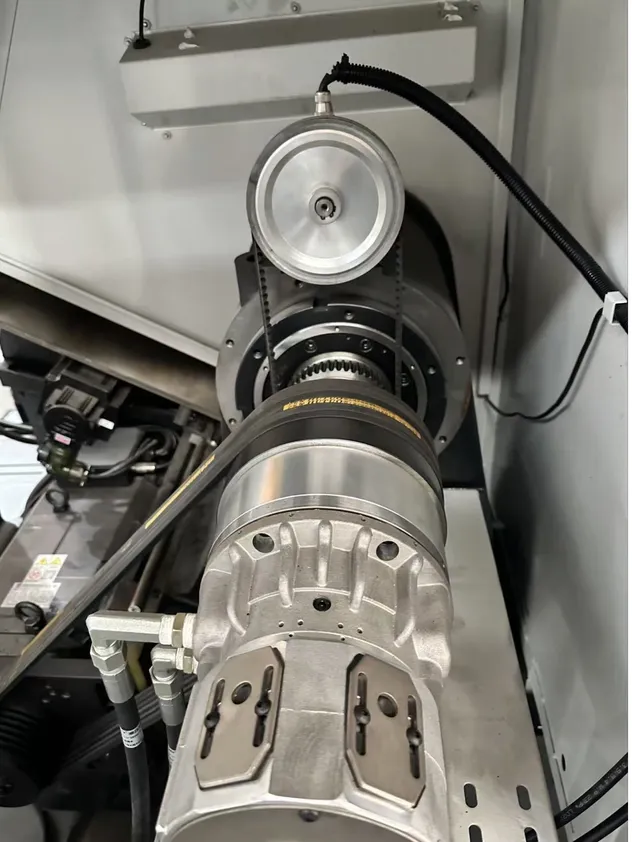

SPINDLE
High-rigidity national standard flange spindle, X/Z axis stainless steel guide rails.

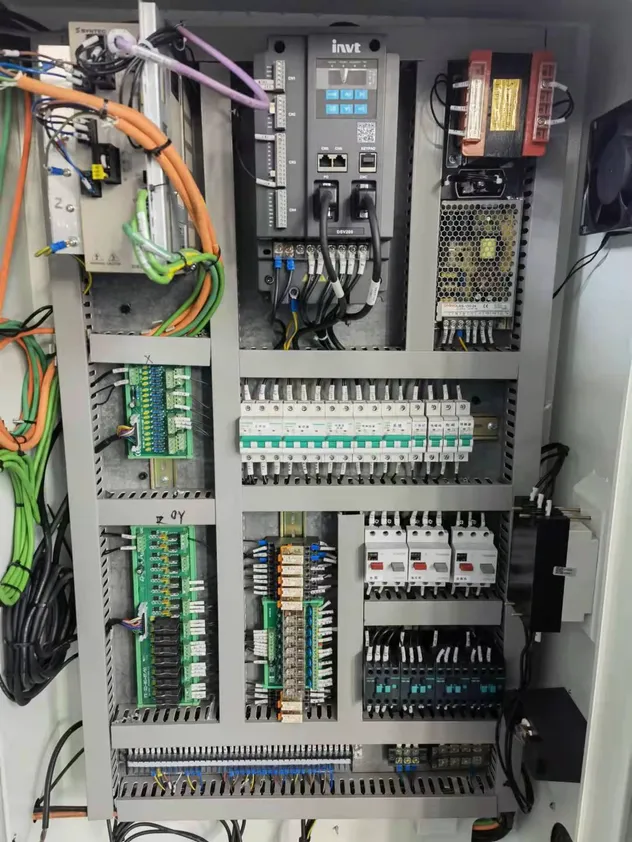

ELECTRICAL COMPONENTS
With Schneider safety electrical components, quick plug as standard.

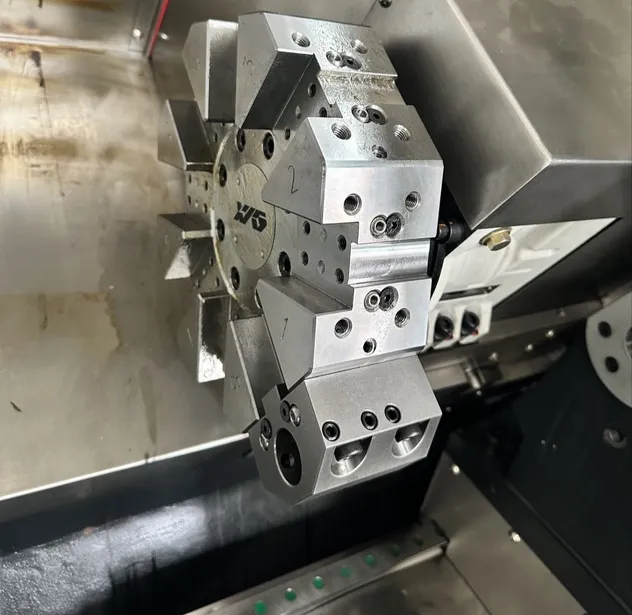

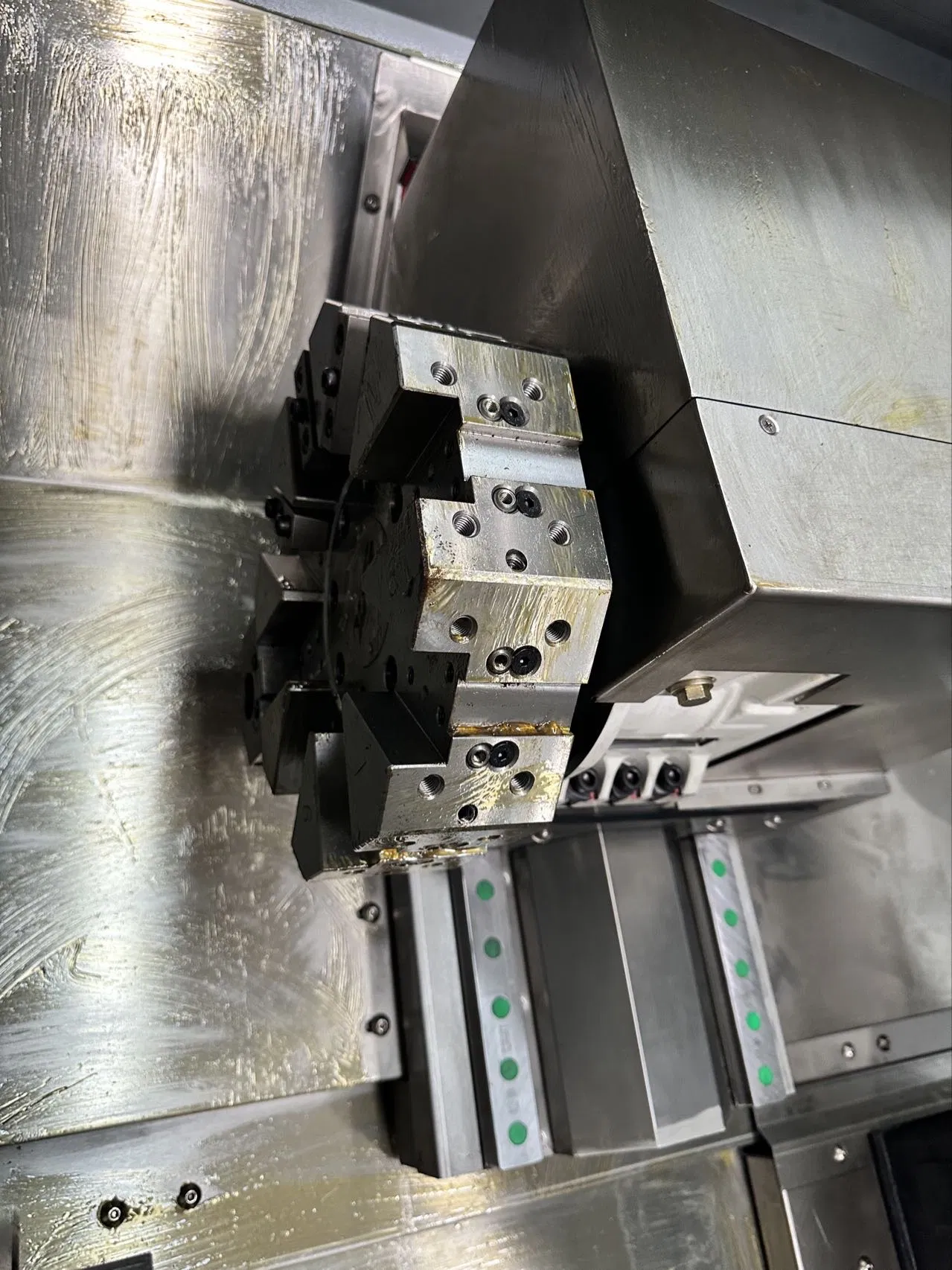

TOOL POST, TURRET
Standard 8-station hydraulic turret, optional 12-station or Y-axis power turret.

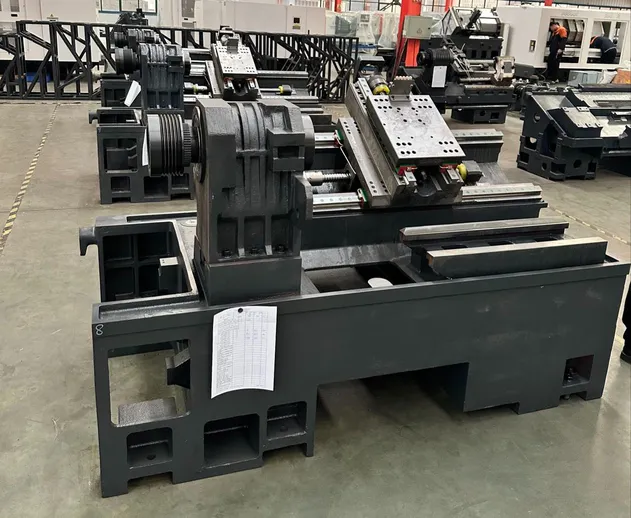

45 DEGREE MACHINE STRUCTURE
Integral casting bed, strong load-bearing capacity, easy metal chips falling.

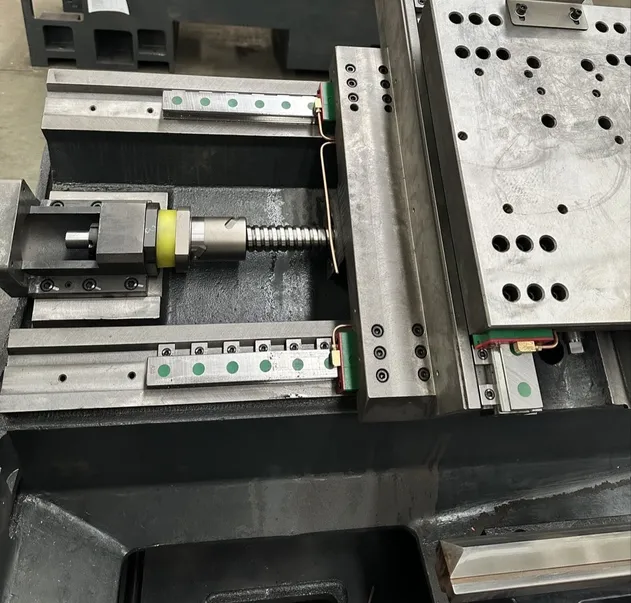

LINEAR RAILS
X and Z axis adopts Taiwan Linear rails with high accuracy.

Technical Specifications

ITEM		Unit	TCK52
Machining Capacity	Max workpiece turning diameter on bed	mm	φ500
	Max workpiece turning diameter on slide	mm	φ400
	Processing length	mm	400
	Maximum bar diameter	mm	φ52
Spindle	Spindle through-hole diameter	mm	φ62
	Maximum spindle speed	r/min	3000
	Clamping type	-	Hydraulic
X/Z Axis	Maximum X-axis/Z-axis travel	mm	X:200/Z:400
X/Z Axis	X-axis/Z-axis rapid traverse speed	mm/min	20000/20000
Motor	Spindle motor power	KW	11
	Cooling water pump power	W	550
	Net weight (approximately)	kg	3000
Dimensions	Machine tool dimensions (L x W x H)	mm	2300×1500×1800

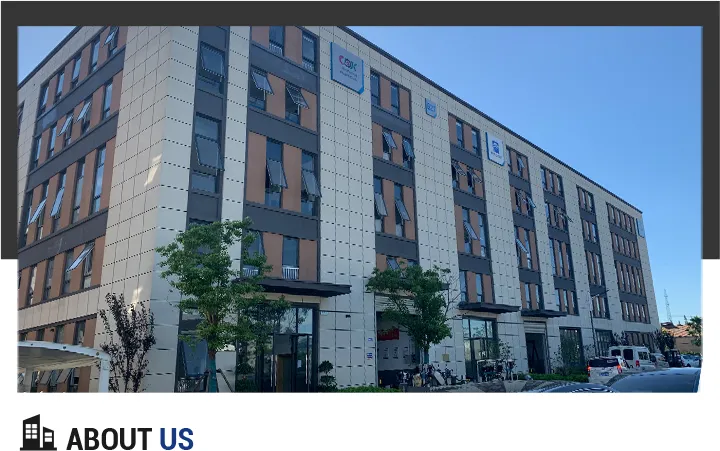

About Our Manufacturing

Specializing in more than 20 years of experience. Awarded ISO9001 and CE certification, with more than ten utility models and appearance patents. We specialize in CNC automatic drilling machines, tapping machines, and CNC lathes, providing one-stop metalworking solutions.

After Sales Service

Frequently Asked Questions

Is your company a factory?

Yes, we are a certified factory, and hundreds of international customers visit our facility every year.

How can I choose the most suitable machine?

Please let us know your machining demand or machine size. We can recommend the best model for you based on your specific requirements.

Can you offer customized services?

Yes, we can. Please provide the specifications you need, and we will offer a customized service tailored to your request.

What is the lead time for standard and customized machines?

Standard models take 7-10 working days (we keep stock for urgent orders). Customized machines take approximately 30 working days depending on complexity.

Do you provide quotations with shipping fees?

We usually offer FOB prices. Once you are satisfied with the machine price, we can check with our forwarder to provide a freight quotation to your location.

Do you provide technical guidance?

Yes, we provide online technical support, as well as voice and video guidance to ensure smooth operation of your equipment.
