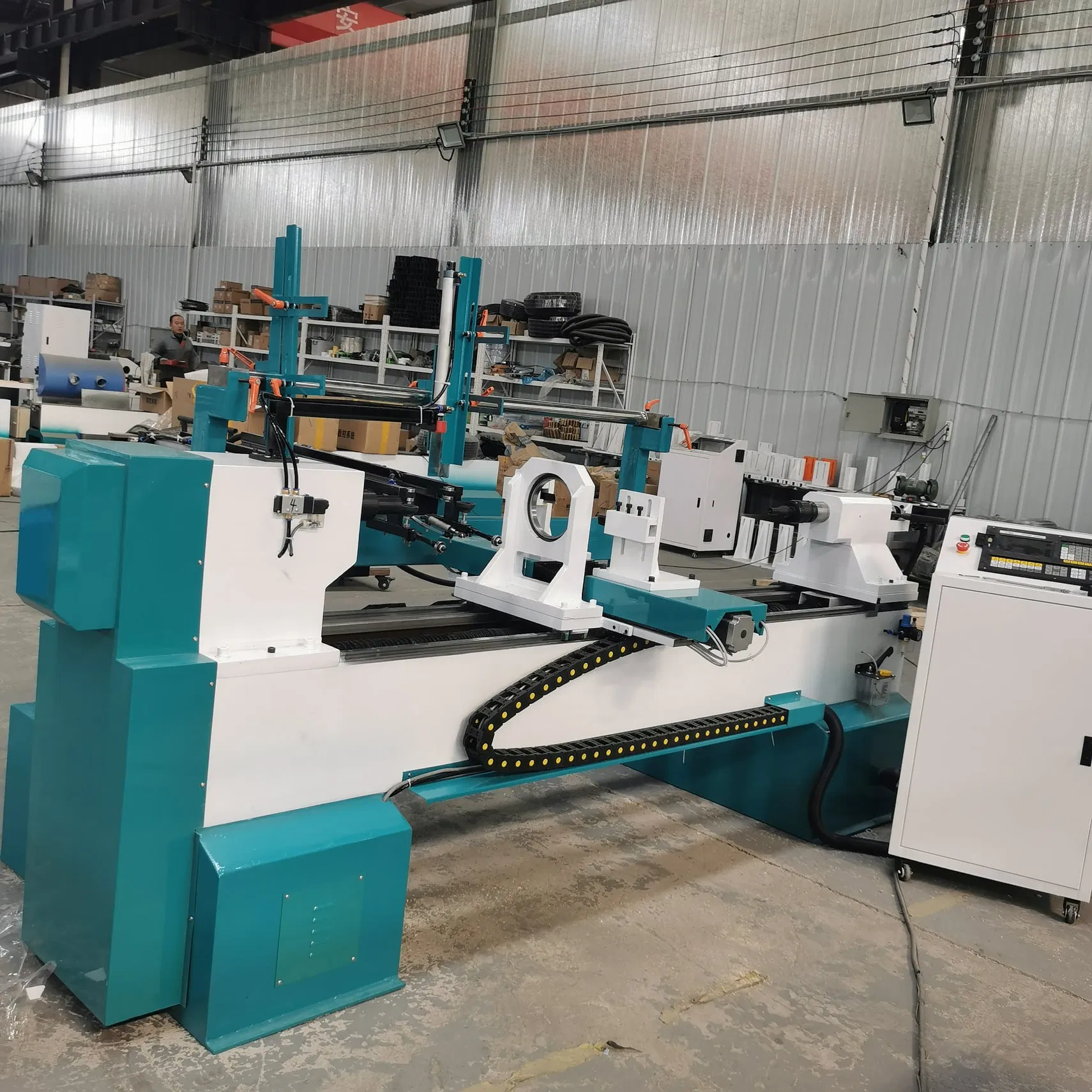

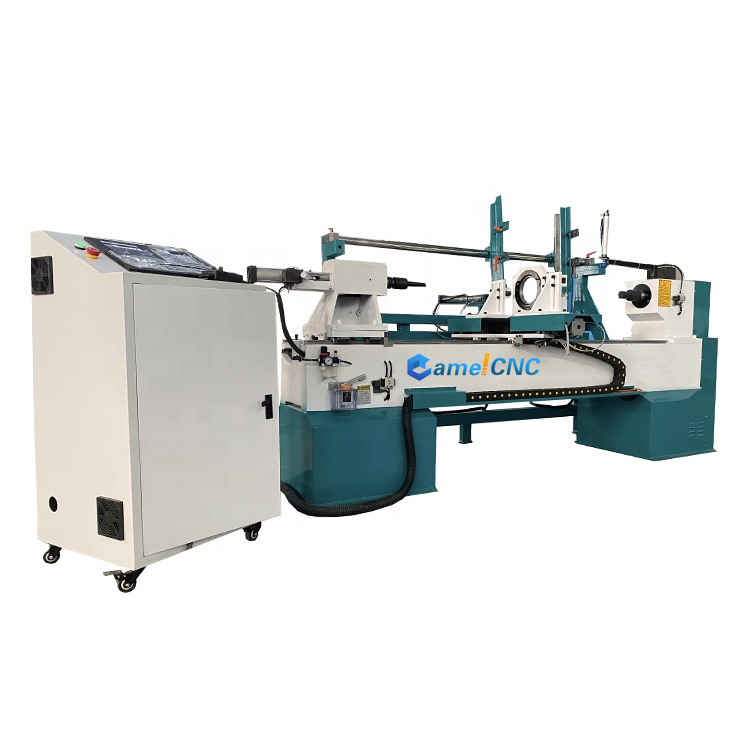

Camel CNC Professional CNC Manufacturer Automatic Wood Turning Lathe for Sale

1 / 5

Camel CNC Professional CNC Manufacturer Automatic Wood Turning Lathe for Sale

Customization:	Available
Warranty:	3 Years
Type:	Multi-Axis Automatic & Semi-Automatic Lathe

Send Inquiry

Product Description

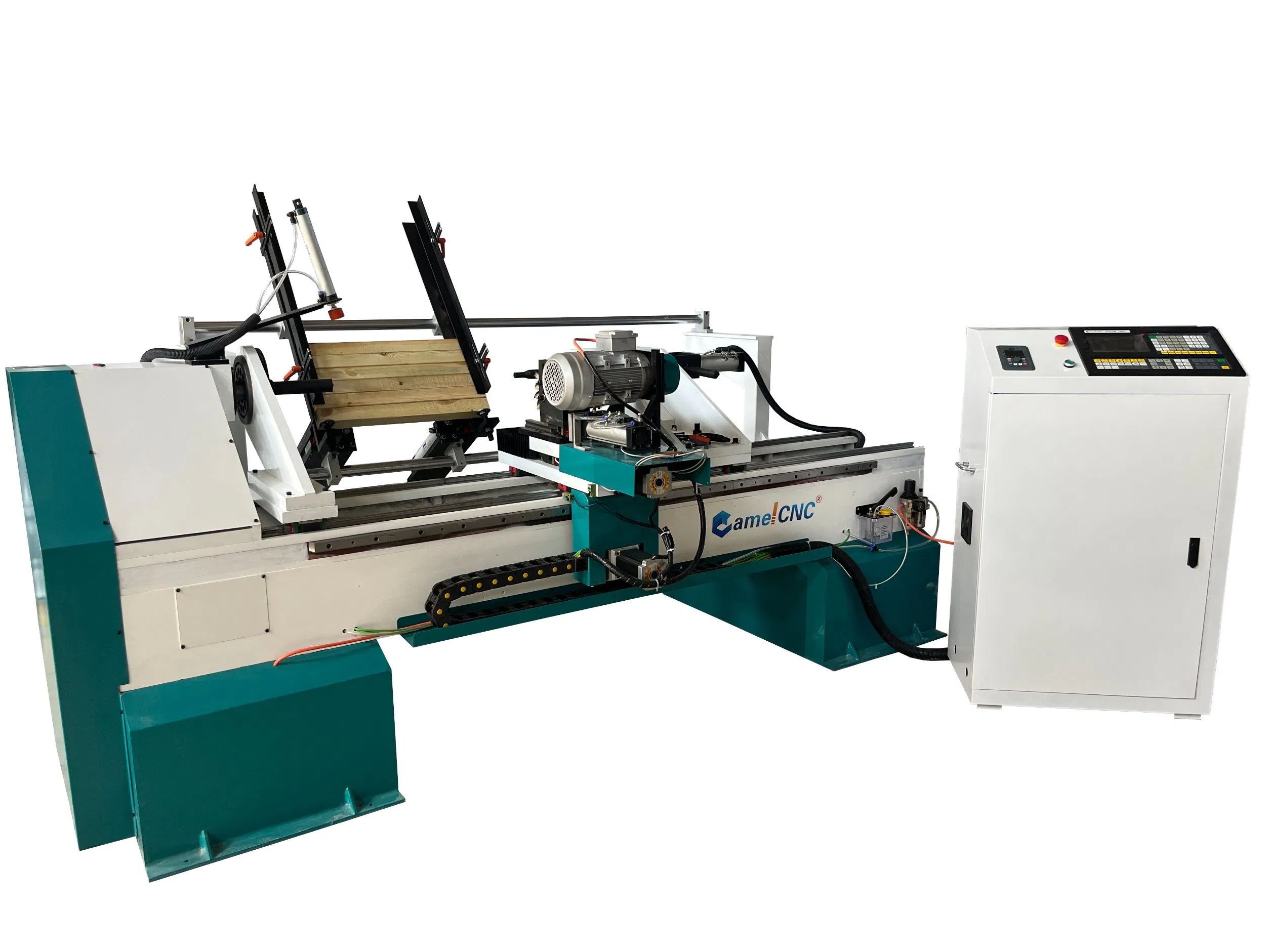

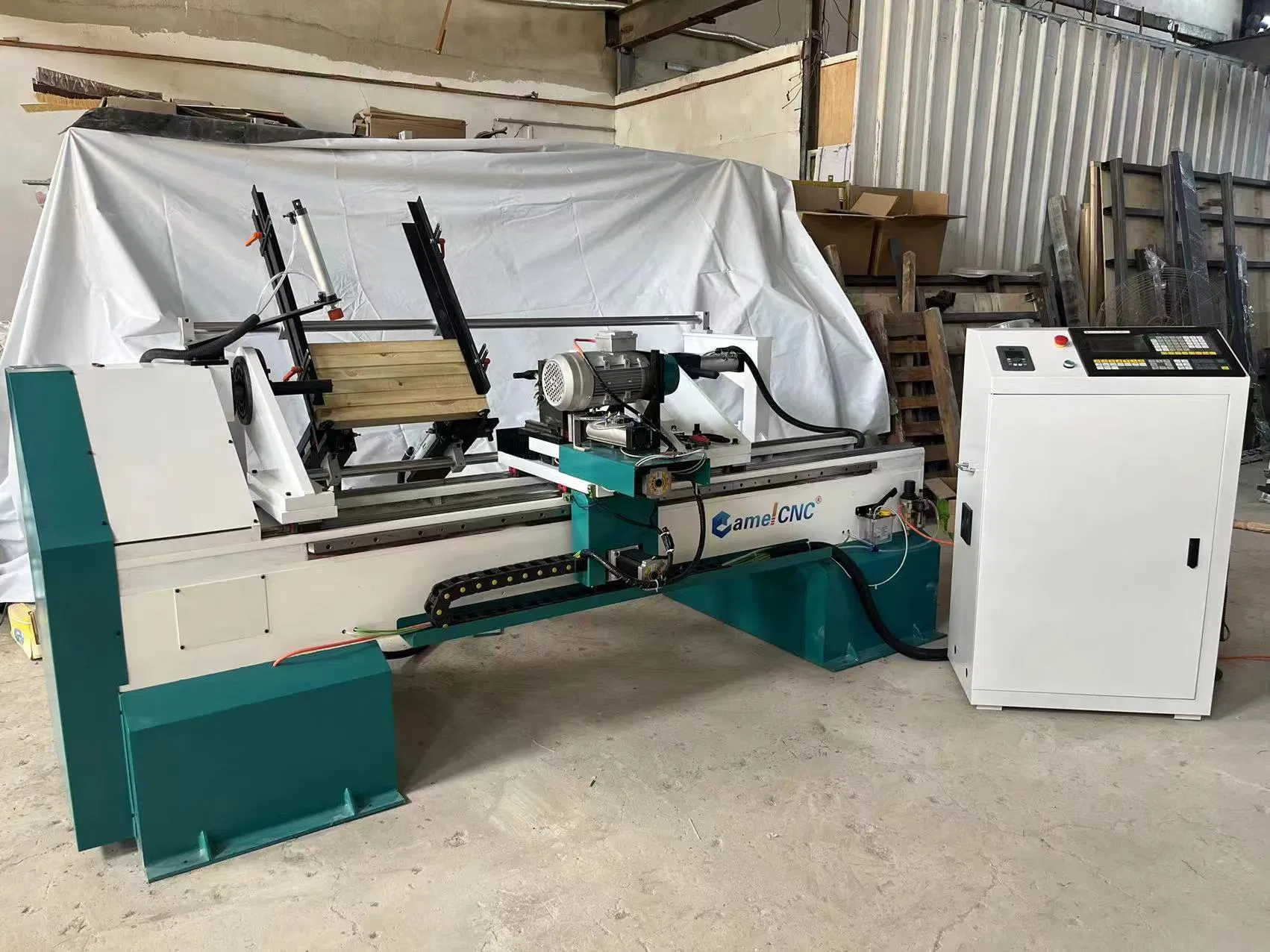

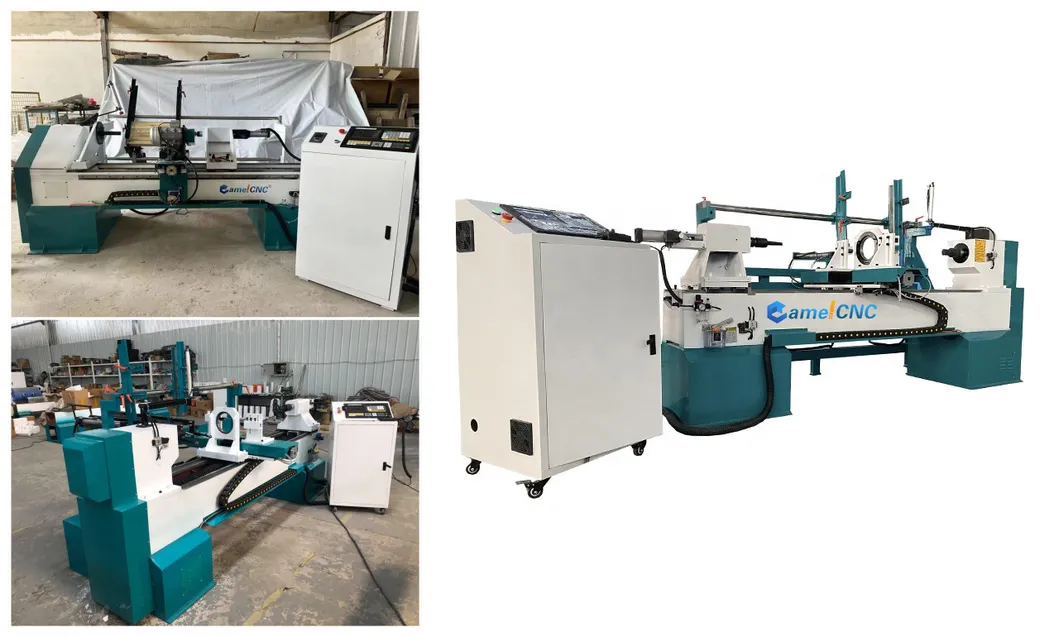

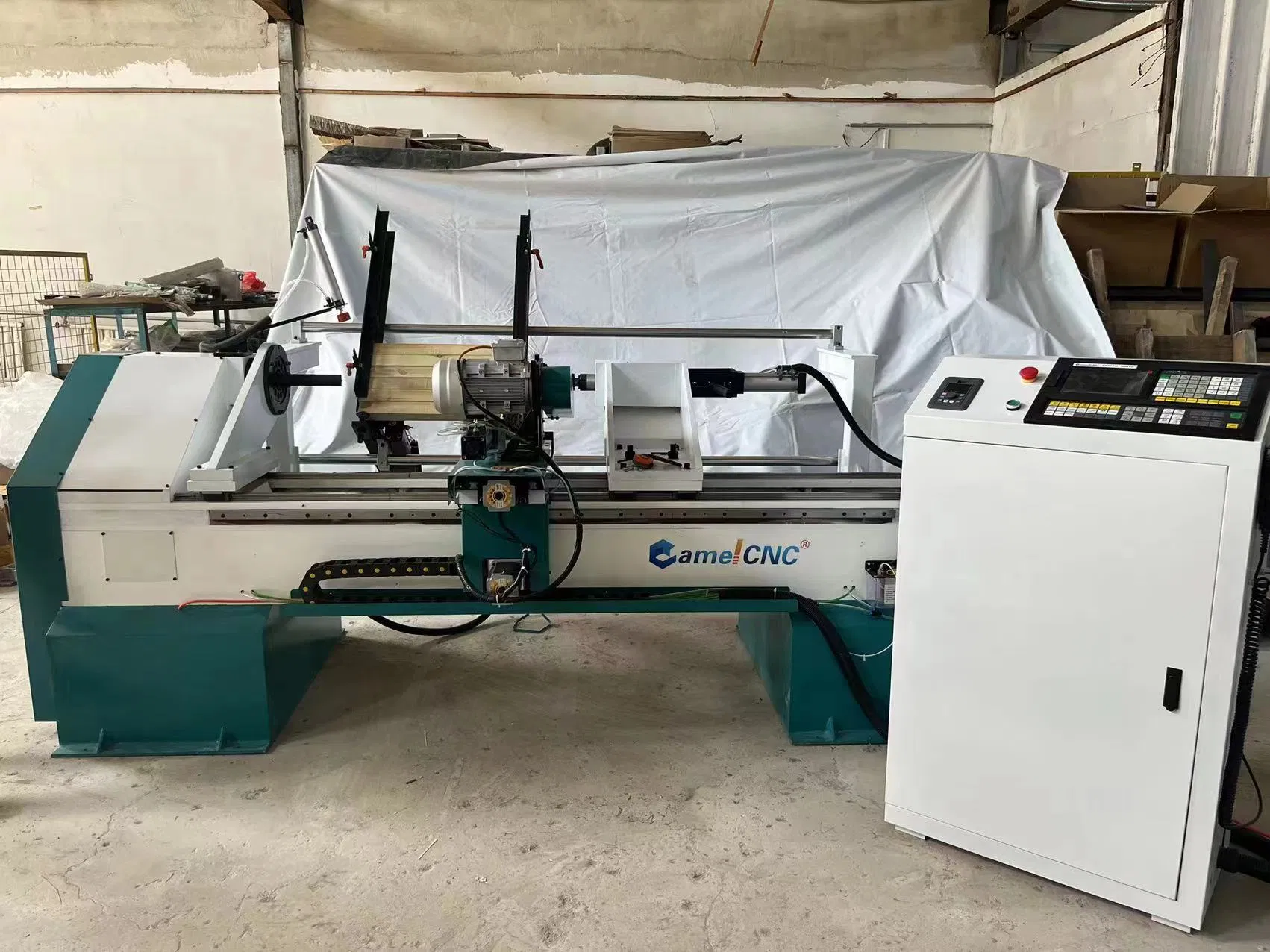

Professional Automatic Wood Turning Lathe

Basic Information

Model NO.

CA-1530

Voltage

220V/380V

Automatic Grade

Automatic

Precision

High Precision

Controlling Mode

CNC

Power Source

Electric

Max Processing Length

1500mm (Customizable)

Max Turning Diameter

300mm

After-sales Service

3 Years

Production Capacity

500 Sets/Month

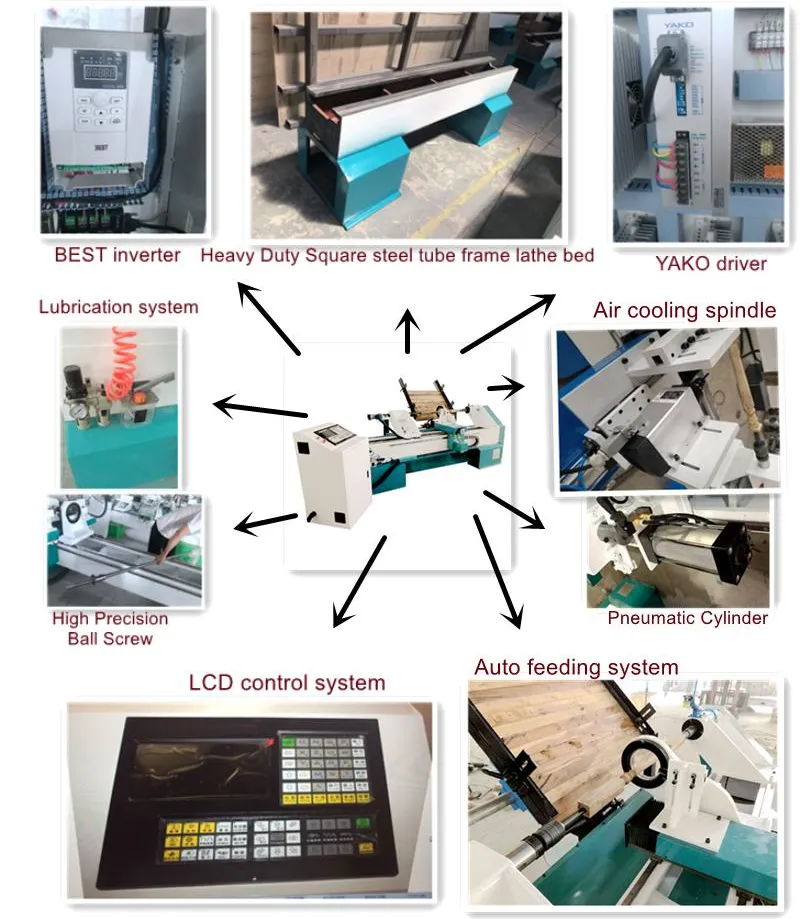

Machine Features

Whole machine is welded with seamless steel structure, high temperature annealing, machine weight up to 1500kgs.
Specialized for wood turning and wooden cylinder engraving (table legs, stair railings, etc).
Advanced handheld DSP system with USB port for easy operation.
Germany ball screw and Taiwan HIWIN helical square guide rail for high precision.
Compatible with CAD/CAM design software like Type3, Artcam, etc.
Adjustable rotating speed via inverter with visual display on control panel.
Turning, broaching, and engraving can be completed in one single operation.

Technical Parameters

Model	CA-1530
Max processing length	1500mm (Optional 2000/2500/3000mm)
Max turning diameter	300mm
Power supply	AC 380V/220V 3 Phase
Max feed rate	2000mm/min
Transmission type	Ball screw for Y axis
Guider	Taiwan Hiwin orbit
Rotating speed	0-3000r/min
Control System	DSP control system

Sample Gallery

Applicable for Staircases, stairway balusters, dining table legs, sofa table legs, bar stool legs, chair legs, baseball bats, etc.

Packaging & Shipping

Manufacturing Excellence

Specializing in R&D and marketing of laser cutting machines, CNC routers, and CNC wood lathes. Our equipment has obtained CE certification and SGS inspection, ensuring high-quality performance for global metal and wood industries. We export to Europe, Africa, Middle East, America, and Southeast Asia.

FAQ

Q1: How to choose a suitable machine? Tell us your material, size, and function requirements. We will recommend the best model based on our experience.

Q2: Is the machine easy to operate for a first-time buyer? Yes, we provide an operation manual and video guides. We also offer online support via TeamViewer, WhatsApp, or Skype.

Q3: Can the machine be customized? We provide customized solutions, though we typically recommend standard configurations first to save on costs.

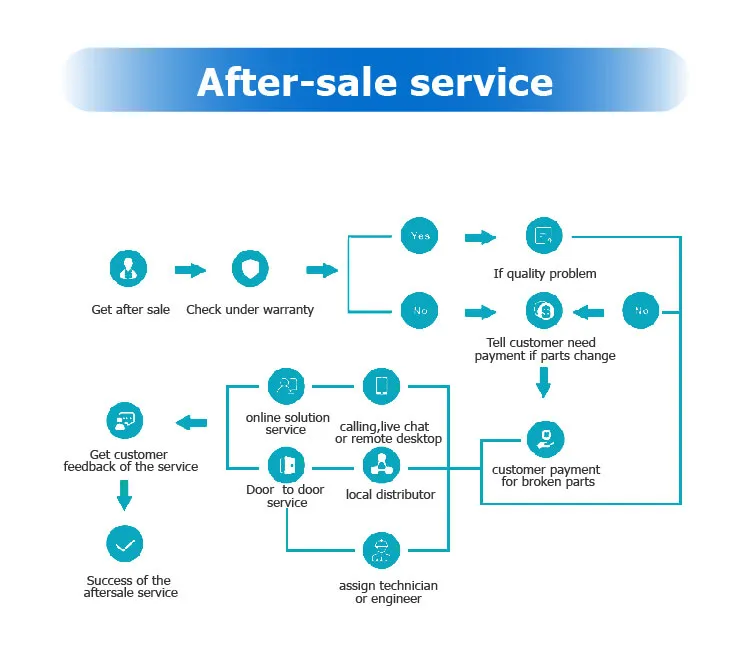

Q4: What is the warranty policy? The machine comes with a 3-year guarantee. Faulty parts under normal operation will be replaced free of charge.

Q5: What is the typical delivery time? Standard machines take 7-10 working days; non-standard or customized machines take 20-30 working days.

Q6: How is the payment handled? We normally accept T/T or L/C. Other payment terms can be discussed in advance.
