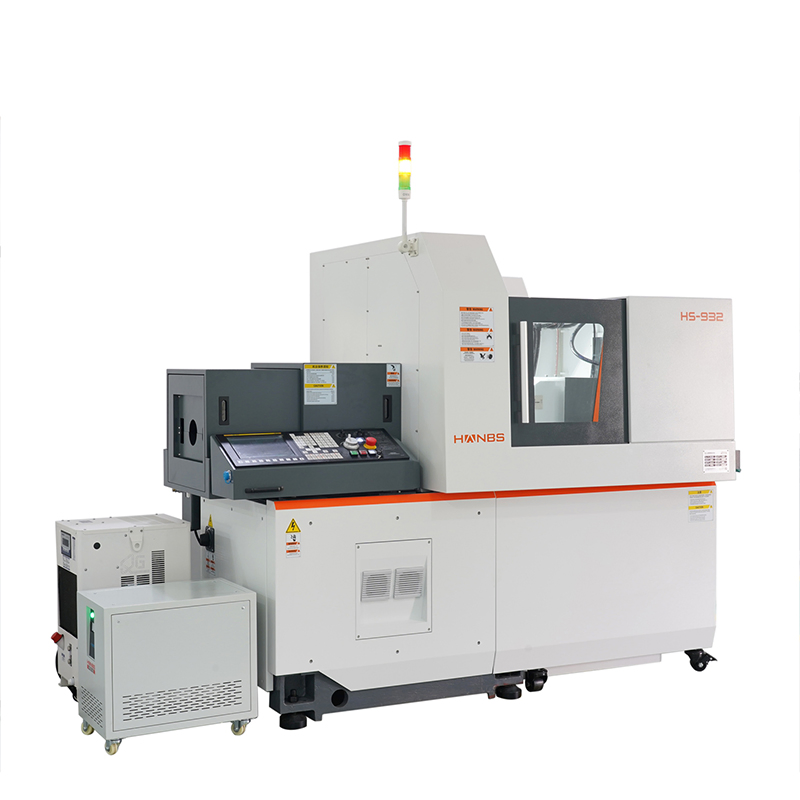

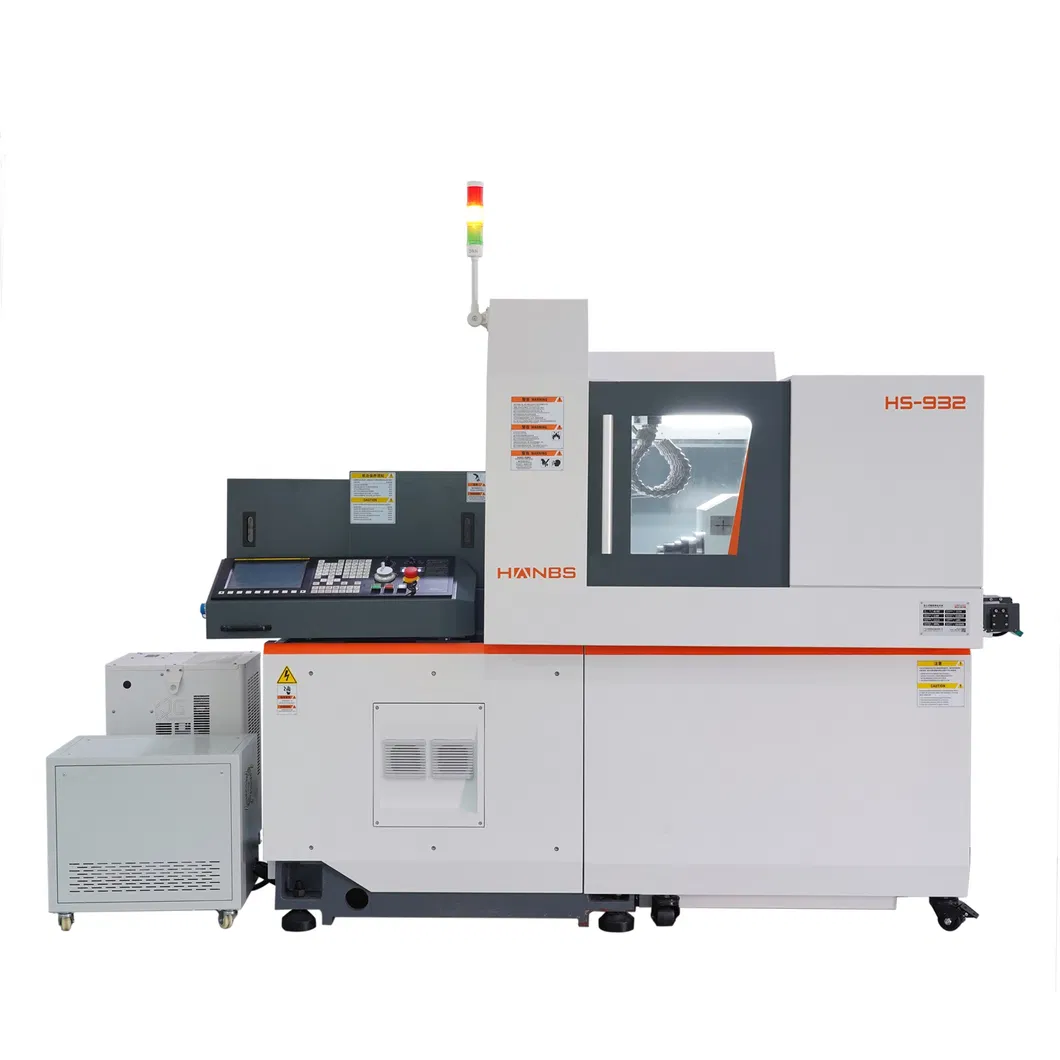

HS-932 is a 5-axis Swiss Type CNC lathe, can equipped with Y2 axis to be a 6-axis Swiss Type CNC lathe. For the production of high-precision components such as aviation, medical, electronic equipment auto parts, optical, and long axis parts.

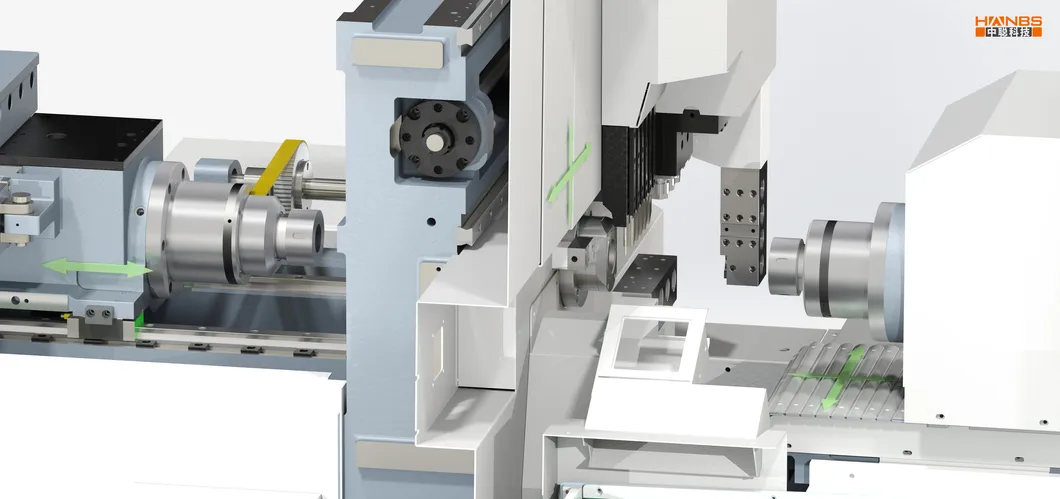

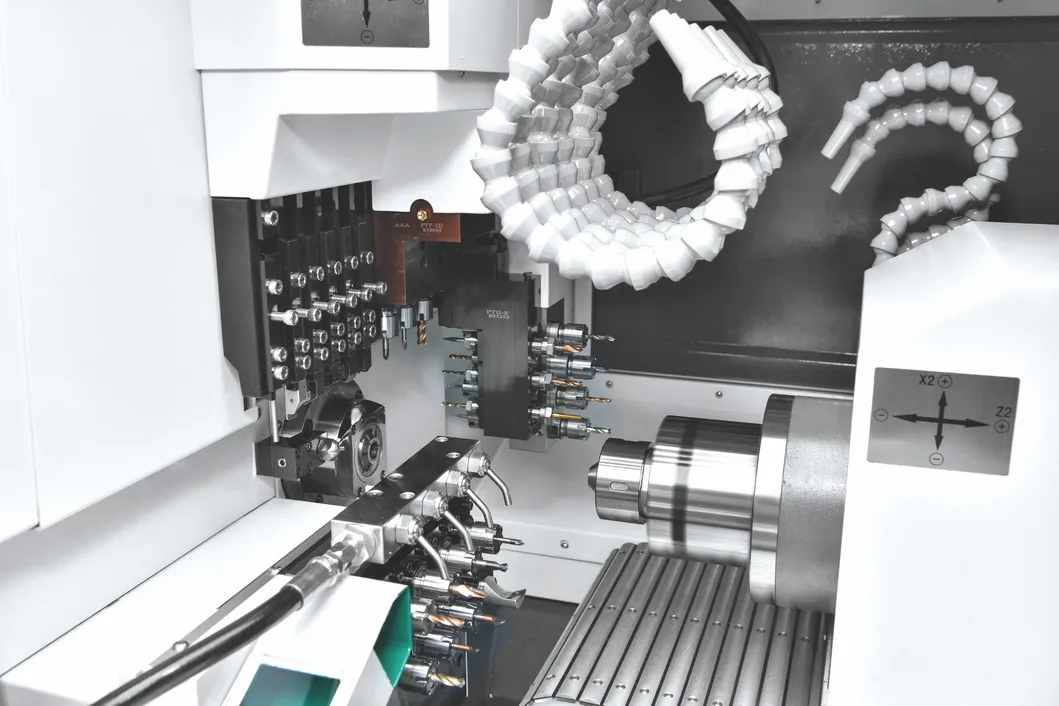

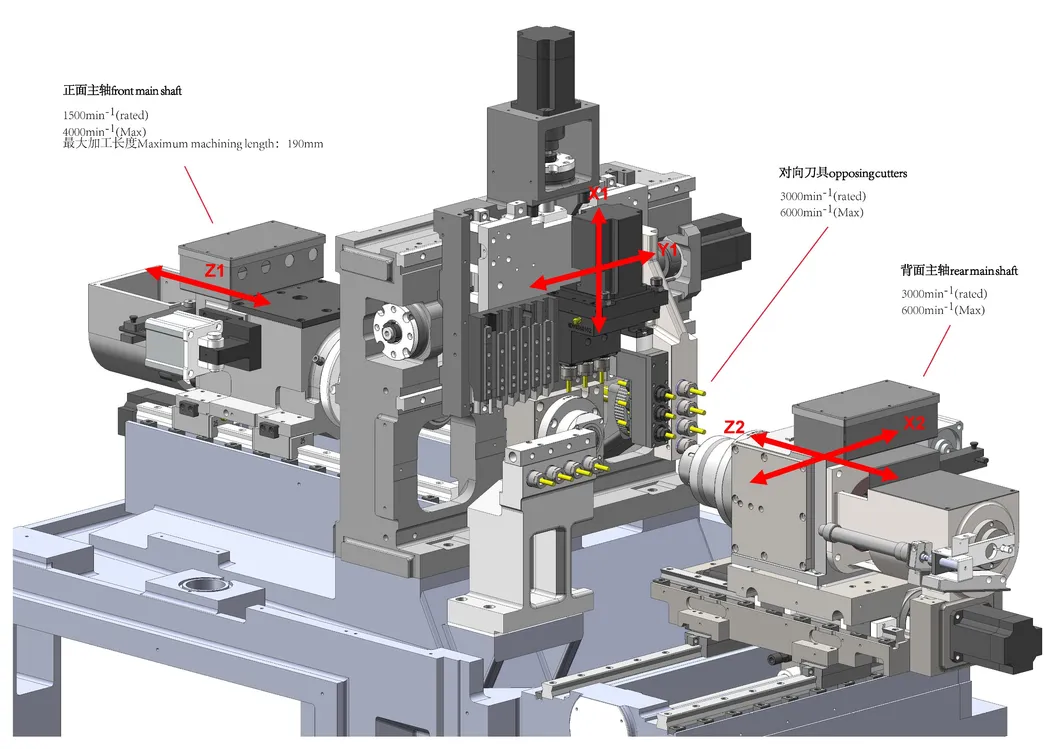

Internal diagram of HS-932 showing knife row distribution.

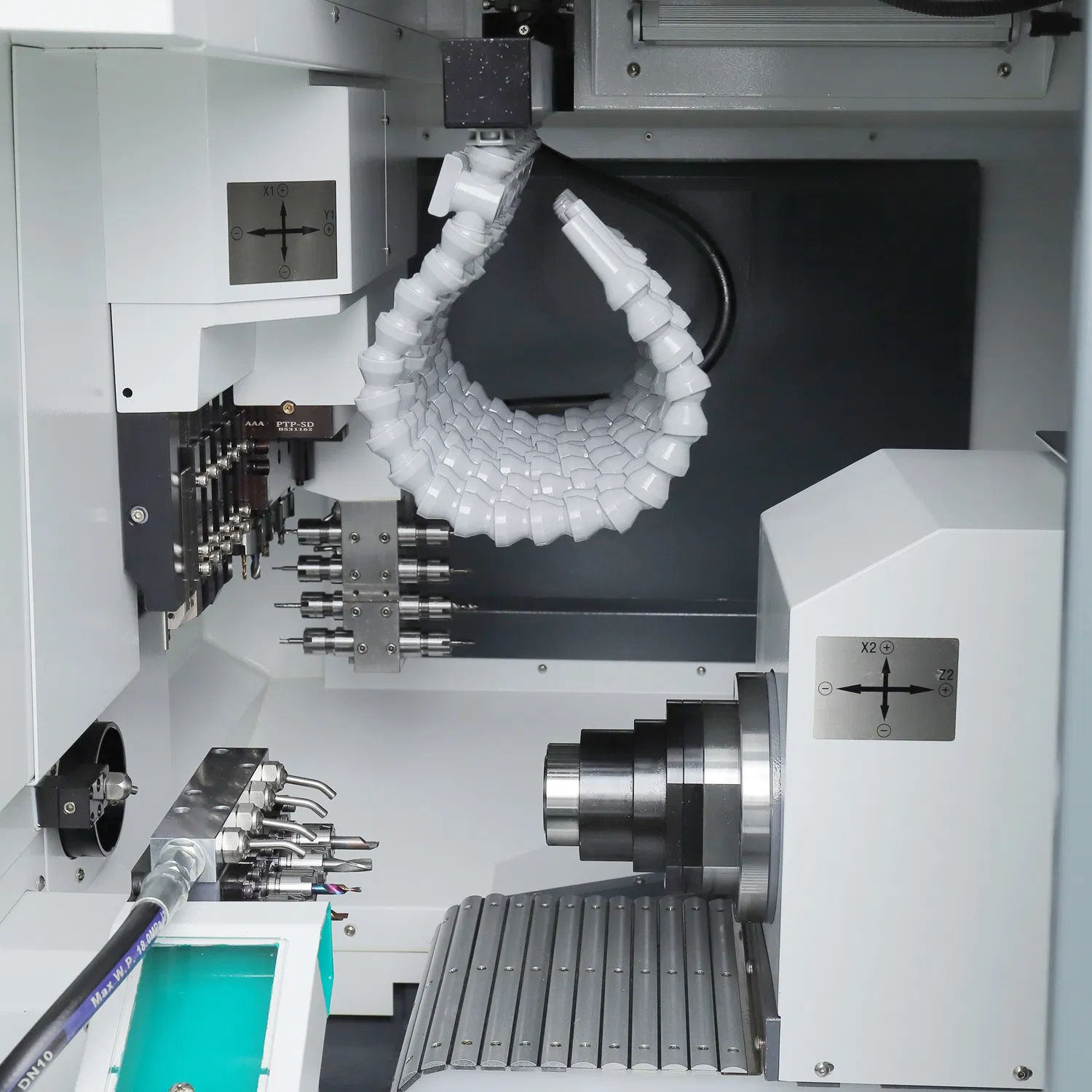

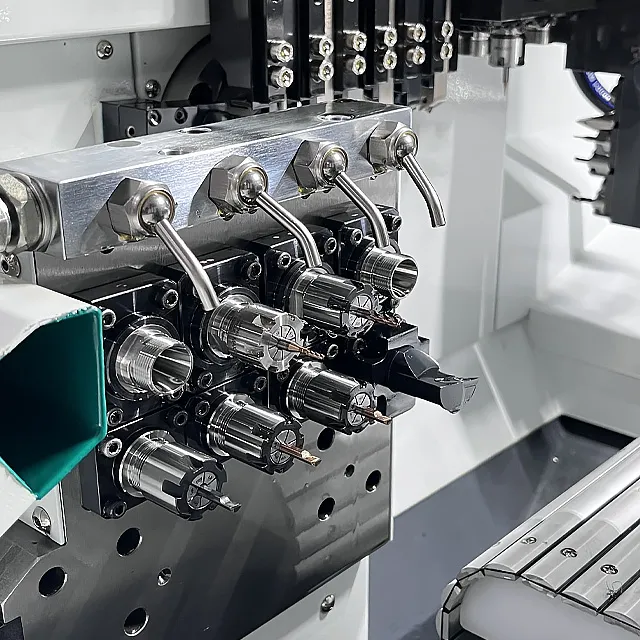

Y2 axis allows independent control of tool turrets for flexibility.
HS-932 has a single-piece feeding processing mode. When the spindle feeds a single piece, the sub-spindle can be processed at the same time, which greatly improves the processing efficiency.
| Category | Specification Items | Data |
| Processing Reference | Max Machining Diameter | Φ32mm |
| Max Machining Length | 80mm | |
| Max Spindle Speed | 8000rpm | |
| Max Axial Bore Diameter | Φ14mm | |
| Tool Dimension | Number of Knives | 6 |
| Turning Tool Size | 12X120 | |
| Speed | Z1/Z2/X2/Y feed velocity | 30m/min |
| Others | Weight | 3200kg |
| Overall Size | 2250X1400X2000mm |
Superiority: Important parts are world first-class brands: NSK, NACHI bearings, PMI/THK guide rails. Castings undergo natural aging for over 1 year to eliminate stress and improve stability. Professional technical personnel provide customized production plans to improve efficiency.
