Basic Information
Model NO.
CK61160A CK61200A CK61220A CK61250A
Control Method
Closed-Loop Control
Certification
GS, CE, RoHS, ISO 9001
Production Capacity
5000 Sets/Year
Product Description

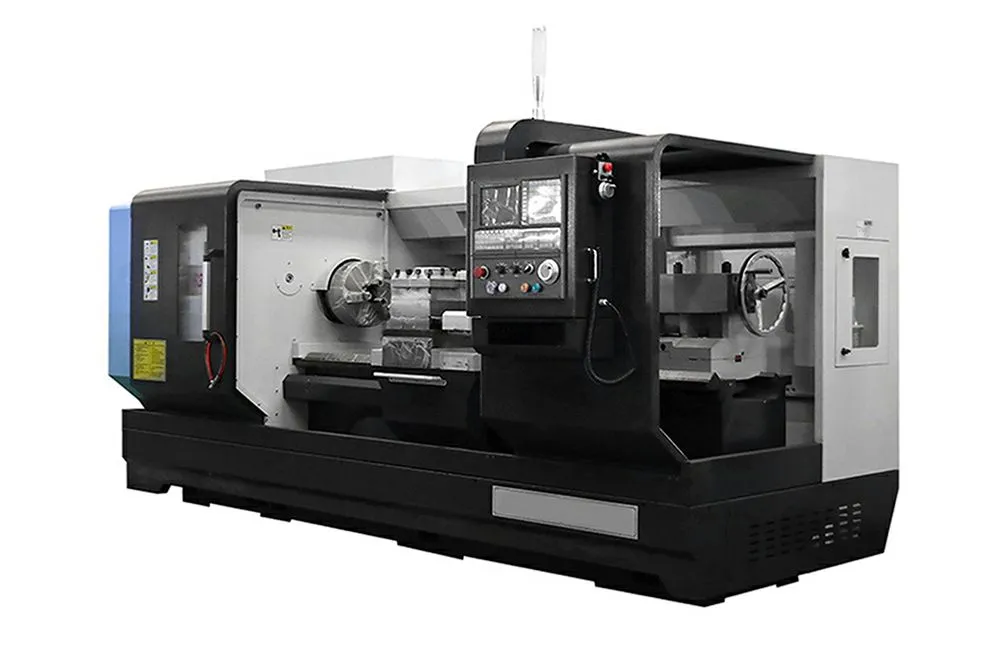

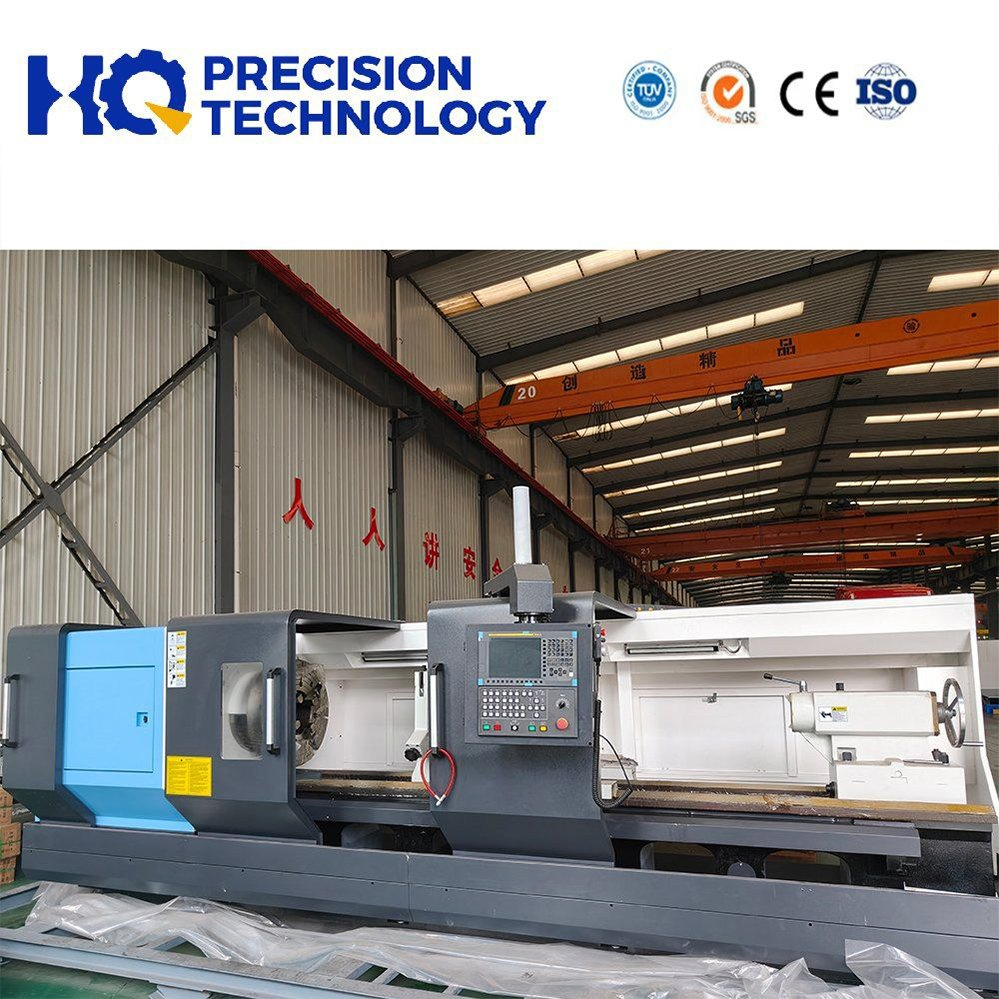

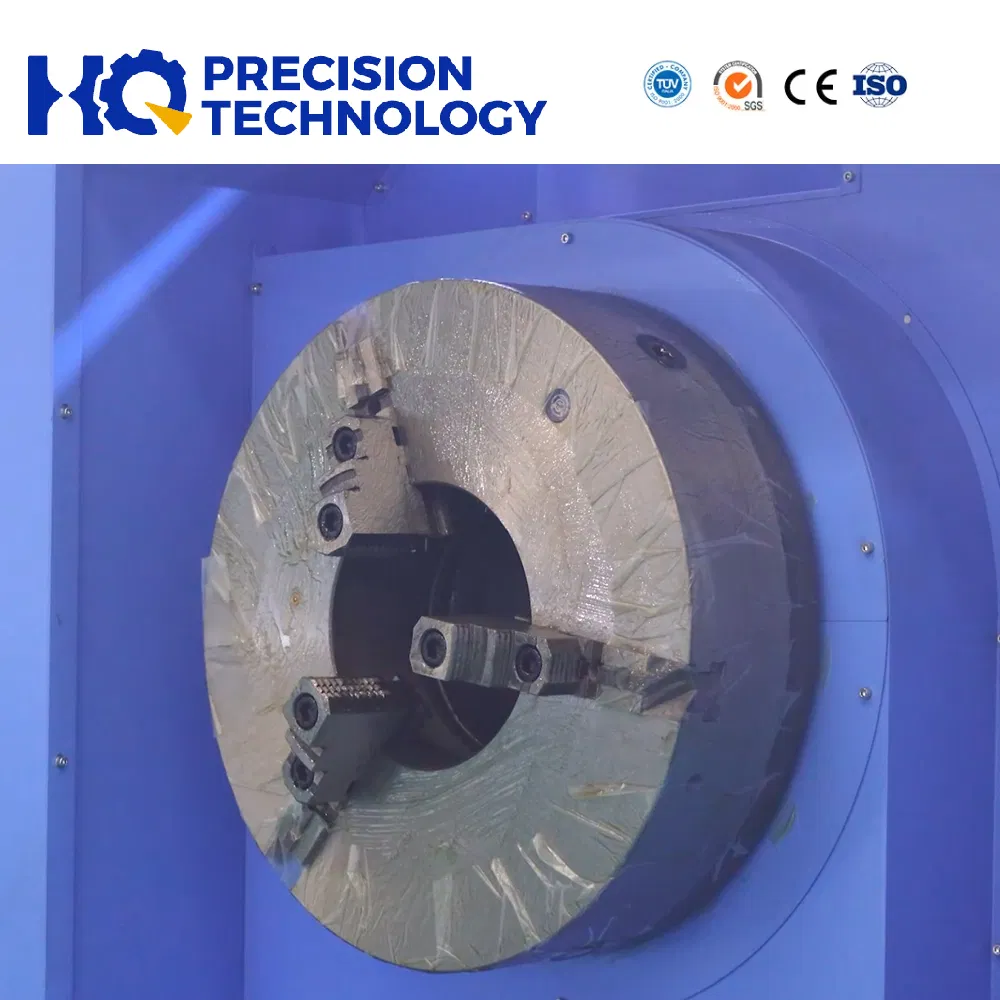

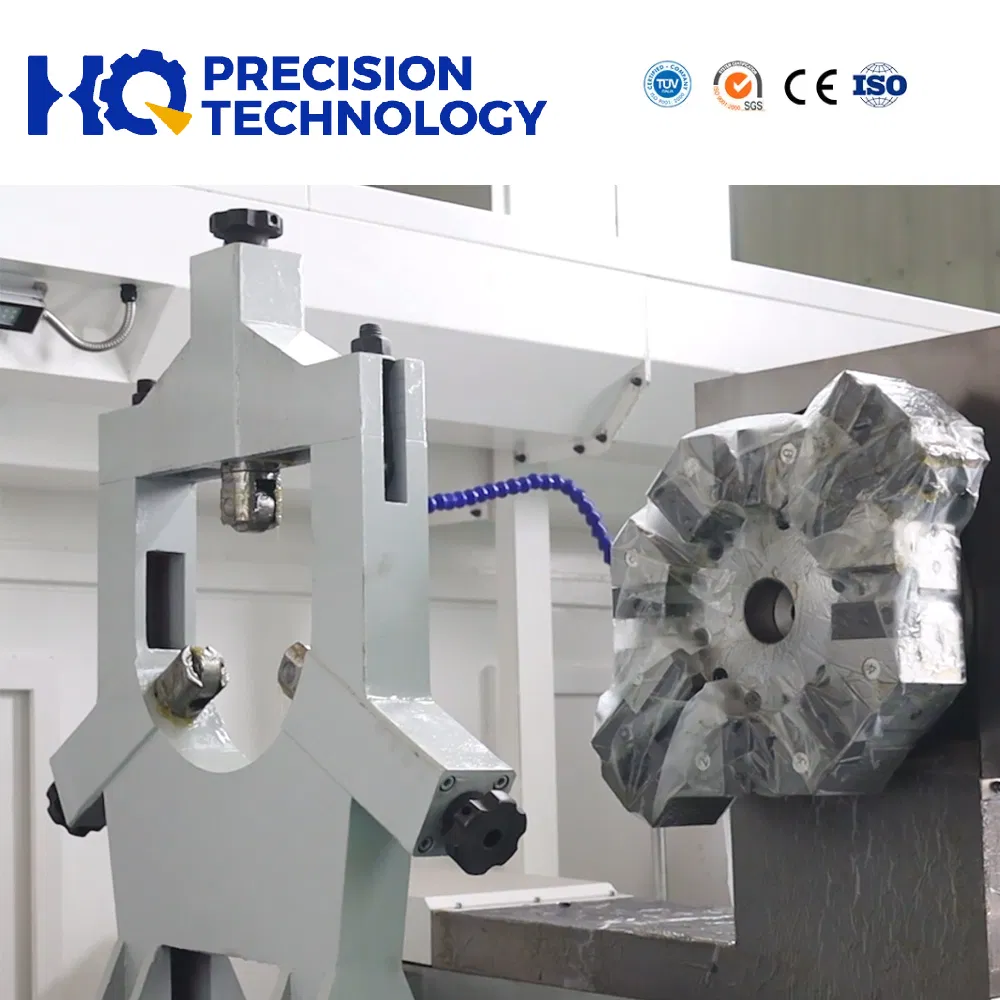

This Heavy Duty CNC Lathe is a heavy horizontal lathe independently developed. The bed adopts the whole two guide rails, the surface of the bed guide rails adopts medium frequency quenching, and the spindle box adopts the form of through shaft. The movement of Tailstock adopts mobile mode; the locking of Tailstock adopts manual mode, which is safe and reliable. These are automatic metal processing equipment controlled by CNC system, suitable for semi-finishing and finishing of heavy work pieces.
| Technical specifications |
Unit |
CK61160A |
CK61200A |
CK61250A |
| Max rotation diameter on bed | mm | φ1600 | φ2000 | φ2500 |
| Max cutting diameter on holder | mm | φ1250 | φ1600 | φ2000 |
| Max workpiece length | mm | 4000-20000 |
| Bed rail span | mm | 1350 |
| Guide rail load-bearing | T | 25 |
| Spindle speed range | r/min | 1-200 |
| Spindle motor | KW | 65KW |
Performance Characteristics
The structured bed is cast by resin sand technology, ensuring good rigidity and high precision.
Guide rails adopt medium frequency quenching and grinding technology for high hardness and wear resistance.
High-quality scraper plate prevents scratching; plastic-coated guide rail surface enhances durability.
Our Advantages
Over 70 years of industry experience since 1952.
ISO9001 certified with 30+ patents and provincial technology centers.
Annual output of 1,000 units with 500+ precision testing devices.
Global export reach including Russia, Australia, and Southeast Asia.
Service Excellence
Pre-Sales: Technical consultation, customized solutions, and transparent planning.
During-Sales: Efficient production standards and real-time progress updates.
After-Sales: 365/24 support, on-site installation, and genuine spare parts.
Frequently Asked Questions
1. What types of lathes can you offer?
We specialize in a wide range of lathes, including CNC, conventional, pipe threading, heavy-duty, and cylinder lathes. We also provide OEM & ODM services.
2. What industries are your lathes suitable for?
Our machines are widely used in oil and gas, automotive, aerospace, machinery manufacturing, and construction industries.
3. Do your products meet international quality standards?
Yes, we are ISO9001 certified. All products are manufactured to meet global standards for reliability and high performance.
4. What after-sales services do you provide?
We offer comprehensive support including on-site installation, operator training, technical assistance, and 24/7 troubleshooting.
5. Do you offer international shipping support?
Yes, we have extensive experience in global exports, handling customs clearance and documentation for timely delivery worldwide.
6. What are the standard payment terms?
Standard terms are a 40% deposit upon confirmation and the remaining 60% before shipment. Custom terms are negotiable for long-term partners.
