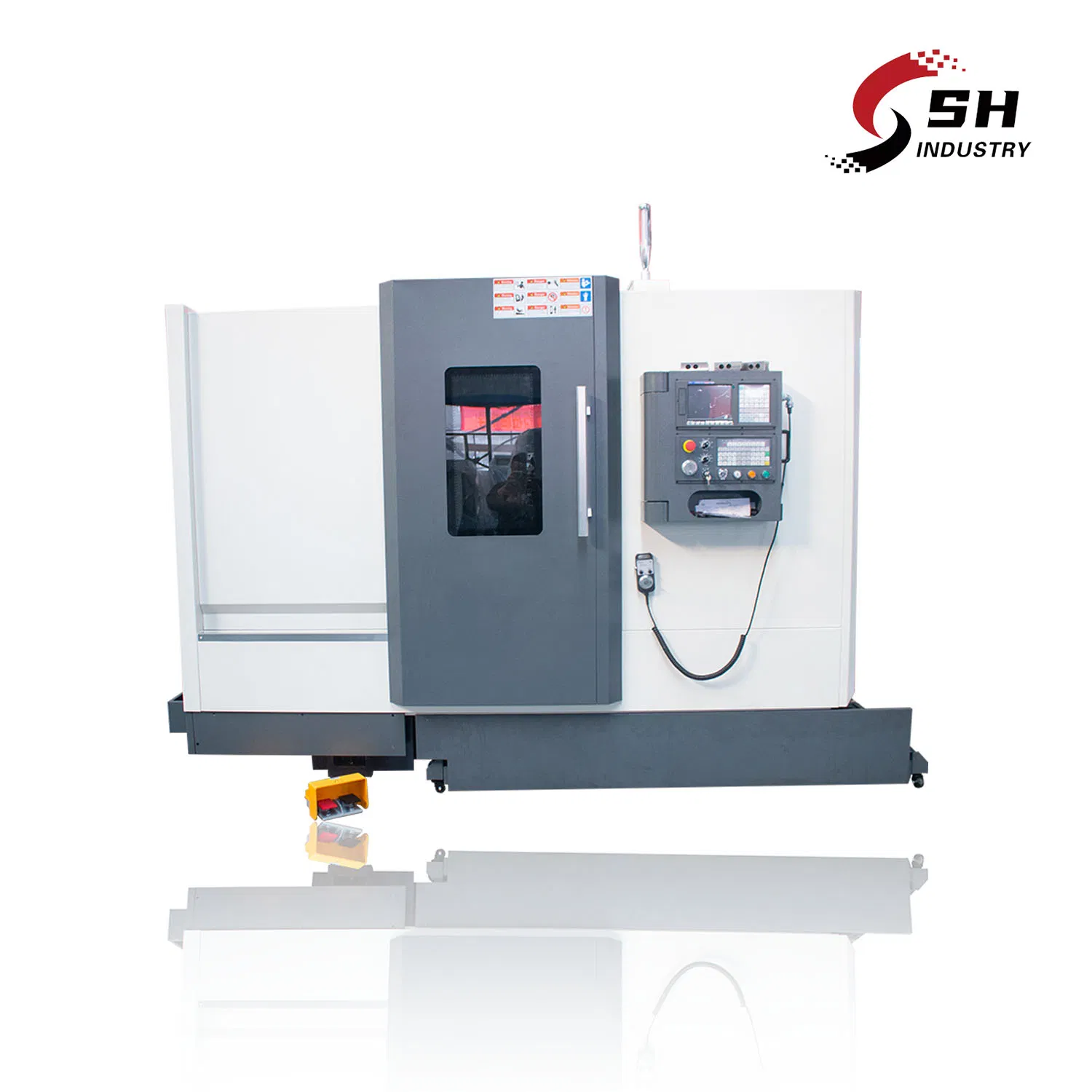

Automated Slant Bed CNC Lathe Turning Center with Linear Guideways Tck36 Tck46 CNC Lathe

1 / 5

Automated Slant Bed CNC Lathe Turning Center with Linear Guideways Tck36 Tck46 CNC Lathe

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Info.

Model NO.

TCK46

Precision

High Precision

Casting

One- Piece Casting

Max.Swing Over Bed

460mm

Spindle Bore

56mm

HS Code

8458110090

📦 Packaging & Delivery

Package Size

2000.00cm * 1500.00cm * 1600.00cm

Gross Weight

2300.000kg

🛠️ Product Description

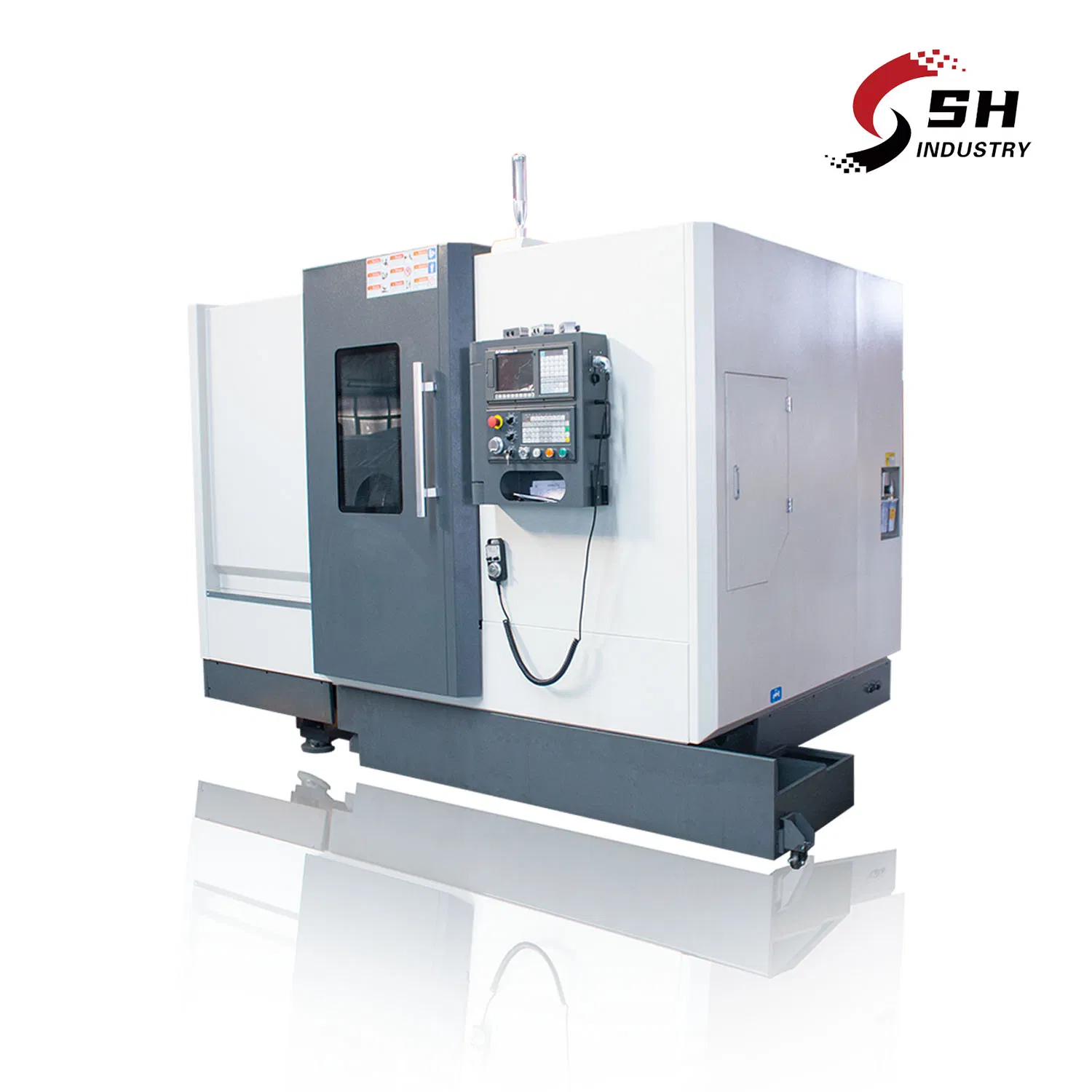

Automated slant bed CNC lathe turning center with linear guideways Tck36 Tck46 CNC lathe

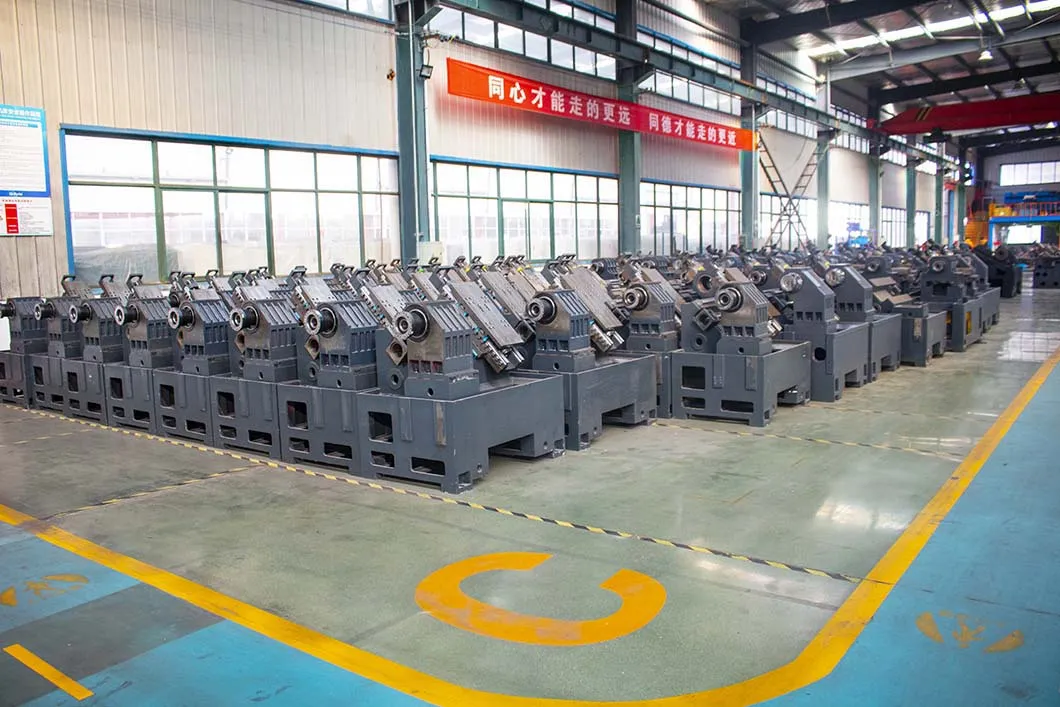

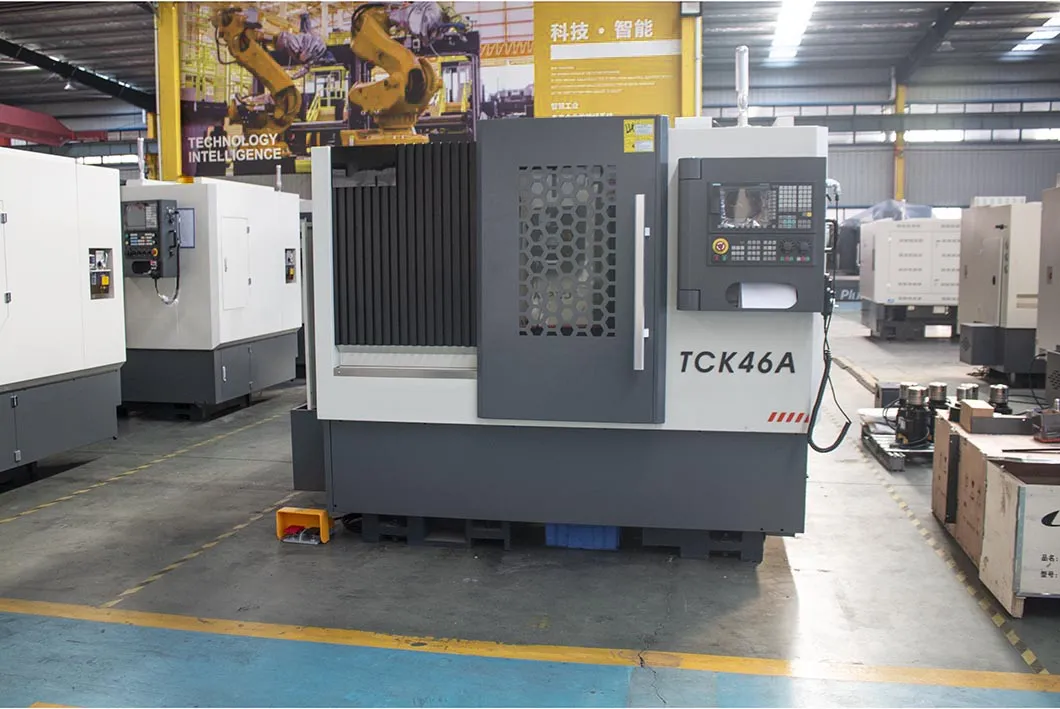

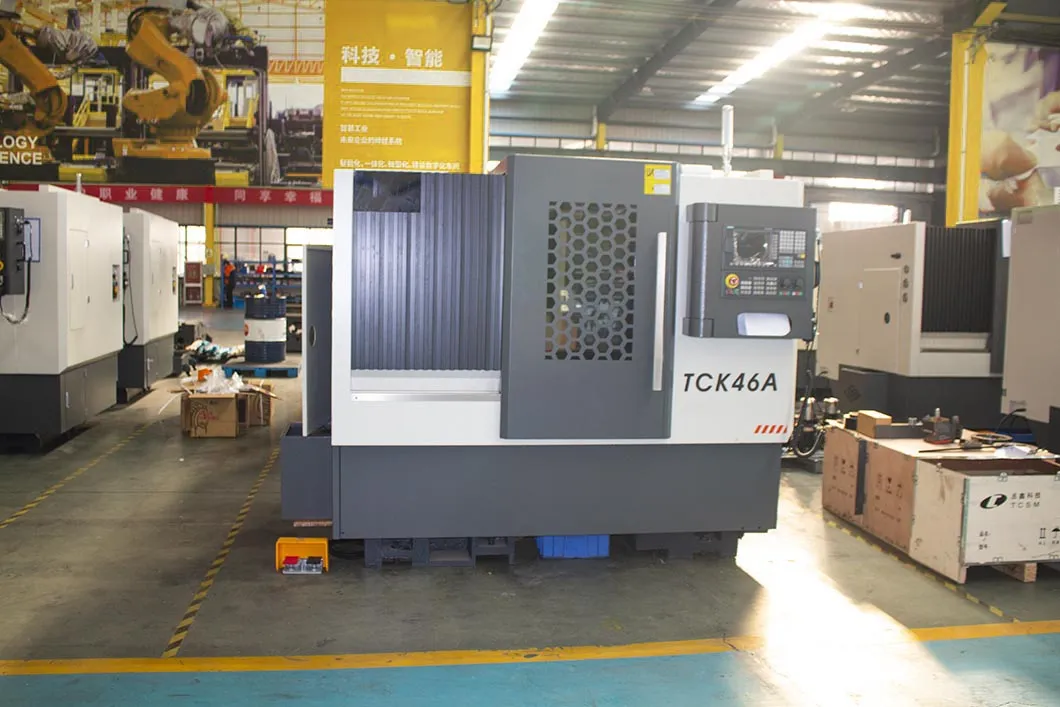

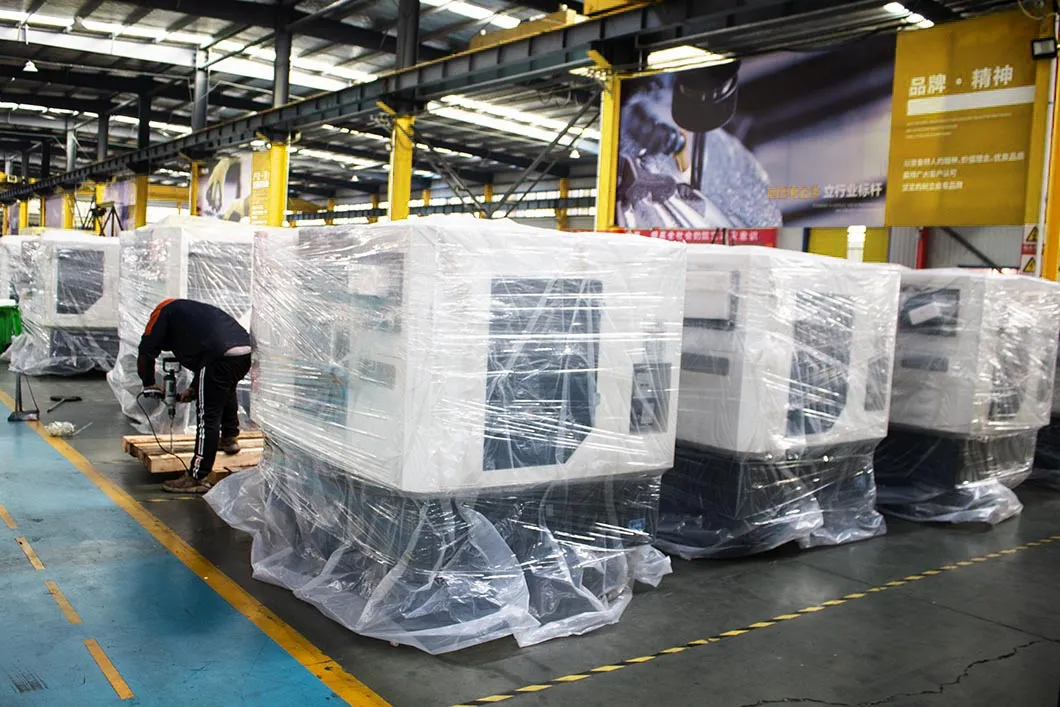

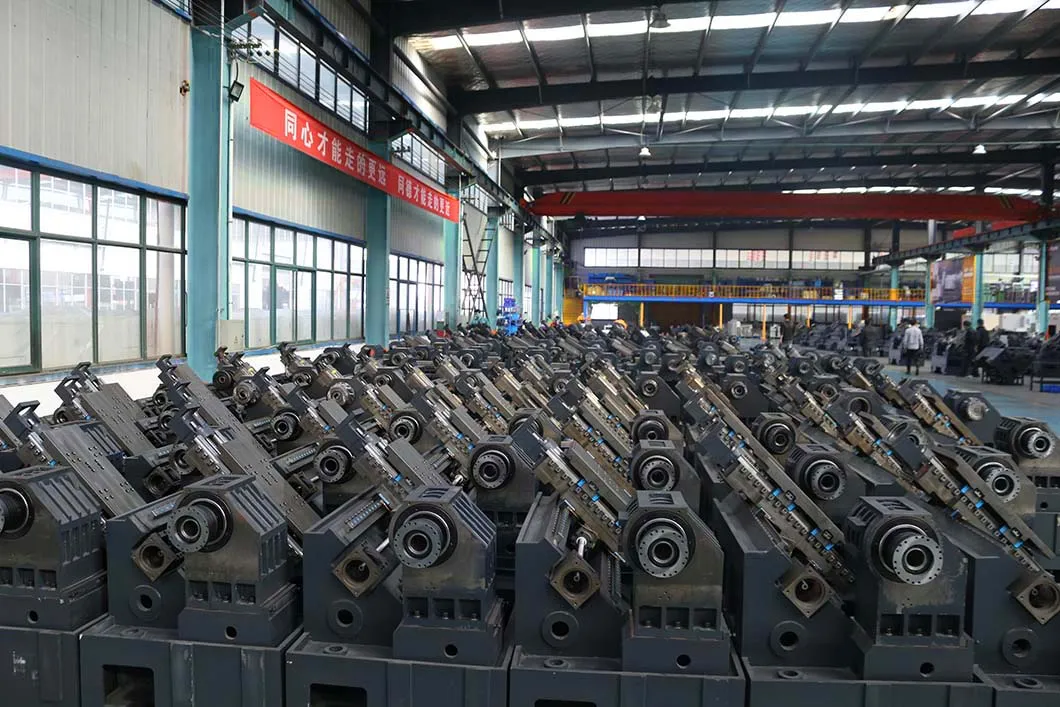

📸 Realistic Photos

🚀 Product Features:

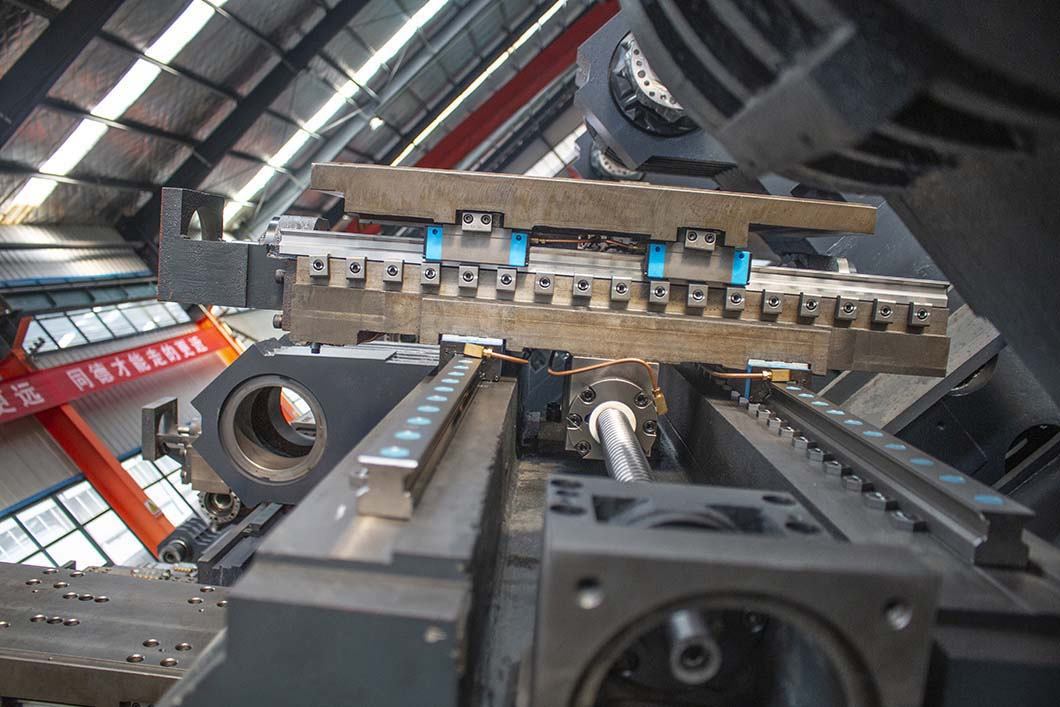

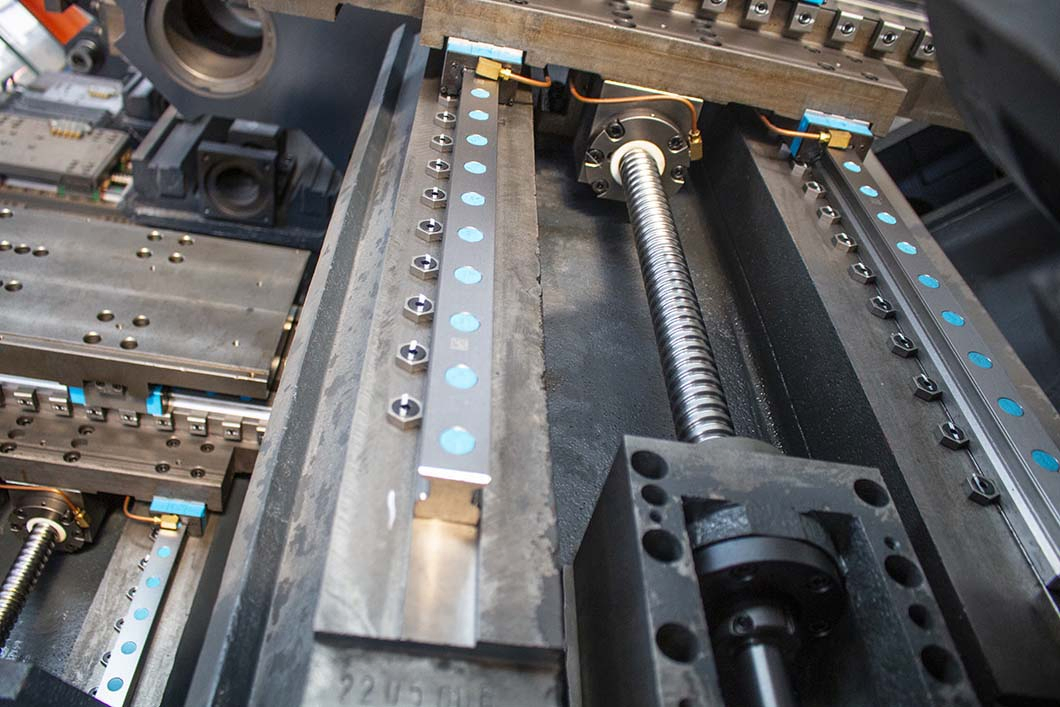

Highest accuracy Taiwan linear guide ways

Higher speed spindle unit, optional homemade spindle

Higher rigidity cast iron

Integrated automatic lubrication

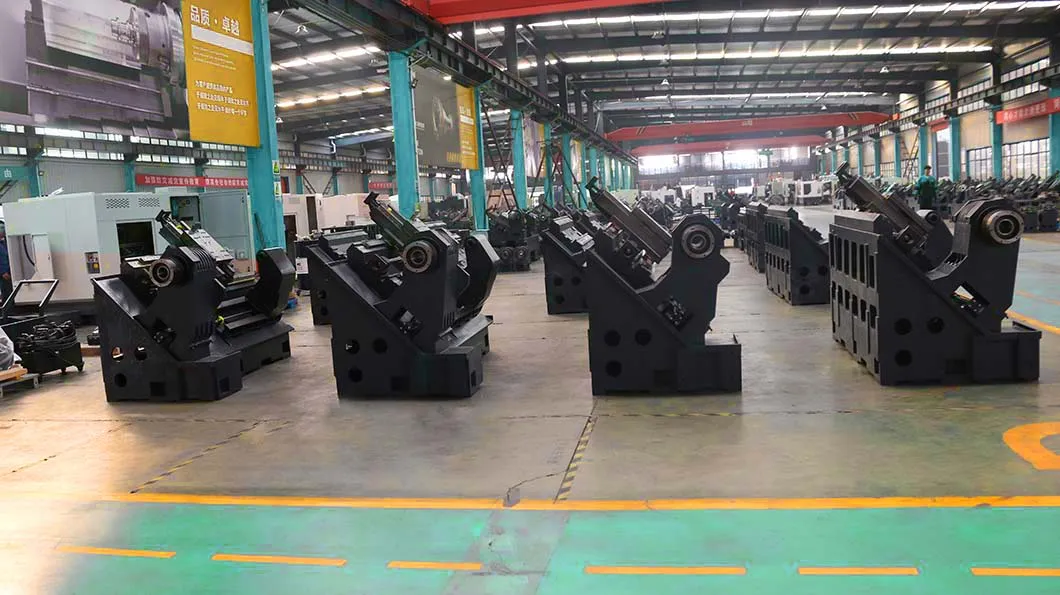

One-piece casting slant bed cnc lathe

🎯 Application

The machine is suitable for automobile, motorcycle, electronics, aerospace, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.

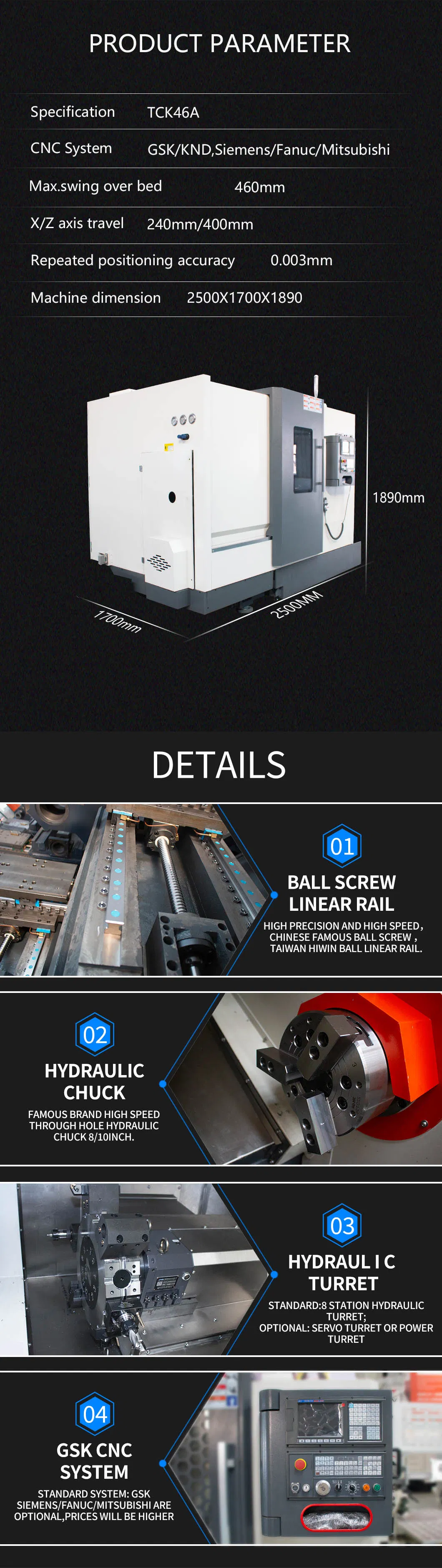

📋 Technical Specifications

Specification	Unit	TCK46A
Max.swing over bed	mm	460
Max.swing over cross slide	mm	260
Max. Processing length	mm	350
Max. Bar capacity	mm	45
Spindle bore	mm	56
Spindle speed range	r/min	50-3500
Main motor power	kw	7.5
X/Z axis rapid traverse	M/min	24
Machine weight	kg	3000

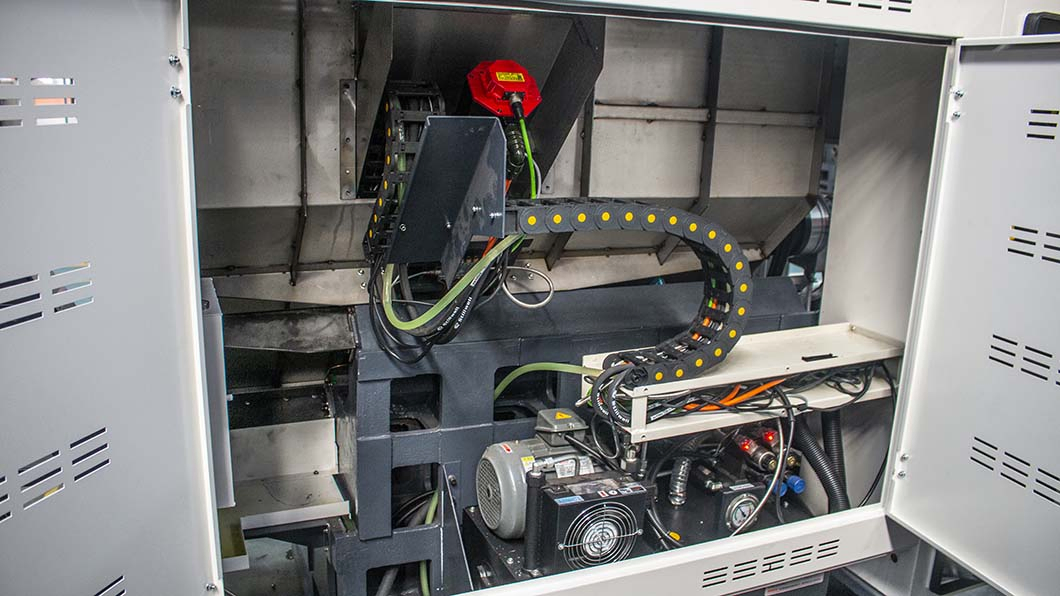

🔍 Detailed Photos

❓ Frequently Asked Questions

What is the advantage of the slant bed design?

The 45-degree slant bed design provides higher rigidity, better chip disposal, and easier access to the workpiece for loading and unloading.

What type of linear guides are used in the TCK46?

The machine utilizes high-precision Taiwan linear guideways to ensure smooth movement and long-term processing accuracy.

Does the lathe include an automatic lubrication system?

Yes, it features an integrated automatic lubrication system to ensure all moving parts are properly maintained during operation.

What industries is this CNC lathe suitable for?

It is ideal for high-precision batch processing in the automobile, motorcycle, electronics, aerospace, and oil industries.

What is the maximum spindle speed?

The TCK46A model offers a spindle speed range of 50 to 3500 r/min, powered by a 7.5kw main motor.

What kind of chuck is standard on this machine?

This machine comes equipped with an 8-inch hydraulic chuck for secure and efficient workpiece clamping.
