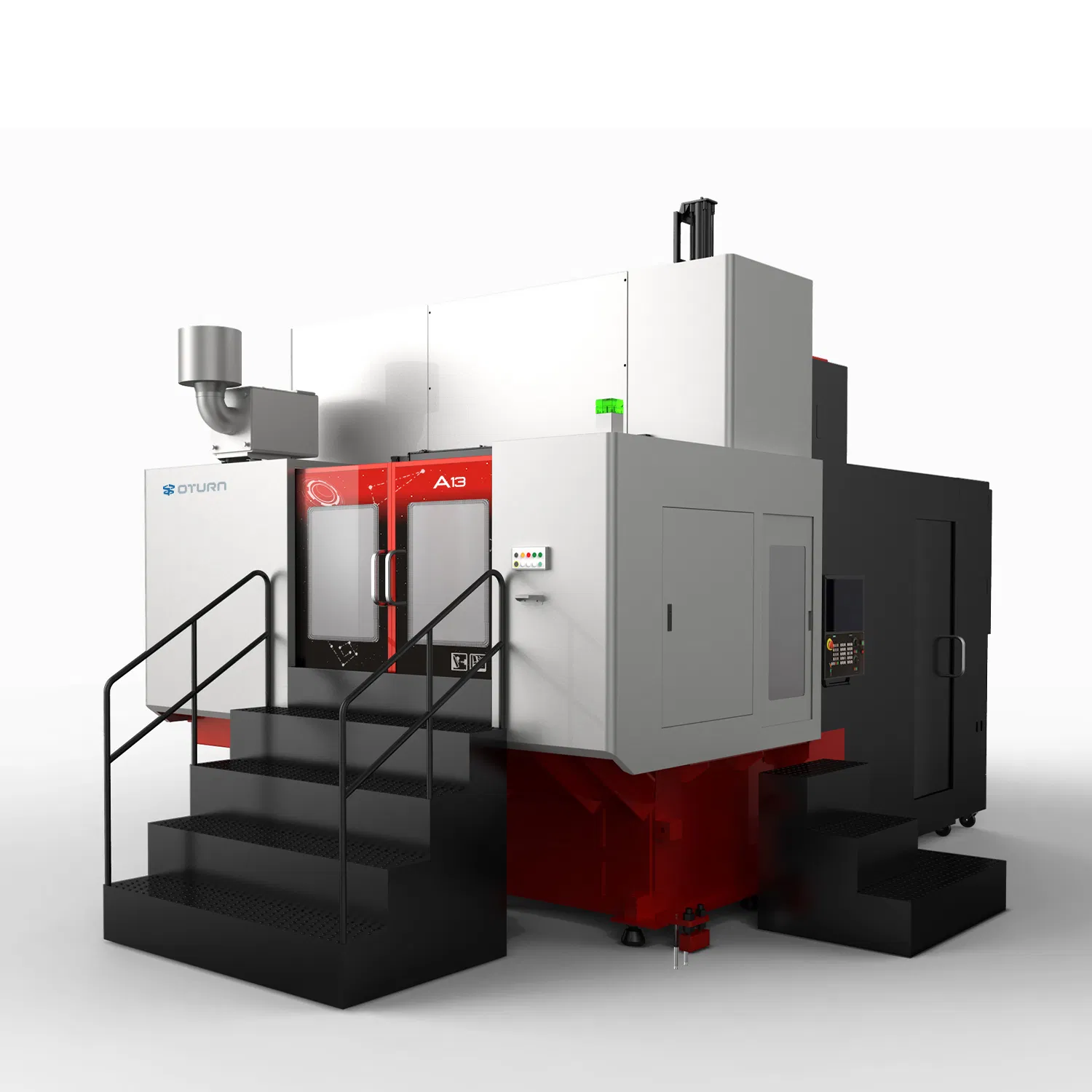

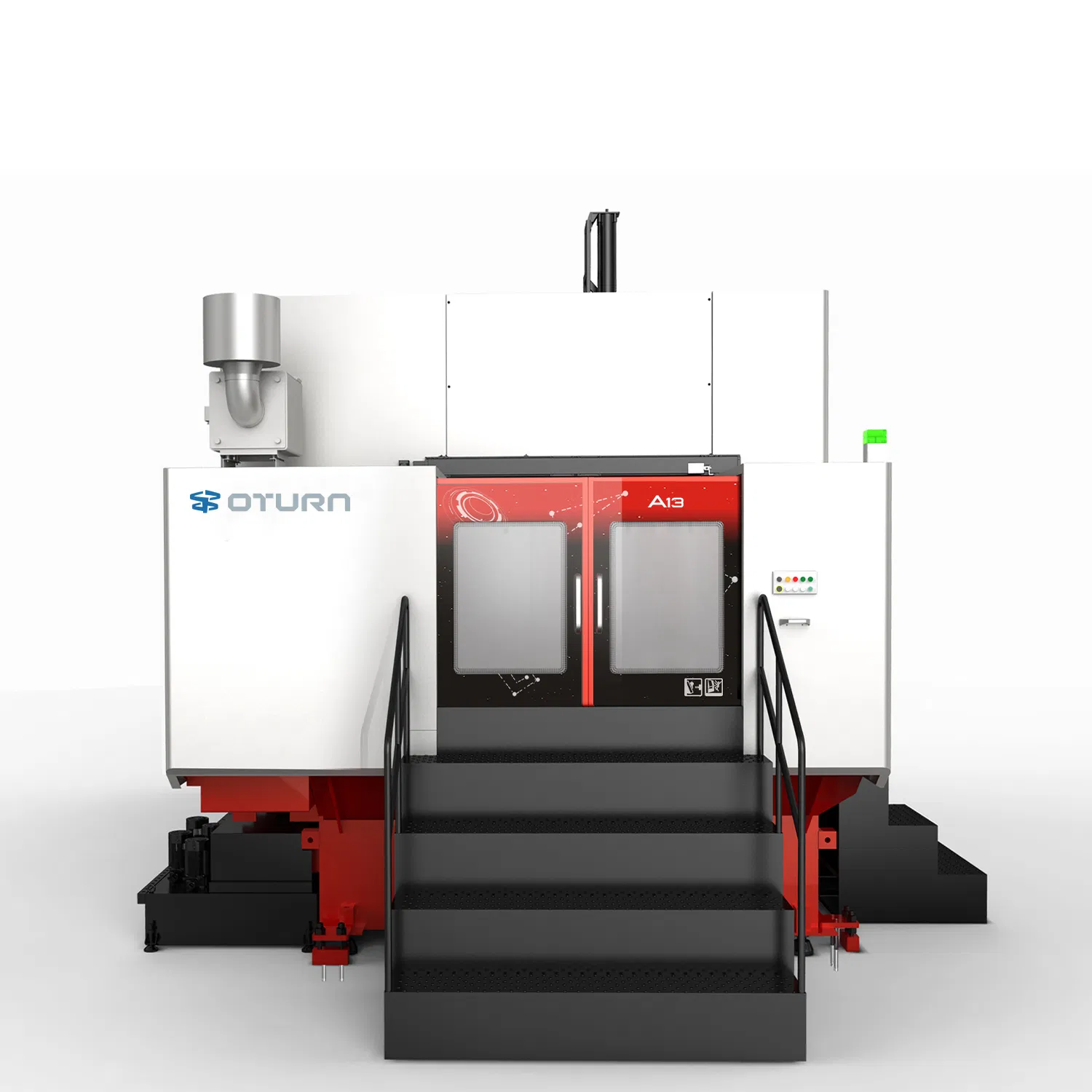

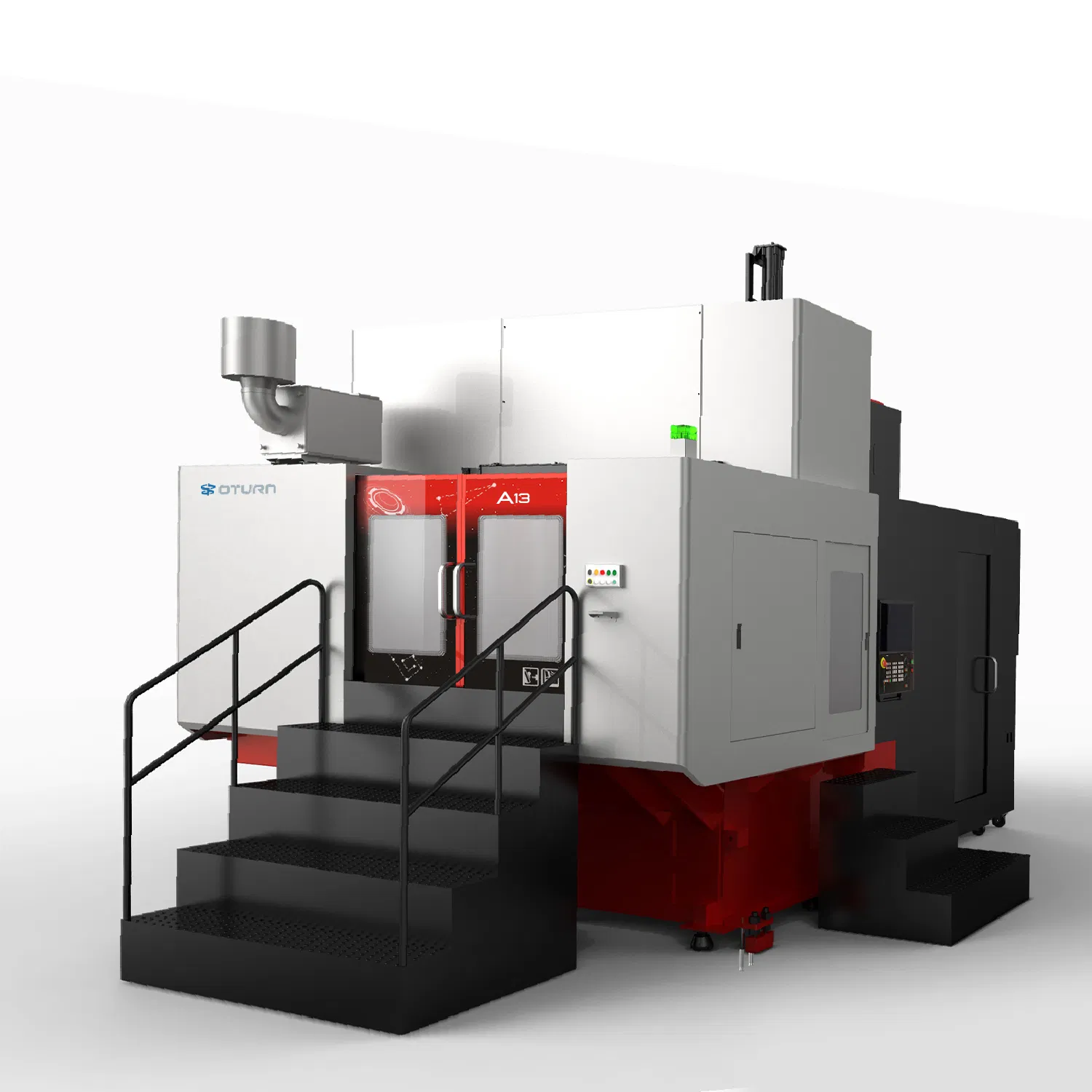

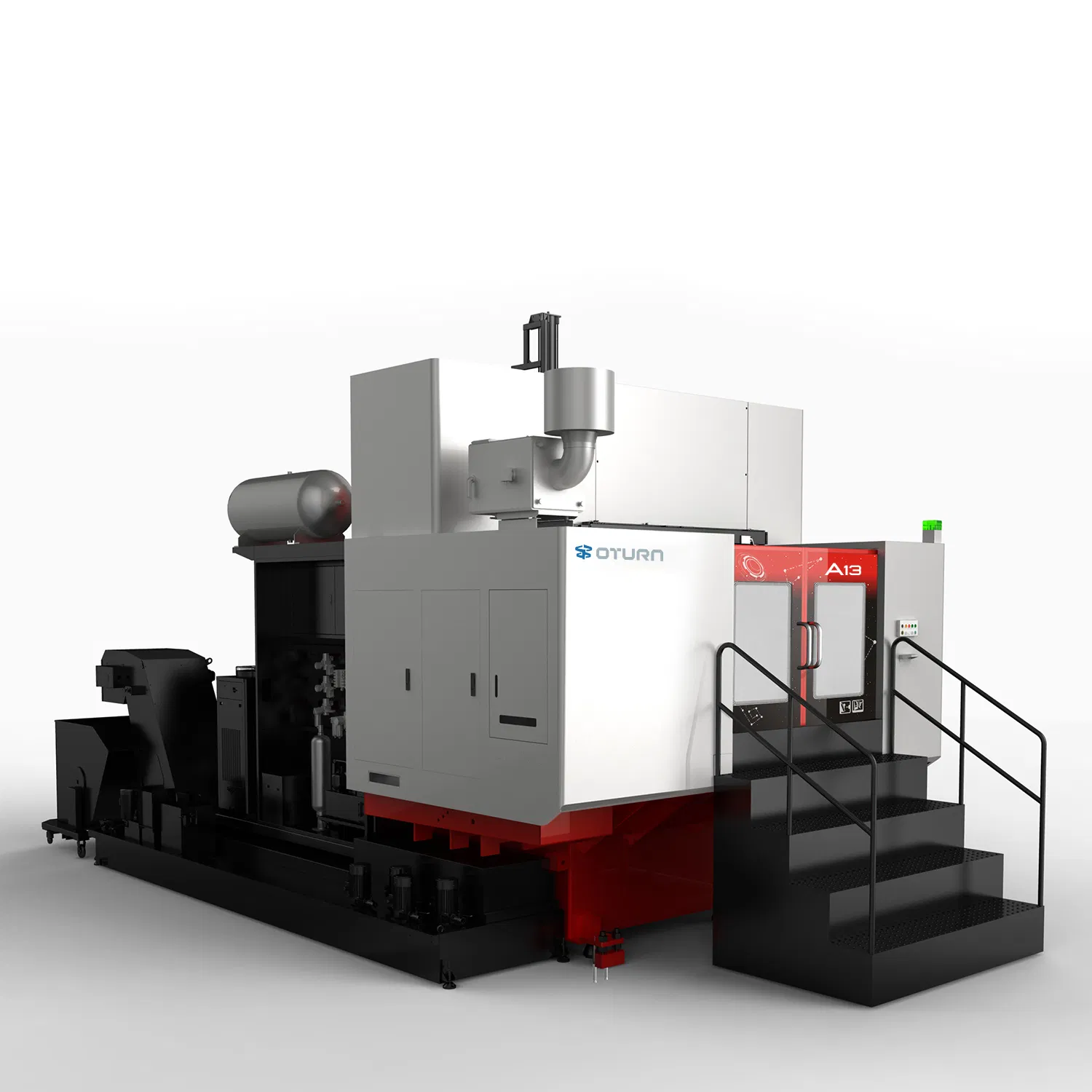

Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center
Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center
Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center
Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center
Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center
1 / 5
Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center
Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center
Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center
Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center
Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center

Aluminum Big Size CNC Milling Machine A13 5 Axis Simultaneous High Speed CNC Horizontal Machining Center

Customization: Available
After-sales Service: Support
Warranty: 1 Year
Send Inquiry

Product Description

🔹 Basic Information
Model NO.
A13
Application
Metal
Process Usage
CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, ISO 9001
Control System
Fanuc, Siemens, Mitsubishi
Tool Magazine
24 PCS, 32 PCS
Spindle
Bt40, Bt50, Hsk63
Motor Power
11, 15, 18.5, 22kw
🔹 Product Description
CNC Machine Overview

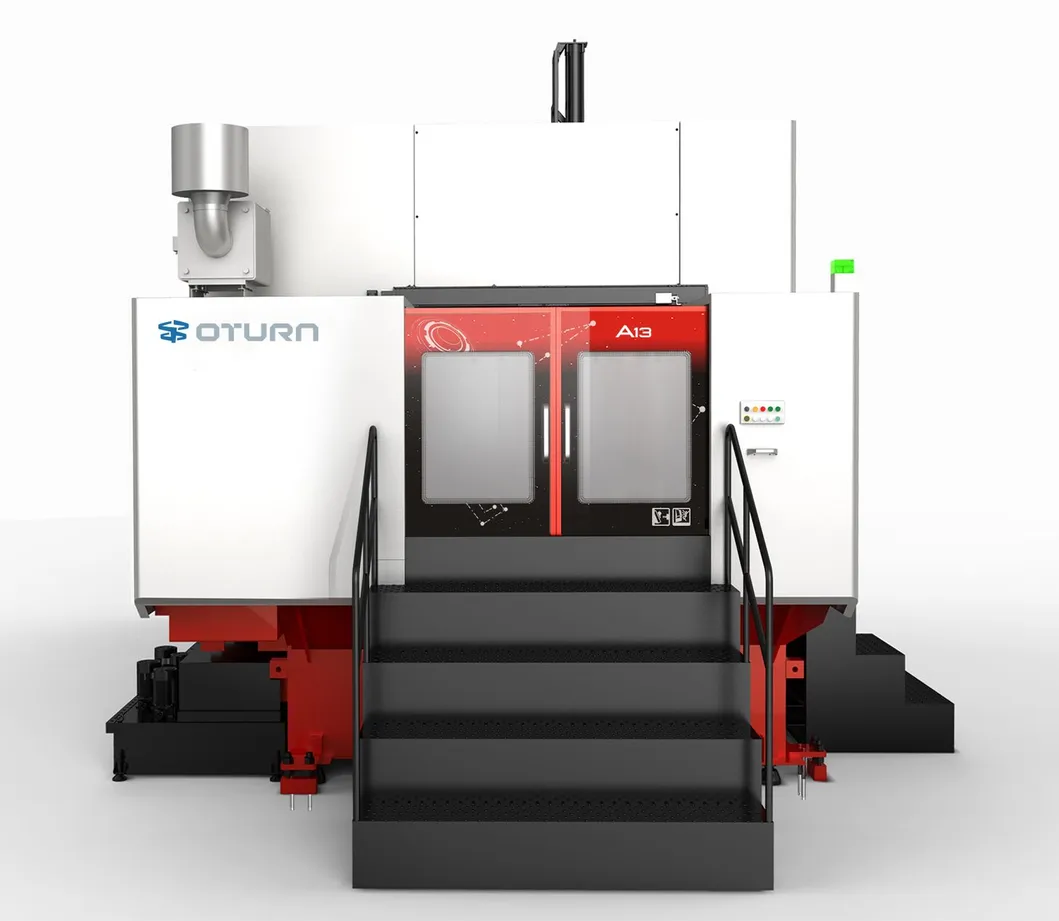

CNC Machine Detail

The 5-axis Horizontal Cradle Machine Center A Series developed has the characteristics of high rigidity, high precision and high efficiency processing. Adopting the self-developed HSK E40/HSK A63/HSK A100 built-in spindle. Within the range of spindle rotation, eliminate jumping and vibration, and achieve stable accuracy in high-speed and long-term processing.

  • Moving column structure with five axis linkage (tool 3 axes, workpiece 2 axes).
  • Lightweight design: 90M/min rapid displacement, acceleration 0.8G.
  • Direct drive A-axis and B-axis: zero reverse clearance, high rigidity.
  • T-shaped bed layout and X-axis stepped guide rail for optimal stress distribution.
  • High-speed electric spindle for low noise operation.
  • Three linear axis roller guide rails for low friction and high stability.
🔹 Technical Parameters
Item Unit Specifications (A13)
X/Y/Z Axis Travelmm1300/850/650
Spindle Taper HolemmA63
Maximum Spindle Speedr/min16000
Rated Power of Spindle MotorkW30KW
X/Y/Z Rapid Displacementm/min90/90/90
Positioning Accuracymm0.015/0.008/0.008
Disc Diametermm600*600
Allow Loadkg1000
Tool Magazine CapacityT41T
Machine WeightT15
🔹 Products Configurations & Quality Control

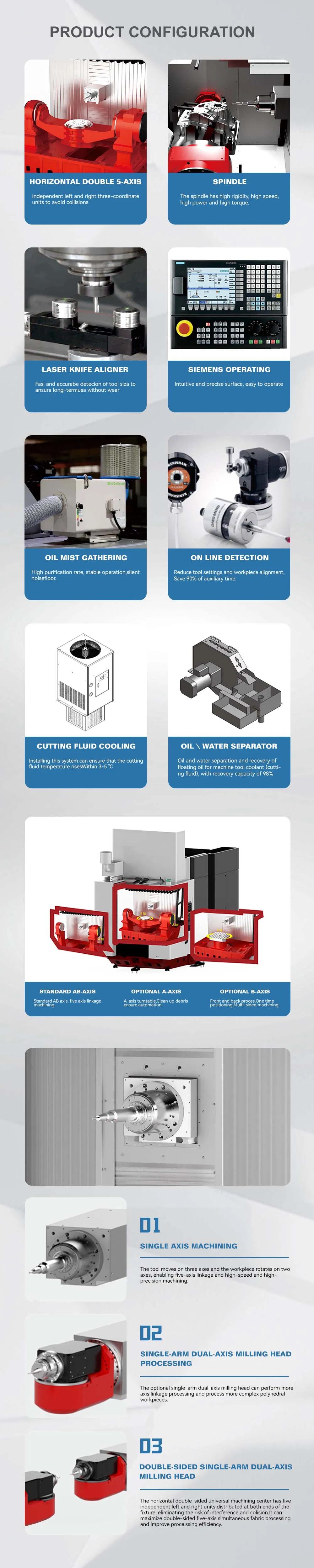

Configurations
Production Line

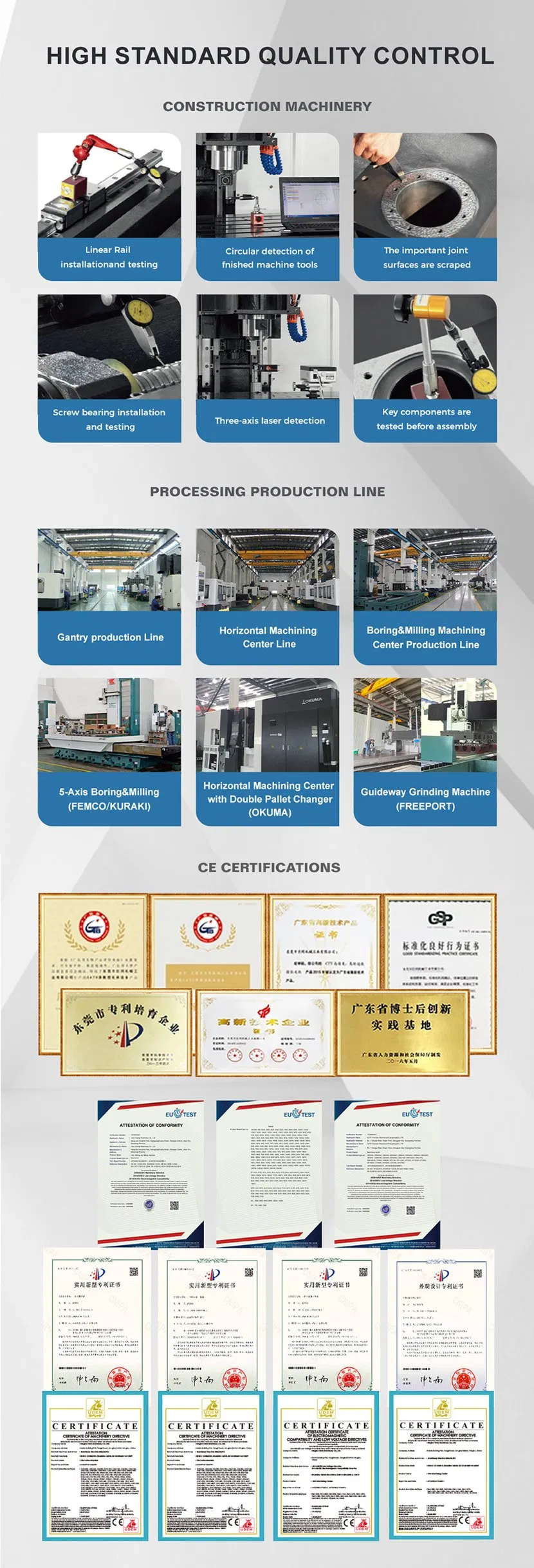

Quality Inspection
🔹 Our Advantages
Advantages Chart
🔹 Frequently Asked Questions
Q1: How can I choose the most suitable machines?
Please provide your specifications or product drawings, and our technical team will evaluate and recommend the best model for your specific processing needs.
Q2: What are your main product categories?
We specialize in a wide range of CNC machinery, including CNC Lathes, Milling Machines, Vertical and Horizontal Machining Centers, and Turning-Milling composite centers.
Q3: What are the available transportation solutions?
We provide flexible transportation solutions including DDP, CIF, FOB, and FCA to meet international logistics requirements.
Q4: What are the payment terms for orders?
Standard terms are T/T with a 30% initial payment upon ordering and the remaining 70% balance payment before shipment.
Q5: What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most of our high-end CNC equipment.
Q6: Can I get a CIF price for my local port?
Yes, please provide us with your port of destination, and we will calculate the CIF price including shipping and insurance for you.
