Advanced Robotic Solutions for Streamlined Industrial Workflow Optimization

Customization:	Available
Application:	burnishing, polishing, machine loading/unloading a
Control Mode:	Point to Point Control

Send Inquiry

Product Description

Basic Information

Drive Mode:servo drive

Axes:6 Axes

Motion Radius:2850mm

Payload range:300kg

Machine weight:1650kg

Structure:Articulated

Certification:ISO, CE

Warranty:1 year

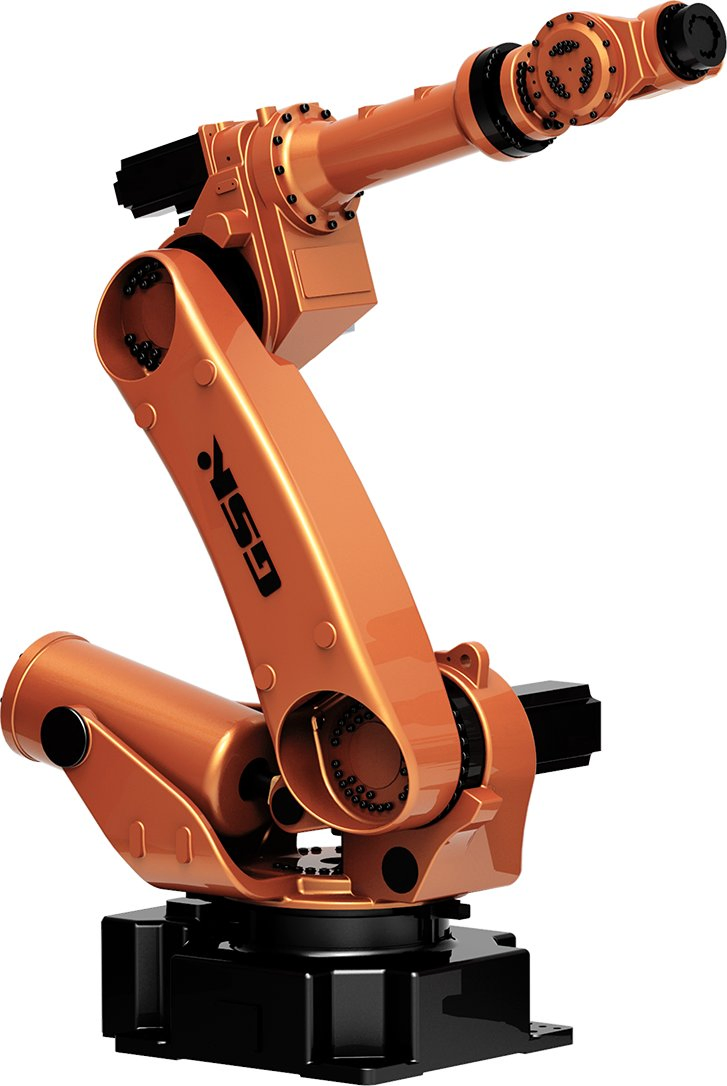

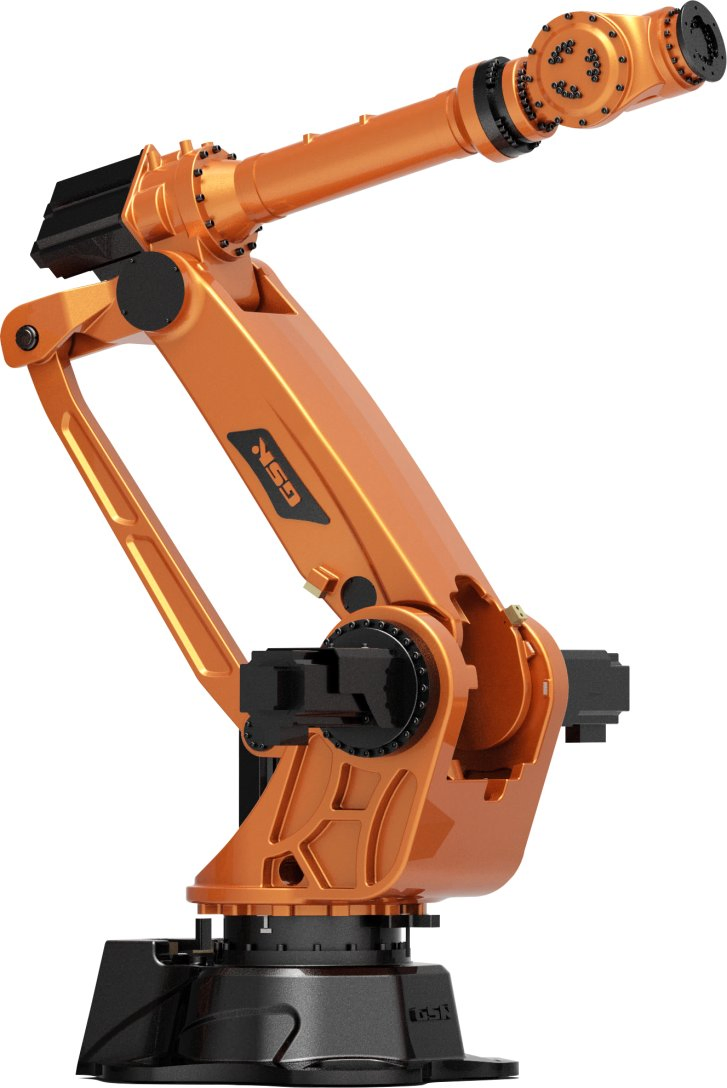

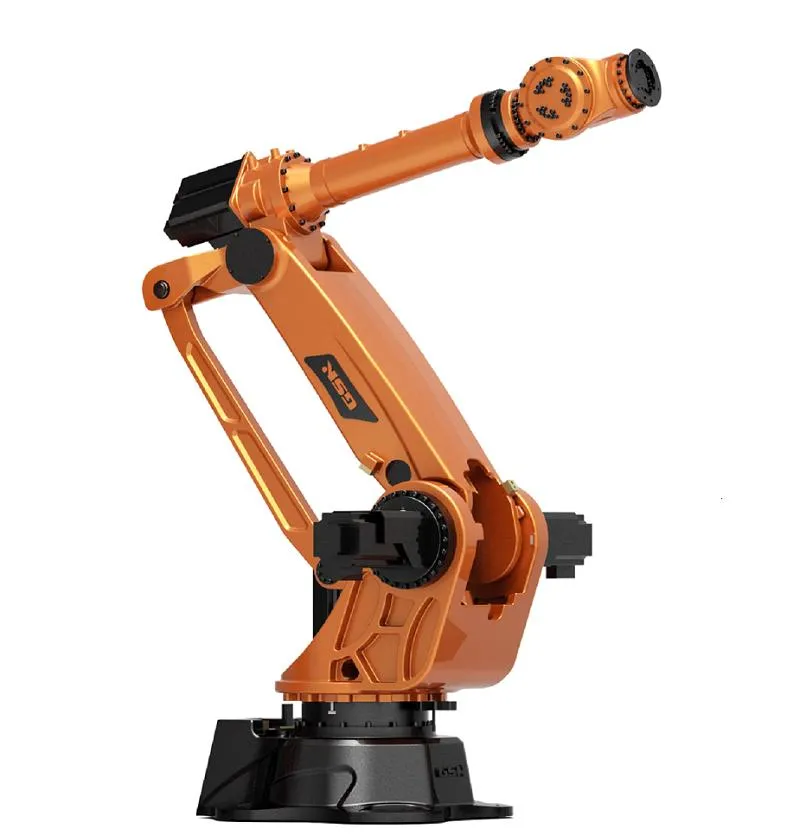

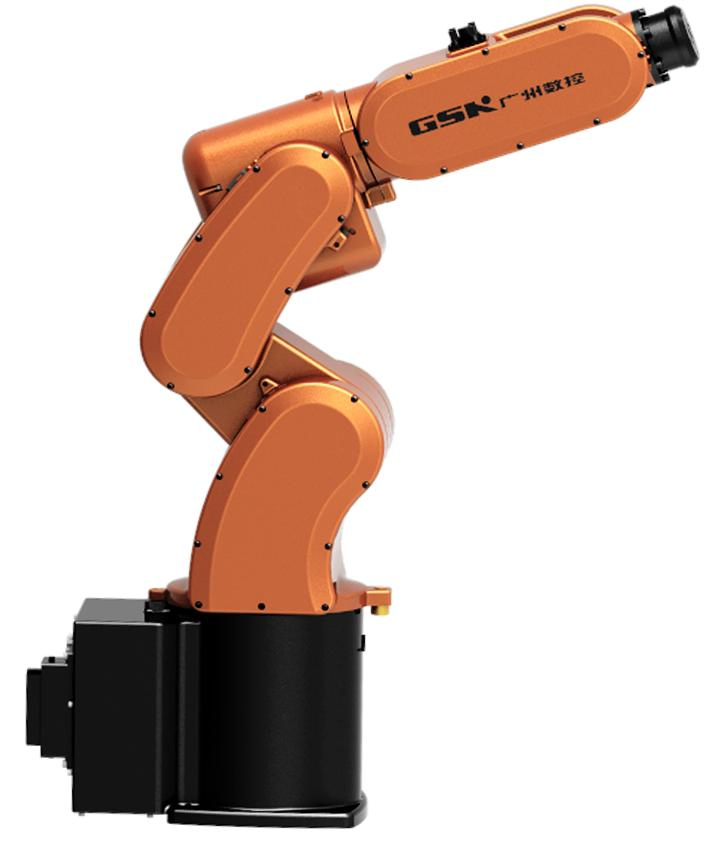

Product Description: RB300A1-2850 Industrial General Robot

Application field: It is widely used in burnishing, polishing, spraying/painting, machine loading/unloading and automatic transport on punching automation production lines.

Key Product Features

Greatly simplified mechanical structure design, high reliability, stable performance.
Perfect seal design, local (J4~J6 axis) protection level up to IP65.
High speed, high precision, improves production efficiency and reduces costs.
Different movement radius and load options to meet diverse market needs.

Technical Specifications

Type	Dof	Drive Method	Payload (kg)	Repeatability	J1 Range	J2 Range	J3 Range	Motion Radius	Weight
RB300A1-2850	6	AC Servo	300	±0.1mm	±175°	±70°	-85°~+130°	2850mm	1650kg

Advanced Control Systems

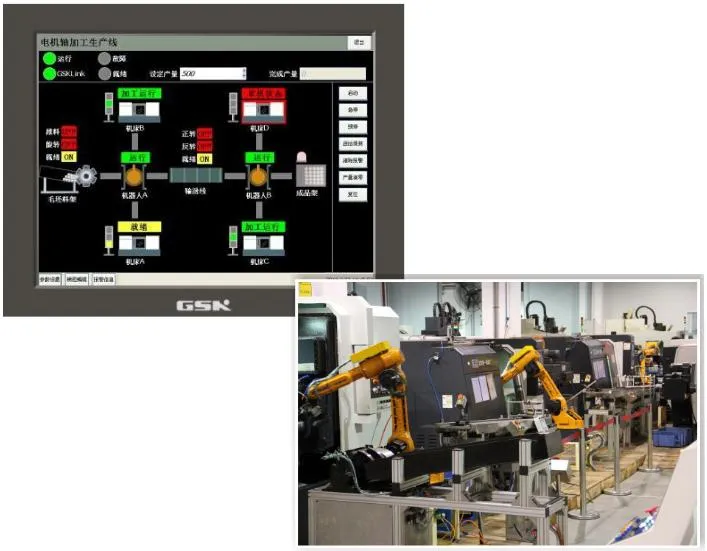

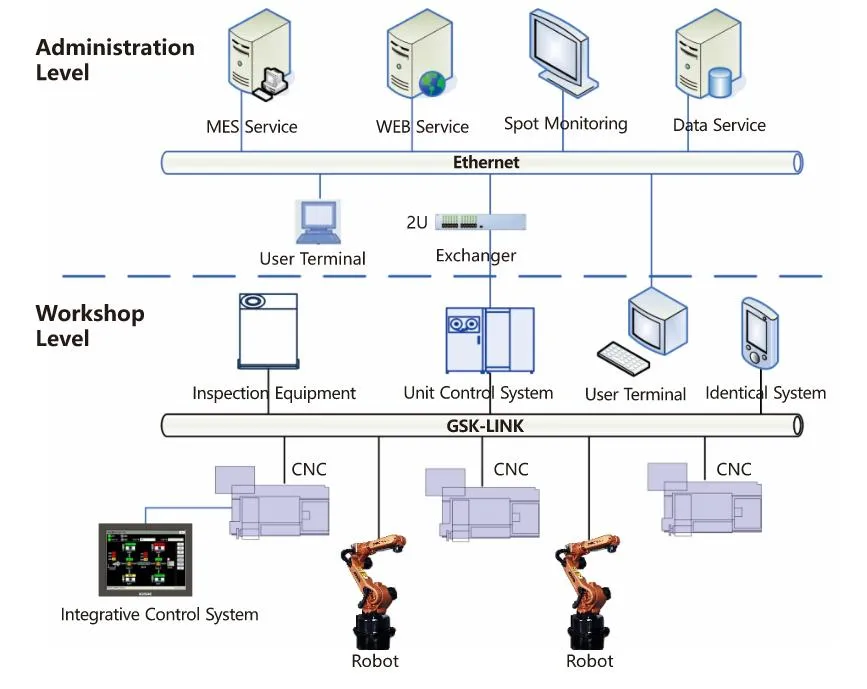

Production Line Unit Control System: Utilizing GSK-LINK on-site bus for high-speed connection between CNC machines, industrial robots, and auxiliary devices.

Application Cases

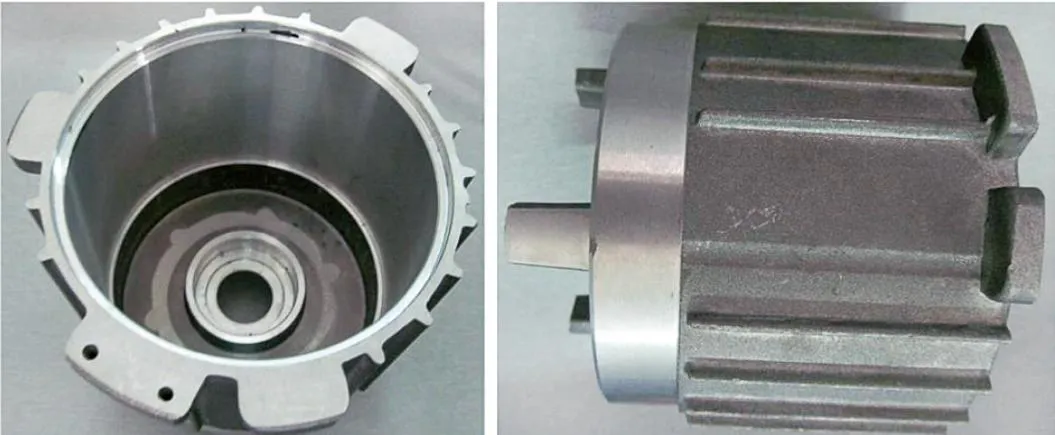

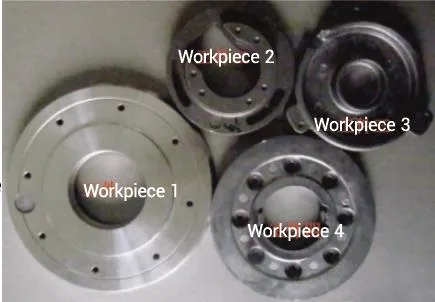

1. Machine Tool Loading/Unloading: Applied to CNC turning machines with high flexibility for various workpieces.

Robot Family & Development

With over 30 years of R&D experience, the robot series covers transportation, welding, polishing, painting, stacking, and paralleling with up to 30 product types.

Frequently Asked Questions

Q1: What is the maximum payload and reach of the RB300A1-2850 robot? A1: This industrial robot features a high payload capacity of 300kg and an extensive motion radius of 2850mm.

Q2: What is the protection level of the robot joints? A2: The robot joints (J4 to J6 axis) are designed with a protection level of up to IP65, making it highly adaptable to harsh industrial environments.

Q3: Can these robots be integrated into existing CNC production lines? A3: Yes, using the GSK-LINK on-site bus, the robots can achieve high-speed communication and seamless integration with CNC machines and auxiliary equipment.

Q4: What are the main applications for the 6-axis industrial robots? A4: Main applications include machine tool loading/unloading, polishing, spraying, painting, automatic transport, and die-casting pouring.

Q5: What certifications do the robots hold? A5: The robots are manufactured according to high-quality standards and hold ISO and CE certifications.

Q6: Is technical support available for automation solutions? A6: Yes, comprehensive support is provided for automation solutions, including the design and manufacture of specialized grippers and conveyors.
