Cora CNC
1 / 5
| Model NO. | ZXX-E1025 |

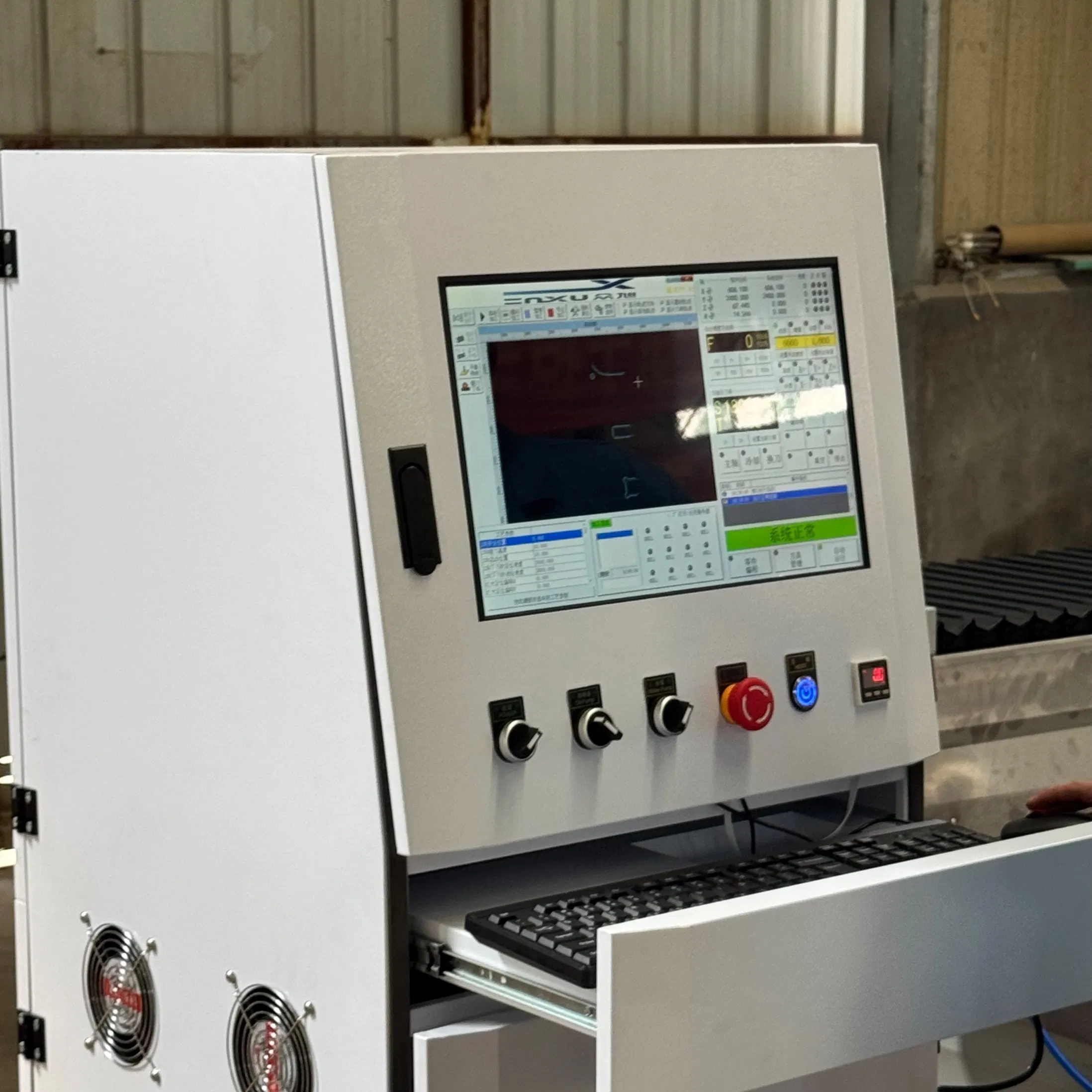

| Control System | Automatic, CNC, Touch Screen Control |
| Glass Thickness Range | 3 mm - 19 mm |
| Product | Glass Door Hinges Making Machine |
| Function | Drilling Cutting Grinding Milling Carving Engrave |
| Power | 9.1kw |
| Material | Glass, Marble, Metal, Wood Panel etc. |
| Machine Size | 3500*1500*2200mm |
| Total Weight | 1600kg |
| Accuracy | ±0.2mm |

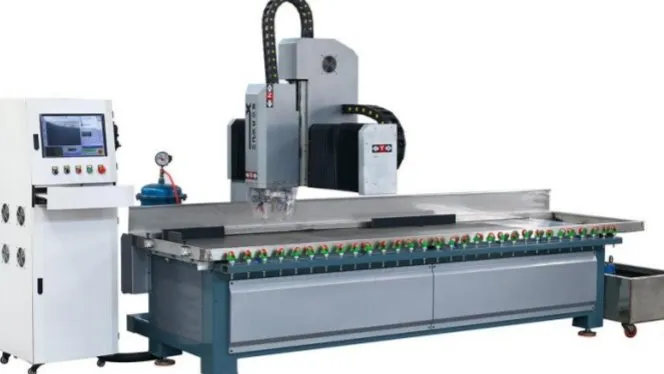

This CNC milling machine is primarily designed for processing glass door hinges, door clamps, and lock holes. It is an essential tool for tempered glass factories focusing on shower rooms, sliding doors, and cabinet glass. Compared to water jets, it offers a more cost-effective solution with lower consumable costs and easier maintenance.

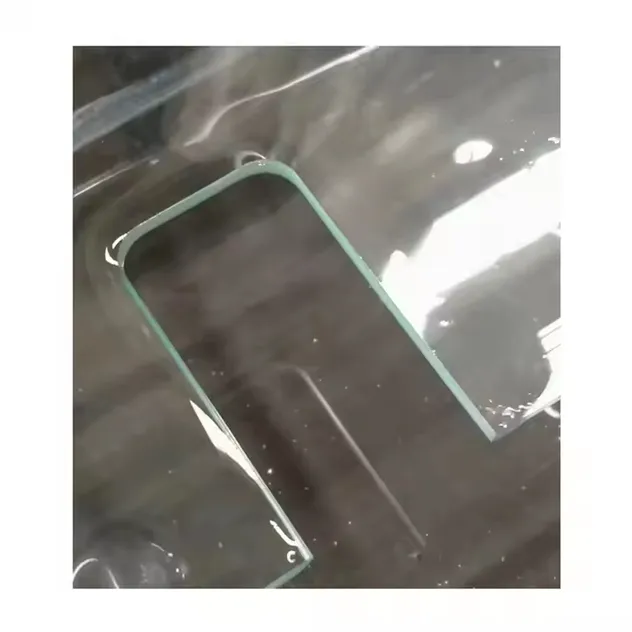

Glass Door Hinges

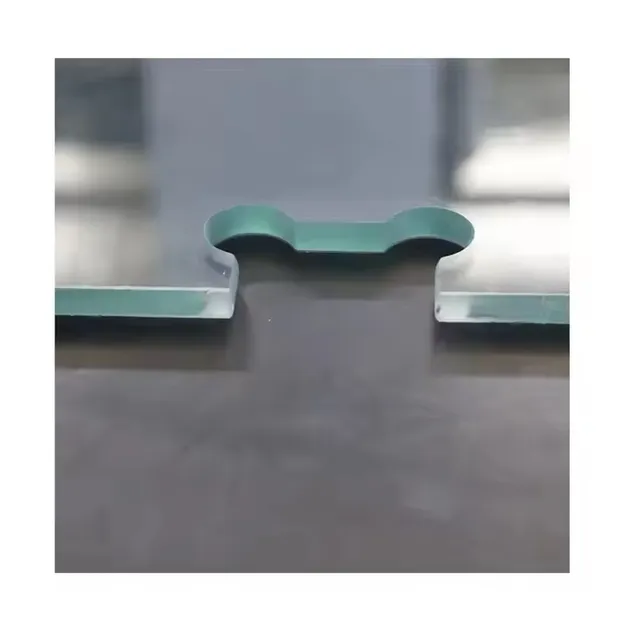

Door Clip

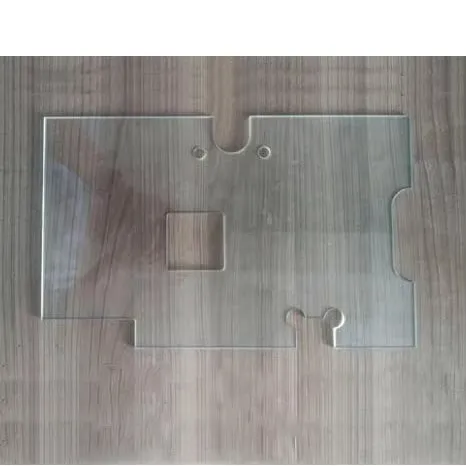

Hanging Wheel
| Parameter | Details |
|---|---|
| Table Size | 3400*1000mm |
| Main Spindle Power | 7.5kw |
| Spindle Speed | 24000 RPM/MIN |
| Milling Speed | 0-1 m/min |
| X/Y/Z Stroke | 800mm / 2500mm / 200mm |
| Voltage | 380V/50Hz (Customizable) |
