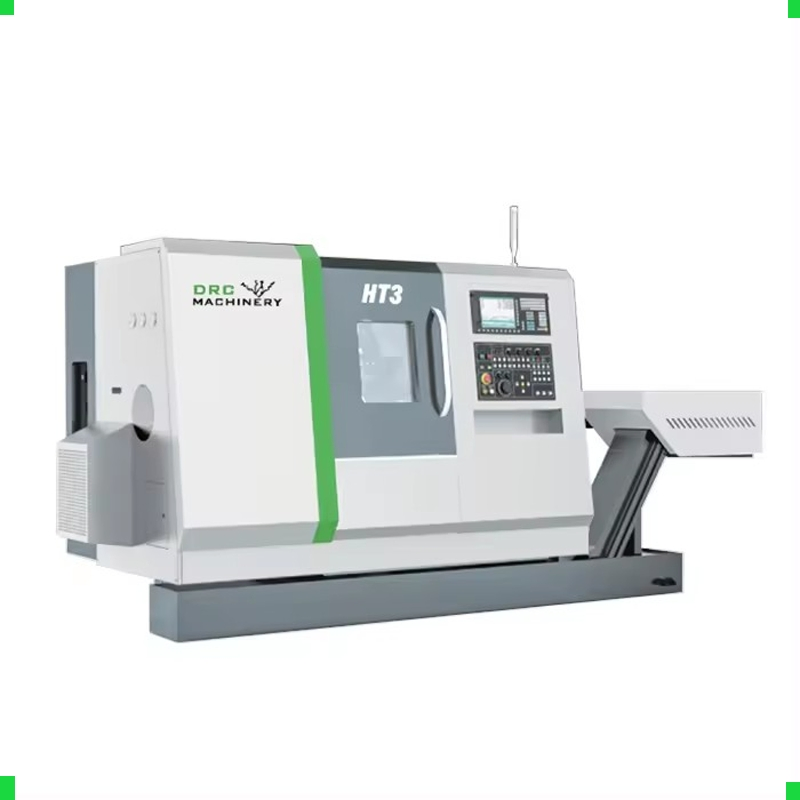

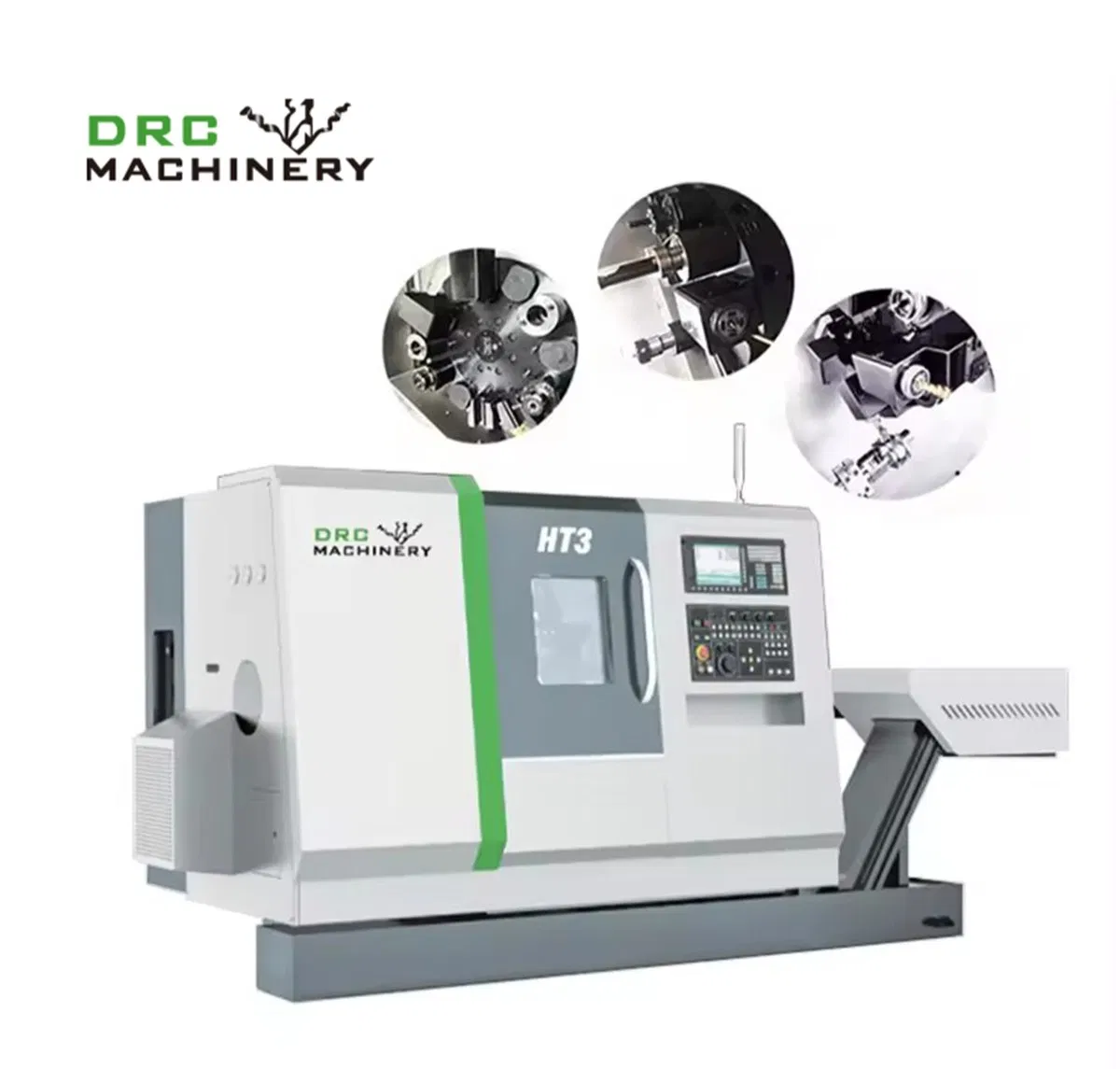

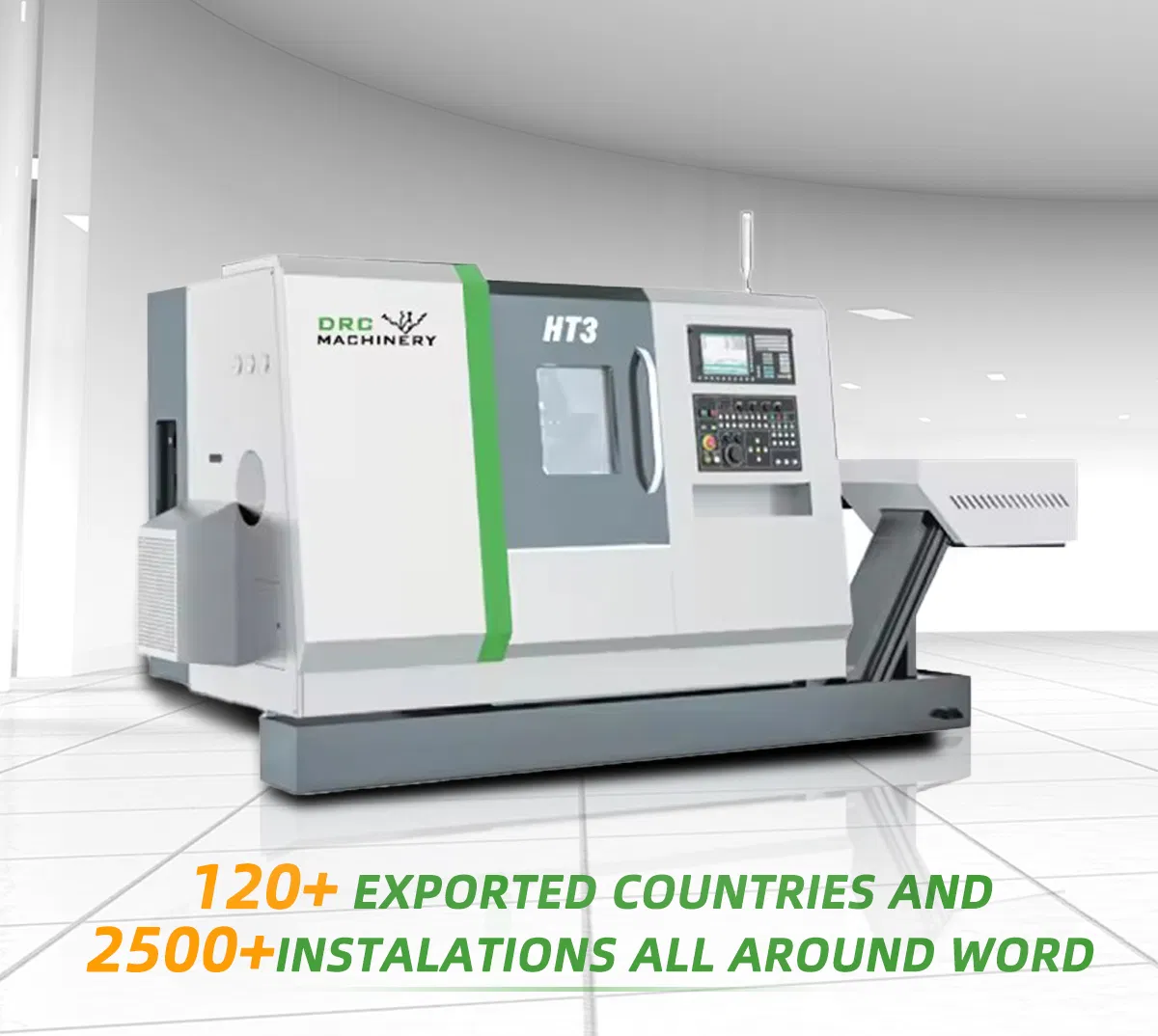

The latest CNC system, equipped with a 10" control panel and Fanuc 0i-TF plus, boasts high accuracy, precision, and rigidity, while occupying a small footprint. It features a high-dynamic-performance spindle with a power of 11-12 kW and a torque of 112 Nm, capable of reaching a maximum speed of 4500 rpm. Standard configurations include bar material specifications of ø 51 mm and an 8-position servo turret. The optimized bed structure and all axes are equipped with linear guide rails (size 35 mm).
| Working Area | Parameter | Unit |
| Swing over Bed | 558 | mm |
| Swing over X-slide | 360 | mm |
| Max. Turning Diameter | 310 | mm |
| Recommended Max. Turning Diameter | 210 | mm |
| Clamping Chuck Diameter | 210 | mm |
| X Travel / Z Travel | 180 / 380 | mm |
| Rapid Traverse X/Z | 24 / 24 | m/min |
| Main Spindle | ||
| Spindle Nose | A2-6 | - |
| Spindle Bore Diameter | 74 | mm |
| Max. Spindle Speed | 4500 | rpm |
| Turret | ||
| Number of Tool Stations | 12 | pcs |
| Indexing Time (30° with locking) | 0.35 | s |
