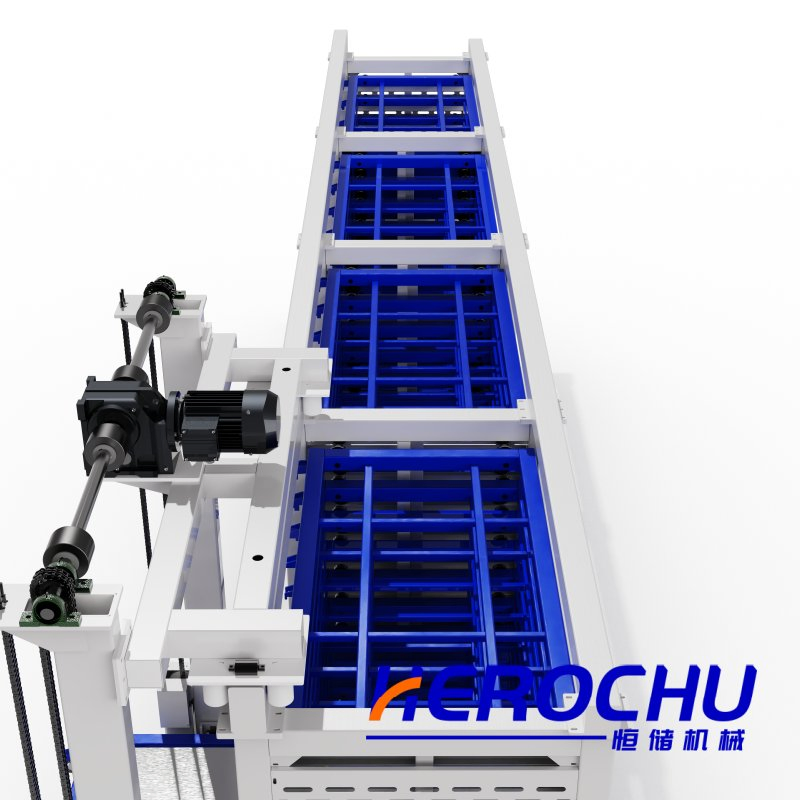

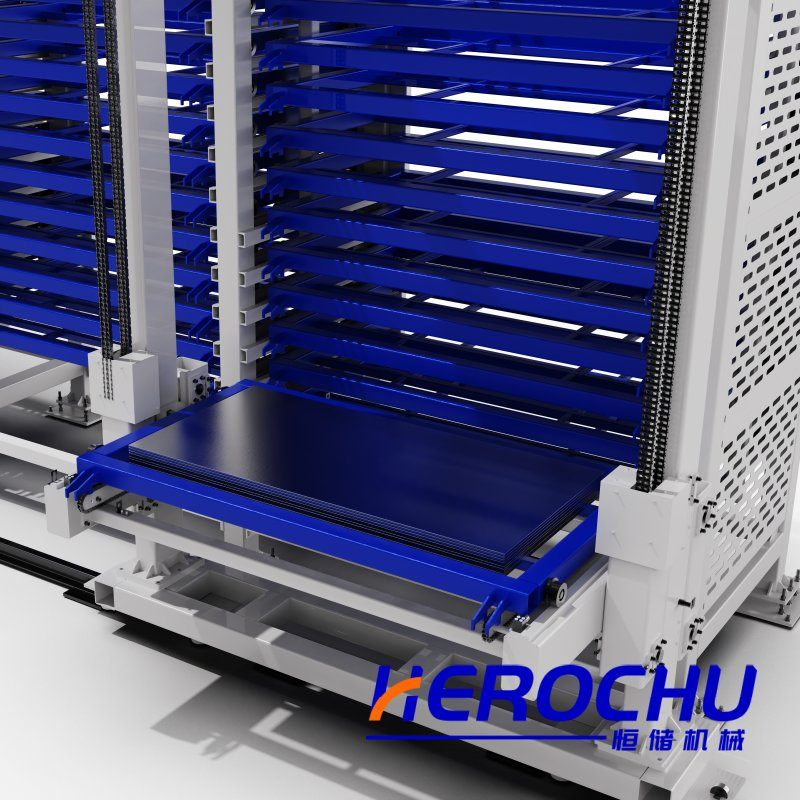

Advanced in-Line Automated Sheet Metal Storage and Feeding Solution

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HC-S3015

Payload Capacity

200 kg

Reach

2000 mm

Maximum Load

100kg-500kg

Skip Load

Air Source

0.6-0.7MPa

Feeding Width

3*1.25 M

Suction Cups

15 Units

Origin

Jinan, China

Capacity

10000 set/Year

Product Description

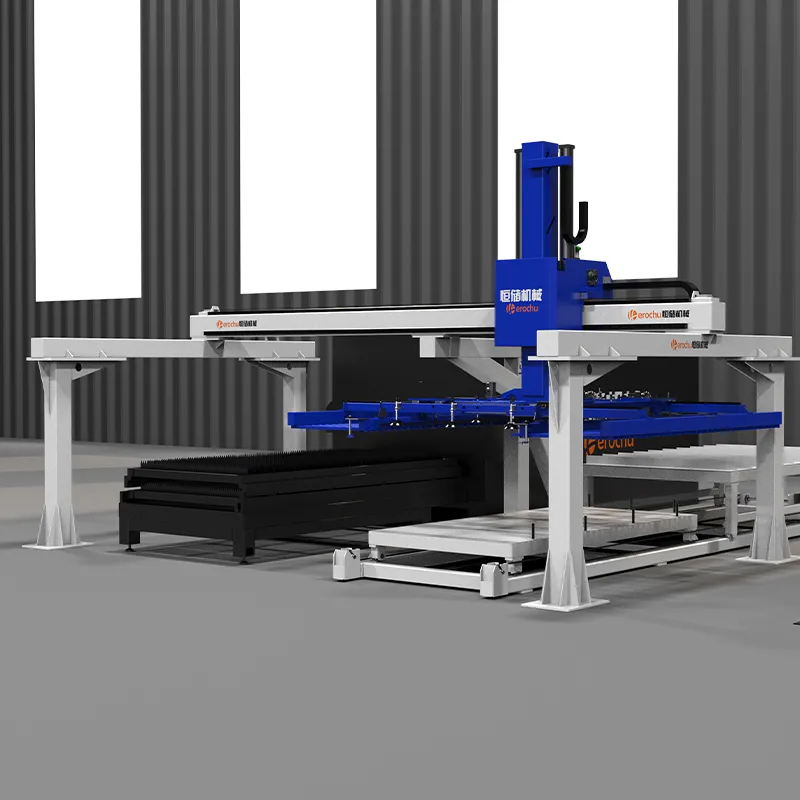

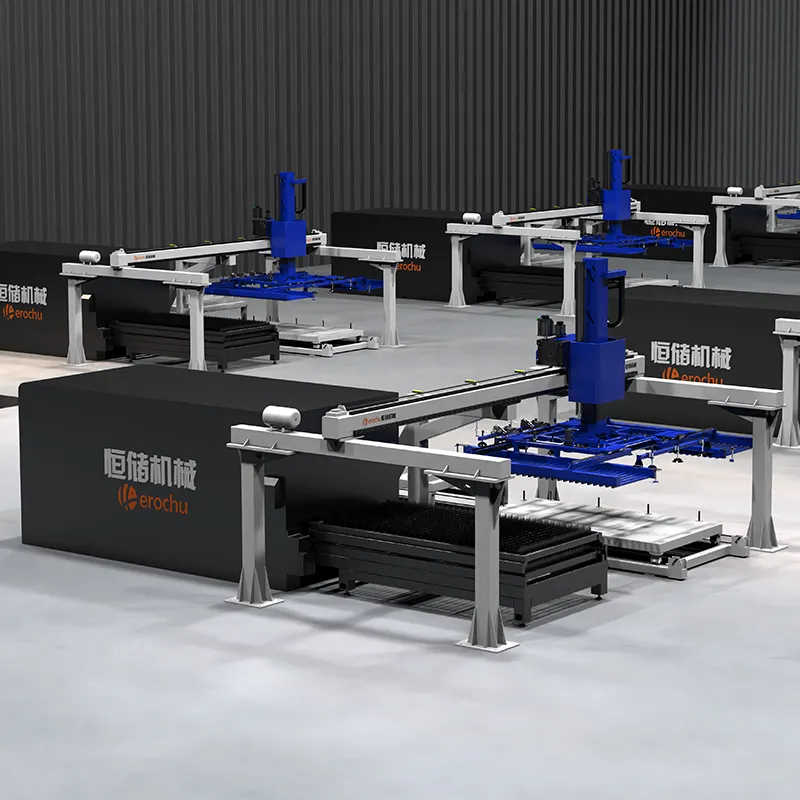

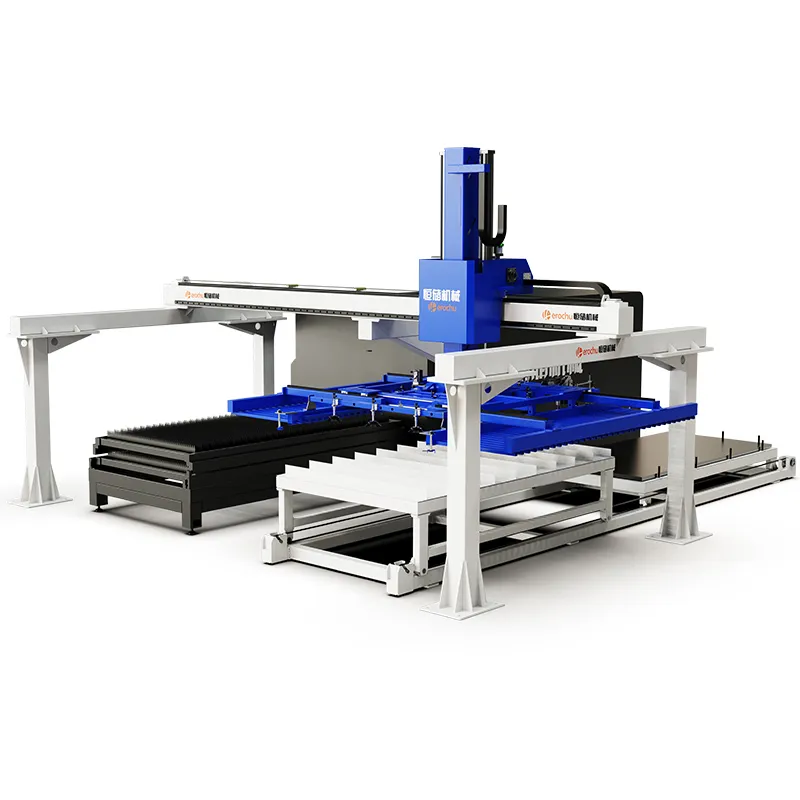

● The system consists of a laser cutting machine with a composite truss manipulator for loading and unloading, a double-layer electric exchange material car, a CNC control system, a vacuum control system, etc. Together with the laser cutting machine, it forms an automated sheet metal production unit.

● The task of automatic loading and unloading of sheet metal can effectively improve production efficiency and reduce production costs.

Specification Item	Parameters
Dimensions	3015/4015/4020/4025mm
Maximum Load	100KG-500KG
Skip Load	3T
Air Consumption	1.5m³/min
Air Source	0.6-0.7Mpa

Frequently Asked Questions

How can I select the suitable robotic arm for my needs?

You can provide the materials you want to transport, including the size, thickness, and weight. Our technical team will analyze these parameters to suggest the most efficient solution.

Do you provide on-site installation and debugging services?

Yes, we dispatch professional personnel to your facility to handle the full installation and debugging process until the system achieves a successful trial operation.

What is included in the integrated loading and unloading system?

The system typically includes a composite truss manipulator, vacuum control systems, and material cars. We customize the configuration based on your laser cutting machine table size and loading method requirements.

How do you ensure the quality and safety of the equipment?

We strictly implement ISO9001 quality standards and hold CE certification. Every unit undergoes rigorous load testing before leaving the factory to ensure structural stability and safety.

Is it possible to verify your company's manufacturing capability?

We welcome on-site visits to our 10,000 square meter modern standard factory. For international clients, we can also conduct video factory inspections to demonstrate our production strength.
