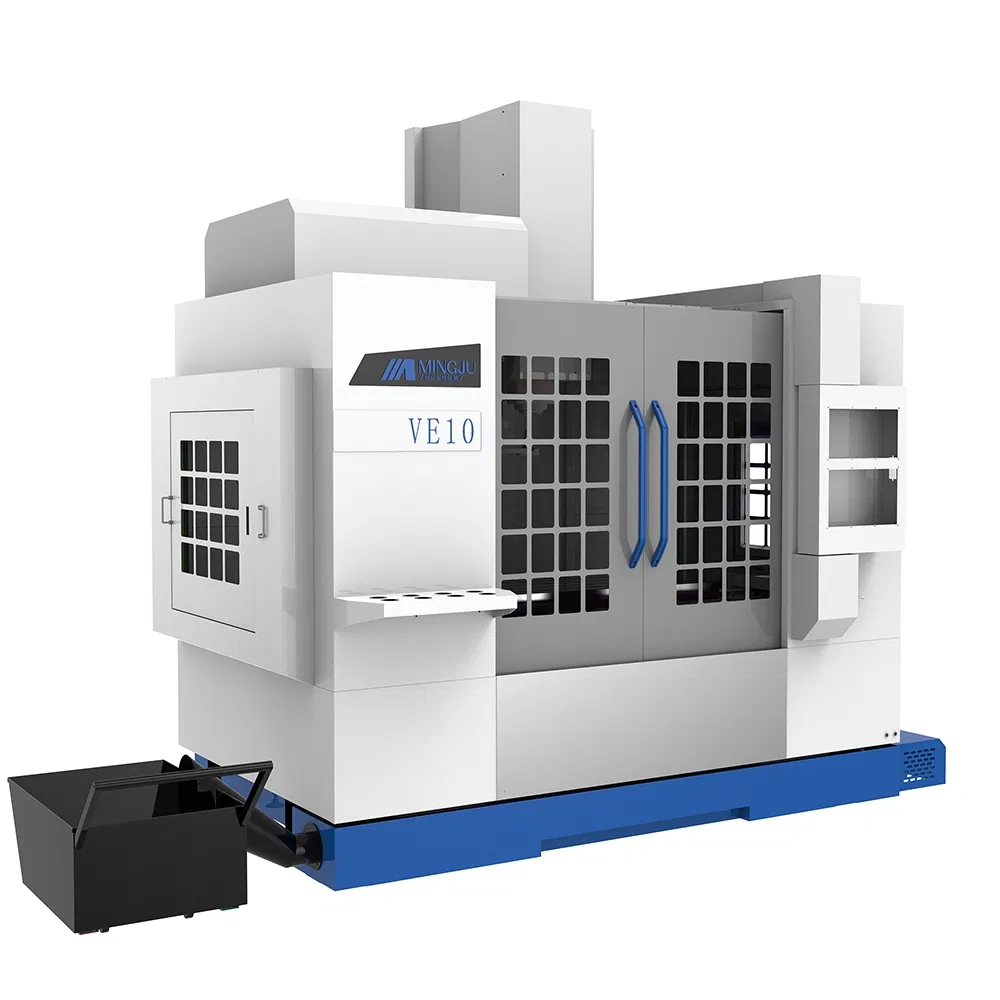

AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling
AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling
AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling
AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling
AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling
1 / 5
AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling
AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling
AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling
AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling
AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling

AC Servo Motor Driven Mingju Ve 10 CNC Vertical Milling Machining Machine Center for High-Speed Tooling

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information & Parameters
Model: VE 10
Type: Tool Milling Machine (CNC)
Precision: High Precision
Worktable: 550*1100 mm
Spindle Speed: 8000-15000 rpm
Certification: ISO 9001
Item Specification Unit VE 10 EN VE 10 CN 24'
X-axis Travel1050mm10501050
Y-axis Travel600mm600600
Z-axis Travel600mm600600
Max. Worktable Load800kg800800
Spindle Motor Power11kw1111
Tool Capacity24No.2424
Positioning Accuracy±0.005mm±0.005±0.005
Numerical Control SystemSiemens 828DYesYes
Core Features & Construction

Bed, Column And Saddle: The bed, column, and saddle are composed of Meehanite HT300 grade cast iron, which includes very high dampening characteristics. Heavily ribbed castings provide superior dampening for high speed machining and aggressive milling.

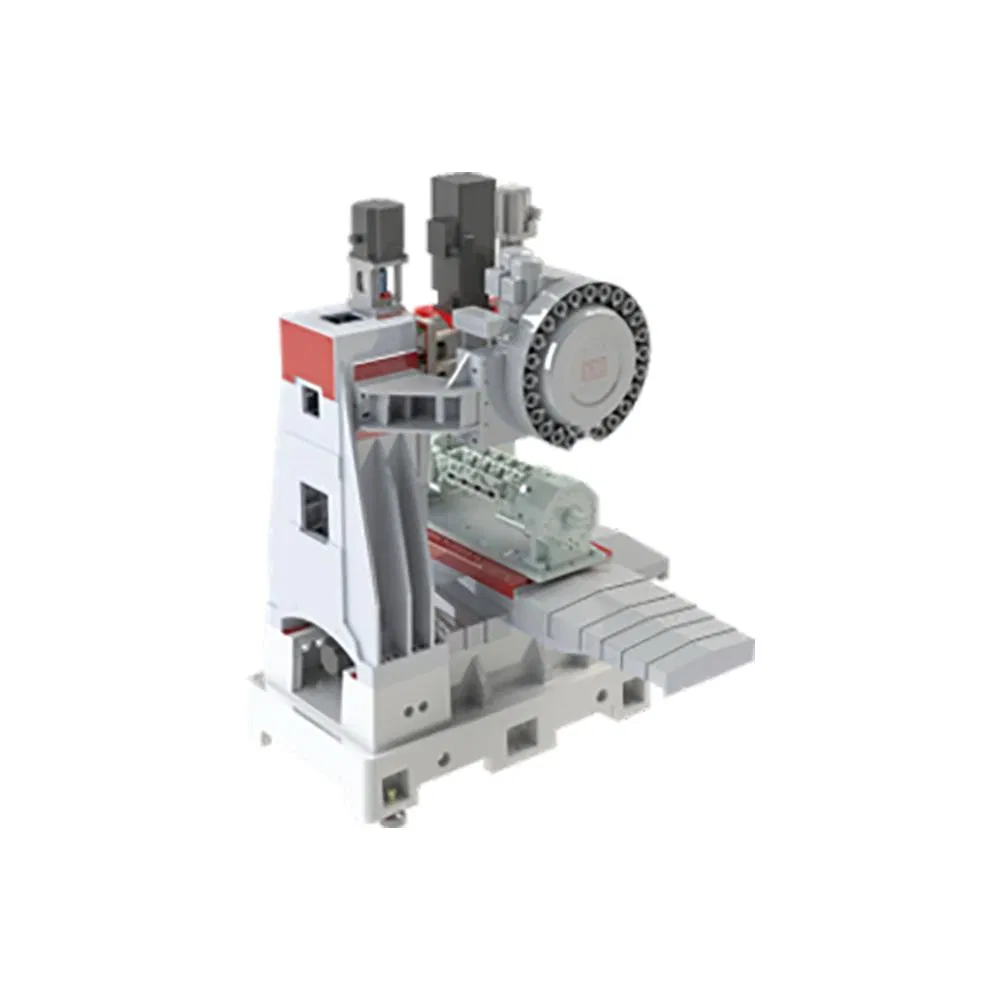

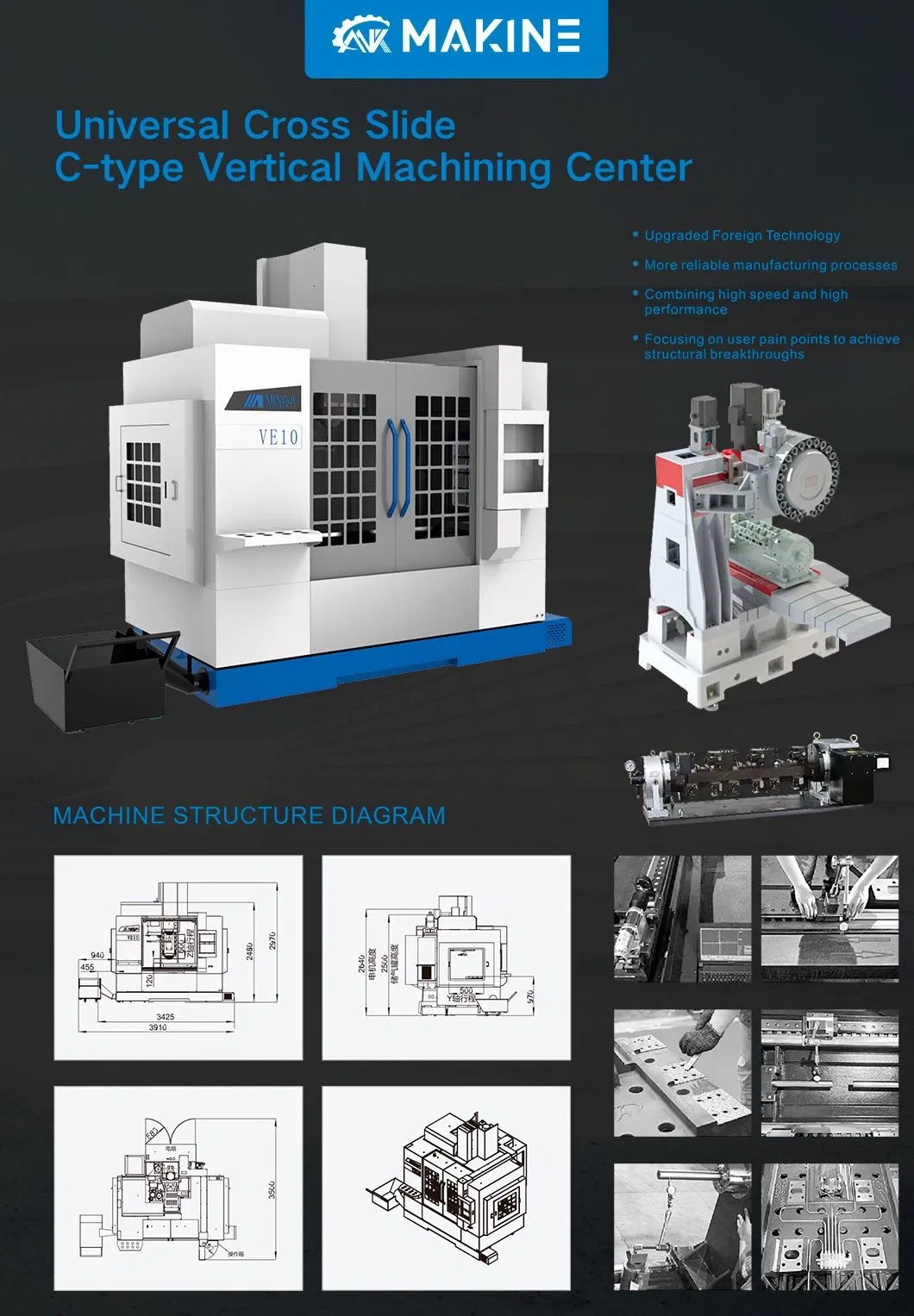

CNC Vertical Milling Machine Structure

Guide Ways: The X, Y, & Z-axis are standard with heavy-duty 45mm linear guideways. All the guideways are placed against ground shoulders to maximize rigidity and geometry.

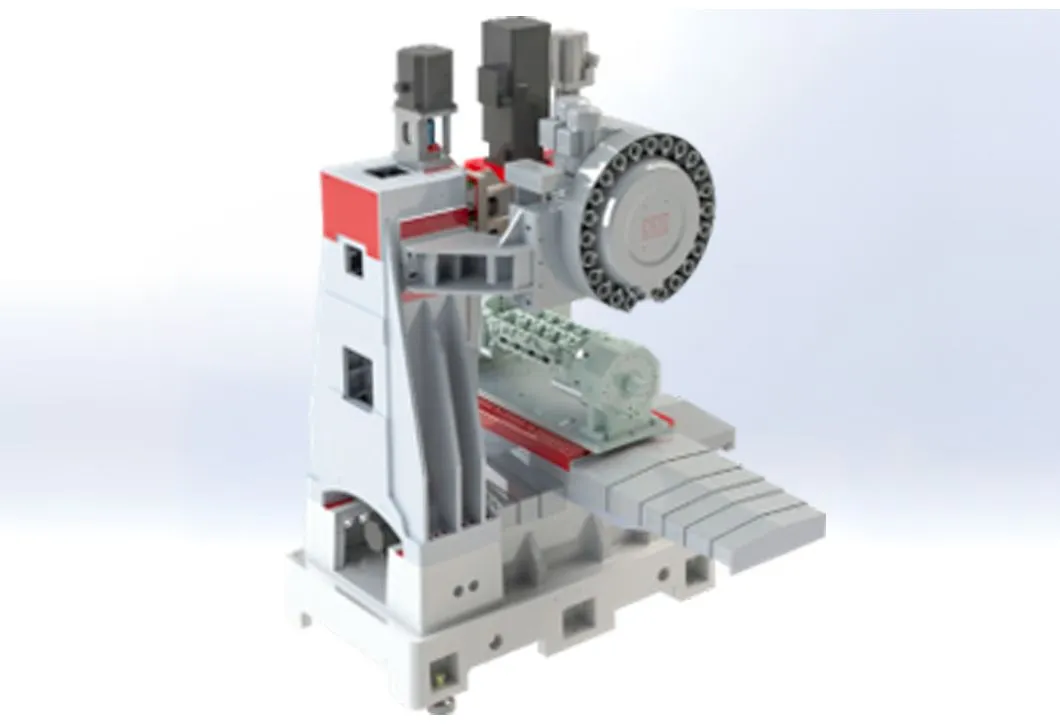

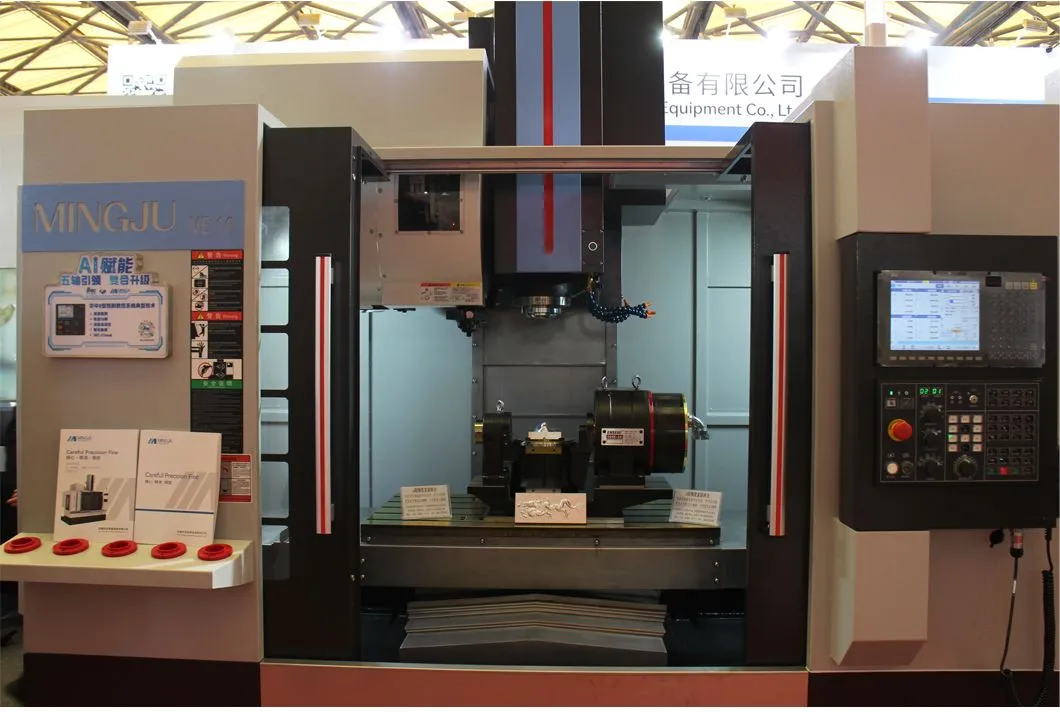

Milling Machine Components Spindle System

Ball Screws And Axis Drives: Each axis is driven using a high precision, fully ground ball screw. The 40mm ball screws are driven directly using direct-coupled AC servo type drive motors eliminating vibration, noise, and backlash.

Technical Support Systems
  • Fully Enclosed Enclosure: Heavy duty sheet metal to contain chips and coolant with removable side doors for access.
  • Flood Coolant System: High volume 200L tank with fully adjustable nozzles to accommodate various tool lengths.
  • Automatic Lubrication: Metered valves precisely control oil volume to linear guideways and ball screws.

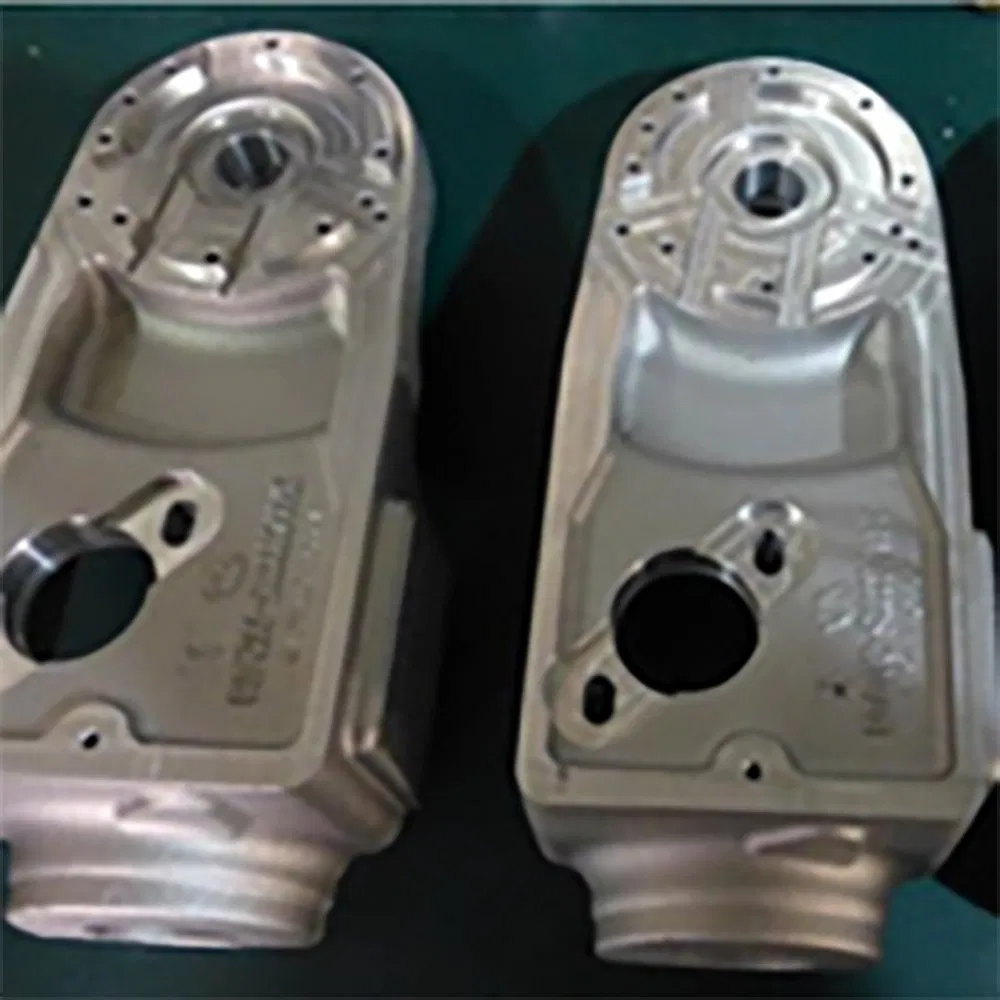

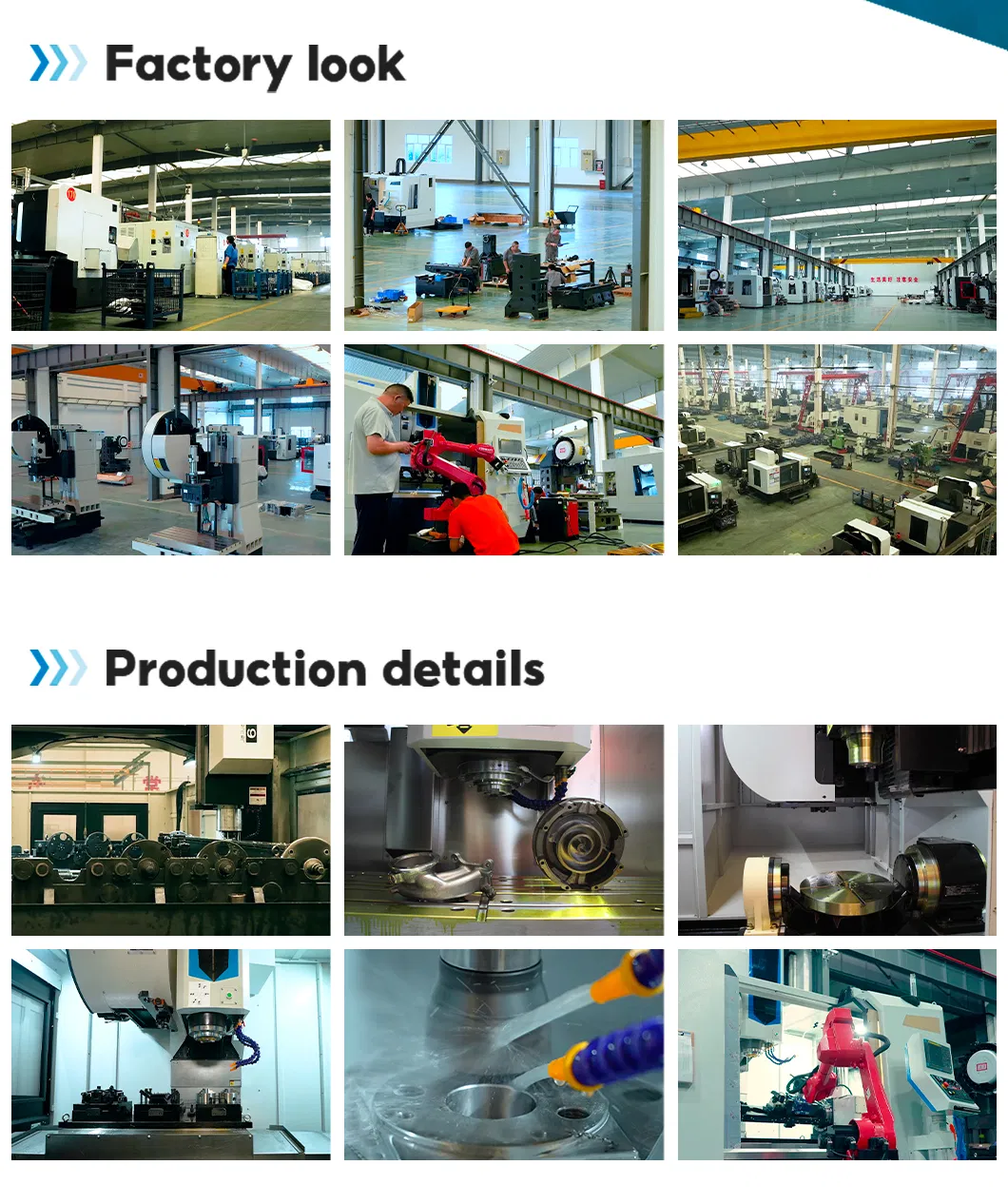

Processing Example Quality Inspection Workshop View
Frequently Asked Questions (FAQ)
What is the main material of the machine structure?
The bed, column, and saddle are made of Meehanite HT300 grade cast iron, known for its high dampening characteristics and stability.
What type of control system is used?
The machine is equipped with the Siemens 828D Numerical Control System as standard for high precision and reliability.
How many tools can the magazine hold?
The machine features a Disc Type Mechanical Arm tool magazine with a 24-tool capacity and a tool-to-tool change time of only 2 seconds.
What is the maximum table load capacity?
The worktable can handle a maximum load of 800 kg, making it suitable for a wide range of industrial tooling parts.
Does the machine require manual lubrication?
No, it features an automatic lubrication system for linear guideways and ball screws with a low-level alarm on the CNC to prevent damage.
What are the power requirements for this machine?
The machine has a power capacity requirement of approximately 25 KVA and operates with an air supply pressure of 6-8 bar.
