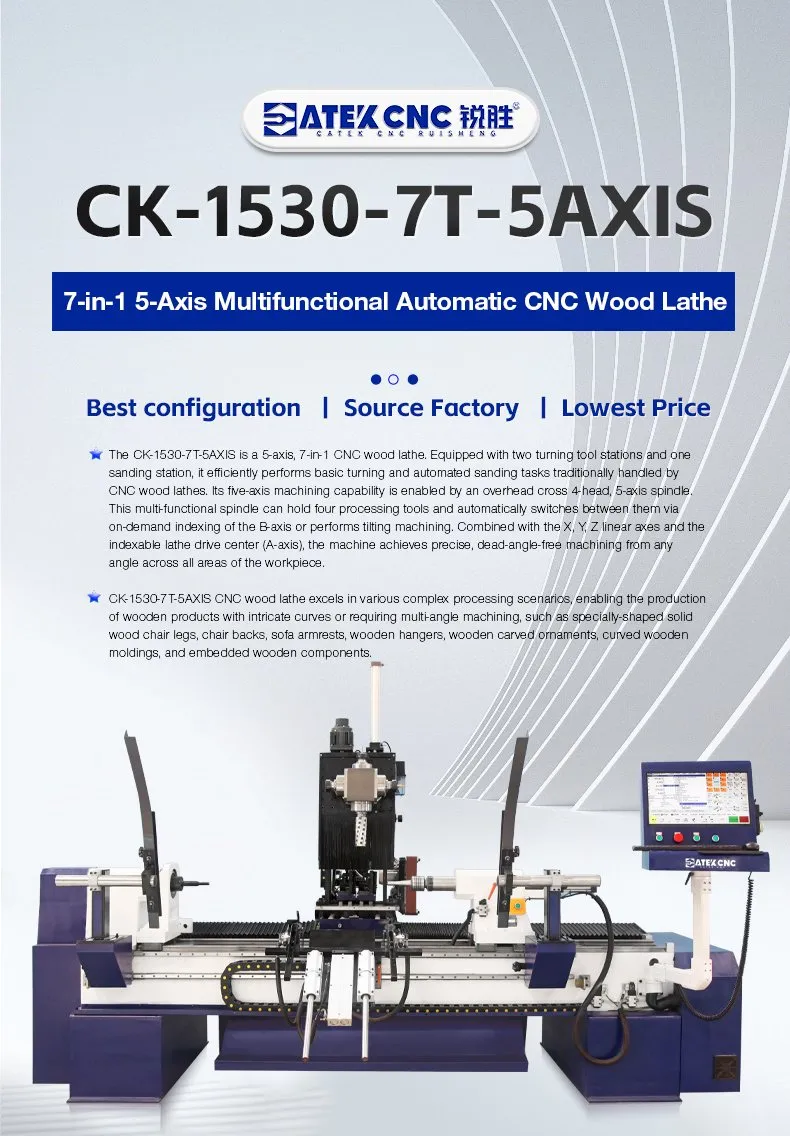

| Model | CK-1530-7T-5AXIS |
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds |
| Linear Axis Drive | Bus-type absolute 1500W servo motor |
| Reducer | Shimpo (Japan) planetary gear reducer |
| Spindle Motor | 4KW pure servo high-torque motor |
| Spindle Speed | 0-6000r/min |
| Multi-functional Spindle | 7.5KW high-speed air-cooled four-head spindle |
| Sanding Device | 1100W variable frequency servo control |
| Control System | Taiwan LNC control system |
| Accuracy | ±0.02mm |
| Weight | 2300kg |

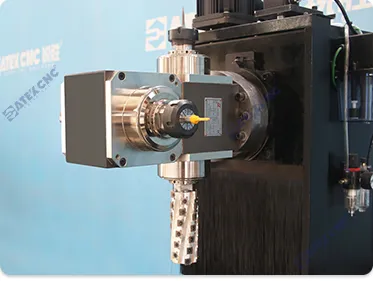

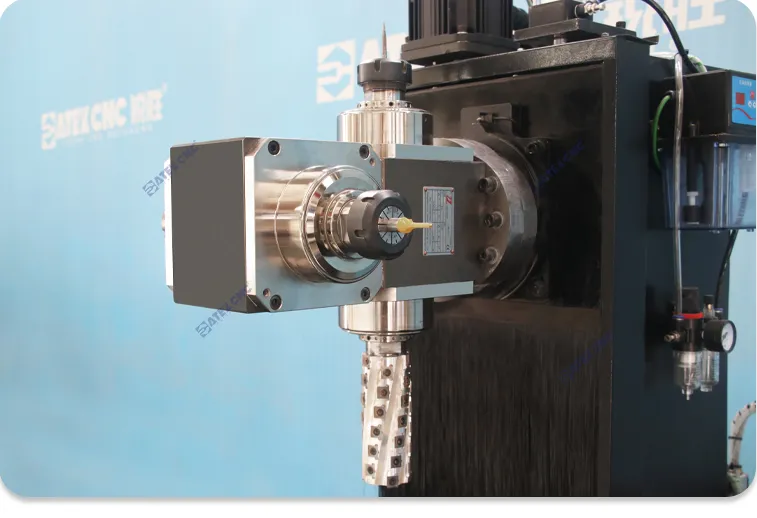

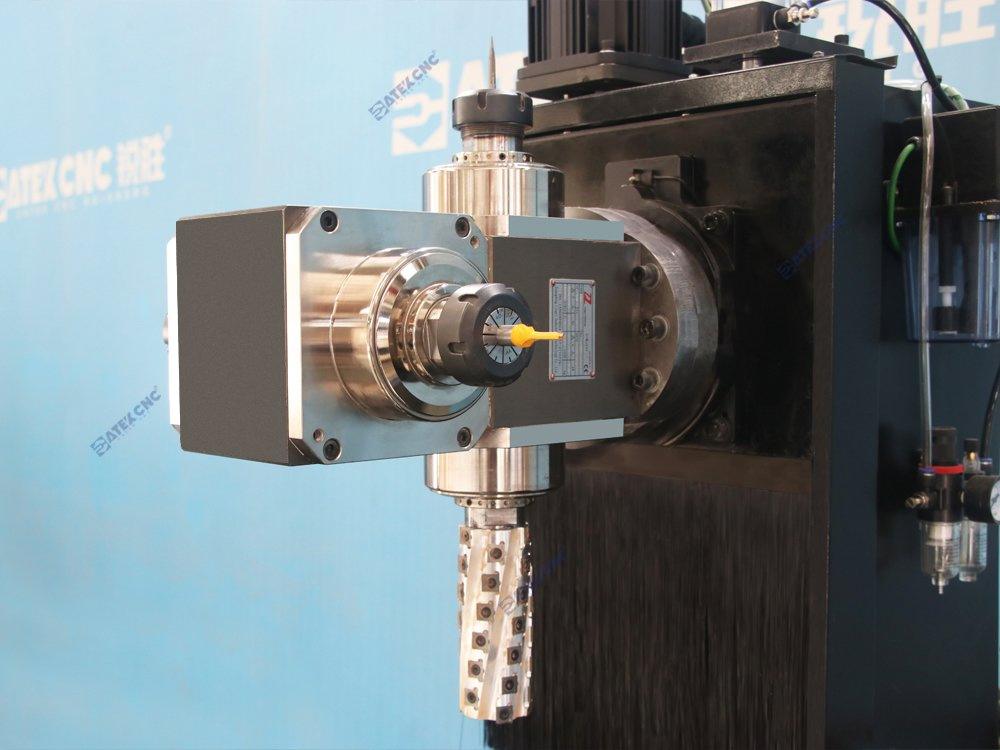

Designed for five-axis centers, integrated design with max 18,000 rpm. Supports 4 tool types with ±90-degree tilt adjustment for complex drilling and engraving.

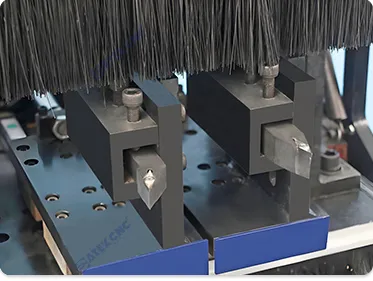

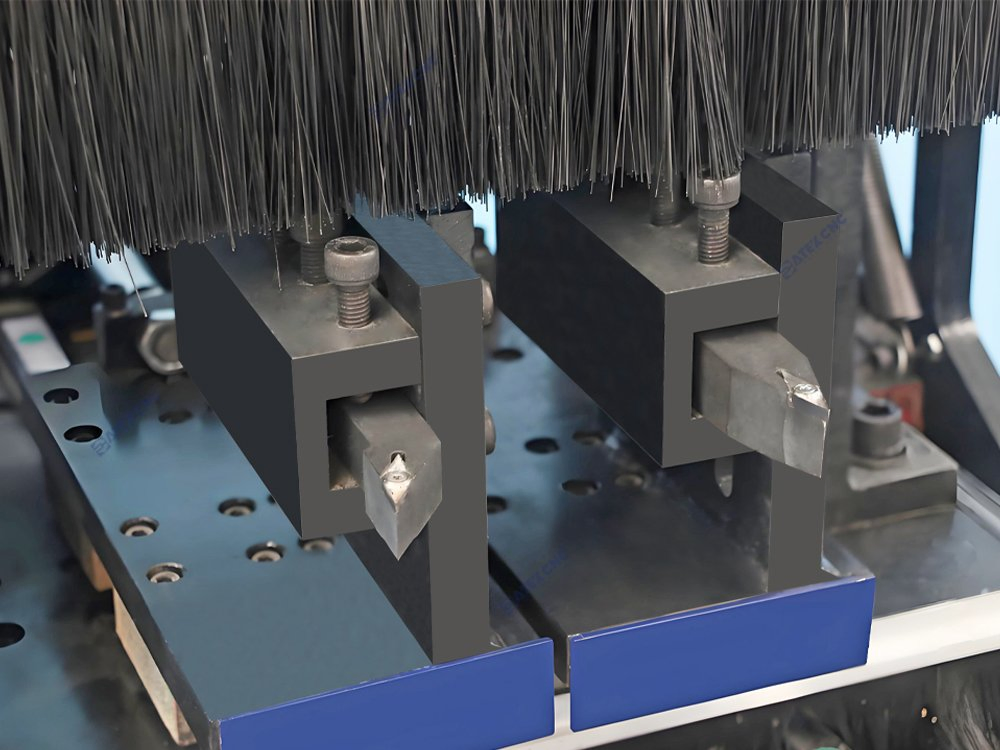

Equipped with dual mounting positions for V, U, O-type and cut-off tools. Automatic switching based on workpiece requirements.

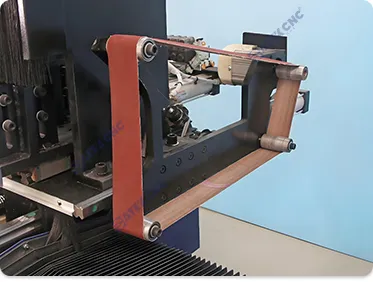

Driven by 1100W brushless servo motor (max 6000 rpm). Ideal for precise surface grinding and finishing.

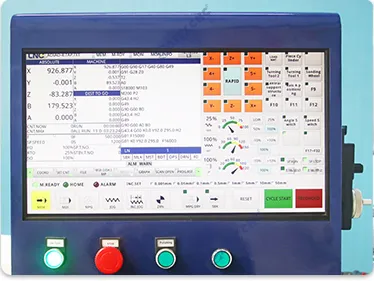

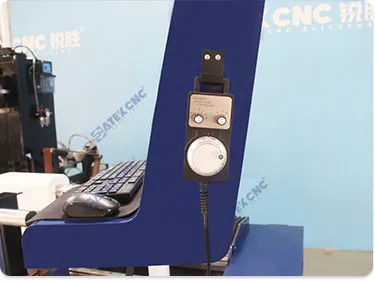

Supports five-axis RTCP and handwheel simulation. Compatible with NC, TAP, and TXT formats with intuitive interface.

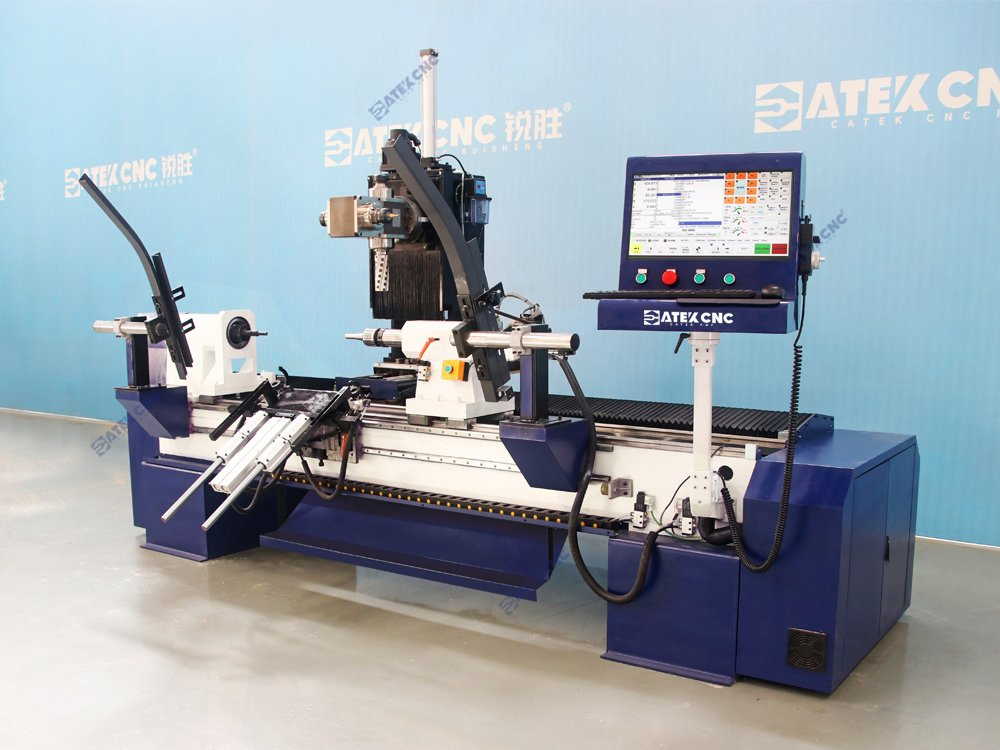

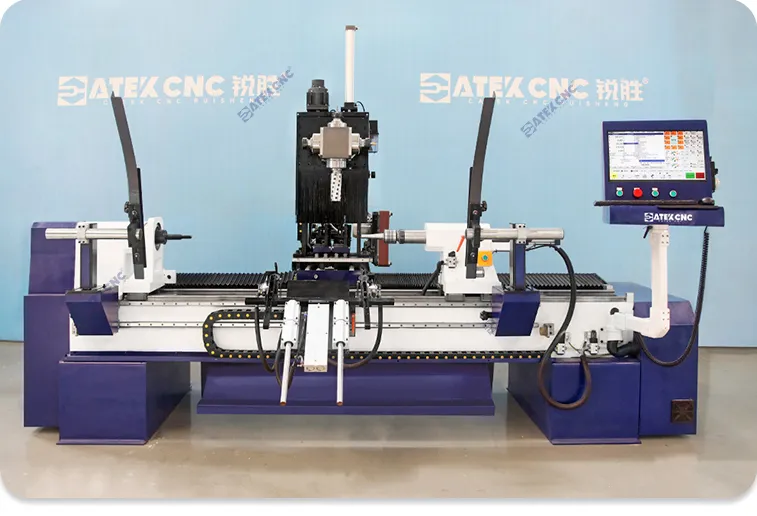

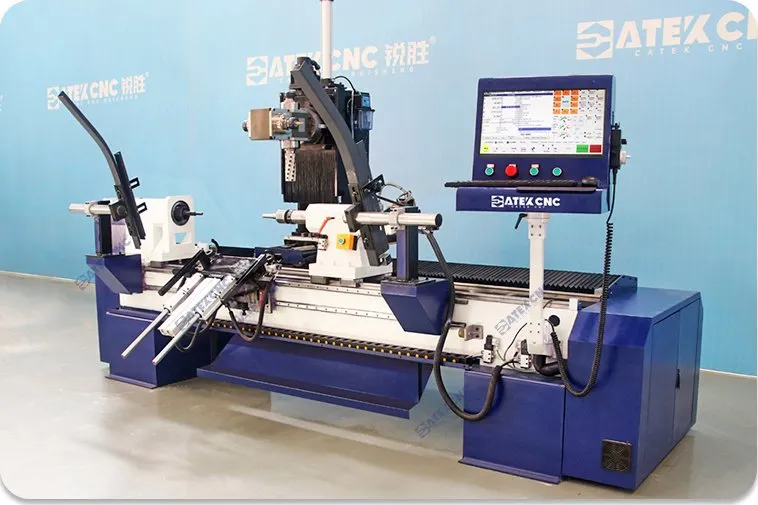

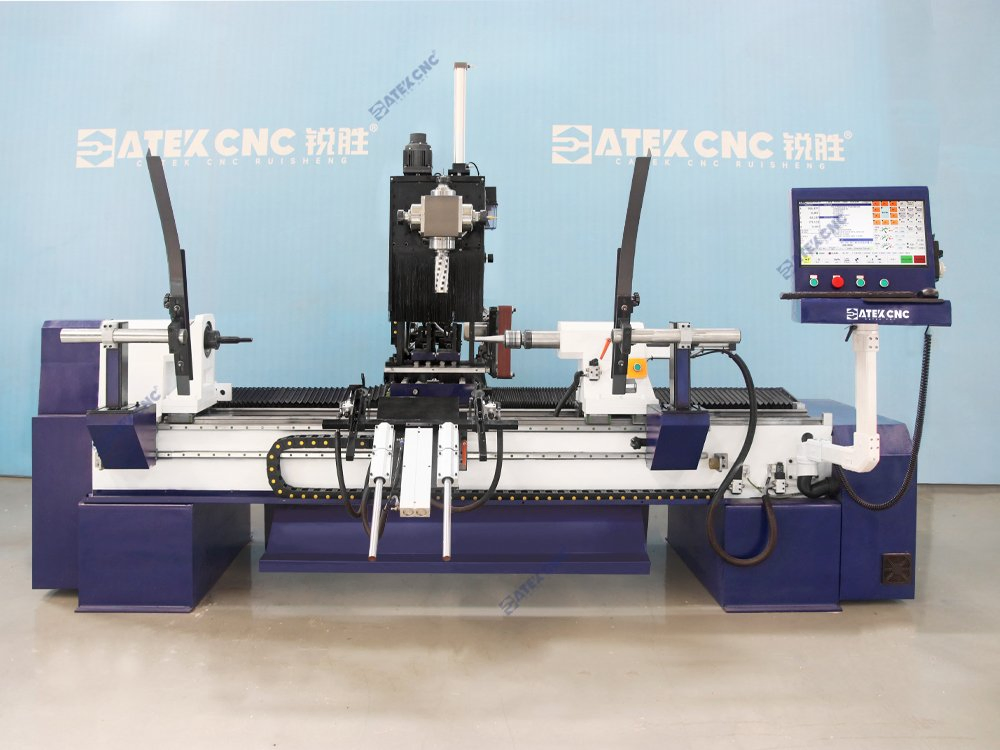

The CK-1530-7T-5AXIS five-axis multi-function CNC woodworking lathe meets processing needs from ordinary wood products to complex special-shaped crafts.
