BASIC INFO.
| Model NO. | CK-1530-7T-5AXIS |
| Voltage | 380V |
| Automatic Grade | Automatic |
| Controlling Mode | CNC |

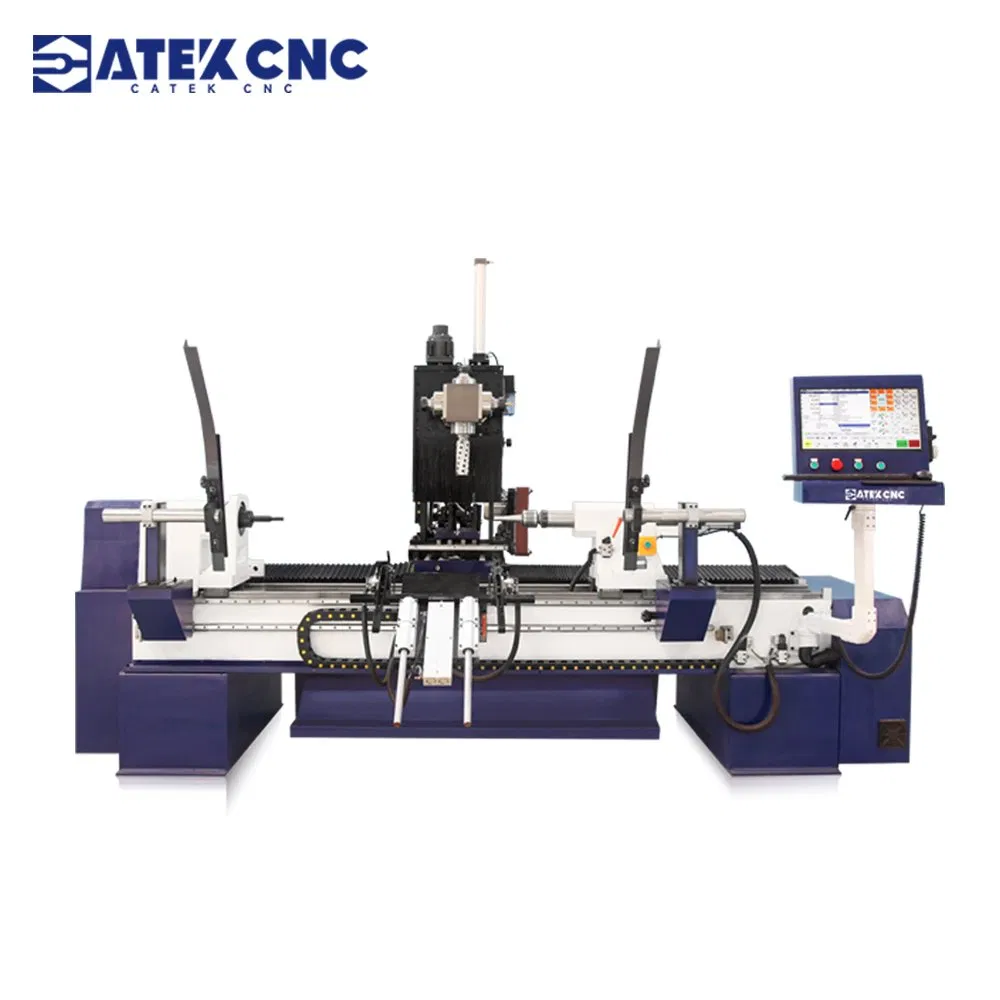

| Product Name | 5 Axis CNC Wood Lathe Machine |
| Certification | CE, ISO, FDA |
| Control System | Taiwan Lnc Control System |
| Repeat Accuracy | ±0.02mm |

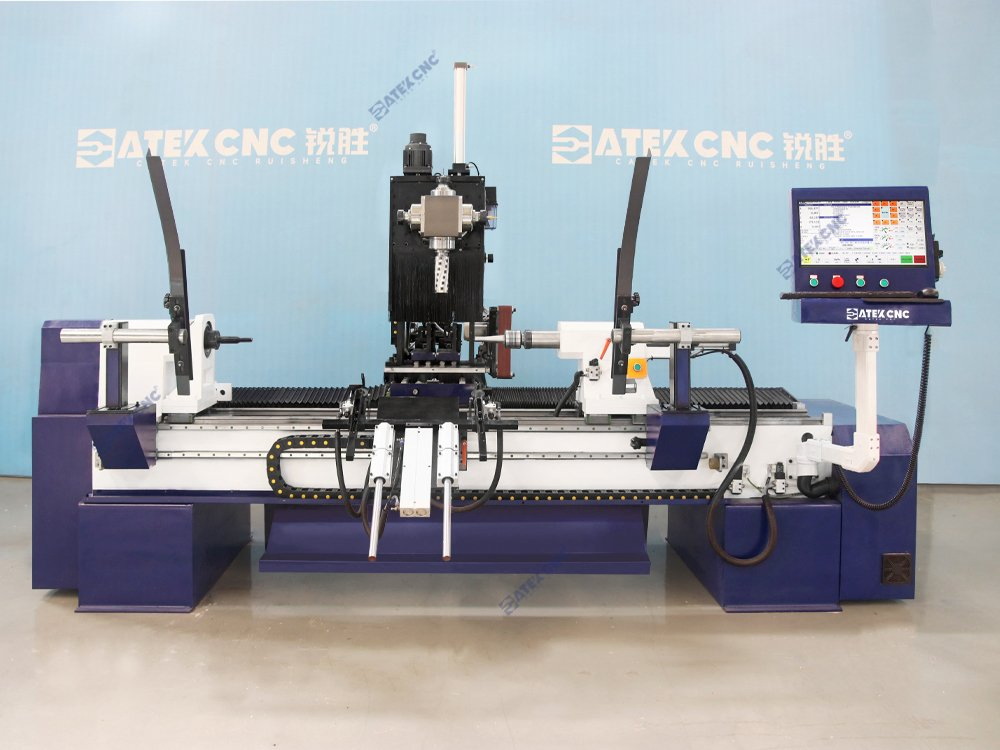

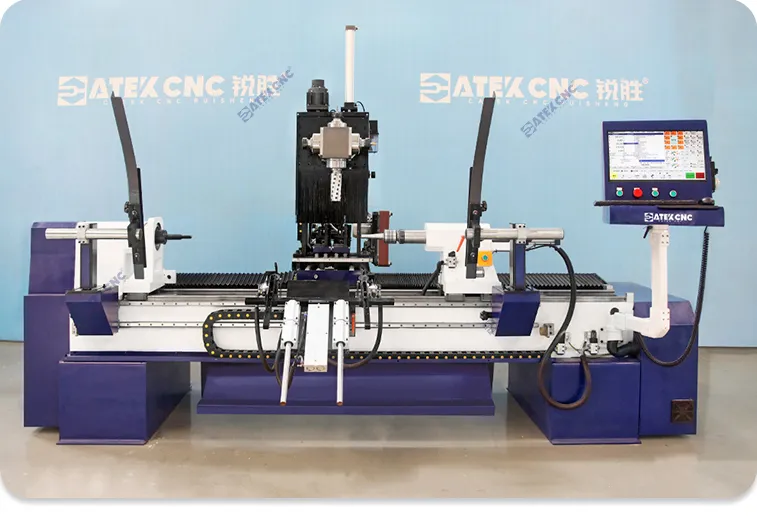

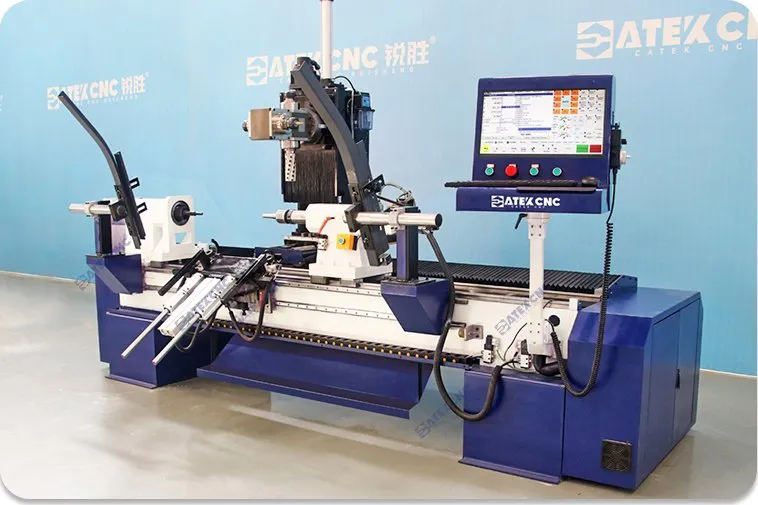

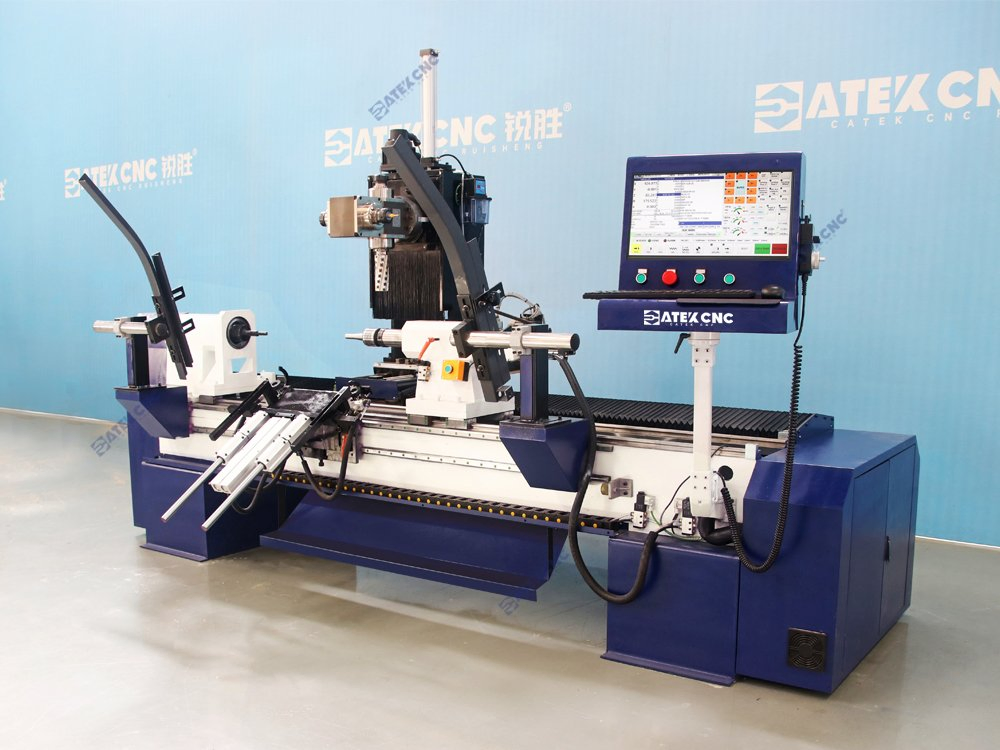

MACHINE PHOTOS
PRODUCT PARAMETERS
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast twin beds |
| Drive Motor | Bus-type absolute 1500W servo motor |
| Spindle Speed | 0-6000r/min (Turning) / 0-18000r/min (Multi-function) |
| Sanding Device | 1100W variable frequency servo control |
DETAILS IMAGES

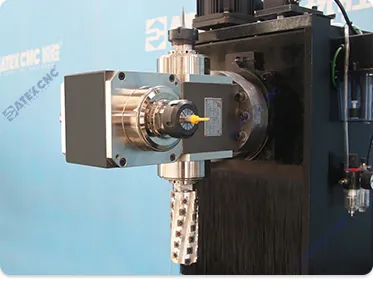

The four-head electric spindle features an integrated design with 18,000 rpm, accommodating four tool types with ±90-degree tilt adjustment.

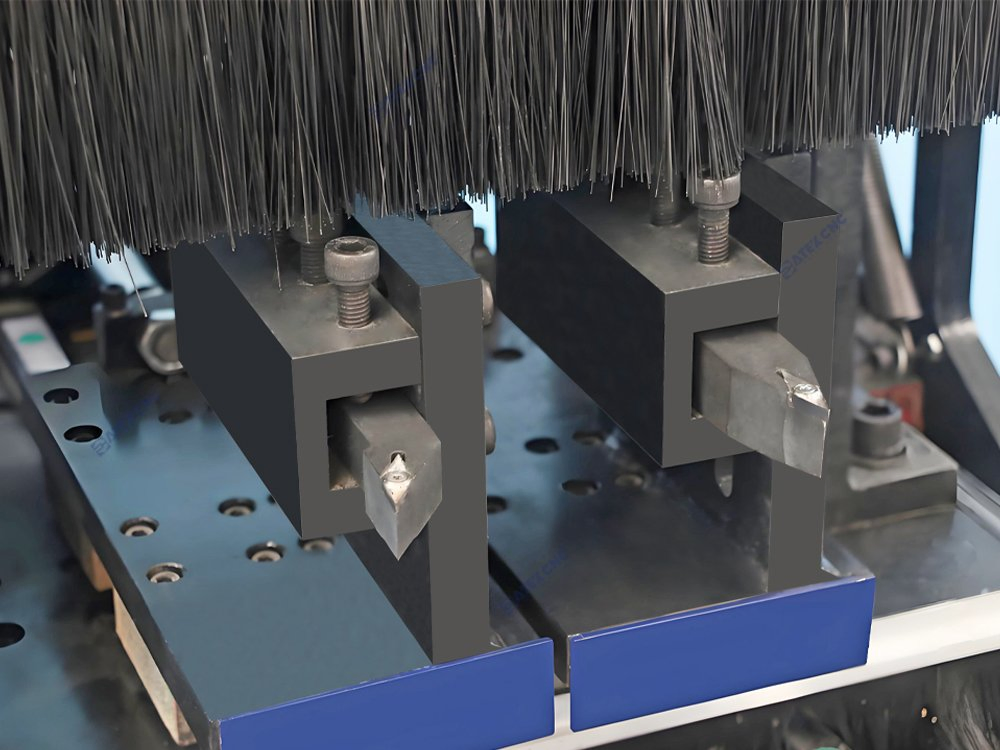

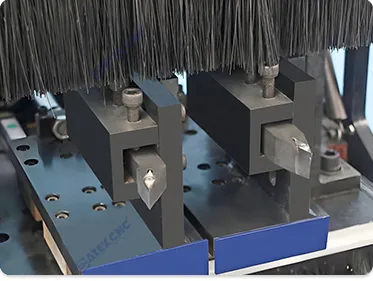

Equipped with two turning tool positions switched via pneumatic cylinder, supporting V, U, O types and cut-off tools.

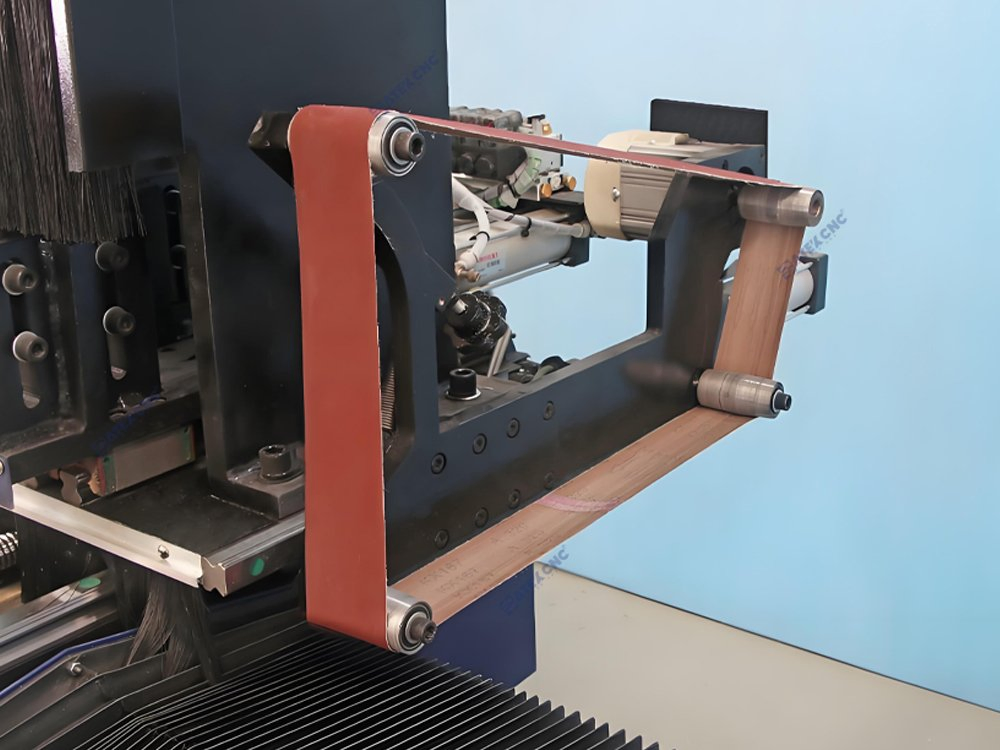

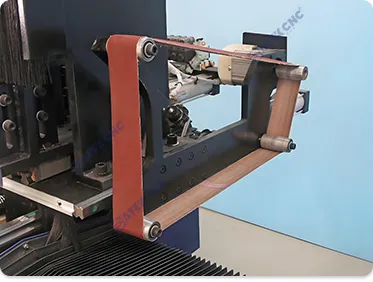

1100W brushless servo motor driven sanding belt unit for high-speed grinding up to 6000 rpm.

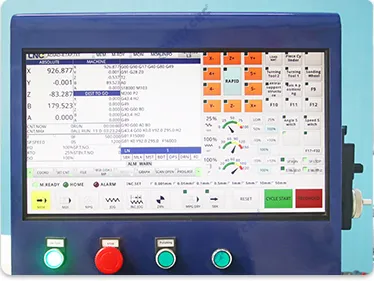

Taiwan LNC five-axis CNC system supports RTCP and handwheel simulation for intuitive control.
SAMPLE DISPLAY

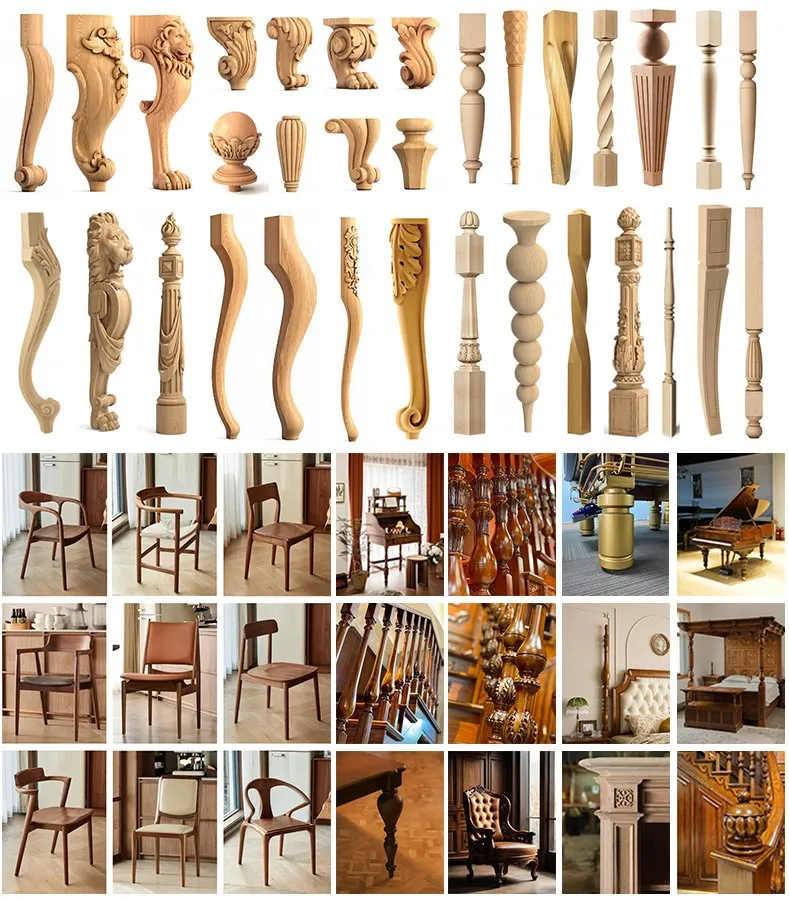

Applications: Furniture manufacturing (curved legs, bedposts), Architectural decoration (Roman columns), Musical instruments (guitar necks), and Craft manufacturing (sculptures, vases).
CUSTOMER PHOTOS
COMPANY CERTIFICATION
FAQ
1. Are you a factory or trading company?
We are a certified factory with export licenses and 19 years of manufacturing experience.
2. What about after-sales service?
We provide a 3-year full machine warranty, 12-hour response time, and 24/7 technical support.
3. How to choose the right machine?
Provide your material specs and product dimensions, and our experts will recommend the optimal solution.
4. Do you provide installation services?
Machines are pre-tested and ready-to-use. Guides are included, and onsite commissioning is available globally.
5. Can machines be customized?
Yes, full customization is supported by our professional engineering team to meet your specific needs.
6. Can you provide sample processing videos?
Free sample videos are available upon request; simply provide your drawings for functional verification.
