Overview
| Model NO. | CK-1530-7T-5AXIS |
| Product Name | 5 Axis CNC Wood Lathe Machine |
| Voltage | 380V |
| Automatic Grade | Automatic |
| Controlling Mode | CNC |
| Certification | CE, ISO, FDA |
| Linear Axis Drive Motor | Bus-Type Absolute 1500W Servo Motor |
| Multi-Functional Spindle | 7.5kw High-Speed Air-Cooled Four-Head Spindle |
| Control System | Taiwan Lnc Control System |
| Repeat Positioning Accuracy | ±0.02mm |
| Specification | 3750*2150*2150mm |

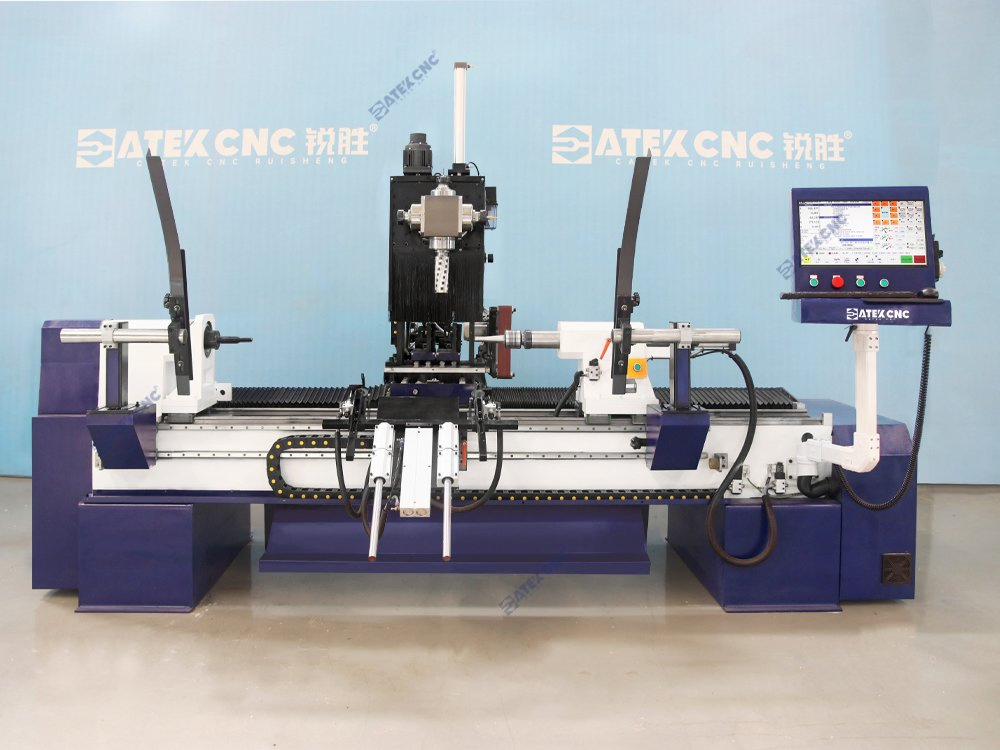

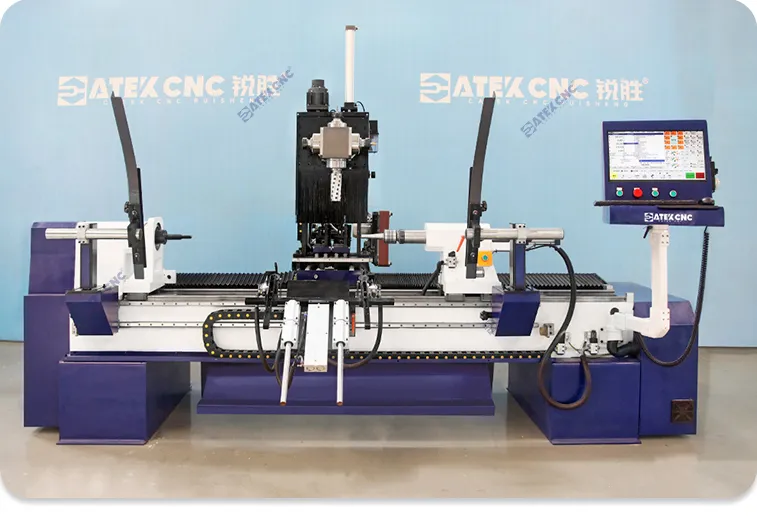

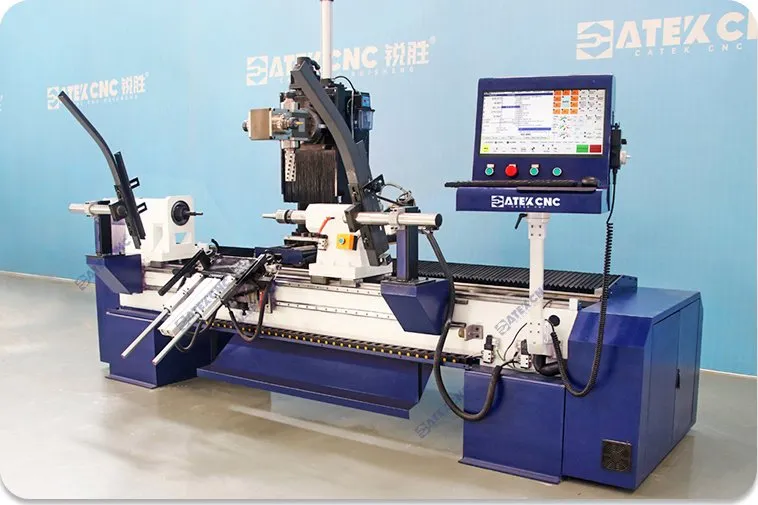

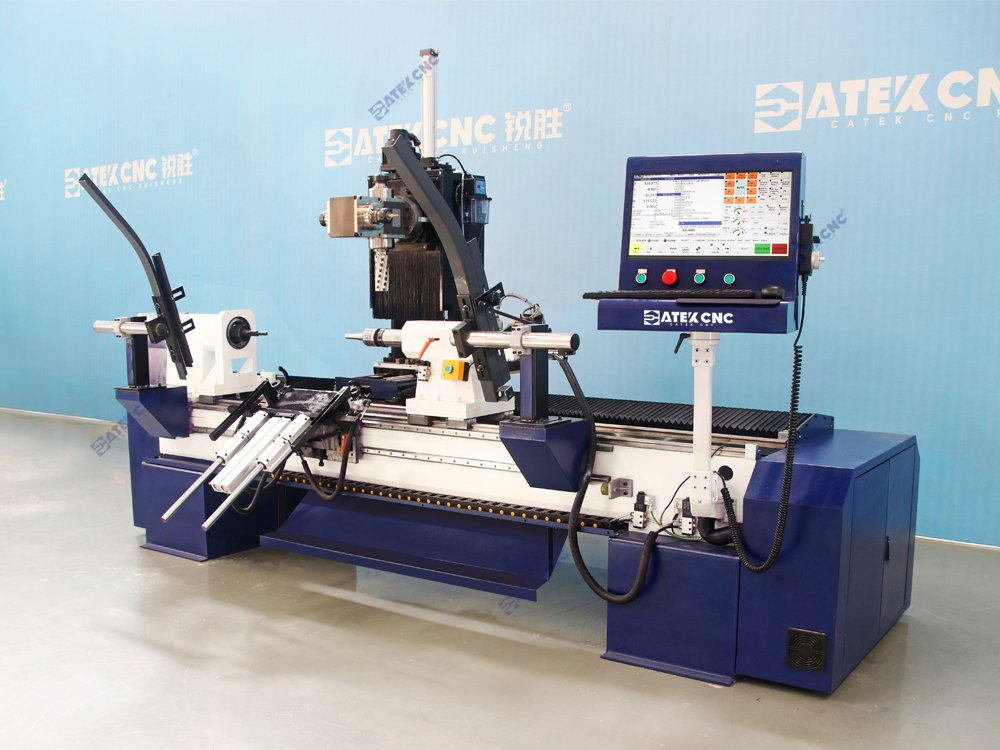

MACHINE PHOTOS
PRODUCT PARAMETERS
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds |
| Drive-Spindle Motor | 4KW pure servo high-torque motor |
| Drive-Spindle Speed | 0-6000r/min |
| Sanding Device | 1100W variable frequency servo motor control |
| Compatible Software | Artcam, Type3, AutoCAD, Powermill, Mastercam, etc. |
| Weight | 2300kg |

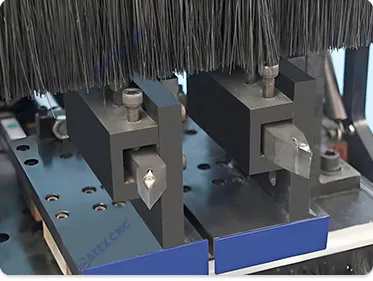

DETAILS IMAGES

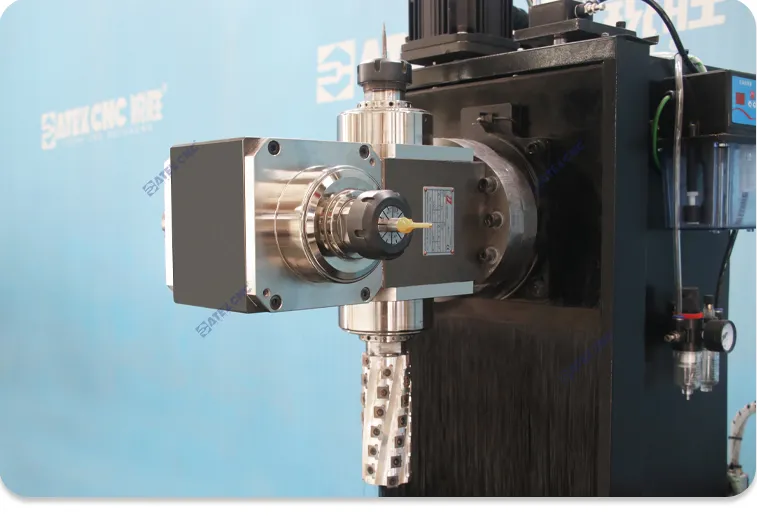

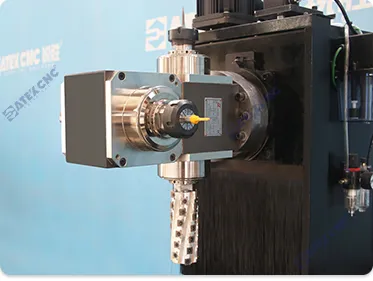

The four-head electric spindle, designed for five-axis machining, features an integrated design with max 18,000 rpm. Equipped with an ER40 toolholder and ±90-degree tilt adjustment for complex processes.

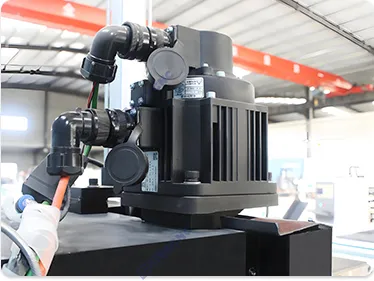

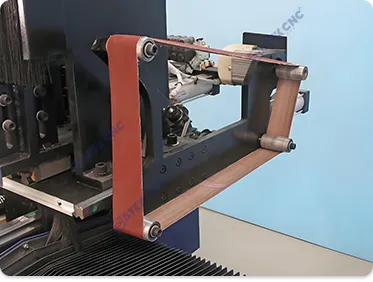

Equipped with a sanding belt unit driven by an 1100W brushless servo motor. The Taiwan LNC five-axis CNC system supports RTCP and handwheel simulation.
SAMPLE DISPLAY
Furniture Manufacturing: Curved table legs, sofa legs, headboards, and relief patterns.
Architectural: Staircase columns, Roman columns.
Instruments & Crafts: Guitar necks, violin fretboards, vases, and sculptures.
COMPANY CERTIFICATION
FAQ
1. Are you a factory or trading company?
We are a certified factory with export licenses and 19 years of manufacturing experience.
2. Do you offer OEM services?
Yes, we have extensive OEM experience collaborating with global trading partners.
3. What about after-sales service?
We provide a 3-year full machine warranty, 12-hour response time, and 24/7 technical support.
4. How to choose the right machine?
Provide your material specs and functional requirements, and we will recommend the optimal solution based on our expertise.
5. Do you provide installation services?
Machines are pre-tested and ready-to-use. We include manuals, video guides, and offer onsite commissioning globally.
6. Can machines be customized?
Yes, customization is fully supported by our professional engineering team to meet your specific needs.
