Basic Info & Parameters
Model:CK-1530-7T-5AXIS
Voltage:380V
Grade:Automatic / High Precision
Control Mode:CNC (Taiwan Lnc System)
Product Name:5 Axis CNC Wood Lathe Machine
Repeat Accuracy:±0.02mm

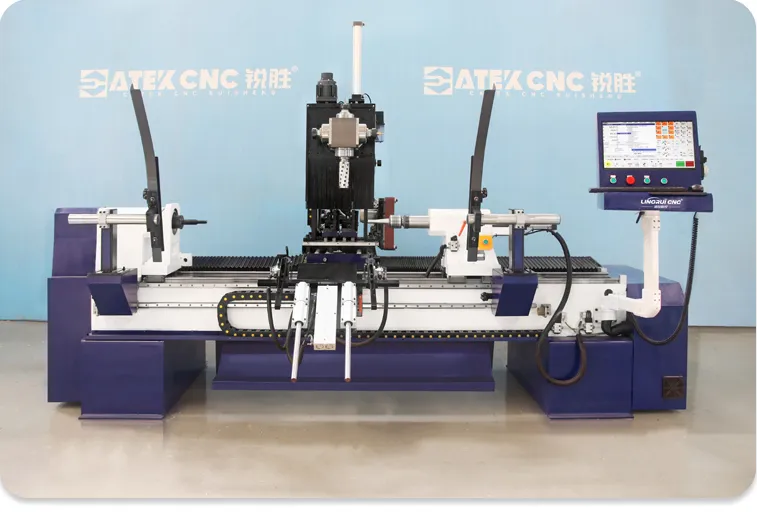

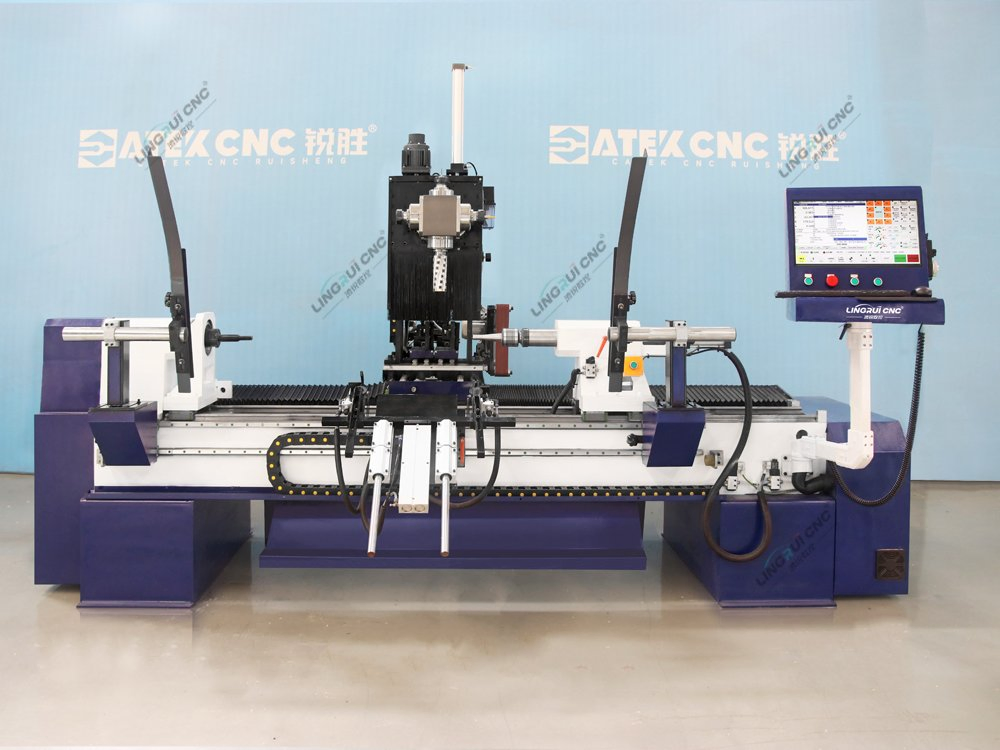

Machine Photos
Product Parameters
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds |
| Drive Motor | Bus-type absolute 1500W servo motor |

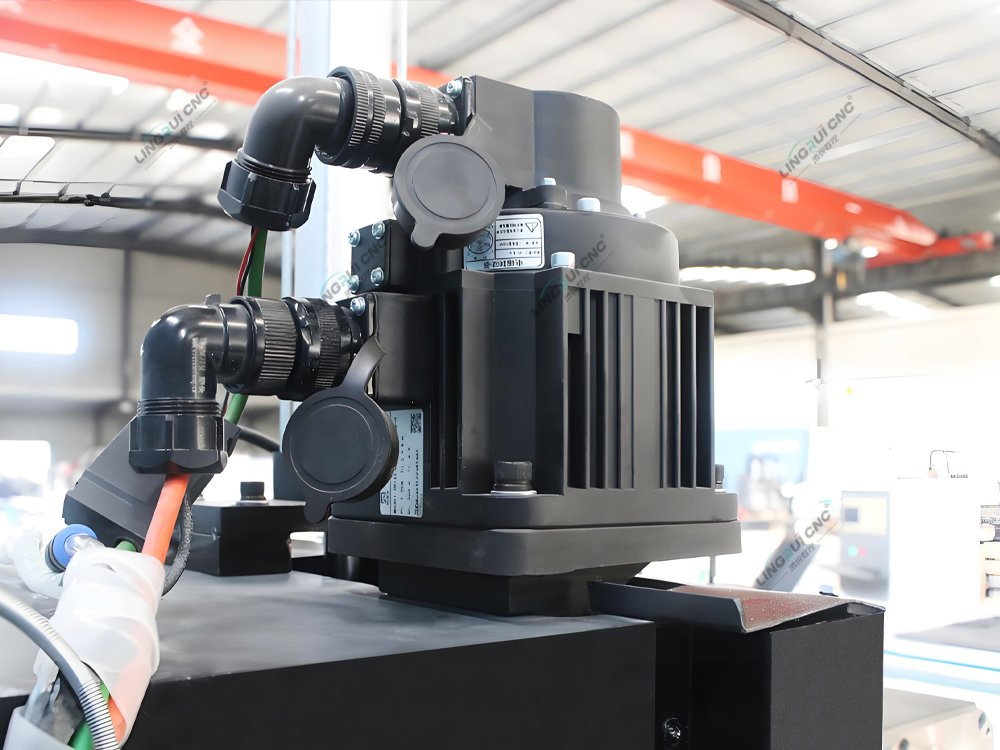

| Spindle Motor | 4KW pure servo high-torque motor |
| Spindle Speed | 0-6000r/min |
| Multi-functional Spindle | 7.5KW High-speed air-cooled (supports 5-axis RTCP) |
| Sanding Device | Independent 1100W variable frequency servo |
| Dimensions | 3750*2150*2150mm |
| Weight | 2300kg |
Technical Details

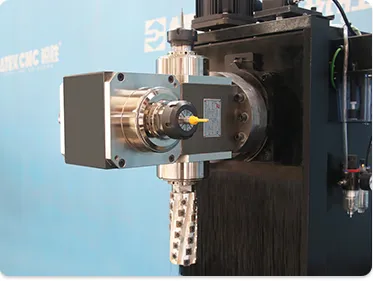

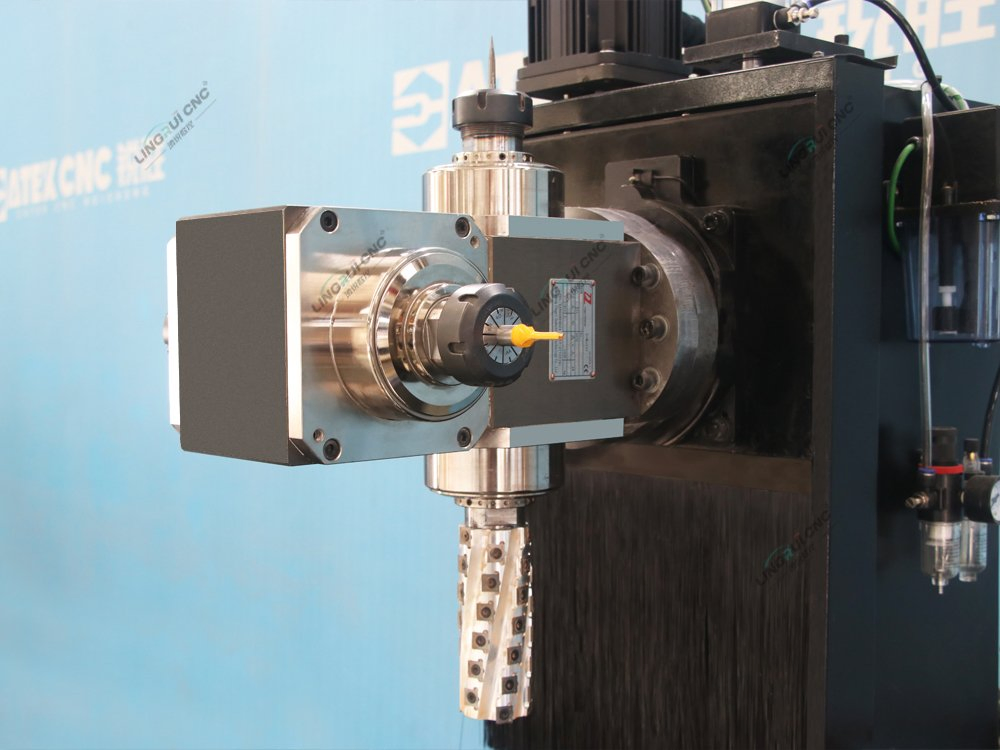

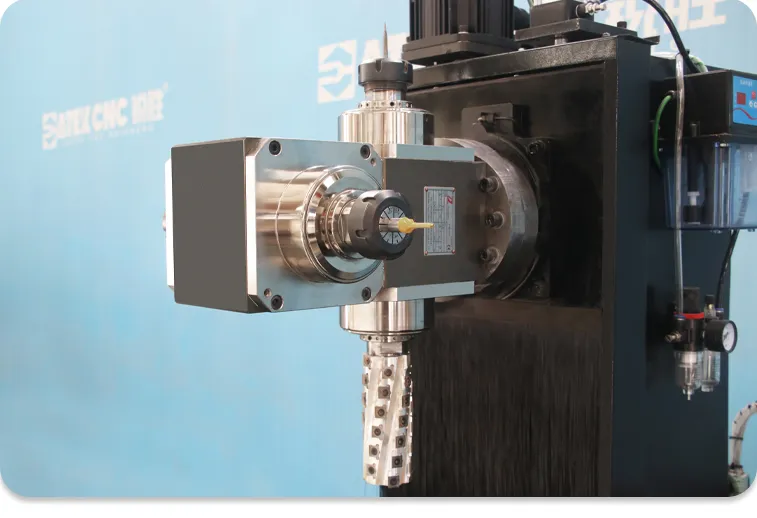

Four-Head Electric Spindle: Designed for five-axis machining centers with integrated design. Max speed 18,000 rpm, ER40 toolholder. Automatically switches tools and offers ±90-degree tilt for complex drilling and engraving.

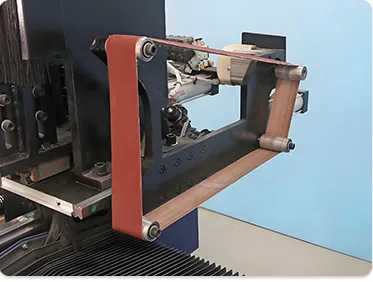

Sanding Belt Unit: Driven by an 1100W brushless servo motor (max 6000 rpm). Adjustable speed for customized grinding needs. Optional pulsating sanding units available.

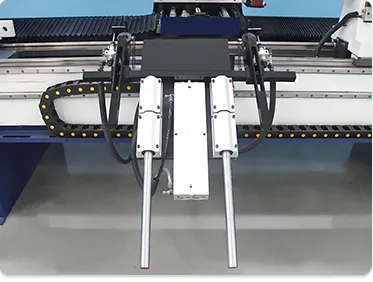

Automatic Feeding Device: Pneumatic four-link structure for high stability. Improves efficiency and saves labor by eliminating manual loading.
Sample Display & Applications
Application Range:
Furniture Manufacturing (Sofa legs, bedposts), Architectural Decoration (Roman columns), Musical Instruments (Guitar necks), and Craft Manufacturing (Human sculptures, vases).
Production & Certification
Frequently Asked Questions
1. Are you a factory or trading company?
We are a certified factory with professional export licenses and 19 years of manufacturing experience.
2. Do you offer OEM services?
Yes, we provide comprehensive OEM services for global partners based on our extensive industry expertise.
3. What is the after-sales service policy?
We provide a 3-year full machine warranty, 12-hour response guarantee, and 24/7 technical support.
4. How do I choose the right machine for my needs?
Provide your material specifications and product dimensions; our engineering team will recommend the optimal solution.
5. Is installation and training provided?
Machines are pre-tested and ready to use. We include operation manuals and video guides; onsite commissioning is also available.
6. Can the machines be customized?
Yes, full customization is supported by our dedicated engineering team to meet your specific production requirements.
