BASIC INFO
Certification
CE, ISO, FDA

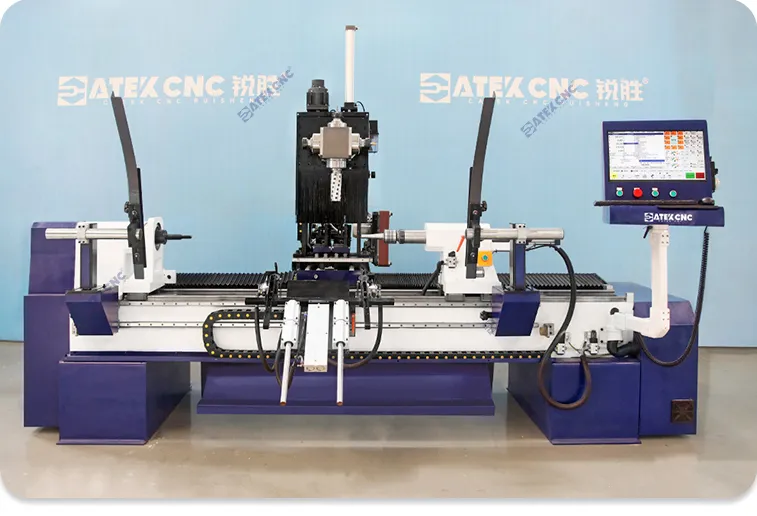

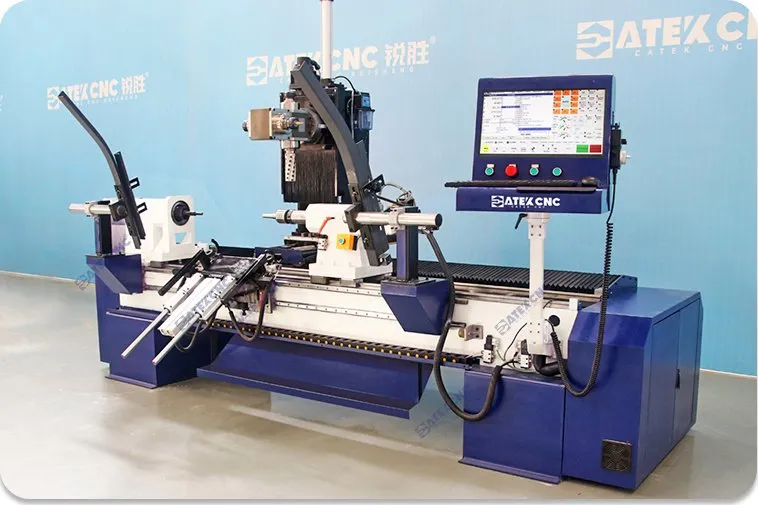

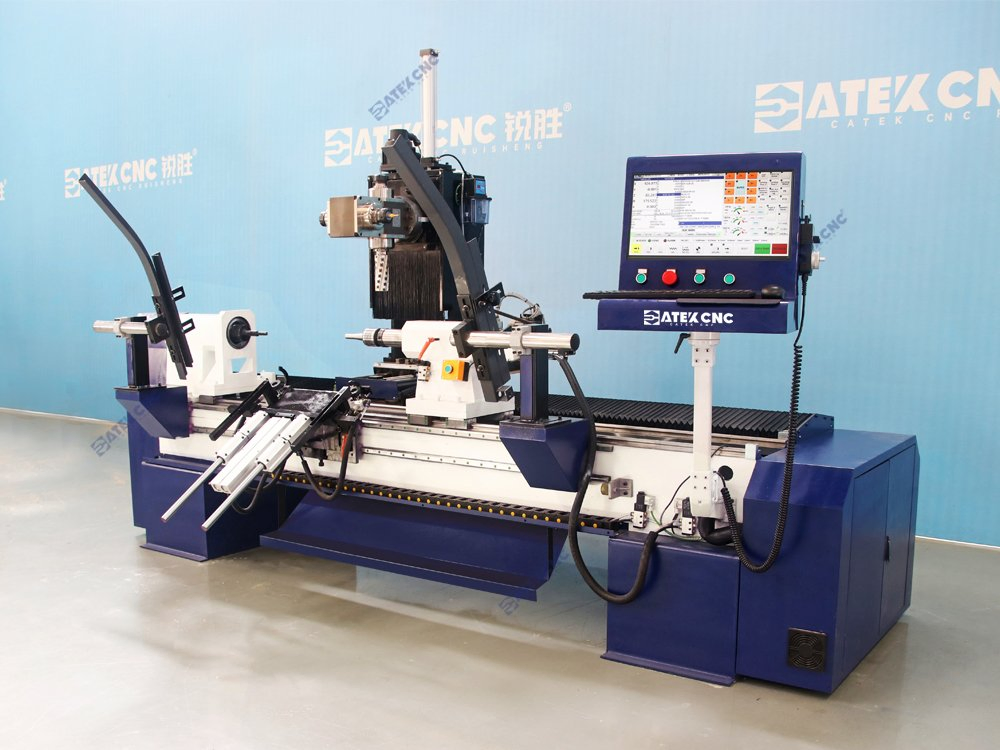

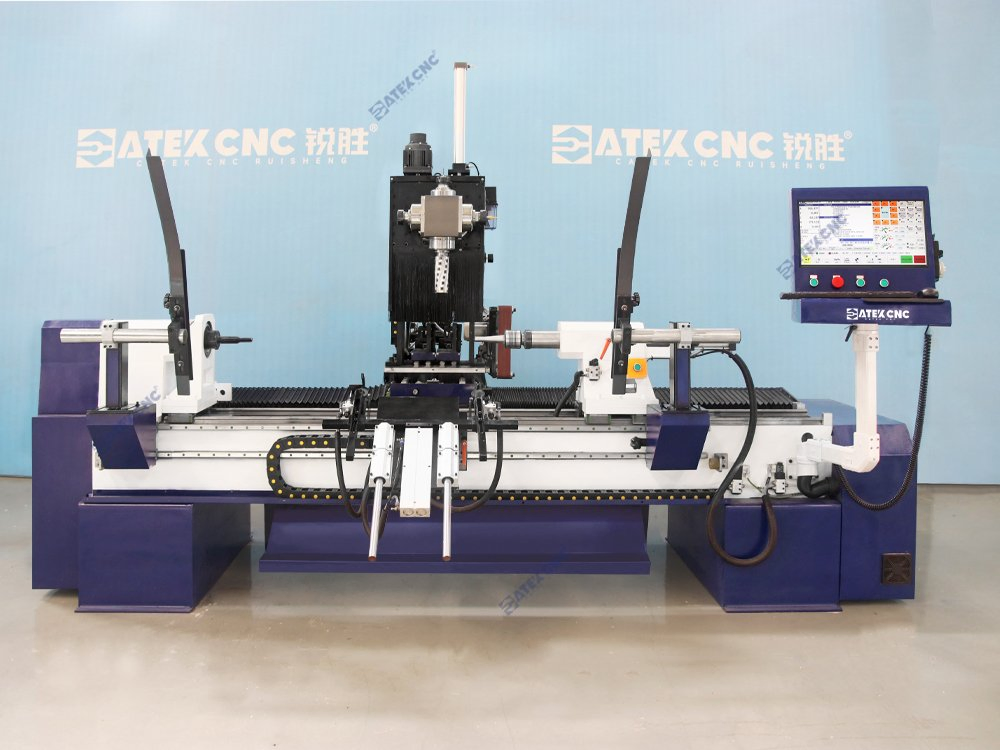

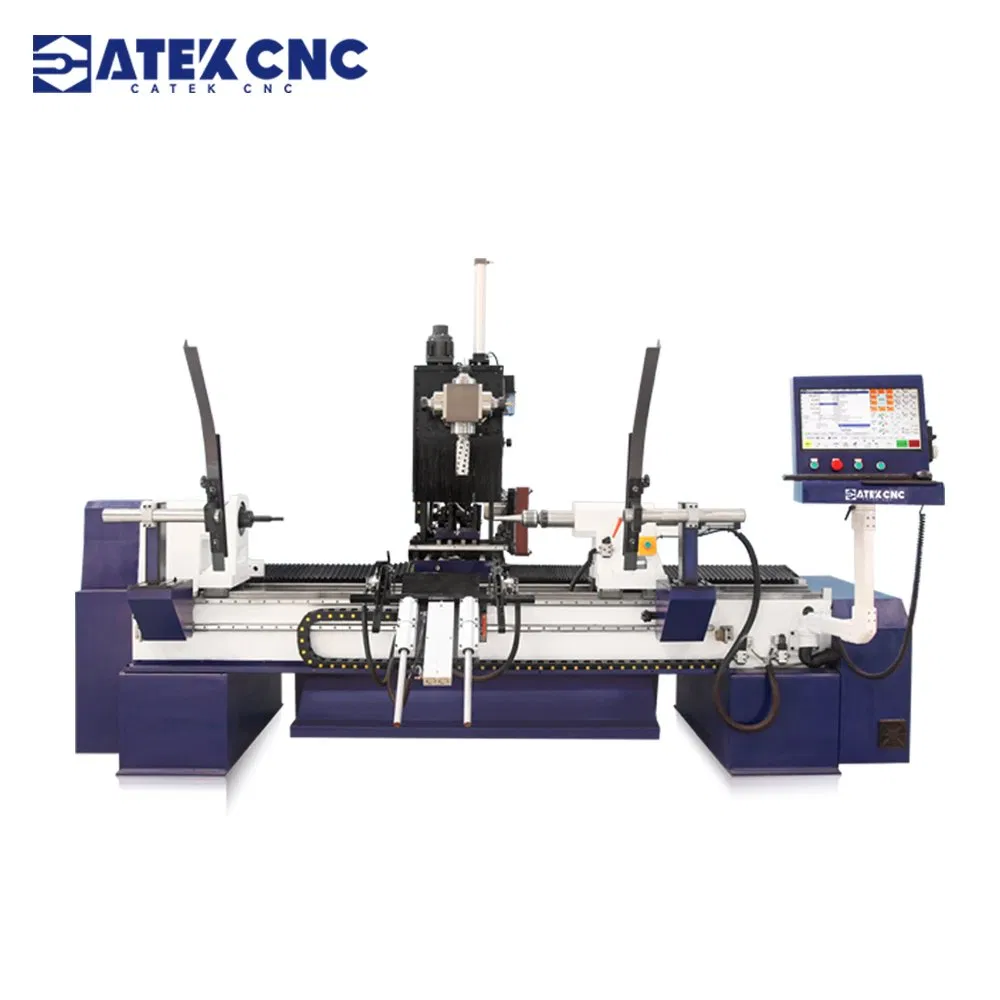

MACHINE PHOTOS
PRODUCT PARAMETERS
| Model | CK-1530-7T-5AXIS |
| Processing Dimensions | 1500 * 300mm |
| Drive-Spindle Motor | 4KW pure servo high-torque motor |
| Multi-functional Spindle | 7.5KW high-speed air-cooled four-head spindle |
| Control System | Taiwan LNC control system |
| Linear Axis Drive | Bus-type absolute 1500W servo motor |
| Repeat Accuracy | ±0.02mm |
| Dimensions | 3750*2150*2150mm |
DETAILS IMAGES

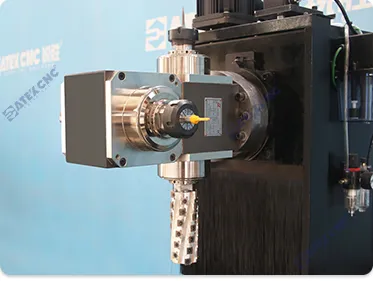

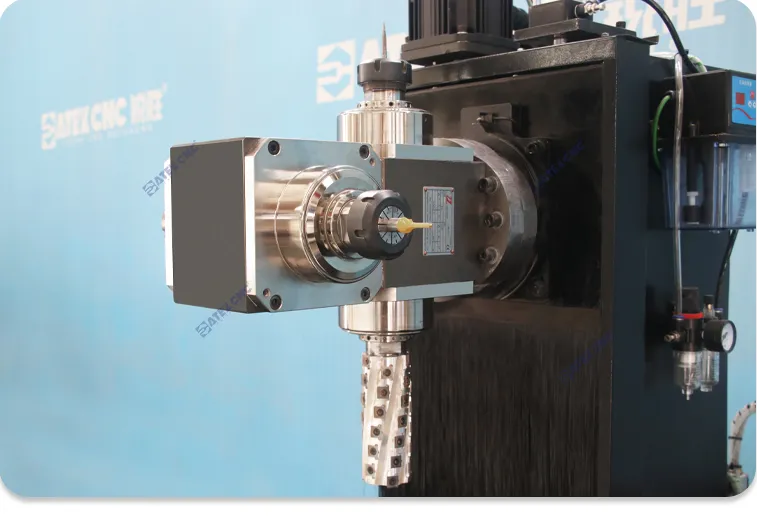

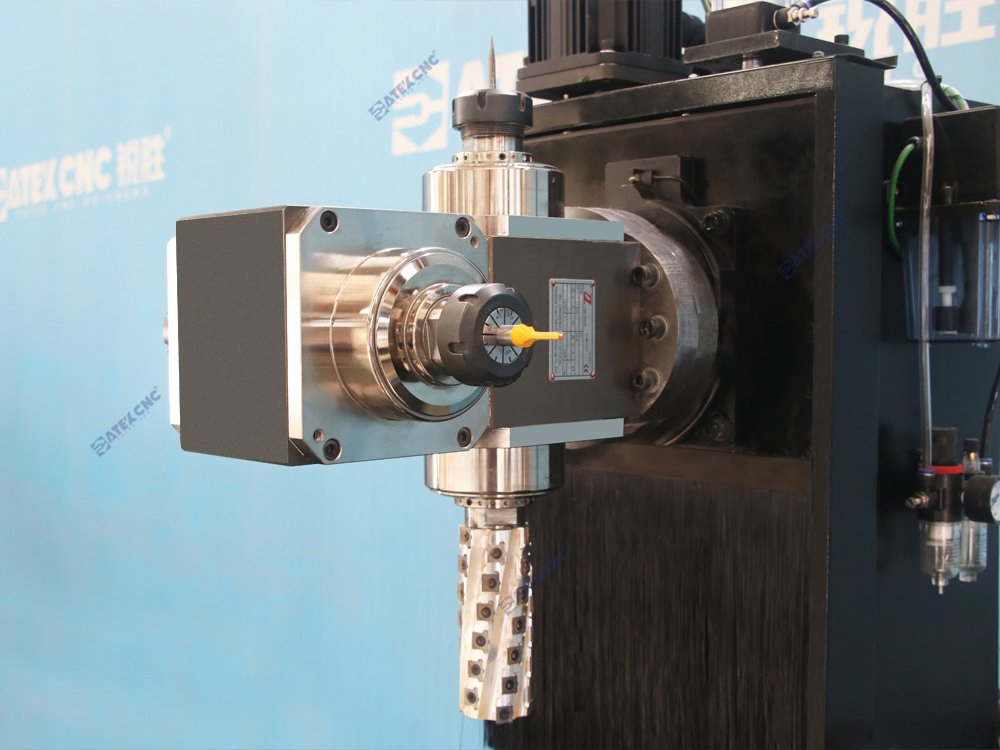

The four-head electric spindle features an integrated design with a maximum speed of 18,000 rpm. It automatically rotates and switches tools according to the drawing.

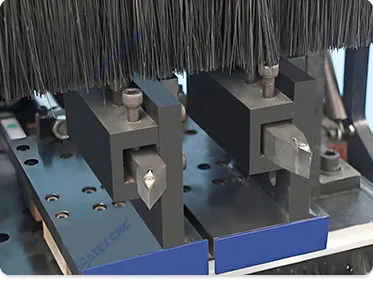

Equipped with two turning tool mounting positions switched via a pneumatic cylinder, meeting diverse turning needs for V, U, and O-type tools.

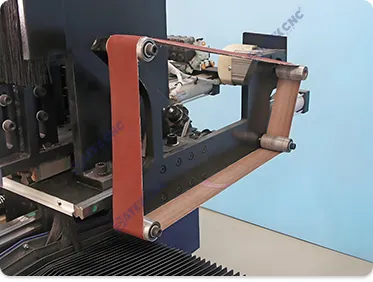

1100W brushless servo motor driven sanding belt unit for grinding, with speed adjustable up to 6000 rpm.

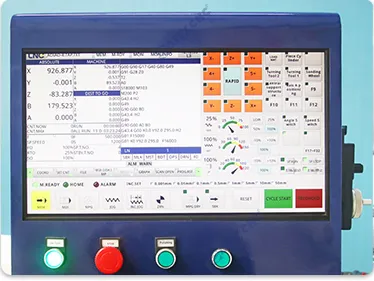

Taiwan LNC five-axis CNC system supports RTCP and handwheel simulation with an intuitive user interface.

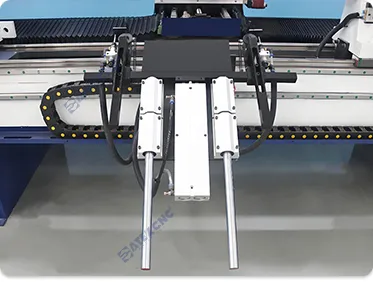

The pneumatic automatic feeding device features a four-link structure for stability and high load-bearing capacity.

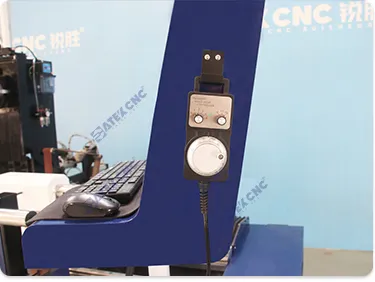

External five-axis pulse control handwheel allows for precise adjustment of X, Y, Z, and A axes.
SAMPLE DISPLAY
The CK-1530-7T-5AXIS multi-function lathe meets complex processing needs for furniture manufacturing, musical instruments, and architectural decoration including special-shaped table legs, chair backs, and Roman columns.
COMPANY CERTIFICATION
FAQ
Are you a factory or trading company?
We are a certified factory with export licenses and extensive manufacturing experience.
Do you offer OEM services?
Yes, we have 19 years of OEM experience collaborating with global partners.
What about after-sales service?
We provide a 3-year full machine warranty, 12-hour response time, and 24/7 technical support.
How to choose the right machine?
Provide your material specifications and dimensions; we will recommend the optimal solution based on our expertise.
Do you provide installation services?
Machines are pre-tested and ready-to-use. We include manuals and video guides; onsite commissioning is available globally.
Can machines be customized?
Full customization is supported by our professional engineering team to meet your specific requirements.
