Overview
| Model NO. | CK-1530-7T-5AXIS |
| Product Name | 5 Axis CNC Wood Lathe Machine |
| Voltage | 380V |
| Controlling Mode | CNC |

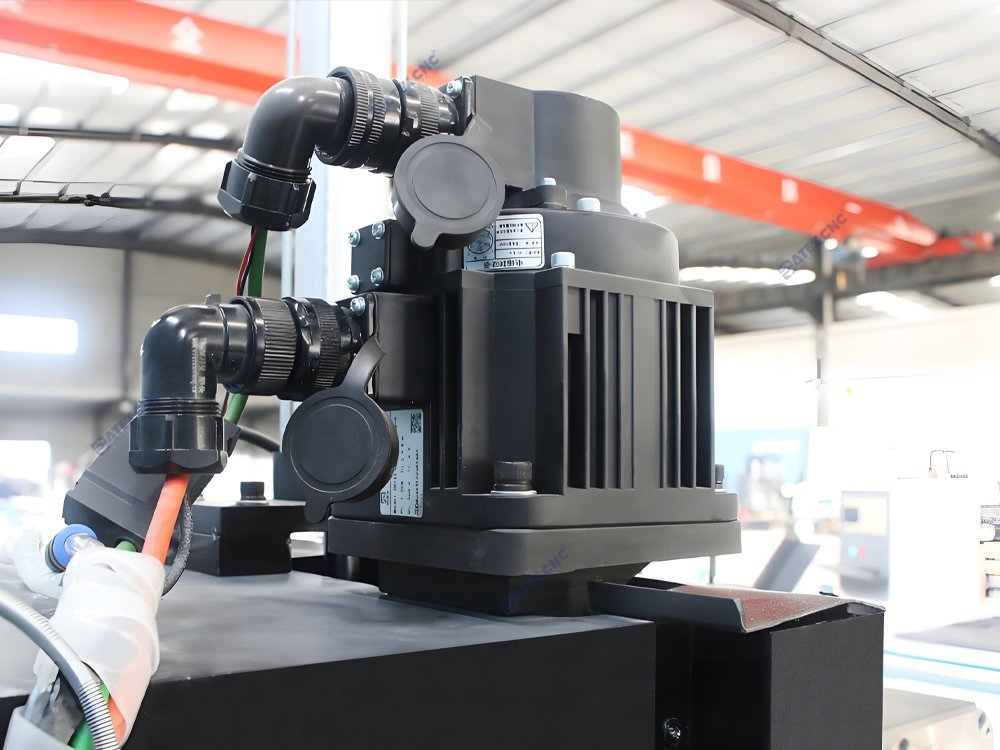

| Linear Axis Motor | Bus-Type Absolute 1500W Servo Motor |
| Spindle Motor | 4kw Pure Servo High-Torque Motor |
| Control System | Taiwan Lnc Control System |
| Certification | CE, ISO, FDA |
| Repeat Accuracy | ±0.02mm |
| Specification | 3750*2150*2150mm |

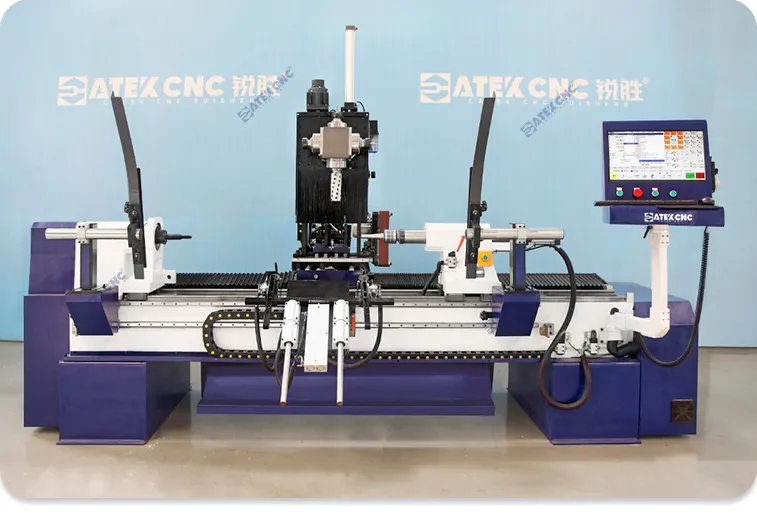

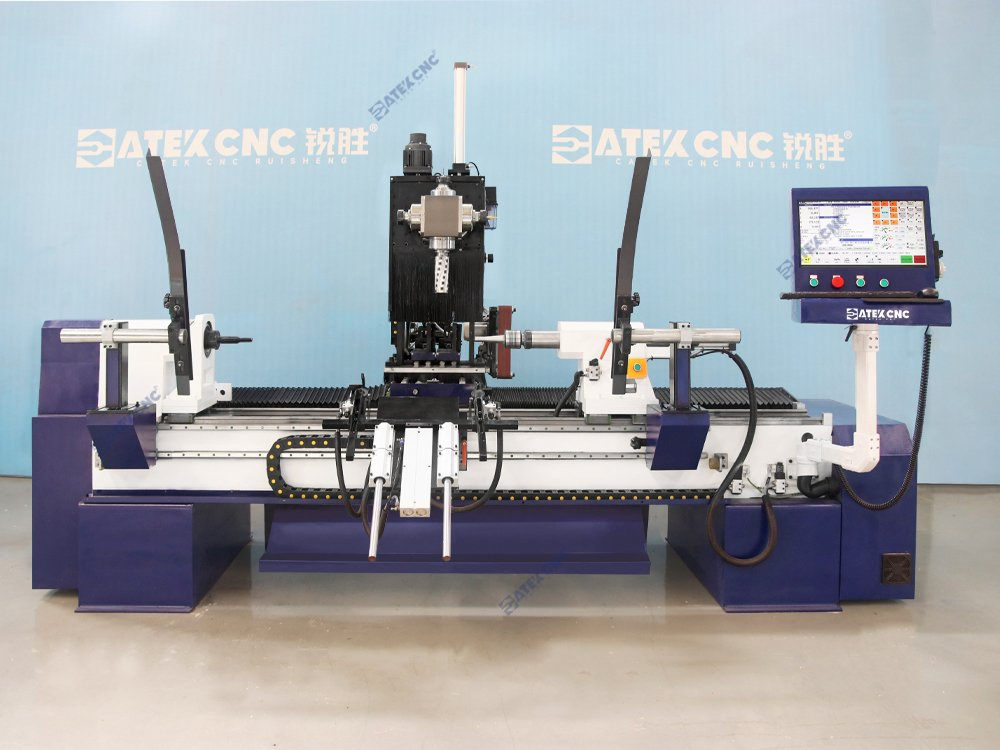

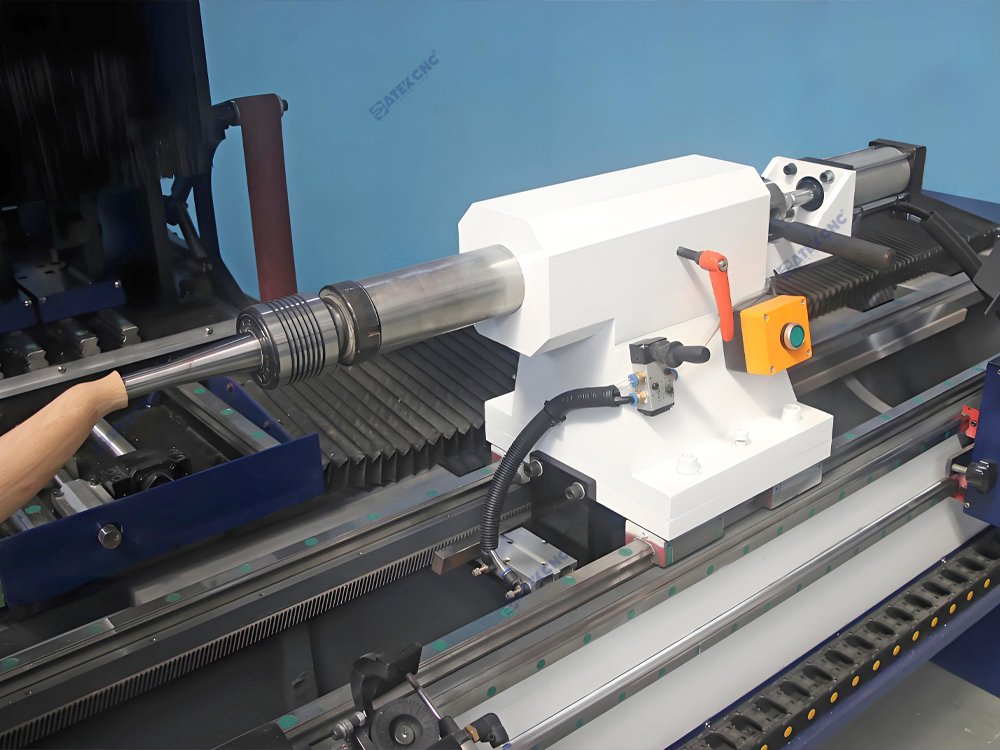

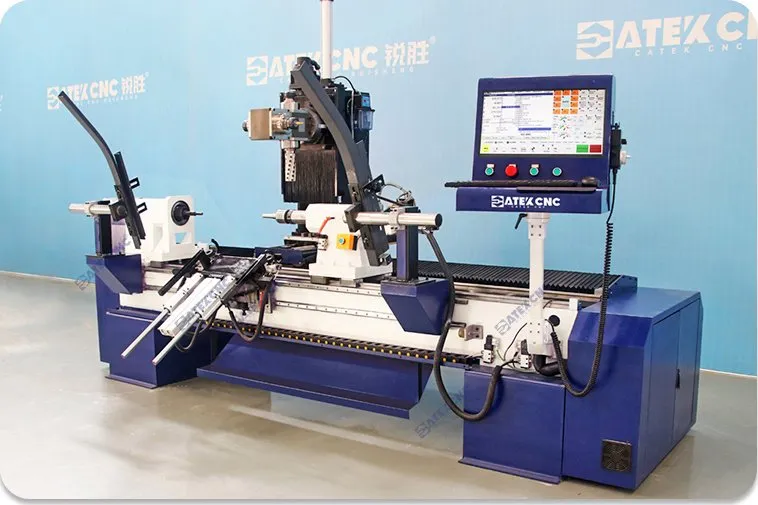

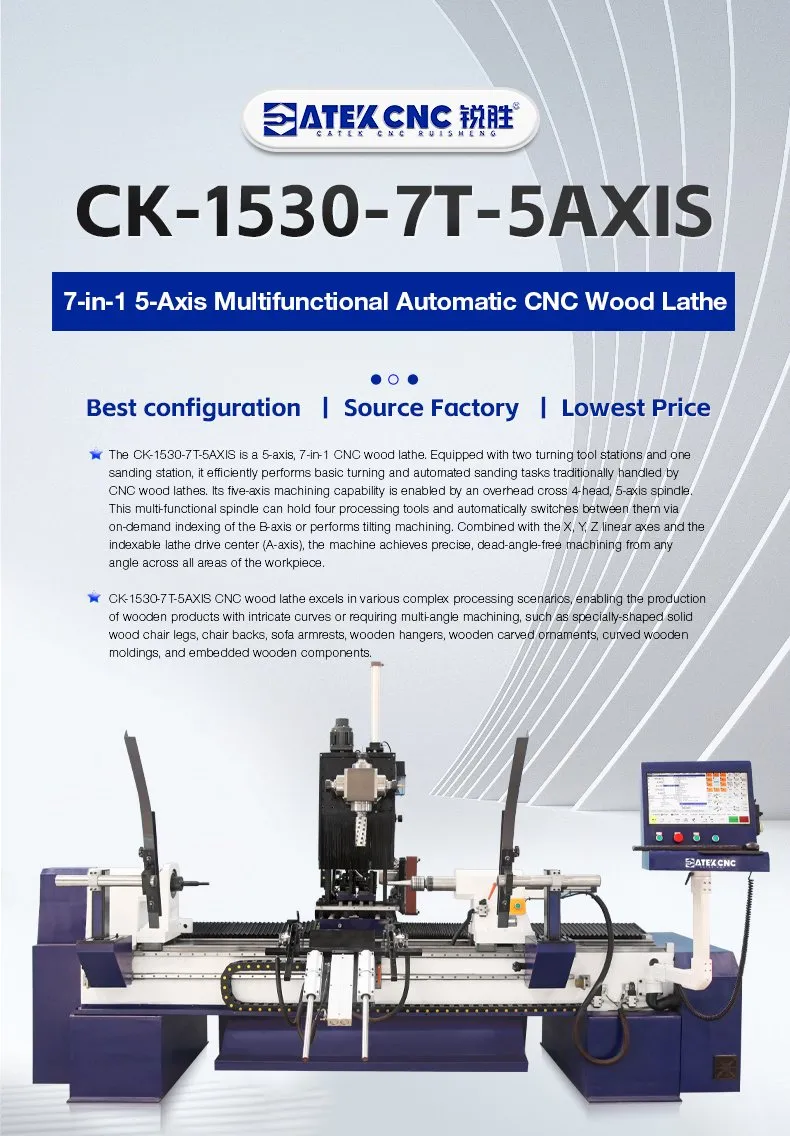

MACHINE PHOTOS
PRODUCT PARAMETERS
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds |
| Multi-functional Spindle | 7.5KW air-cooled four-head spindle |
| Drive-Spindle Speed | 0-6000r/min |
| Sanding Device | 1100W variable frequency servo motor |
| Compatible Software | Artcam, Type3, AutoCAD, Mastercam, etc. |
| Weight | 2300kg |
DETAILS IMAGES

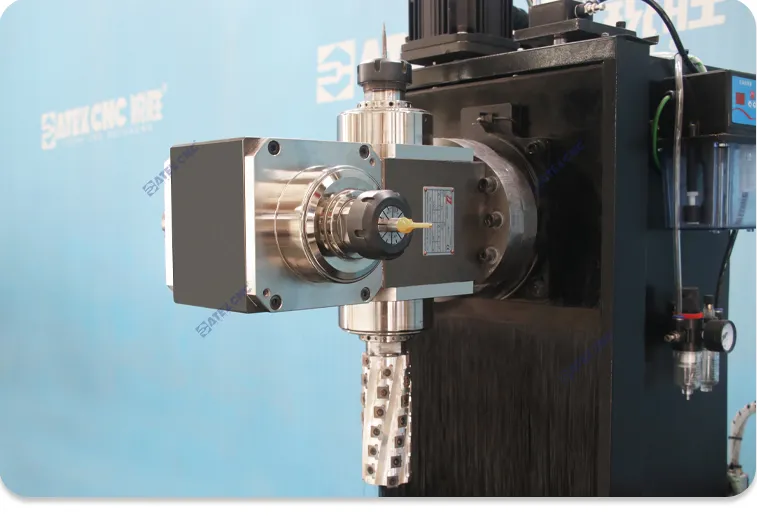

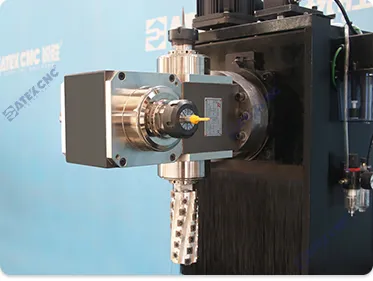

The four-head electric spindle features an integrated design with a maximum speed of 18,000 rpm. Equipped with an ER40 toolholder, it supports 5-axis RTCP for complex processes like drilling, grooving, and engraving on inclined surfaces.

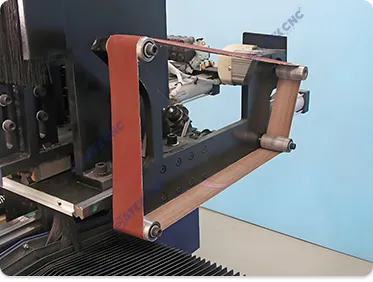

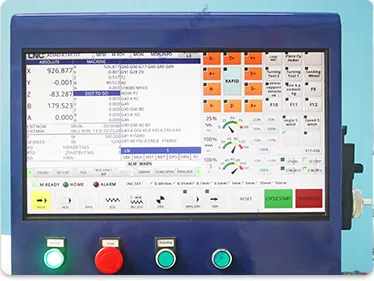

Equipped with a sanding belt unit driven by an 1100W brushless servo motor. The Taiwan LNC five-axis CNC system provides an intuitive interface with handwheel simulation support.
SAMPLE DISPLAY
Applications: Furniture manufacturing (special shaped table legs, sofa armrests), Architectural decoration (Roman columns, staircase columns), Musical instruments (guitar necks), and Craft manufacturing.
COMPANY CAPABILITIES
Frequently Asked Questions
Are you a factory or trading company?
We are a certified factory with export licenses and 19 years of OEM experience.
What about after-sales service?
We provide a 3-year full machine warranty, 12-hour response time, and 24/7 technical support.
How do I choose the right machine?
Provide your material specifications and functional requirements, and we will recommend the optimal solution.
Do you provide installation services?
Machines are pre-tested and ready-to-use. We provide manuals, video guides, and onsite commissioning.
Can the machines be customized?
Yes, customization is fully supported by our professional engineering team.
Can you provide sample processing videos?
Free sample processing videos are available upon request to verify functionality.
