Basic Info.
Model NO.
CA-1530/1540/1560
Tool Holder
Double-tool Holder CNC Lathe
Certification
CE, ISO, FDA
Max Turning Diameter
300mm
Control System
DSP Control System
Product Description

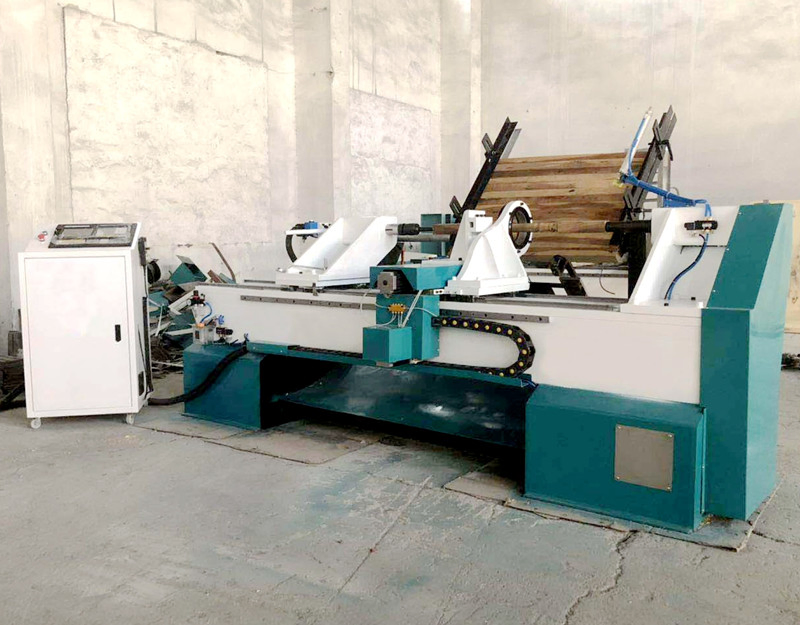

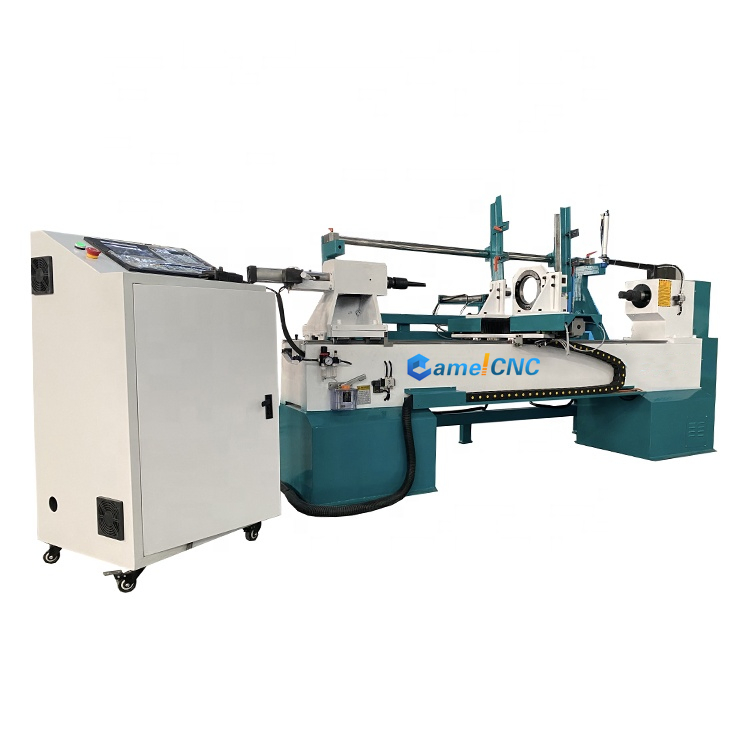

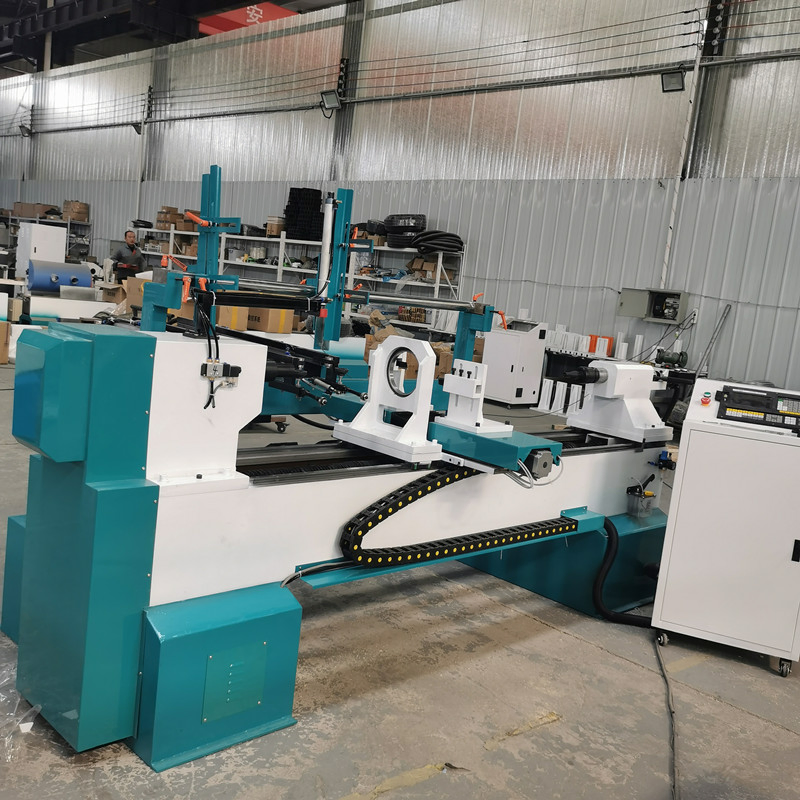

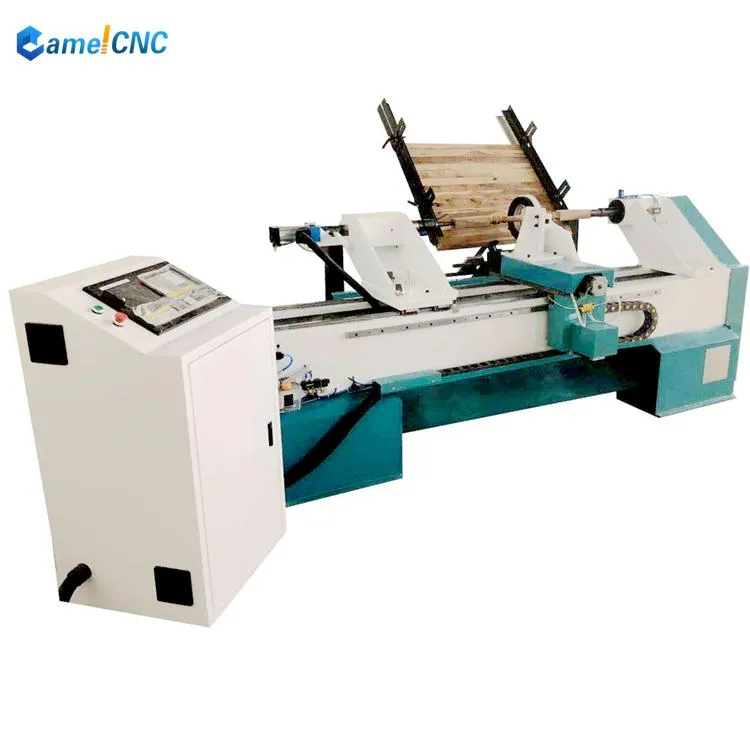

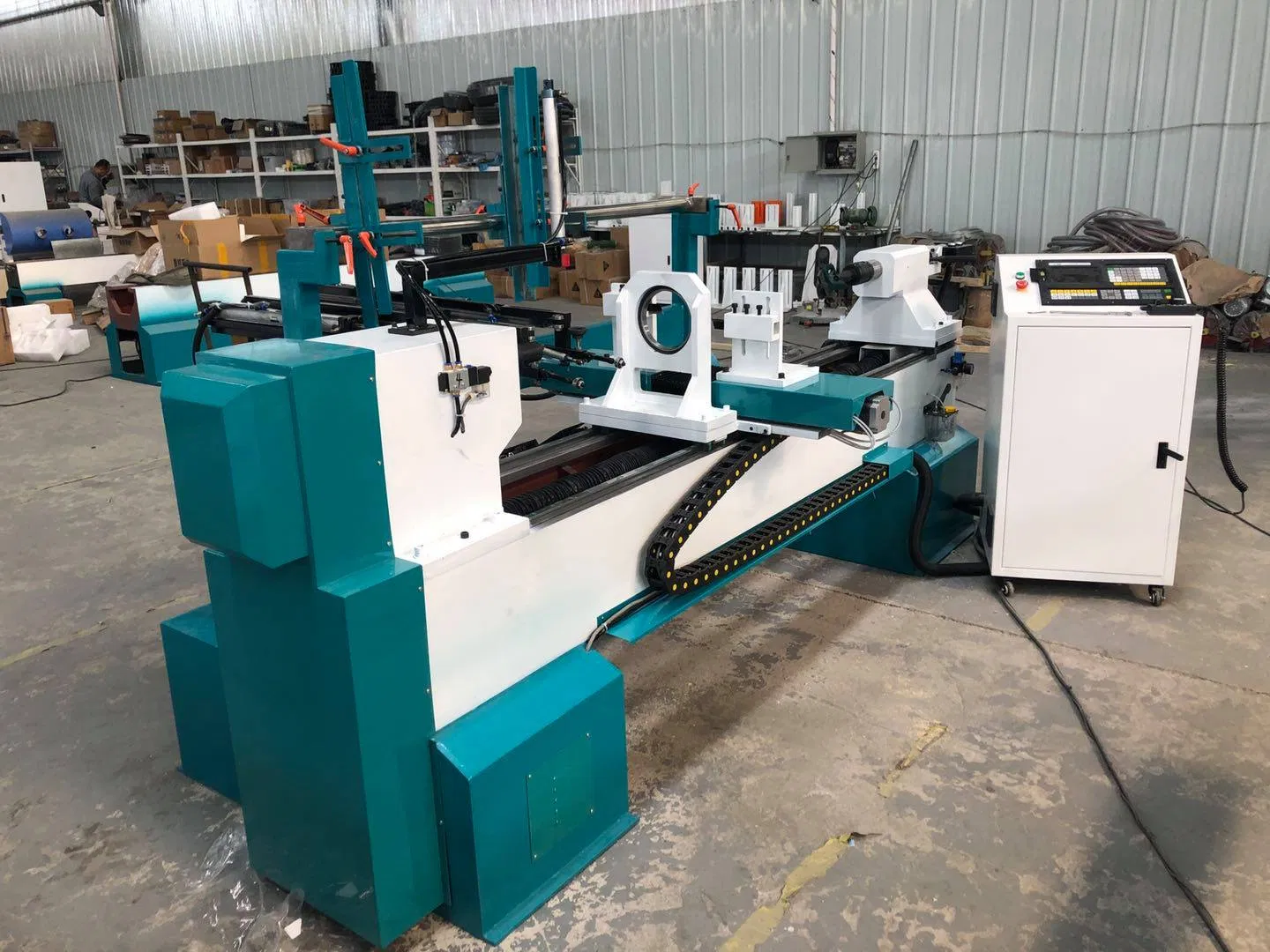

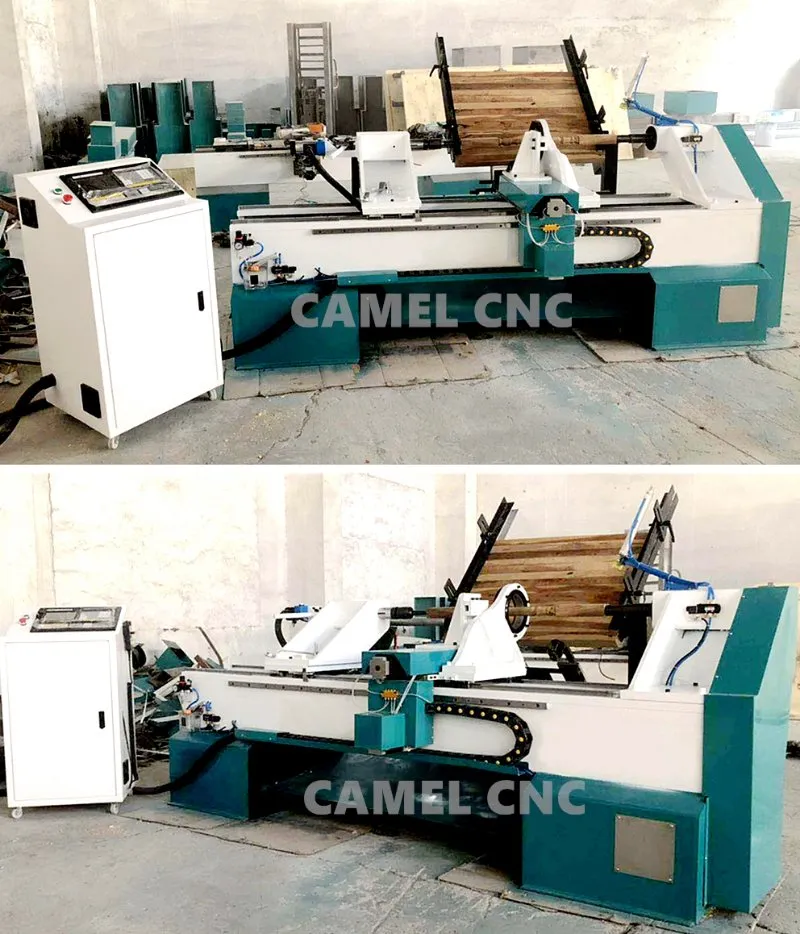

300mm diameter Auto Feeding Industrial Wood Turning Lathe for wood legs
Product Parameters
| Model | CA-1530 |
| Max processing length | 1500mm(can custom 2000/2500/3000mm) |
| Max turning diameter | 300mm |
| Air pressure | 0.6-0.8Mpa |
| Power supply | AC 380V 3 phase 50HZ/60HZ(can custom 220V) |
| Max feed rate | 2000mm/min |
| Transmission type | Ball screw for Y axis |
| Guider | Taiwan Hiwin orbit |
| Main shaft rotating speed | 0-3000r/min |
| Control System | DSP control system |

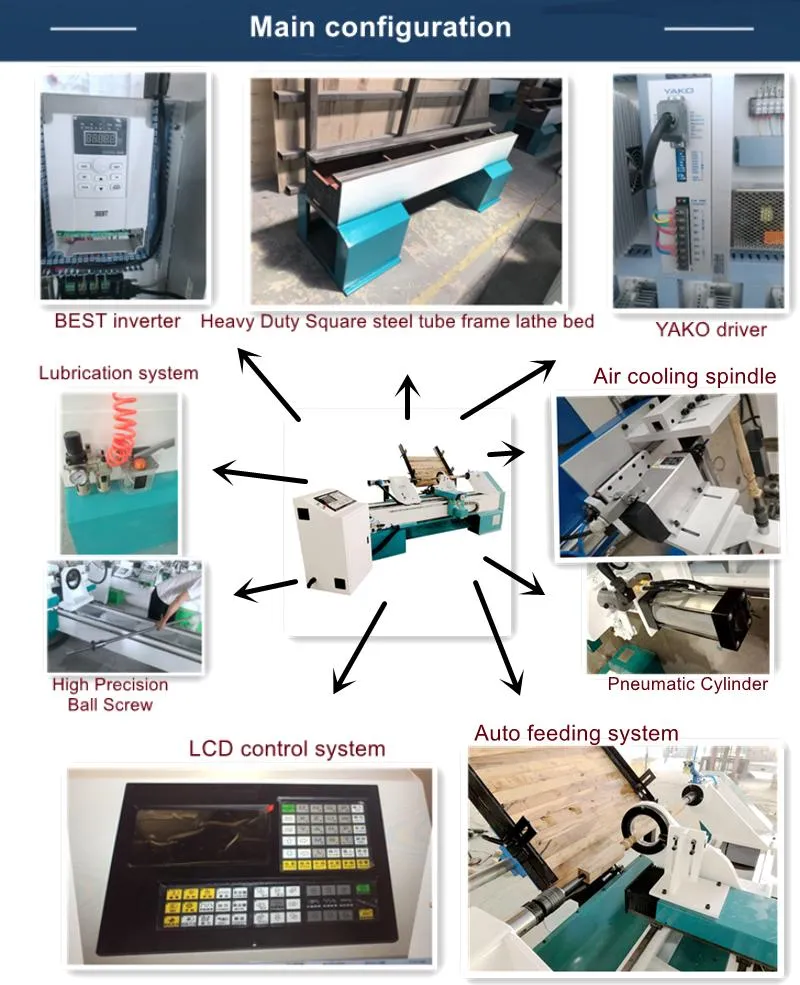

Features
Whole machine is welded with seamless steel structure, high temperature annealing, weight up to 1500kgs.
Specialized for wood turning and cylinder engraving (table legs, stair railings, etc).
Advanced handheld DSP system with USB port, easy operation without computer.
Adopt Germany ball screw and Taiwan HIWIN helical square guide rail.
Compatible with CAD/CAM design software like type3, artcam, etc.
One time tool setting to finish the whole work piece.
Turning, broaching and engraving integrated in one high-speed machine.

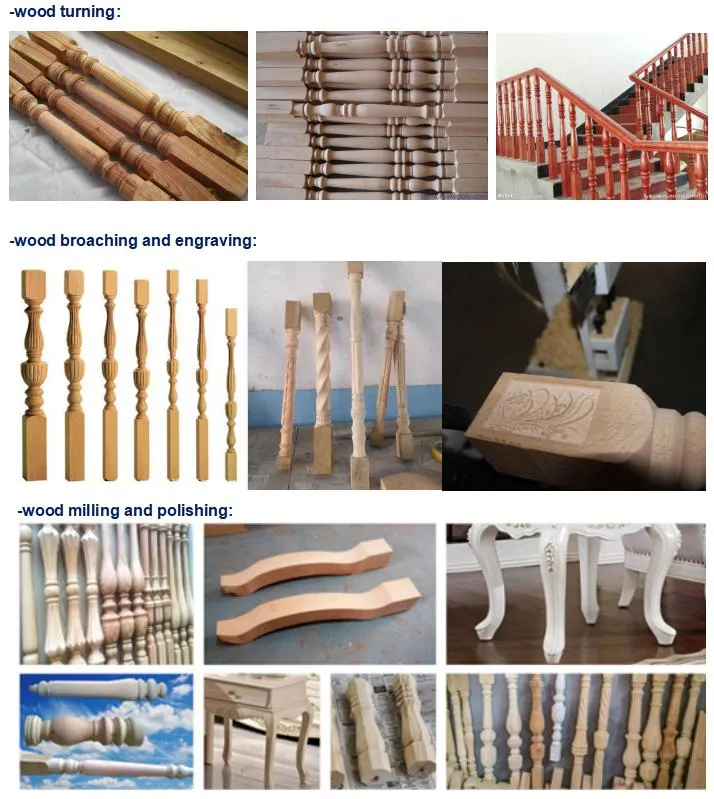

Sample & Applications
Staircases, stairway balusters, dining table legs, end table legs, sofa table legs, bar stool legs, chair legs, baseball bats.
Packaging & Shipping
After Sales Service
FAQ
How to choose a suitable machine?
Tell us your material, size, and function requirements. We will recommend the most suitable machine based on our extensive experience.
Is it easy to operate for a first-time buyer?
Yes, we provide operation manuals and videos. We can also provide online support via remote desktop tools or video calls to guide you.
What is the guarantee policy?
The machine comes with a 3-year guarantee. Failed parts are replaced free of charge under normal operating conditions.
What is the delivery time?
Standard machines typically take 7-10 working days, while non-standard customized machines take 20-30 working days.
How is the machine packed for shipping?
We use a three-step process: waterproof wrapping film with foam protection, followed by a solid seaworthy wood box secured with steel belts.
Can you customize the machine?
Yes, we provide customized solutions. We usually suggest a standard configuration first to help you manage costs efficiently.
